Quasiparticle Poisoning of Superconducting Qubits with Active Gamma Irradiation

C.P. Larson1, E. Yelton1, K. Dodge2, K. Okubo1, J. Batarekh1,3, V. Iaia1, N.A. Kurinsky4, and B.L.T. Plourde1,3,*

  • *Contact author: bplourde@wisc.edu
PDF

PRX Quantum 6, 030339 – Published 2 September, 2025

DOI: https://doi.org/10.1103/2lyd-8swv

Abstract

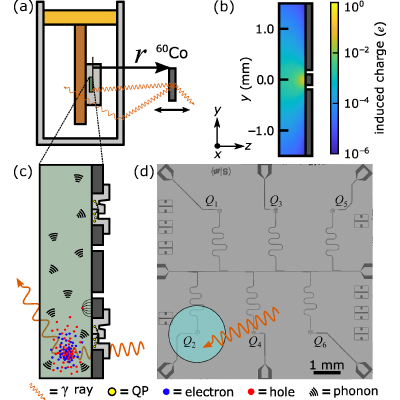

When a high-energy particle, such as a γ ray or muon, impacts the substrate of a superconducting qubit chip, large numbers of electron-hole pairs and phonons are created. The ensuing dynamics of the electrons and holes changes the local offset-charge environment for qubits near the impact site. The phonons that are produced have energy above the superconducting gap in the films that compose the qubits, leading to quasiparticle excitations above the superconducting ground state when the phonons impinge on the qubit electrodes. An elevated density of quasiparticles degrades qubit coherence, leading to errors in qubit arrays. Because these pair-breaking phonons spread throughout much of the chip, the errors can be correlated across a large portion of the array, posing a significant challenge for quantum error correction. In order to study the dynamics of γ-ray impacts on superconducting qubit arrays, we use a γ-ray source outside the dilution refrigerator to controllably irradiate our devices. By using charge-sensitive transmon qubits, we can measure both the offset-charge shifts and quasiparticle poisoning due to the γ irradiation at different doses. We study correlations between offset-charge shifts and quasiparticle poisoning for different qubits in the array and compare these with numerical modeling of charge and phonon dynamics following a γ-ray impact. We thus characterize the poisoning footprint of these impacts and quantify the performance of structures for mitigating phonon-mediated quasiparticle poisoning.

View figure in article

Physics Subject Headings (PhySH)

Popular Summary

Superconducting qubits are a leading platform for implementing fault-tolerant quantum computers. However, impacts of high-energy particles, such as γ rays from background radioactivity, are detrimental to superconducting devices because they lead to enhanced qubit errors that are correlated throughout the array. Current quantum error-correction schemes cannot recover from such correlated errors. We perform experiments using a calibrated γ ray source to irradiate superconducting qubit arrays. We characterize the spatial footprint of the poisoning process following a γ ray impact that leads to correlated errors, and use this to assess the performance of different hardware strategies for mitigating the poisoning.

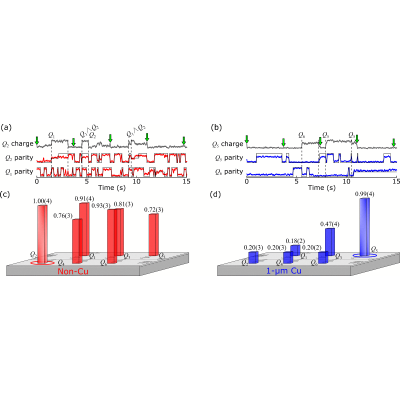

We use some of the qubits in our arrays to sense the charge environment, which is modified following an impact of an ionizing γ ray that generates many electron-hole pairs. The impact event also produces numerous energetic phonons that can spread throughout the entire chip, leading to temporary poisoning of the qubits, and hence enhanced errors, when the phonons impinge on the qubit device layer. We use this charge-sensing mode, combined with detailed numerical modeling of the charge dynamics, as a trigger for an impact, then study correlations in the phonon-mediated poisoning levels on all qubits in the array.

Quantum error-correction schemes that can identify and manage impacts during the run-time of a quantum processor have been developed recently, and knowledge of the poisoning footprint is vital. Further studies using active radiation sources to characterize strategies for mitigating correlated errors will aid the development of radiation-resilient quantum processors.

Article Text

References (38)

  1. A. P. Vepsäläinen, A. H. Karamlou, J. L. Orrell, A. S. Dogra, B. Loer, F. Vasconcelos, D. K. Kim, A. J. Melville, B. M. Niedzielski, J. L. Yoder, et al., Impact of ionizing radiation on superconducting qubit coherence, Nature 584, 551 (2020).
  2. L. Cardani, F. Valenti, N. Casali, G. Catelani, T. Charpentier, M. Clemenza, I. Colantoni, A. Cruciani, G. D’Imperio, L. Gironi, et al., Reducing the impact of radioactivity on quantum circuits in a deep-underground facility, Nat. Commun. 12, 2733 (2021).
  3. C. D. Wilen, S. Abdullah, N. A. Kurinsky, C. Stanford, L. Cardani, G. D’Imperio, C. Tomei, L. Faoro, L. B. Ioffe, C. H. Liu, et al., Correlated charge noise and relaxation errors in superconducting qubits, Nature 594, 369 (2021).
  4. M. McEwen, L. Faoro, K. Arya, A. Dunsworth, T. Huang, S. Kim, B. Burkett, A. Fowler, F. Arute, J. C. Bardin, et al., Resolving catastrophic error bursts from cosmic rays in large arrays of superconducting qubits, Nat. Phys. 18, 107 (2022).
  5. P. M. Harrington, M. Li, M. Hays, W. Van De Pontseele, D. Mayer, H. D. Pinckney, F. Contipelli, M. Gingras, B. M. Niedzielski, H. Stickler, et al., Synchronous detection of cosmic rays and correlated errors in superconducting qubit arrays, Nat. Commun. 16, 6428 (2025).
  6. X. Li, J. Wang, Y.-Y. Jiang, G.-M. Xue, X. Cai, J. Zhou, M. Gong, Z.-F. Liu, S.-Y. Zheng, D.-K. Ma, et al., Cosmic-ray-induced correlated errors in superconducting qubit array, Nat. Commun. 16, 4677 (2025).
  7. J. W. Fowler, P. Szypryt, R. Bunker, E. R. Edwards, I. Fogarty Florang, J. Gao, A. Giachero, S. F. Hoogerheide, B. Loer, H. P. Mumm, et al., Spectroscopic measurements and models of energy deposition in the substrate of quantum circuits by natural ionizing radiation, PRX Quantum 5, 040323 (2024).
  8. J. M. Martinis, Saving superconducting quantum processors from decay and correlated errors generated by gamma and cosmic rays, npj Quantum Inf. 7, 90 (2021).
  9. A. G. Fowler, M. Mariantoni, J. M. Martinis, and A. N. Cleland, Surface codes: Towards practical large-scale quantum computation, Phys. Rev. A 86, 032324 (2012).
  10. Google Quantum AI, Suppressing quantum errors by scaling a surface code logical qubit, Nature 614, 676 (2023).
  11. Google Quantum AI and Collaborators, Quantum error correction below the surface code threshold, Nature 638, 920 (2025).
  12. L. Cardani, I. Colantoni, A. Cruciani, F. De Dominicis, G. D’Imperio, M. Laubenstein, A. Mariani, L. Pagnanini, S. Pirro, C. Tomei, et al., Disentangling the sources of ionizing radiation in superconducting qubits, Eur. Phys. J. C 83, 94 (2023).
  13. F. D. Dominicis, T. Roy, A. Mariani, M. Bal, N. Casali, I. Colantoni, F. Crisa, A. Cruciani, F. Ferroni, D. L. Helis, et al., Evaluating radiation impact on transmon qubits in above and underground facilities, arXiv:2405.18355.
  14. G. Bratrud, S. Lewis, K. Anyang, A. C. Cesaní, T. Dyson, H. Magoon, D. Sabhari, G. Spahn, G. Wagner, R. Gualtieri, et al., First measurement of correlated charge noise in superconducting qubits at an underground facility, arXiv:2405.04642.
  15. B. Loer, P. M. Harrington, B. Archambault, E. Fuller, B. Pierson, I. J. Arnquist, K. Harouaka, T. D. Schlieder, D. K. Kim, A. J. Melville, et al., Abatement of ionizing radiation for superconducting quantum devices, J. Instrum. 19, P09001 (2024).
  16. M. McEwen, K. C. Miao, J. Atalaya, A. Bilmes, A. Crook, J. Bovaird, J. M. Kreikebaum, N. Zobrist, E. Jeffrey, B. Ying, et al., Resisting high-energy impact events through gap engineering in superconducting qubit arrays, Phys. Rev. Lett. 133, 240601 (2024).
  17. V. Iaia, J. Ku, A. Ballard, C. P. Larson, E. Yelton, C. H. Liu, S. Patel, R. McDermott, and B. L. T. Plourde, Phonon downconversion to suppress correlated errors in superconducting qubits, Nat. Commun. 13, 6425 (2022).
  18. E. Yelton, C. P. Larson, V. Iaia, K. Dodge, G. La Magna, P. G. Baity, I. V. Pechenezhskiy, R. McDermott, N. A. Kurinsky, G. Catelani, and B. L. T. Plourde, Modeling phonon-mediated quasiparticle poisoning in superconducting qubit arrays, Phys. Rev. B 110, 024519 (2024).
  19. B. O. Sane, R. V. Meter, and M. Hajdusek, in 2023 IEEE International Conference on Quantum Computing and Engineering (QCE) (Bellevue, WA, USA, 2023), pp. 1378–1388.
  20. Q. Xu, A. Seif, H. Yan, N. Mannucci, B. O. Sane, R. Van Meter, A. N. Cleland, and L. Jiang, Distributed quantum error correction for chip-level catastrophic errors, Phys. Rev. Lett. 129, 240502 (2022).
  21. E. Browne and J. Tuli, Nuclear data sheets for A = 60, Nucl. Data Sheets 114, 1849 (2013).
  22. S. Agostinelli, J. Allison, K. Amako, J. Apostolakis, H. Araujo, P. Arce, M. Asai, D. Axen, S. Banerjee, G. Barrand, et al., Geant4—a simulation toolkit, Nucl. Instrum. Methods Phys. Res. Section A 506, 250 (2003).
  23. J. Allison, K. Amako, J. Apostolakis, H. Araujo, P. Arce Dubois, M. Asai, G. Barrand, R. Capra, S. Chauvie, R. Chytracek, et al., Geant4 developments and applications, IEEE Trans. Nucl. Sci. 53, 270 (2006).
  24. J. Allison, K. Amako, J. Apostolakis, P. Arce, M. Asai, T. Aso, E. Bagli, A. Bagulya, S. Banerjee, G. Barrand, et al., Recent developments in Geant4, Nucl. Instrum. Methods Phys. Res. Section A 835, 186 (2016).
  25. M. Kelsey, R. Agnese, Y. Alam, I. A. Langroudy, E. Azadbakht, D. Brandt, R. Bunker, B. Cabrera, Y.-Y. Chang, H. Coombes, et al., G4CMP: Condensed matter physics simulation using the geant4 toolkit, Nucl. Instrum. Methods Phys. Res. Section A 1055, 168473 (2023).
  26. M. S. Alnaes, J. Blechta, J. Hake, A. Johansson, B. Kehlet, A. Logg, C. N. Richardson, J. Ring, M. E. Rognes, and G. N. Wells, The FEniCS project version 1.5, Arch. Numer. Softw. 3, 20553 (2015).
  27. A. Logg, K.-A. Mardal, and G. N. Wells, Automated Solution of Differential Equations by the Finite Element Method (Springer, Heidelberg, Germany, 2012).
  28. B. G. Christensen, C. D. Wilen, A. Opremcak, J. Nelson, F. Schlenker, C. H. Zimonick, L. Faoro, L. B. Ioffe, Y. J. Rosen, J. L. DuBois, B. L. T. Plourde, and R. McDermott, Anomalous charge noise in superconducting qubits, Phys. Rev. B 100, 140503 (2019).
  29. G. Catelani, R. J. Schoelkopf, M. H. Devoret, and L. I. Glazman, Relaxation and frequency shifts induced by quasiparticles in superconducting qubits, Phys. Rev. B 84, 064517 (2011).
  30. G. Marchegiani, L. Amico, and G. Catelani, Quasiparticles in superconducting qubits with asymmetric junctions, PRX Quantum 3, 040338 (2022).
  31. D. Ristè, C. C. Bultink, M. J. Tiggelman, R. N. Schouten, K. W. Lehnert, and L. DiCarlo, Millisecond charge-parity fluctuations and induced decoherence in a superconducting transmon qubit, Nat. Commun. 4, 1913 (2013).
  32. K. Serniak, S. Diamond, M. Hays, V. Fatemi, S. Shankar, L. Frunzio, R. Schoelkopf, and M. Devoret, Direct dispersive monitoring of charge parity in offset-charge-sensitive transmons, Phys. Rev. Appl. 12, 014052 (2019).
  33. A. G. Fowler and J. M. Martinis, Quantifying the effects of local many-qubit errors and nonlocal two-qubit errors on the surface code, Phys. Rev. A 89, 032316 (2014).
  34. F. Henriques, F. Valenti, T. Charpentier, M. Lagoin, C. Gouriou, M. Martínez, L. Cardani, M. Vignati, L. Grünhaupt, D. Gusenkova, et al., Phonon traps reduce the quasiparticle density in superconducting circuits, Appl. Phys. Lett. 115, 212601 (2019).
  35. K. Karatsu, A. Endo, J. Bueno, P. J. de Visser, R. Barends, D. J. Thoen, V. Murugesan, N. Tomita, and J. J. A. Baselmans, Mitigation of cosmic ray effect on microwave kinetic inductance detector arrays, Appl. Phys. Lett. 114, 032601 (2019).
  36. C. Macklin, K. O’Brien, D. Hover, M. E. Schwartz, V. Bolkhovsky, X. Zhang, W. D. Oliver, and I. Siddiqi, A near–quantum-limited Josephson traveling-wave parametric amplifier, Science 350, 307 (2015).
  37. C. P. Larson, E. Yelton, K. Dodge, K. Okubo, J. Batarekh, V. Iaia, N. A. Kurinsky, and B. L. T. Plourde, Source data for manuscript “Quasiparticle poisoning of superconducting qubits with active gamma irradiation”, Zenodo (2025),.
  38. G. F. Knoll, Radiation Detection and Measurement (Wiley, Hoboken, NJ, USA, 2010), Chap. 10, pp. 321–364.
