Measuring Entanglement Without Local Addressing in Quantum Many-Body Simulators via Spiral Quantum State Tomography

Giacomo Marmorini1,2,*, Takeshi Fukuhara3,4,†, and Daisuke Yamamoto1,3,‡

  • *Contact author: marmorini.giacomo@nihon-u.ac.jp
  • †Contact author: takeshi.fukuhara@riken.jp
  • ‡Contact author: yamamoto.daisuke21@nihon-u.ac.jp
PDF

PRX Quantum 7, 010355 – Published 18 March, 2026

DOI: https://doi.org/10.1103/1xzz-njyy

Abstract

Quantum state tomography serves as a key tool for identifying quantum states generated in quantum computers and simulators, typically involving local operations on individual particles or qubits to enable independent measurements. However, this approach requires an exponentially larger number of measurement setups as quantum platforms grow in size, highlighting the necessity of more scalable methods to efficiently perform quantum state estimation. Here, we present a tomography scheme that scales far more efficiently and, remarkably, eliminates the need for local addressing of single constituents before measurements. Inspired by the “spin-spiral” structure in magnetic materials, our scheme combines a series of measurement setups, each with different spiraling patterns, with compressed-sensing techniques. The results of the numerical simulations demonstrate a high degree of tomographic efficiency and accuracy. Additionally, we show how this method is suitable for the measurement of specific entanglement properties of interesting quantum many-body states, such as entanglement entropy, under various realistic experimental conditions. This method offers a positive outlook across a wide range of quantum platforms, including those in which precise individual operations are challenging, such as optical lattice systems.

View figure in article

Physics Subject Headings (PhySH)

Popular Summary

Understanding quantum many-body systems often requires measuring the full quantum state of the system—a task known as quantum state tomography (QST). However, conventional QST demands individually addressing and manipulating each particle, which becomes extremely challenging and resource-intensive as the number of particles grows. This has limited our ability to directly probe fundamental properties such as quantum entanglement in large-scale systems.

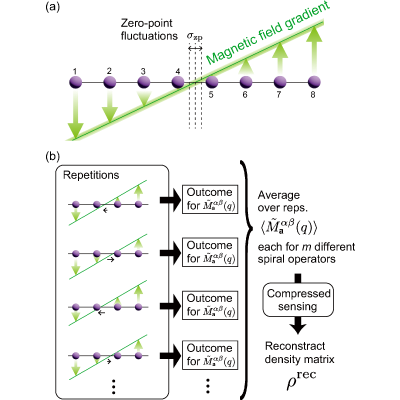

Inspired by the spin spirals found in magnetic materials, we introduce a set of global operations—“spiral measurements”—that can be implemented without needing to control individual qubits. By combining these spiral measurements with a powerful technique called compressed sensing, we show that one can efficiently and accurately reconstruct quantum states in a way that scales much better with system size.

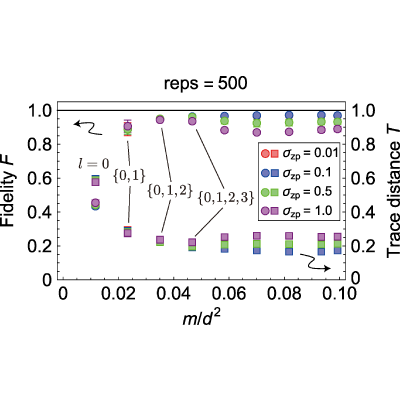

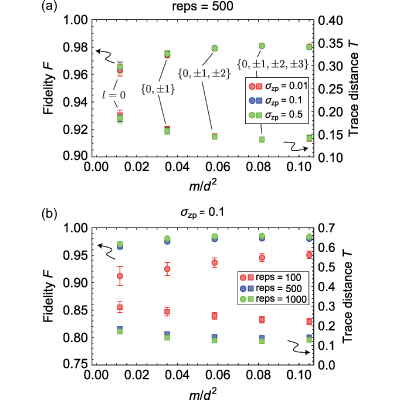

Through detailed simulations, we demonstrate that this “spiral QST” method remains effective even under realistic experimental conditions, including imperfections in control fields and statistical measurement noise. Notably, our method is also capable of extracting important quantities like entanglement entropy, which is crucial for understanding quantum criticality, thermalization, and information spreading in many-body systems.

This technique is particularly suited for experimental platforms such as optical lattices, where precise local control is difficult or costly. Spiral QST opens a path toward scalable, robust, and information-rich characterization of quantum systems, facilitating a deeper understanding of entanglement and many-body quantum phenomena across a range of physical contexts.

Article Text

References (88)

  1. S. Lloyd, Universal quantum simulators, Science 273, 1073 (1996).
  2. J. Preskill, Quantum computing in the NISQ era and beyond, Quantum 2, 79 (2018).
  3. K. Bharti, A. Cervera-Lierta, T. H. Kyaw, T. Haug, S. Alperin-Lea, A. Anand, M. Degroote, H. Heimonen, J. S. Kottmann, T. Menke, W.-K. Mok, S. Sim, L.-C. Kwek, and A. Aspuru-Guzik, Noisy intermediate-scale quantum algorithms, Rev. Mod. Phys. 94, 015004 (2022).
  4. I. M. Georgescu, S. Ashhab, and F. Nori, Quantum simulation, Rev. Mod. Phys. 86, 153 (2014).
  5. E. Altman et al., Quantum simulators: Architectures and opportunities, PRX Quantum 2, 017003 (2021).
  6. M. Paris and J. Rehacek, Quantum State Estimation, Lecture Notes in Physics, edited by M. Paris and J. Rehacek (Springer, Berlin, Germany, 2004), 649 ed.
  7. P. W. Hawkes, Advances in Imaging and Electron Physics, Advances in Imaging and Electron Physics (Academic, 2014).
  8. M. H. Devoret and R. J. Schoelkopf, Superconducting circuits for quantum information: An outlook, Science 339, 1169 (2013).
  9. G. Wendin, Quantum information processing with superconducting circuits: A review, Rep. Prog. Phys. 80, 106001 (2017).
  10. P. Kok, W. J. Munro, K. Nemoto, T. C. Ralph, J. P. Dowling, and G. J. Milburn, Linear optical quantum computing with photonic qubits, Rev. Mod. Phys. 79, 135 (2007).
  11. R. Blatt and C. F. Roos, Quantum simulations with trapped ions, Nat. Phys. 8, 277 (2012).
  12. H. Haffner, C. Roos, and R. Blatt, Quantum computing with trapped ions, Phys. Rep. 469, 155 (2008).
  13. C. S. Adams, J. D. Pritchard, and J. P. Shaffer, Rydberg atom quantum technologies, J. Phys. B: At., Mol. Opt. Phys. 53, 012002 (2019).
  14. A. Browaeys and T. Lahaye, Many-body physics with individually controlled Rydberg atoms, Nat. Phys. 16, 132 (2020).
  15. C. Gross and I. Bloch, Quantum simulations with ultracold atoms in optical lattices, Science 357, 995 (2017).
  16. F. Schäfer, T. Fukuhara, S. Sugawa, Y. Takasu, and Y. Takahashi, Tools for quantum simulation with ultracold atoms in optical lattices, Nat. Rev. Phys. 2, 411 (2020).
  17. H. Häffner, W. Hänsel, C. F. Roos, J. Benhelm, D. Chek-al Kar, M. Chwalla, T. Körber, U. D. Rapol, M. Riebe, P. O. Schmidt, C. Becher, O. Gühne, W. Dür, and R. Blatt, Scalable multiparticle entanglement of trapped ions, Nature 438, 643 (2005).
  18. G. Tóth, W. Wieczorek, D. Gross, R. Krischek, C. Schwemmer, and H. Weinfurter, Permutationally invariant quantum tomography, Phys. Rev. Lett. 105, 250403 (2010).
  19. C. Schwemmer, G. Tóth, A. Niggebaum, T. Moroder, D. Gross, O. Gühne, and H. Weinfurter, Experimental comparison of efficient tomography schemes for a six-qubit state, Phys. Rev. Lett. 113, 040503 (2014).
  20. D. Gross, Y.-K. Liu, S. T. Flammia, S. Becker, and J. Eisert, Quantum state tomography via compressed sensing, Phys. Rev. Lett. 105, 150401 (2010).
  21. D. Gross, Recovering low-rank matrices from few coefficients in any basis, IEEE Trans. Inf. Theory 57, 1548 (2011).
  22. Y.-K. Liu, Universal low-rank matrix recovery from Pauli measurements, Adv. Neural Inf. Process. Syst. 24, 1638 (2011).
  23. A. Kalev, R. L. Kosut, and I. H. Deutsch, Quantum tomography protocols with positivity are compressed sensing protocols, npj Quantum Inf. 1, 15018 (2015).
  24. M. Cramer, M. B. Plenio, S. T. Flammia, R. Somma, D. Gross, S. D. Bartlett, O. Landon-Cardinal, D. Poulin, and Y.-K. Liu, Efficient quantum state tomography, Nat. Commun. 1, 149 (2010).
  25. B. P. Lanyon, C. Maier, M. Holzäpfel, T. Baumgratz, C. Hempel, P. Jurcevic, I. Dhand, A. S. Buyskikh, A. J. Daley, M. Cramer, M. B. Plenio, R. Blatt, and C. F. Roos, Efficient tomography of a quantum many-body system, Nat. Phys. 13, 1158 (2017).
  26. T. Xin, D. Lu, J. Klassen, N. Yu, Z. Ji, J. Chen, X. Ma, G. Long, B. Zeng, and R. Laflamme, Quantum state tomography via reduced density matrices, Phys. Rev. Lett. 118, 020401 (2017).
  27. S. Aaronson, in Proceedings of the 50th Annual ACM SIGACT Symposium on Theory of Computing (Association for Computing Machinery, New York, NY, USA, 2018), p. 325.
  28. H.-Y. Huang, R. Kueng, and J. Preskill, Predicting many properties of a quantum system from very few measurements, Nat. Phys. 16, 1050 (2020).
  29. G. Bornet, G. Emperauger, C. Chen, F. Machado, S. Chern, L. Leclerc, B. Gély, Y. T. Chew, D. Barredo, T. Lahaye, N. Y. Yao, and A. Browaeys, Enhancing a many-body dipolar Rydberg tweezer array with arbitrary local controls, Phys. Rev. Lett. 132, 263601 (2024).
  30. T. Kimura, Spiral magnets as magnetoelectrics, Annu. Rev. Mater. Res. 37, 387 (2007).
  31. F. N. Rybakov, A. B. Borisov, S. Blügel, and N. S. Kiselev, New spiral state and skyrmion lattice in 3D model of chiral magnets, New J. Phys. 18, 045002 (2016).
  32. C. Weitenberg, M. Endres, J. F. Sherson, M. Cheneau, P. Schauß, T. Fukuhara, I. Bloch, and S. Kuhr, Single-spin addressing in an atomic Mott insulator, Nature 471, 319 (2011).
  33. T. Fukuhara, S. Hild, J. Zeiher, P. Schauß, I. Bloch, M. Endres, and C. Gross, Spatially resolved detection of a spin-entanglement wave in a Bose-Hubbard chain, Phys. Rev. Lett. 115, 035302 (2015).
  34. A. Mazurenko, C. S. Chiu, G. Ji, M. F. Parsons, M. Kanász-Nagy, R. Schmidt, F. Grusdt, E. Demler, D. Greif, and M. Greiner, A cold-atom Fermi-Hubbard antiferromagnet, Nature 545, 462 (2017).
  35. P. T. Brown, D. Mitra, E. Guardado-Sanchez, P. Schauß, S. S. Kondov, E. Khatami, T. Paiva, N. Trivedi, D. A. Huse, and W. S. Bakr, Spin-imbalance in a 2D Fermi-Hubbard system, Science 357, 1385 (2017).
  36. M. Koschorreck, D. Pertot, E. Vogt, and M. Köhl, Universal spin dynamics in two-dimensional Fermi gases, Nat. Phys. 9, 405 (2013).
  37. A. B. Bardon, S. Beattie, C. Luciuk, W. Cairncross, D. Fine, N. S. Cheng, G. J. A. Edge, E. Taylor, S. Zhang, S. Trotzky, and J. H. Thywissen, Transverse demagnetization dynamics of a unitary Fermi gas, Science 344, 722 (2014).
  38. S. Hild, T. Fukuhara, P. Schauß, J. Zeiher, M. Knap, E. Demler, I. Bloch, and C. Gross, Far-from-equilibrium spin transport in Heisenberg quantum magnets, Phys. Rev. Lett. 113, 147205 (2014).
  39. P. N. Jepsen, J. Amato-Grill, I. Dimitrova, W. W. Ho, E. Demler, and W. Ketterle, Spin transport in a tunable Heisenberg model realized with ultracold atoms, Nature 588, 403 (2020).
  40. P. N. Jepsen, W. W. Ho, J. Amato-Grill, I. Dimitrova, E. Demler, and W. Ketterle, Transverse spin dynamics in the anisotropic Heisenberg model realized with ultracold atoms, Phys. Rev. X 11, 041054 (2021).
  41. P. N. Jepsen, Y. K. E. Lee, H. Lin, I. Dimitrova, Y. Margalit, W. W. Ho, and W. Ketterle, Long-lived phantom helix states in Heisenberg quantum magnets, Nat. Phys. 18, 899 (2022).
  42. J.-F. Cai, E. J. Candès, and Z. Shen, A singular value thresholding algorithm for matrix completion, SIAM J. Optim. 20, 1956 (2010).
  43. A. Seshadri, M. Ringbauer, J. Spainhour, R. Blatt, T. Monz, and S. Becker, Versatile fidelity estimation with confidence, Phys. Rev. Lett. 133, 020402 (2024).
  44. A. Seshadri, M. Ringbauer, J. Spainhour, T. Monz, and S. Becker, Theory of versatile fidelity estimation with confidence, Phys. Rev. A 110, 012431 (2024).
  45. S. T. Flammia and Y.-K. Liu, Direct fidelity estimation from few Pauli measurements, Phys. Rev. Lett. 106, 230501 (2011).
  46. M. Boll, T. A. Hilker, G. Salomon, A. Omran, J. Nespolo, L. Pollet, I. Bloch, and C. Gross, Spin- and density-resolved microscopy of antiferromagnetic correlations in Fermi-Hubbard chains, Science 353, 1257 (2016).
  47. H. Sun, B. Yang, H.-Y. Wang, Z.-Y. Zhou, G.-X. Su, H.-N. Dai, Z.-S. Yuan, and J.-W. Pan, Realization of a bosonic antiferromagnet, Nat. Phys. 17, 990 (2021).
  48. L. W. Cheuk, M. A. Nichols, K. R. Lawrence, M. Okan, H. Zhang, E. Khatami, N. Trivedi, T. Paiva, M. Rigol, and M. W. Zwierlein, Observation of spatial charge and spin correlations in the 2D Fermi-Hubbard model, Science 353, 1260 (2016).
  49. C. Gross and W. S. Bakr, Quantum gas microscopy for single atom and spin detection, Nat. Phys. 17, 1316 (2021).
  50. If one considers a typical lattice spacing of roughly 500 nm and a typical magnetic field gradient of 20 G/cm (the different q’s can then be obtained by varying the application time), then the variation of the field over 0.01× (lattice spacing) is about 10 μGauss. In other words, if the fluctuations at a point in space are bigger than 10 μGauss, the shift in the zero-point in general will be bigger than 0.01× (lattice spacing).
  51. X.-T. Xu, Z.-Y. Wang, R.-H. Jiao, C.-R. Yi, W. Sun, and S. Chen, Ultra-low noise magnetic field for quantum gases, Rev. Sci. Instrum. 90, 054708 (2019).
  52. A. Osterloh, L. Amico, G. Falci, and R. Fazio, Scaling of entanglement close to a quantum phase transition, Nature 416, 608 (2002).
  53. J. Eisert, M. Cramer, and M. B. Plenio, Colloquium: Area laws for the entanglement entropy, Rev. Mod. Phys. 82, 277 (2010).
  54. A. Kitaev and J. Preskill, Topological entanglement entropy, Phys. Rev. Lett. 96, 110404 (2006).
  55. X.-G. Wen, Colloquium: Zoo of quantum-topological phases of matter, Rev. Mod. Phys. 89, 041004 (2017).
  56. P. Calabrese and J. Cardy, Entanglement entropy and quantum field theory, J. Stat. Mech. 2004, P06002 (2004).
  57. A. M. Läuchli, Operator content of real-space entanglement spectra at conformal critical points, arXiv:1303.0741.
  58. D. Kabat, Black hole entropy and entropy of entanglement, Nucl. Phys. B. 453, 281 (1995).
  59. S. N. Solodukhin, Entanglement entropy of black holes, Living Rev. Relativ. 14, 8 (2011).
  60. A. M. Kaufman, M. E. Tai, A. Lukin, M. Rispoli, R. Schittko, P. M. Preiss, and M. Greiner, Quantum thermalization through entanglement in an isolated many-body system, Science 353, 794 (2016).
  61. L. D’Alessio, Y. Kafri, A. Polkovnikov, and M. Rigol, From quantum chaos and eigenstate thermalization to statistical mechanics and thermodynamics, Adv. Phys. 65, 239 (2016).
  62. R. Islam, R. Ma, P. M. Preiss, M. E. Tai, A. Lukin, M. Rispoli, and M. Greiner, Measuring entanglement entropy in a quantum many-body system, Nature 528, 77 (2015).
  63. T. Brydges, A. Elben, P. Jurcevic, B. Vermersch, C. Maier, B. P. Lanyon, P. Zoller, R. Blatt, and C. F. Roos, Probing Rényi entanglement entropy via randomized measurements, Science 364, 260 (2019).
  64. T. Zhang and G.-B. Jo, One-dimensional sawtooth and zigzag lattices for ultracold atoms, Sci. Rep. 5, 16044 (2015).
  65. M. L. Prichard, B. M. Spar, I. Morera, E. Demler, Z. Z. Yan, and W. S. Bakr, Directly imaging spin polarons in a kinetically frustrated Hubbard system, Nature 629, 323 (2024).
  66. M. Lebrat, M. Xu, L. H. Kendrick, A. Kale, Y. Gang, P. Seetharaman, I. Morera, E. Khatami, E. Demler, and M. Greiner, Observation of Nagaoka polarons in a Fermi–Hubbard quantum simulator, Nature 629, 317 (2024).
  67. D. Bourgund, T. Chalopin, P. Bojović, H. Schlömer, S. Wang, T. Franz, S. Hirthe, A. Bohrdt, F. Grusdt, I. Bloch et al., Formation of individual stripes in a mixed-dimensional cold-atom Fermi–Hubbard system, Nature 637, 57 (2025).
  68. M. Xu, L. H. Kendrick, A. Kale, Y. Gang, C. Feng, S. Zhang, A. W. Young, M. Lebrat, and M. Greiner, A neutral-atom Hubbard quantum simulator in the cryogenic regime, Nature 642, 909 (2025).
  69. F. Ares, S. Murciano, and P. Calabrese, Entanglement asymmetry as a probe of symmetry breaking, Nat. Commun. 14, 2036 (2023).
  70. N. Syassen, D. M. Bauer, M. Lettner, T. Volz, D. Dietze, J. J. Garcia-Ripoll, J. I. Cirac, G. Rempe, and S. Durr, Strong dissipation inhibits losses and induces correlations in cold molecular gases, Science 320, 1329 (2008).
  71. G. Barontini, R. Labouvie, F. Stubenrauch, A. Vogler, V. Guarrera, and H. Ott, Controlling the dynamics of an open many-body quantum system with localized dissipation, Phys. Rev. Lett. 110, 035302 (2013).
  72. T. Tomita, S. Nakajima, I. Danshita, Y. Takasu, and Y. Takahashi, Observation of the Mott insulator to superfluid crossover of a driven-dissipative Bose-Hubbard system, Sci. Adv. 3, e1701513 (2017).
  73. Z. Cai, R. Babbush, S. C. Benjamin, S. Endo, W. J. Huggins, Y. Li, J. R. McClean, and T. E. O’Brien, Quantum error mitigation, Rev. Mod. Phys. 95, 045005 (2023).
  74. A. A. Houck, H. E. Türeci, and J. Koch, On-chip quantum simulation with superconducting circuits, Nat. Phys. 8, 292 (2012).
  75. A. J. Daley, I. Bloch, C. Kokail, S. Flannigan, N. Pearson, M. Troyer, and P. Zoller, Practical quantum advantage in quantum simulation, Nature 607, 667 (2022).
  76. Y. Kim, A. Eddins, S. Anand, K. X. Wei, E. van den Berg, S. Rosenblatt, H. Nayfeh, Y. Wu, M. Zaletel, K. Temme, and A. Kandala, Evidence for the utility of quantum computing before fault tolerance, Nature 618, 500 (2023).
  77. P. Frey and S. Rachel, Realization of a discrete time crystal on 57 qubits of a quantum computer, Sci. Adv. 8, eabm7652 (2022).
  78. X. Mi et al., Time-crystalline eigenstate order on a quantum processor, Nature 601, 531 (2022).
  79. Google Quantum AI, Measurement-induced entanglement and teleportation on a noisy quantum processor, Nature 622, 481 (2023).
  80. H. Weimer, M. Müller, I. Lesanovsky, P. Zoller, and H. P. Büchler, A Rydberg quantum simulator, Nat. Phys. 6, 382 (2010).
  81. L. Henriet, L. Beguin, A. Signoles, T. Lahaye, A. Browaeys, G.-O. Reymond, and C. Jurczak, Quantum computing with neutral atoms, Quantum 4, 327 (2020).
  82. J. T. Barreiro, M. Müller, P. Schindler, D. Nigg, T. Monz, M. Chwalla, M. Hennrich, C. F. Roos, P. Zoller, and R. Blatt, An open-system quantum simulator with trapped ions, Nature 470, 486 (2011).
  83. C. Monroe, W. C. Campbell, L.-M. Duan, Z.-X. Gong, A. V. Gorshkov, P. W. Hess, R. Islam, K. Kim, N. M. Linke, G. Pagano, P. Richerme, C. Senko, and N. Y. Yao, Programmable quantum simulations of spin systems with trapped ions, Rev. Mod. Phys. 93, 025001 (2021).
  84. K. Zyczkowski and H.-J. Sommers, Induced measures in the space of mixed quantum states, J. Phys. A: Math. Gen. 34, 7111 (2001).
  85. I. Bengtsson and K. Zyczkowski, Geometry of Quantum States: An Introduction to Quantum Entanglement (Cambridge University, Cambridge, UK, 2006).
  86. J. A. Miszczak, Generating and using truly random quantum states in Mathematica, Comput. Phys. Commun. 183, 118 (2012).
  87. The Ginibre ensemble is constituted by random complex matrices whose entries (both real and imaginary parts) are i.i.d. variables distributed according to the standard normal distribution N(0,1).
  88. C. L. Canonne, A short note on learning discrete distributions, arXiv:2002.11457.
