Before the cycle is over: Subcycle time refraction at optical frequencies

Ohad Segal1,*, Noa Konforty1,*, Oded Schiller1, Maxwell J. Tolchin2, Tony Yasniger1, Soham Saha3, Ryan W. Spangler2, Jon-Paul Maria2, Yonatan Plotnik1 et al.

Mordechai Segev1,†

  • *These authors contributed equally to this work.
  • †Contact author: msegev@technion.ac.il
PDF

Phys. Rev. Research 8, L022054 – Published 22 June, 2026

DOI: https://doi.org/10.1103/zvs7-9vgn

Abstract

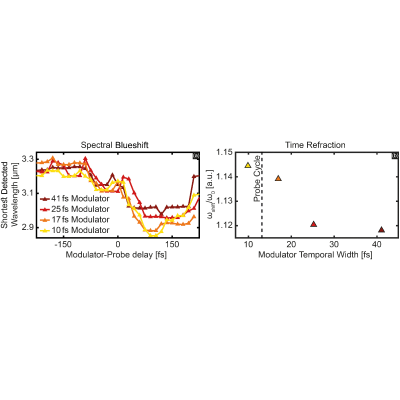

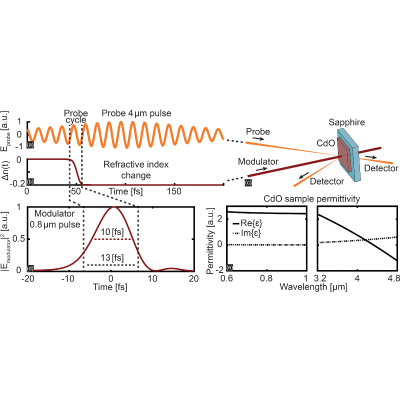

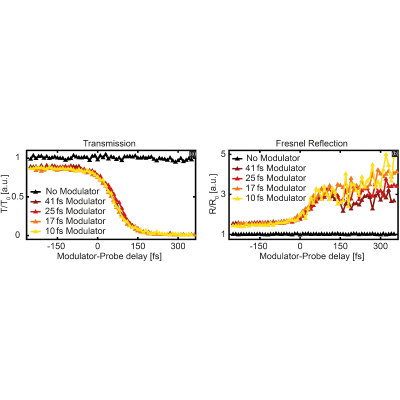

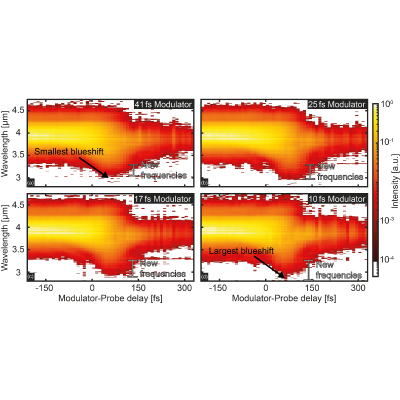

Large and abrupt variations in the electromagnetic properties of materials lead to dramatic effects: Even a single steplike change in the refractive index induces striking phenomena, such as time refraction and time reflection. When the refractive index varies periodically in time, multiple time refractions and time reflections interfere, giving rise to photonic time crystals (PTCs). Importantly, PTCs display momentum bands separated by gaps in which the modes experience exponential amplification, drawing energy from the modulation in a nonresonant fashion. Ordinary nonlinear optics does not operate in this regime: The material response is either very weak or very slow. One of the immediate consequences is that time reflection of light at optical frequencies has never been observed in experiments. Here, we experimentally realize an order-unity change in the refractive index occurring at subcycle rates and explore the phenomena emerging from it. By varying the duration of the index change from extending over many cycles to being significantly below a single cycle, we observe that the frequency shift of the time refraction is enhanced as the index variation occurs faster. Our experiment is the gateway for realizing sharp time interfaces at optical frequencies, which are the key for experimenting with time reflection, PTCs, and exciting phenomena expected from light-matter interactions in time-varying media.

View figure in article

Physics Subject Headings (PhySH)

Article Text

Supplemental Material

References (45)

  1. M. Lyubarov, Y. Lumer, A. Dikopoltsev, E. Lustig, Y. Sharabi, and M. Segev, Amplified emission and lasing in photonic time crystals, Science 377, 425 (2022).
  2. N. Konforty, M.-I. Cohen, O. Segal, Y. Plotnik, V. M. Shalaev, and M. Segev, Second harmonic generation and nonlinear frequency conversion in photonic time-crystals, Light: Sci. Appl. 14, 152 (2025).
  3. M. Lyubarov, A. Gorlach, O. Segal, M. Birk, L. Nemirovsky-Levy, Y. Plotnik, and M. Segev, Continuous-variables cluster states in photonic time-crystals, Opt. Quantum 3, 366 (2025).
  4. A. Akbarzadeh, N. Chamanara, and C. Caloz, Inverse prism based on temporal discontinuity and spatial dispersion, Opt. Lett. 43, 3297 (2018).
  5. V. Pacheco-Peña and N. Engheta, Antireflection temporal coatings, Optica 7, 323 (2020).
  6. V. Pacheco-Peña and N. Engheta, Temporal aiming, Light: Sci. Appl. 9, 129 (2020).
  7. V. Pacheco-Peña and N. Engheta, Temporal equivalent of the Brewster angle, Phys. Rev. B 104, 214308 (2021).
  8. H. Li, S. Yin, E. Galiffi, and A. Alù, Temporal parity-time symmetry for extreme energy transformations, Phys. Rev. Lett. 127, 153903 (2021).
  9. A. Dikopoltsev, Y. Sharabi, M. Lyubarov, Y. Lumer, S. Tsesses, E. Lustig, I. Kaminer, and M. Segev, Light emission by free electrons in photonic time-crystals, Proc. Natl. Acad. Sci. USA 119, e2119705119 (2022).
  10. Y. Pan, M.-I. Cohen, and M. Segev, Superluminal k-gap solitons in nonlinear photonic time crystals, Phys. Rev. Lett. 130, 233801 (2023).
  11. O. Schiller, Y. Plotnik, O. Segal, M. Lyubarov, and M. Segev, Time-domain bound states in the continuum, Phys. Rev. Lett. 133, 263802 (2024).
  12. L. Bar-Hillel, Y. Plotnik, O. Segal, and M. Segev, Long lived surface plasmons on the interface of a metal and a photonic time-crystal, Nanophotonics 14, 4063 (2025).
  13. J. Feinberg, D. E. Fernandes, B. Shapiro, and M. G. Silveirinha, Plasmonic time crystals, Phys. Rev. Lett. 134, 183801 (2025).
  14. F. R. Morgenthaler, Velocity modulation of electromagnetic waves, IRE Trans. Microwave Theory Tech. 6, 167 (1958).
  15. J. T. Mendonça and P. K. Shukla, Time refraction and time reflection: Two basic concepts, Phys. Scr. 65, 160 (2002).
  16. M. Shaltout, M. Clerici, N. Kinsey, R. Kaipurath, J. Kim, E. G. Carnemolla, D. Faccio, A. Boltasseva, V. M. Shalaev, and M. Ferrera, Doppler-shift emulation using highly time-refracting TCO layer, in Conference on Lasers and Electro-Optics (CLEO) (IEEE, 2016), pp. 1–2.
  17. Y. Zhou, M. Z. Alam, M. Karimi, J. Upham, O. Reshef, C. Liu, A. E. Willner, and R. W. Boyd, Broadband frequency translation through time refraction in an epsilon-near-zero material, Nat. Commun. 11, 2180 (2020).
  18. E. Lustig et al., Time-refraction optics with single cycle modulation, Nanophotonics 12, 2221 (2023).
  19. R. Tirole, S. Vezzoli, E. Galiffi, I. Robertson, D. Maurice, B. Tilmann, S. A. Maier, J. B. Pendry, and R. Sapienza, Double-slit time diffraction at optical frequencies, Nat. Phys. 19, 999 (2023).
  20. V. Bacot, M. Labousse, A. Eddi, M. Fink, and E. Fort, Time reversal and holography with spacetime transformations, Nat. Phys 12, 972 (2016).
  21. Z. Dong, H. Li, T. Wan, Q. Liang, Z. Yang, and B. Yan, Quantum time reflection and refraction of ultracold atoms, Nat. Photon. 18, 68 (2024).
  22. H. Moussa, G. Xu, S. Yin, E. Galiffi, Y. Ra’di, and A. Alù, Observation of temporal reflection and broadband frequency translation at photonic time interfaces, Nat. Phys. 19, 863 (2023).
  23. T. R. Jones, A. V. Kildishev, M. Segev, and D. Peroulis, Time-reflection of microwaves by a fast optically-controlled time-boundary, Nat. Commun. 15, 6786 (2024).
  24. J. Feis, S. Weidemann, T. Sheppard, H. M. Price, and A. Szameit, Space-time-topological events in photonic quantum walks, Nat. Photon. 19, 518 (2025).
  25. A. Palatnik, Y. Plotnik, J. Görsch, A. Steinfurth, A. Szameit, and M. Segev, Time-reflection in a discrete synthetic photonic lattice, in CLEO 2024, Technical Digest Series (Optica Publishing Group, 2024), paper FTh1L.5
  26. F. Biancalana, A. Amann, A. V. Uskov, and E. P. O’Reilly, Dynamics of light propagation in spatiotemporal dielectric structures, Phys. Rev. E 75, 046607 (2007).
  27. J. R. Reyes-Ayona and P. Halevi, Observation of genuine wave vector (k or β) gap in a dynamic transmission line and temporal photonic crystals, Appl. Phys. Lett. 107, 074101 (2015).
  28. E. Lustig, Y. Sharabi, and M. Segev, Topological aspects of photonic time crystals, Optica 5, 1390 (2018).
  29. J. Xiong, X. Zhang, L. Duan, J. Wang, Y. Long, H. Hou, L. Yu, L. Zou, and B. Zhang, Observation of wave amplification and temporal topological state in a non-synthetic photonic time crystal, Nat. Commun. 16, 11182 (2025).
  30. T. R. Jones, L. Propkopyeva, Y. Plotnik, A. Kildishev, M. Segev, and D. Peroulis, Demonstration of broadband non-resonant time-crystal amplification in microwaves, arXiv:2605.21014.
  31. N. Kinsey, C. DeVault, J. Kim, M. Ferrera, V. M. Shalaev, and A. Boltasseva, Epsilon-near-zero Al-doped ZnO for ultrafast switching at telecom wavelengths, Optica 2, 616 (2015).
  32. L. Caspani et al., Enhanced nonlinear refractive index in ɛ-near-zero materials, Phys. Rev. Lett. 116, 233901 (2016).
  33. M. Z. Alam, I. De Leon, and R. W. Boyd, Large optical nonlinearity of indium tin oxide in its epsilon-near-zero region, Science 352, 795 (2016).
  34. V. Bruno, S. Vezzoli, C. DeVault, E. Carnemolla, M. Ferrera, A. Boltasseva, V. M. Shalaev, D. Faccio, and M. Clerici, Broad frequency shift of parametric processes in epsilon-near-zero time-varying media, Appl. Sci. 10, 1318 (2020).
  35. J. B. Khurgin et al., Adiabatic frequency shifting in epsilon-near-zero materials: The role of group velocity, Optica 7, 226 (2020).
  36. M. Nisoli, S. De Silvestri, and O. Svelto, Generation of high energy 10 fs pulses by a new pulse compression technique, Appl. Phys. Lett. 68, 2793 (1996).
  37. S. K. V. Farahani, T. D. Veal, P. D. C. King, J. Zúñiga-Pérez, V. Muñoz-Sanjosé, and C. F. McConville, Electron mobility in CdO films, J. Appl. Phys. 109, 073712 (2011).
  38. E. Sachet et al., Dysprosium-doped cadmium oxide as a gateway material for mid-infrared plasmonics, Nat. Mater. 14, 414 (2015).
  39. K. P. Kelley, E. Sachet, C. T. Shelton, and J.-P. Maria, High mobility yttrium doped cadmium oxide thin films, APL Mater. 5, 076105 (2017).
  40. A. Cleri et al., Mid-wave to near-IR optoelectronic properties and epsilon-near-zero behavior in indium-doped cadmium oxide, Phys. Rev. Mater. 5, 035202 (2021).
  41. See Supplemental Material at http://link.aps.org/supplemental/10.1103/zvs7-9vgn for more details, calculations, and parameters, which includes Refs.  [44, 45].
  42. S. Saha, S. Gurung, B. T. Diroll, S. Chakraborty, O. Segal, M. Segev, V. M. Shalaev, A. V. Kildishev, A. Boltasseva, and R. D. Schaller, Third harmonic enhancement harnessing photoexcitation unveils new nonlinearities in zinc oxide, arXiv:2405.04891.
  43. N. Konforty, O. Segal, S. Saha, C. Fruhling, M. Ozlu, A. Boltasseva, V. M. Shalaev, and M. Segev, in CLEO 2025, Technical Digest Series (Optica Publishing Group, 2025), paper FF143_8.
  44. C. Fruhling, M. G. Ozlu, S. Saha, A. Boltasseva, and V. M. Shalaev, Understanding all-optical switching at the epsilon-near-zero point: A tutorial review, Appl. Phys. B 128, 34 (2022).
  45. J. R. Schrecengost et al., Large mid-infrared magneto-optic response from doped cadmium oxide at its epsilon-near-zero frequency, Adv. Opt. Mater. 12, 2400803 (2024).
