Generation of attosecond pulses from relativistic oscillating plasma gratings

Hao-Jie Zhang1, Bo-Yuan Li1, Xiang-Yan An1,2, Rong Huang1, Zheng-Ming Sheng1,2, Feng Liu1,*, and Min Chen1,†

  • *Contact author: liuf001@sjtu.edu.cn
  • †Contact author: minchen@sjtu.edu.cn
PDF

Phys. Rev. Research 8, 023261 – Published 8 June, 2026

DOI: https://doi.org/10.1103/zpdt-bjm4

Abstract

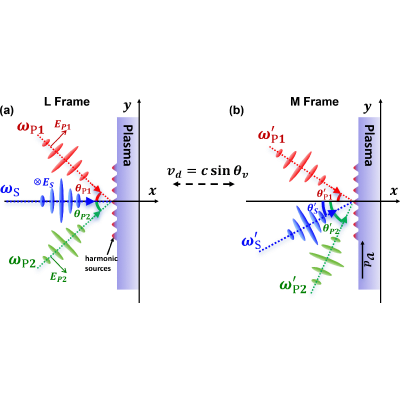

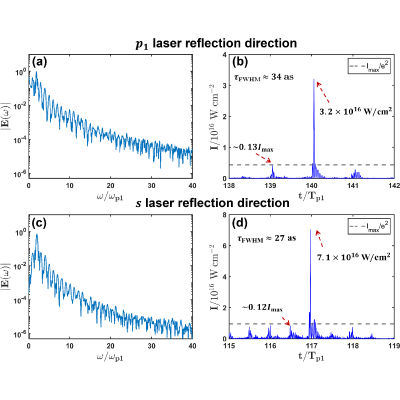

We propose a scheme to generate two isolated attosecond pulses at controllable angles through the interaction between relativistic laser pulses and a solid target. Two p-polarized laser pulses with certain frequency chirps are employed to drive oscillating plasma gratings (OPGs) on the target surface, while an s-polarized laser serves as the seed to trigger high-order harmonic generation (HHG) from the OPGs. Unlike HHG from the usual oscillating plasma mirrors, the OPGs not only generate harmonics but also diffract them. The evolution of the emission angles of the diffracted harmonics can be controlled through the laser chirp. At three specific angles, selected harmonics can be synthesized to attosecond pulse trains, and at two of these angles to isolated attosecond pulses. Two-dimensional particle-in-cell simulations are used to demonstrate the feasibility and robustness of the scheme, which shows that isolated attosecond pulse with duration around 30 as and intensity close to 1017W/cm2 can be stably generated. The scheme enables applications that require two isolated attosecond pulses with independent controllability.

View figure in article

Physics Subject Headings (PhySH)

Article Text

Supplemental Material

References (33)

  1. D. Strickland and G. Mourou, Compression of amplified chirped optical pulses, Opt. Commun. 56, 219 (1985).
  2. G. Mourou, Nobel Lecture: Extreme light physics and application, Rev. Mod. Phys. 91, 030501 (2019).
  3. A. L’Huillier and P. Balcou, High-order harmonic generation in rare gases with a 1-ps 1053-nm laser, Phys. Rev. Lett. 70, 774 (1993).
  4. M. Chini, K. Zhao, and Z. Chang, The generation, characterization and applications of broadband isolated attosecond pulses, Nat. Photonics 8, 178 (2014).
  5. D. von der Linde and K. Rzazewski, High-order optical harmonic generation from solid surfaces, Appl. Phys. B 63, 499 (1996).
  6. B. Dromey, S. Kar, C. Bellei, D. C. Carroll, R. J. Clarke, J. S. Green, S. Kneip, K. Markey, S. R. Nagel, P. T. Simpson, L. Willingale, P. McKenna, D. Neely, Z. Najmudin, K. Krushelnick, P. A. Norreys, and M. Zepf, Bright multi-keV harmonic generation from relativistically oscillating plasma surfaces, Phys. Rev. Lett. 99, 085001 (2007).
  7. A. Pukhov, D. an der Brügge, and I. Kostyukov, Relativistic laser plasmas for electron acceleration and short wavelength radiation generation, Plasma Phys. Control. Fusion 52, 124039 (2010).
  8. P. Heissler, R. Hörlein, J. M. Mikhailova, L. Waldecker, P. Tzallas, A. Buck, K. Schmid, C. M. S. Sears, F. Krausz, L. Veisz, M. Zepf, and G. D. Tsakiris, Few-cycle driven relativistically oscillating plasma mirrors: A source of intense isolated attosecond pulses, Phys. Rev. Lett. 108, 235003 (2012).
  9. Paul Gibbon, Harmonic generation by femtosecond laser-solid interaction: A coherent “water-window” light source? Phys. Rev. Lett. 76, 50 (1996).
  10. S. C. Wilks, W. L. Kruer, and W. B. Mori, Odd harmonic generation of ultra-intense laser pulses reflected from an overdense plasma, IEEE Trans. Plasma Sci. 21, 120 (1993).
  11. S. V. Bulanov, N. M. Naumova, and F. Pegoraro, Interaction of an ultrashort, relativistically strong laser pulse with an overdense plasma, Phys. Plasmas 1, 745 (1994).
  12. U. Teubner and P. Gibbon, High-order harmonics from laser-irradiated plasma surfaces, Rev. Mod. Phys. 81, 445 (2009).
  13. S. Gordienko, A. Pukhov, O. Shorokhov, and T. Baeva, Relativistic Doppler effect: Universal spectra and zeptosecond pulses, Phys. Rev. Lett. 93, 115002 (2004).
  14. X. Zhang, B. Shen, Y. Shi, X. Wang, L. Zhang, W. Wang, J. Xu, L. Yi, and Z. Xu, Generation of intense high-order vortex harmonics, Phys. Rev. Lett. 114, 173901 (2015).
  15. R. Lichters, J. Meyer-ter-Vehn, and A. Pukhov, Short-pulse laser harmonics from oscillating plasma surfaces driven at relativistic intensity, Phys. Plasmas 3, 3425 (1996).
  16. T. Baeva, S. Gordienko, and A. Pukhov, Theory of high-order harmonic generation in relativistic laser interaction with overdense plasma, Phys. Rev. E 74, 046404 (2006).
  17. S. G. Rykovanov, M. Geissler, J. Meyer-ter Vehn, and G. D. Tsakiris, Intense single attosecond pulses from surface harmonics using the polarization gating technique, New J. Phys. 10, 025025 (2008).
  18. H. Vincenti and F. Quéré, Attosecond lighthouses: How to use spatiotemporally coupled light fields to generate isolated attosecond pulses, Phys. Rev. Lett. 108, 113904 (2012).
  19. N. M. Naumova, J. A. Nees, I. V. Sokolov, B. Hou, and G. A. Mourou, Relativistic generation of isolated attosecond pulses in a λ3 focal volume, Phys. Rev. Lett. 92, 063902 (2004).
  20. S. Mondal, M. Shirozhan, S. Choudhary, K. Nelissen, P. Tzallas, D. Charalambidis, K. Varjú, and S. Kahaly, Intense isolated attosecond pulses from two-color few-cycle laser driven relativistic surface plasma, Sci. Rep. 12, 13668 (2022).
  21. L. Stark, Microwave theory of phased-array antennas—A review, Proc. IEEE 62, 1661 (1974).
  22. S. B. Glybovski, S. A. Tretyakov, P. A. Belov, Y. S. Kivshar, and C. R. Simovski, Metasurfaces: From microwaves to visible, Phys. Rep. 634, 1 (2016).
  23. W. T. Chen, A. Y. Zhu, and F. Capasso, Flat optics with dispersion-engineered metasurfaces, Nat. Rev. Mater. 5, 604 (2020).
  24. T. D. Arber, K. Bennett, C. S. Brady, A. Lawrence-Douglas, M. G. Ramsay, N. J. Sircombe, P. Gillies, R. G. Evans, H. Schmitz, A. R. Bell, et al., Contemporary particle-in-cell approach to laser-plasma modelling, Plasma Phys. Control. Fusion 57, 113001 (2015).
  25. B. Y. Li, F. Liu, M. Chen, Z. Y. Chen, X. H. Yuan, S. M. Weng, T. Jin, S. G. Rykovanov, J. W. Wang, Z. M. Sheng, and J. Zhang, High-quality high-order harmonic generation through preplasma truncation, Phys. Rev. E 100, 053207 (2019).
  26. B. Y. Li, F. Liu, M. Chen, F. Y. Wu, J. W. Wang, L. Lu, J. L. Li, X. L. Ge, X. H. Yuan, W. C. Yan, et al., Experimental demonstration of efficient harmonic generation via surface plasma compression with lasers, Phys. Rev. Lett. 128, 244801 (2022).
  27. See Supplemental Material at https://link.aps.org/supplemental/10.1103/zpdt-bjm4 for the evolution of OPGs, electric field distribution, attosecond pulse trains, and far-field pulse waveform.
  28. A. Cavagna, M. Eder, E. Chowdhury, A. Kalouguine, J. Kaur, G. Mourou, S. Haessler, and R. Lopez-Martens, Continuous relativistic high-harmonic generation from a kHz liquid-sheet plasma mirror, Opt. Lett. 50, 165 (2025).
  29. M. Han, J.-B. Ji, A. Blech, R. E. Goetz, C. Allison, L. Greenman, C. P. Koch, and H. J. Wörner, Attosecond control and measurement of chiral photoionization dynamics, Nature (London) 645, 95 (2025).
  30. J. Liu, Y. Li, Y. Hou, J. Wu, and J. Yuan, Transient responses of double core-holes generation in all-attosecond pump-probe spectroscopy, Sci. Rep. 14, 1950 (2024).
  31. L. B. Drescher, N. Mayer, K. Gannan, J. R. Adelman, and S. R. Leone, Attosecond optical orientation, Phys. Rev. Lett. 135, 163201 (2025).
  32. A. Forbes, L. Mkhumbuza, and L. Feng, Orbital angular momentum lasers, Nat. Rev. Phys. 6, 352 (2024).
  33. Y. Fang, S. Lu, and Y. Liu, Controlling photon transverse orbital angular momentum in high harmonic generation, Phys. Rev. Lett. 127, 273901 (2021).

Outline

Information

Phys. Rev. Research 8, 023261– Published 8 June, 2026
  • Received 8 November 2025
  • Accepted 11 May 2026
