Oscillating chemical reactions enable communication between responsive hydrogels

Joseph J. Webber* and Thomas D. Montenegro-Johnson†

  • *Contact author: joe.webber@warwick.ac.uk
  • †Contact author: tom.montenegro-johnson@warwick.ac.uk
PDF

Phys. Rev. Research 7, L032055 – Published 9 September, 2025

DOI: https://doi.org/10.1103/xbvn-5b59

Abstract

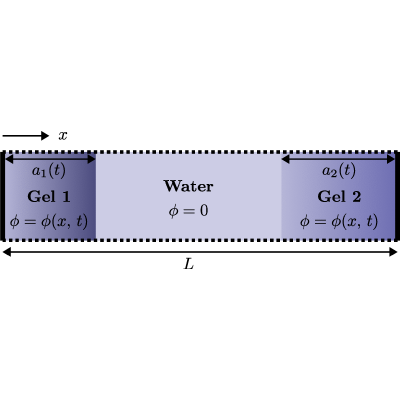

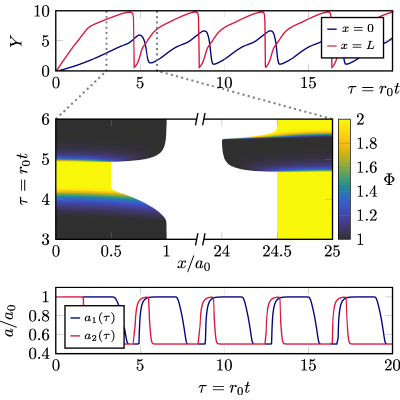

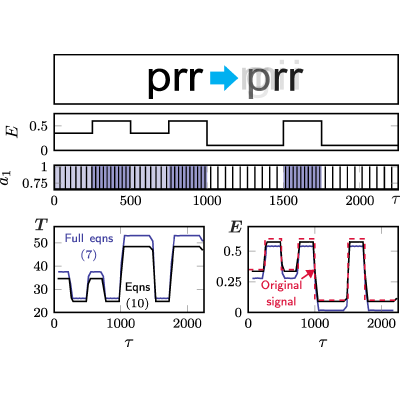

Responsive hydrogels can sense environmental stimuli and respond as actuators by expelling water and changing shape. In this Letter, we develop theory to demonstrate that groups of responsive hydrogels can also communicate with each other, by utilizing the effect of elastic deformation on chemical reaction dynamics. Specifically, we consider a system of two spatially separated chemically responsive hydrogels suspended in a solution in which a Belousov-Zhabotinsky (BZ)-type reaction occurs. Solving for the gel dynamics with the transport of solvent through the poroelastic network and the chemical kinetics, we show how the periodic swelling-deswelling oscillations of each gel can become coupled, and how this coupling can be exploited to send signals from one gel to the other via mechanical manipulation of the sender that affect the local (and thus global) frequency of oscillation.

View figure in article

Physics Subject Headings (PhySH)

Article Text

Supplemental Material

References (36)

  1. Y. Lee, W. J. Song, and J. Y. Sun, Hydrogel soft robotics, Mater. Today Phys. 15, 100258 (2020).
  2. T. Bertrand, J. Peixinho, S. Mukhopadhyay, and C. W. MacMinn, Dynamics of swelling and drying in a spherical gel, Phys. Rev. Appl. 6, 064010 (2016).
  3. C. Katke, P. A. Korevaar, and C. N. Kaplan, Diffusiophoretic fast swelling of chemically responsive hydrogels, Phys. Rev. Lett. 132, 208201 (2024).
  4. K. Matsumoto, N. Sakikawa, and T. Miyata, Thermo-responsive gels that absorb moisture and ooze water, Nat. Commun. 9, 2315 (2018).
  5. S. K. Samal, M. Dash, P. Dubruel, and S. van Vlierberghe, Smart polymer hydrogels: Properties, synthesis and applications, in Smart Polymers and Their Applications, edited by M. R. Aguilar and J. San Román (Woodhead Publishing, Cambridge, UK, 2014), pp. 237–270.
  6. I. Carayon, A. Gaubert, Y. Mousli, and B. Philippe, Electro-responsive hydrogels: Macromolecular and supramolecular approaches in the biomedical field, Biomater. Sci. 8, 5589 (2020).
  7. B. Blanc, J. N. Agyapong, I. Hunter, J.-C. Galas, A. Fernandez-Nieves, and S. Fraden, Collective chemomechanical oscillations in active hydrogels, Proc. Natl. Acad. Sci. USA 121, e2313258121 (2024).
  8. R. Yoshida, T. Takahashi, T. Yamaguchi, and H. Ichijo, Self-oscillating gel, J. Am. Chem. Soc. 118, 5134 (1996).
  9. I. Levin, R. Deegan, and E. Sharon, Self-oscillating membranes: Chemomechanical sheets show autonomous periodic shape transformation, Phys. Rev. Lett. 125, 178001 (2020).
  10. I. B. Nava-Medina, K. A. Gold, S. M. Cooper, K. Robinson, A. Jain, Z. Cheng, and A. K. Gaharwar, Self-oscillating 3D printed hydrogel shapes, Adv. Mater. Technol. 6, 2100418 (2021).
  11. R. Yoshida, Self-oscillating gels beating like a heart muscle, Biophysics 8, 163 (2012).
  12. Z. Mao, M. Kuroki, Y. Otsuka, and S. Maeda, Contraction waves in self-oscillating polymer gels, Extreme Mech. Lett. 39, 100830 (2020).
  13. Y. Murase, S. Maeda, S. Hashimoto, and R. Yoshida, Design of a mass transport surface utilizing peristaltic motion of a self-oscillating gel, Langmuir 25, 483 (2009).
  14. B. P. Belousov, A periodic reaction and its mechanism, Ref. Radiats. Med. 1, 145 (1958).
  15. O. Kuksenok, V. V. Yashin, and A. C. Balazs, Three-dimens- ional model for chemoresponsive polymer gels undergoing the Belousov-Zhabotinsky reaction, Phys. Rev. E 78, 041406 (2008).
  16. R. J. Field and R. M. Noyes, Oscillations in chemical systems. IV. Limit cycle behavior in a model of a real chemical reaction, J. Chem. Phys. 60, 1877 (1974).
  17. Y. Combarnous and T. M. D. Nguyen, Cell communication among microorganisms, plants and animals: Origin, evolution and interplays, Int. J. Mol. Sci. 21, 8052 (2020).
  18. R. Teng, Q. Gao, L. Yuan, L. Ren, J. Wang, Y. Wang, and I. R. Epstein, Heterogeneity-driven collective-motion patterns of active gels, Cell Rep. Phys. Sci. 3, 100933 (2022).
  19. M. A. Etzold, P. F. Linden, and M. G. Worster, Transpiration through hydrogels, J. Fluid Mech. 925, A8 (2021).
  20. J. J. Webber and M. G. Worster, A linear-elastic-nonlinear-swelling theory for hydrogels. Part 1. Modelling of super-absorbent gels, J. Fluid Mech. 960, A37 (2023).
  21. P. Glandsdorff and I. Prigogine, Thermodynamic Theory of Structure, Stability and Fluctuations (Wiley, London, UK, 1971).
  22. B. Lavenda, G. Nicolis, and M. Herschkowitz-Kaufman, Chemical instabilities and relaxation oscillations, J. Theor. Biol. 32, 283 (1971).
  23. See Supplemental Material at http://link.aps.org/supplemental/10.1103/xbvn-5b59 for a detailed dynamical systems analysis of the coupled oscillator model and how the period varies with coupling strength.
  24. R. Lefever, G. Nicolis, and P. Borckmans, The Brusselator: It does oscillate all the same, J. Chem. Soc. Faraday Trans. 1 84, 1013 (1988).
  25. R. Yoshida, M. Tanaka, S. Onodera, T. Yamaguchi, and E. Kokufuta, In-phase synchronization of chemical and mechanical oscillations in self-oscillating gels, J. Phys. Chem. A 104, 7549 (2000).
  26. M. Doi, Gel dynamics, J. Phys. Soc. Jpn. 78, 052001 (2009).
  27. N. Li, J. Delgado, H. O. González-Ochoa, I. R. Epstein, and S. Fraden, Combined excitatory and inhibitory coupling in a 1-D array of Belousov–Zhabotinsky droplets, Phys. Chem. Chem. Phys. 16, 10965 (2014).
  28. E. I. Volkov and V. A. Romanov, Bifurcations in the system of two identical diffusively coupled Brusselators, Phys. Scr. 51, 19 (1995).
  29. F. Drubi, S. Ibánez, and J. Ángel Rodríguez, Coupling leads to chaos, J. Differ. Equ. 239, 371 (2007).
  30. A. Mayora-Cebollero, J. A. Jover-Galtier, F. Drubi, S. Ibáñez, A. Lozano, C. Mayora-Cebollero, and R. Barrio, Almost synchronization phenomena in the two and three coupled Brusselator systems, Physica D 472, 134457 (2025).
  31. A compressive vertical strain E gives a deviatoric vertical strain εzz=Φ1/3−1−E, and the deviatoric strains in the directions parallel to the walls are equal: εxx=εyy. Thus, εxx=−εzz/2.
  32. A. Vignes, Diffusion in binary solutions. Variation of diffusion coefficient with composition, Ind. Eng. Chem. Fund. 5, 189 (1966).
  33. J. J. Webber and T. D. Montenegro-Johnson, Poromechanical modelling of responsive hydrogel pumps, J. Fluid Mech. 1009, A38 (2025).
  34. S. S. L. Peppin, J. A. W. Elliott, and M. G. Worster, Pressure and relative motion in colloidal suspensions, Phys. Fluids 17, 053301 (2005).
  35. S. Cai and Z. Suo, Equations of state for ideal elastomeric gels, Europhys. Lett. 97, 34009 (2012).
  36. J. J. Webber, M. A. Etzold, and M. G. Worster, A linear-elastic-nonlinear-swelling theory for hydrogels. Part 2. Displacement formulation, J. Fluid Mech. 960, A38 (2023).
