Stabilization of sawtooth instability by short gas pulse injection in ADITYA-U tokamak

Suman Dolui1,2,*, Kaushlender Singh1,2, Bharat Hegde1,2, T. Macwan3, SK Injamul Hoque1,2, Umesh Nagora1,2, Jaya Kumar A.4, S. Purohit1, A. N. Adhiya1 et al.

K. A. Jadeja1, Harshita Raj1,2, Ankit Kumar1,2, Ashok K. Kumawat1,2, Suman Aich1,2, Rohit Kumar1, K. M. Patel1, P. Gautam1, Sharvil Patel1, N. Yadava5, N. Ramaiya1, M. K. Gupta1, S. K. Pathak1,2, M. B. Chowdhuri1, S. Sharma1,2, A. Kuley4, R. L. Tanna1, P. K. Chattopadhyay1,2, A. Sen1,2, Y. C. Saxena1,2, R. Pal6, and Joydeep Ghosh1,2,†

  • *Contact author: suman.dolui@ipr.res.in
  • †Contact author: jghosh@ipr.res.in
PDF

Phys. Rev. Research 7, 033161 – Published 15 August, 2025

DOI: https://doi.org/10.1103/wbkn-kz71

Abstract

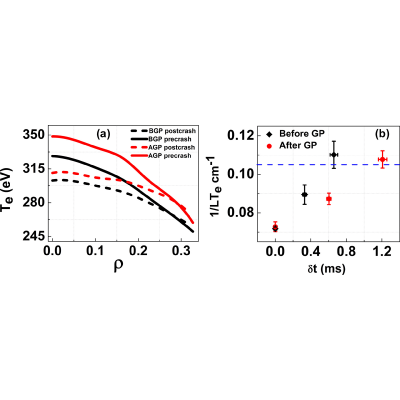

Experiments on ADITYA-U tokamak show a marked enhancement in the sawtooth period by application of short gas puffs of fuel that cause a modification of the radial density profile. A consequent suppression of the trapped electron modes then leads to an increase in the core electron temperature. This slows down the heat propagation following a sawtooth crash causing a delay in achieving the critical temperature gradient inside the q=1 surface required for the next sawtooth crash to happen. The overall scenario has strong similarities with the behavior of sawtooth under electron cyclotron resonance heating (ECRH). Our findings suggest an alternate technique for sawtooth control that may be usefully employed in small- and/or medium-sized tokamaks that do not have an ECRH or any other auxiliary heating facility.

View figure in article

Physics Subject Headings (PhySH)

Article Text

Supplemental Material

References (33)

  1. S. von Goeler, W. Stodiek, and N. Sauthoff, Studies of internal disruptions and M=1 oscillations in tokamak discharges with soft-x-ray techniques, Phys. Rev. Lett. 33, 1201 (1974).
  2. G. L. Jahns, M. Soler, B. V. Waddell, J. D. Callen, and H. R. Hicks, Internal disruptions in tokamaks, Nucl. Fusion 18, 609 (1978).
  3. O. Sauter et al., Control of neoclassical tearing modes by sawtooth control, Phys. Rev. Lett. 88, 105001 (2002).
  4. D. Liu, W. W. Heidbrink et al., Effect of sawtooth crashes on fast ion distribution in NSTX-U, Nucl. Fusion 58, 082028 (2018).
  5. M. F. F. Nave et al., Role of sawtooth in avoiding impurity accumulation and maintaining good confinement and maintaining good confinement in JET radiative mantle discharges, Nucl. Fusion 43, 1204 (2003).
  6. J. A. Wesson, Sawtooth reconnection, Nucl. Fusion 30, 2545 (1990).
  7. F. Porcelli, D. Boucher, and M. N. Rosenbluth, Model for the sawtooth period and amplitude, Plasma Phys. Control. Fusion 38, 2163 (1996).
  8. D. J. Campbell et al., Stabilization of sawteeth with additional heating in the JET tokamak, Phys. Rev. Lett. 60, 2148 (1988).
  9. I. T. Chapman, Controlling sawtooth oscillations in tokamak plasmas, Plasma Phys. Control. Fusion 53, 013001 (2011).
  10. I. T. Chapman, T. C. Hender, S. Saarelma, S. E. Sharapov, R. J. Akers, and N. J. Conway, The effect of toroidal plasma rotation on sawteeth in MAST, Nucl. Fusion 46, 1009 (2006).
  11. J. P. Graves, R. J. Hastie, and K. I. Hopcraft, Effects of sheared toroidal plasma rotation on the internal kink mode in the banana regime, Plasma Phys. Control. Fusion 42, 1049 (2000).
  12. S. Tanaka et al., Sawtooth stabilization by electron cyclotron heating at the q=1 surface in the WT-3 tokamak, Phys. Fluids B 3, 2200 (1991).
  13. G. Wang et al., Core electron temperature turbulence and transport during sawtooth oscillations in the DIII-D tokamak, Nucl. Fusion 64, 066024 (2024).
  14. T. Macwan et al., Gas-puff induced cold pulse propagation in ADITYA-U tokamak, Nucl. Fusion 61, 096029 (2021).
  15. P. Rodriguez-Fernandez, C. Angioni, and A. E. White, Local transport dynamics of cold pulses in tokamak plasmas, Rev. Mod. Plasma Phys. 6, 1 (2022).
  16. D. R. Baker, Density profile consistency, particle pinch, and cold pulse propagation in DIII-D, Phys. Plasmas 4, 2229 (1997).
  17. R. T. Snider, Modification of sawteeth by second harmonic electroncyclotron heating in a tokamak, Phys. Fluids B 1, 404 (1989).
  18. R. L. Tanna et al., Overview of recent experimental results from the ADITYA-U tokamak, Nucl. Fusion 62, 042017 (2022).
  19. U. Nagora, A. Sinha, S. K. Pathak, P. Ivanov, R. L. Tanna, K. A. Jadeja, K. M. Patel, and J. Ghosh, Design & development of 140 GHz D-band phase locked heterodyne interferometer system for real-time density measurement, J. Instrum. 15, P11011 (2020).
  20. F. C. Jahoda, E. M. Little, W. E. Quinn, G. A. Sawyer, and T. F. Stratton, Continuum radiation in the x ray and visible regions from a magnetically compressed plasma (Scylla), Phys. Rev. 119, 843 (1960).
  21. J. Raval et al., Development of Multipurpose Soft X-Ray Tomography System for Aditya-U, Tech. Report No. IAEA-CN- EX/P4-18 (IAEA, 2018), https://nucleus.iaea.org/sites/fusionportal/Shared%20Documents/FEC%202018/fec2018-preprints/preprint0751.pdf.
  22. K. Singh, S. Dolui et al., MHD activity induced coherent mode excitation in the edge plasma region of ADITYA-U tokamak, Phys. Plasmas 31, 092511 (2024).

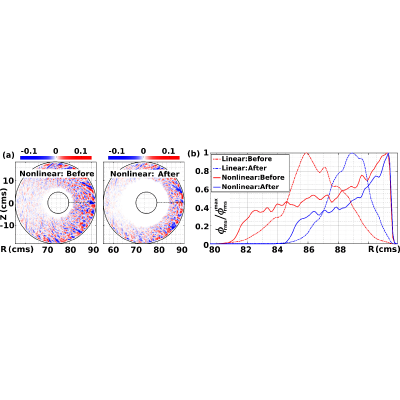

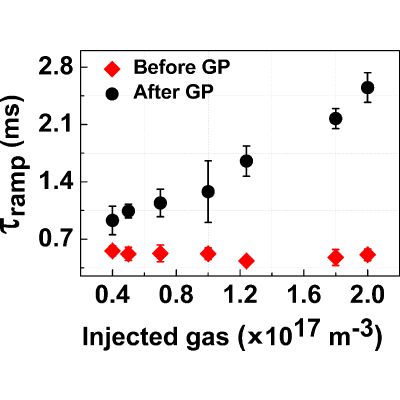

  23. See Supplemental Material at http://link.aps.org/supplemental/10.1103/wbkn-kz71 for more details regarding Fig.  3. Experimental observation indicates that an increase in the amount of injected gas leads to an increase in the change of central chord–averaged density and temperature; identification of TEM using GTC code; and electrostatic perturbed potential on the poloidal plane during the linear phase.
  24. Y. Y. Xie et al., Suppression of core temperature fluctuations by edge cooling in the J-TEXT tokamak, Plasma Phys. Control. Fusion 67, 015008 (2025).
  25. T. Singh, D. Sharma, T. Macwan, S. Sharma, J. Ghosh, A. Sen, Z. Lin, and A. Kuley, Gyrokinetic simulations of electrostatic microturbulence in ADITYA-U tokamak, Nucl. Fusion 63, 056008 (2023).
  26. D. Sharma et al., Aditya upgradation—Equilibrium study, Fusion Eng. Des. 160, 111933 (2020).
  27. P. Rodriguez-Fernandez et al., Predict-first experiments and modeling of perturbative cold pulses in the DIII-D tokamak, Phys. Plasmas 26, 062503 (2019).
  28. M. N. Bussac and R. Pellat, Nonlinear evolution of the internal kink in Tokamaks, Phys. Rev. Lett. 59, 2650 (1987).
  29. M. T. Beidler and P. A. Cassak, Model for incomplete reconnection in sawtooth crashes, Phys. Rev. Lett. 107, 255002 (2011).
  30. A. J. Lichtenberg, K. Itoh, S.-I. Itoh and A. Fukuyama, The role of stochasticity in sawtooth oscillations, Nucl. Fusion 32, 495 (1992).
  31. H. R. Koslowski, H. Soltwisch, and W. Stodiek, Polarimetric measurement of m=1 sawtooth precursor oscillations in the TEXTOR tokamak, Plasma Phys. Control. Fusion 38, 271 (1996).
  32. T. K. Chu, Effect of reconnection of magnetic field lines and electron thermal conduction on the plasma pressure gradient in a sawtooth oscillation, Nucl. Fusion 28, 1109 (1988).
  33. H. Zhao and Y. Zhang, CWT-based method for extracting seismic velocity dispersion, IEEE Geosci. Remote. Sens. Lett. 19, 7502205 (2022).
