Demonstrating superresolution in radar range estimation using a denoising autoencoder

Robert Czupryniak1,2, Abhishek Chakraborty1,2, Andrew N. Jordan2,3,4,1,*, and John C. Howell2,3,†

  • *Contact author: jordan@chapman.edu
  • †Contact author: johhowell@chapman.edu
PDF

Phys. Rev. Research 8, 033157 – Published 10 August, 2026

DOI: https://doi.org/10.1103/w6m6-n6rk

Abstract

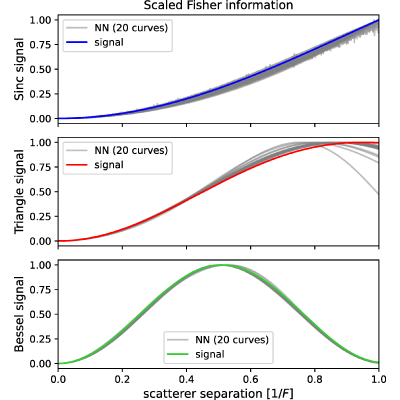

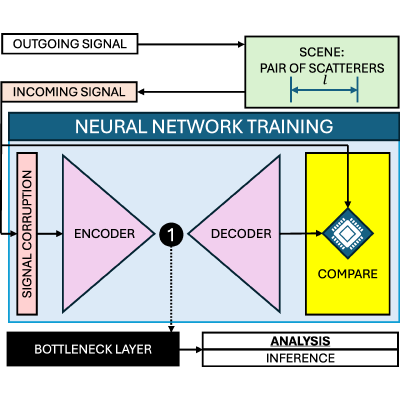

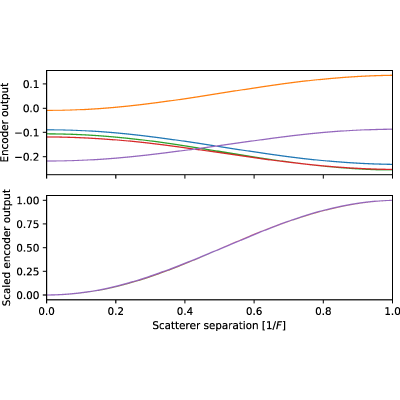

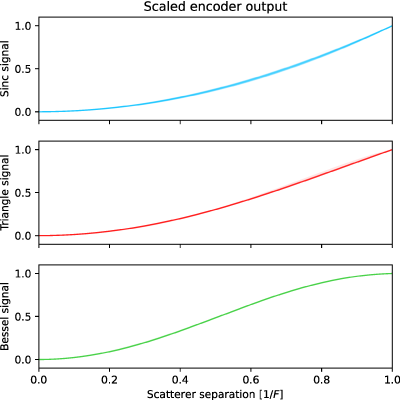

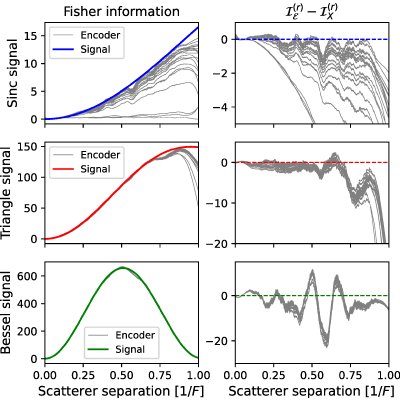

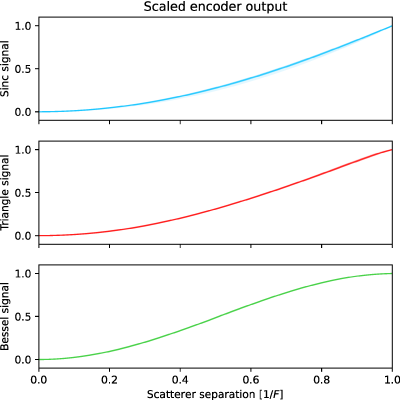

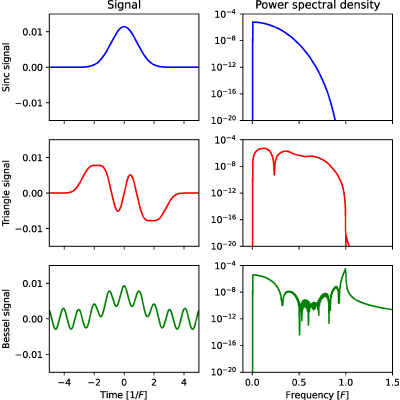

We apply machine learning methods to demonstrate radar range superresolution using a denoising autoencoder trained without supervision. Focusing on the estimation of a single physical parameter, the separation between two scatterers in the subwavelength regime, we constrain the network to a one-dimensional bottleneck layer with its size matched to the parameter dimensionality. We find that the bottleneck layer forms a reproducible, monotonic mapping with the true separation, showing that the network learns a low-dimensional representation directly aligned with the underlying physical parameter. We further show that this representation preserves the Fisher information of the signal, indicating that the network recovers a physically meaningful representation for parameter estimation. We investigate the behavior of the bottleneck layer for the following types of pulses: a traditional sinc pulse, a bandlimited triangle-type pulse, and a theoretically near-optimal pulse created from a spherical Bessel function basis. Our results demonstrate that neural networks can discover physically meaningful compressed representations without explicit supervision, with performance ultimately governed by the information content of the signal.

View figure in article

Physics Subject Headings (PhySH)

Article Text

References (36)

  1. D. R. Wehner, High Resolution Radar (Artech House, Norwood, MA, 1987).
  2. J. Li, G. Liu, N. Jiang, and P. Stoica, Moving target feature extraction for airborne high-range resolution phased-array radar, IEEE Trans. Signal Process. 49, 277 (2001).
  3. K. B. Cooper, R. J. Dengler, G. Chattopadhyay, E. Schlecht, J. Gill, A. Skalare, I. Mehdi, and P. H. Siegel, A high-resolution imaging radar at 580 GHz, IEEE Microwave Wireless Compon. Lett. 18, 64 (2008).
  4. F. Zhang, Q. Guo, and S. Pan, Photonics-based real-time ultra-high-range-resolution radar with broadband signal generation and processing, Sci. Rep. 7, 13848 (2017).
  5. M. I. Skolnik, Introduction to Radar Systems, 2nd ed. (McGraw-Hill, New York, 1980).
  6. N. Levanon and E. Mozeson, Radar Signals, 1st ed. (John Wiley & Sons, Hoboken, NJ, 2004).
  7. J. C. Howell, A. N. Jordan, B. Šoda, and A. Kempf, Super interferometric range resolution, Phys. Rev. Lett. 131, 053803 (2023).
  8. R. E. Sheriff, Limitations on resolution of seismic reflec- tions and geologic detail derivable from them, in Seismic Stratigraphy—Applications to Hydrocarbon Exploration, edited by C. E. Payton (American Association of Petroleum Geologists, 1977), Vol. 26, pp. 3–14.
  9. A. Neal, Ground-penetrating radar and its use in sedimentology: Principles, problems and progress, Earth Sci. Rev. 66, 261 (2004).
  10. M. Tsang, R. Nair, and X.-M. Lu, Quantum theory of superresolution for two incoherent optical point sources, Phys. Rev. X 6, 031033 (2016).
  11. A. N. Jordan and J. C. Howell, Fundamental limits on subwavelength range resolution, Phys. Rev. Appl. 20, 064046 (2023).
  12. A. N. Jordan, J. C. Howell, A. Kempf, S. Zhang, and D. White, Optimal radar ranging pulse to resolve two reflectors, Phys. Rev. Res. 6, 033341 (2024).
  13. I. T. Jolliffe, Principal Component Analysis, 2nd ed., Springer Series in Statistics (Springer, New York, 2002).
  14. O. Russakovsky et al., ImageNet large scale visual recognition challenge, Int. J. Comput. Vision 115, 211 (2015).
  15. A. Krizhevsky, I. Sutskever, and G. E. Hinton, ImageNet classification with deep convolutional neural networks, Commun. ACM 60, 84 (2017).
  16. K. He, X. Zhang, S. Ren, and J. Sun, Deep residual learning for image recognition, in 2016 IEEE Conference on Computer Vision and Pattern Recognition (CVPR) (IEEE, Las Vegas, NV, 2016), pp. 770–778.
  17. Y. Bengio, A. Courville, and P. Vincent, Representation learning: A review and new perspectives, IEEE Trans. Pattern Anal. Mach. Intell. 35, 1798 (2018).
  18. R. Kaur and S. Singh, A comprehensive review of object detection with deep learning, Digit. Signal Process. 132, 103812 (2023).
  19. S. Minaee, Y. Boykov, F. Porikli, A. Plaza, N. Kehtarnavaz, and D. Terzopoulos, Image segmentation using deep learning: A survey, IEEE Trans. Pattern Anal. Mach. Intell. 44, 3523 (2022).
  20. C. Ledig, L. Theis, F. Huszar, J. Caballero, A. Cunningham, A. Acosta, A. Aitken, A. Tejani, J. Totz, Z. Wang, and W. Shi, Photo-realistic single image super-resolution using a generative adversarial network, in 2017 IEEE Conference on Computer Vision and Pattern Recognition (CVPR) (IEEE Computer Society, Los Alamitos, CA, 2017), pp. 105–114.
  21. X. Wang, K. Yu, S. Wu, J. Gu, Y. Liu, C. Dong, Y. Qiao, and C. Loy, ESRGAN: Enhanced super-resolution generative adversarial networks, in Computer Vision—ECCV 2018 Workshops, edited by L. Leal-Taixé and S. Roth (Springer International Publishing, Cham, 2019), pp. 63–79.
  22. D. E. Rumelhart, G. E. Hinton, and R. J. Williams, Learning internal representations by error propagation, in Parallel Distributed Processing: Explorations in the Microstructure of Cognition, Vol. 1: Foundations (MIT Press, Cambridge, MA, 1986), pp. 318–362.
  23. P. Vincent, H. Larochelle, Y. Bengio, and P.-A. Manzagol, Extracting and composing robust features with denoising autoencoders, in Proceedings of the 25th International Conference on Machine Learning, ICML '08 (Association for Computing Machinery, New York, 2008), pp. 1096–1103.
  24. S. J. Wetzel, Unsupervised learning of phase transitions: From principal component analysis to variational autoencoders, Phys. Rev. E 96, 022140 (2017).
  25. C. Alexandrou, A. Athenodorou, C. Chrysostomou, and S. Paul, The critical temperature of the 2D-Ising model through deep learning autoencoders, Eur. Phys. J. B 93, 226 (2020).
  26. M. Cheney, B. Borden, Conference Board of the Mathematical Sciences, and National Science Foundation (U.S.), in Fundamentals of Radar Imaging, CBMS-NSF Regional Conference Series in Applied Mathematics, Vol. 79 (Society for Industrial and Applied Mathematics, Philadelphia, PA, 2009), Chaps. 2 and 3.
  27. P. Knee, Sparse Representations for Radar with MATLAB Examples, 1st ed. (Springer, Cham, 2012).
  28. I. Goodfellow, Y. Bengio, and A. Courville, Deep Learning (MIT Press, Cambridge, MA, 2016).
  29. B. Šoda and A. Kempf, Efficient method to create superoscillations with generic target behavior, Quantum Stud.: Math. Found. 7, 347 (2020).
  30. T. Karmakar and A. N. Jordan, Beyond superoscillation: General theory of approximation with bandlimited functions, J. Phys. A: Math. Theor. 56, 495204 (2023).
  31. Edited by G. B. Arfken, H.-J. Weber, and F. E. Harris, Mathematical Methods for Physicists, 7th ed. (Elsevier, Oxford, 2013).
  32. S. Ioffe and C. Szegedy, Batch normalization: Accelerating deep network training by reducing internal covariate shift, in Proceedings of the 32nd International Conference on Machine Learning, edited by F. Bach and D. Blei (PMLR, Lille, France, 2015), pp. 448–456.
  33. A. Ly, M. Marsman, J. Verhagen, R. P. Grasman, and E.-J. Wagenmakers, A tutorial on Fisher information, J. Math. Psychol. 80, 40 (2017).
  34. M. G. Paris, Quantum estimation for quantum technology, Int. J. Quantum Inf. 07, 125 (2009).
  35. A. Savitzky and M. J. Golay, Smoothing and differentiation of data by simplified least squares procedures, Anal. Chem. 36, 1627 (1964).
  36. D. P. Kingma and J. Ba, Adam: A method for stochastic optimization, arXiv:1412.6980.
