Magneto-optical Kerr-effect measurements under pulsed magnetic fields over 40 T using a compact sample fixture

Atsutoshi Ikeda1,*,†, Sota Nakamura1,*, Soichiro Yamane1, Kosuke Noda2, Akihiko Ikeda2, and Shingo Yonezawa1,‡

  • *These authors contributed equally to this work.
  • †Contact author: ikeda.atsutoshi.3w@kyoto-u.ac.jp
  • ‡Contact author: yonezawa.shingo.3m@kyoto-u.ac.jp
PDF

Phys. Rev. Research 8, 013169 – Published 13 February, 2026

DOI: https://doi.org/10.1103/vy7j-ylb4

Abstract

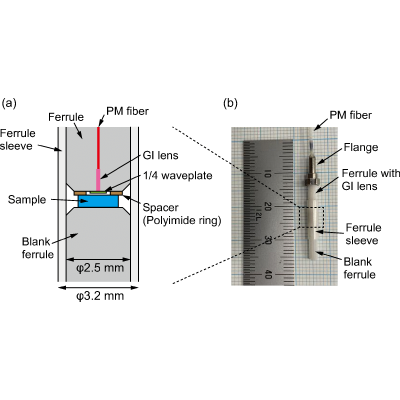

The magnetic field is one of the most fundamental control parameters in materials science. A pulsed magnetic-field apparatus can generate high magnetic fields that are inaccessible by conventional dc-field magnets. One important issue is that measurement techniques compatible with pulsed fields are rather limited due to short pulse duration and large electromagnetic or mechanical noise originating from field pulses. The magneto-optical Kerr effect (MOKE), the change in the state of light polarization upon reflection from magnetic materials, has the potential to become a powerful tool for investigation of magnetic properties of a wide range of materials including nontransparent materials or thin films in pulsed fields. Nevertheless, since the MOKE response is typically very small, MOKE measurements under pulsed fields are quite challenging. Here, we present a method to measure polar MOKE under high pulsed magnetic fields of 2-ms pulse width. The keys of this technique are a ferrule-based compact sample-fiber fixture and a phase-resolved numerical lock-in analysis, combined with the high-resolution optical apparatus based on an all-fiber loopless Sagnac interferometer. We succeeded in measuring MOKE signals from various ferromagnetic or ferrimagnetic samples above 40 T and down to 77 K, significantly extending the limits of previously reported pulse-field MOKE measurements. Our apparatus is simple enough to be compatible with larger-scale experiments in pulse-field facilities, thus becoming a promising tool to optically investigate material properties in pulsed fields.

View figure in article

Physics Subject Headings (PhySH)

Article Text

References (28)

  1. Y. H. Matsuda, D. Nakamura, A. Ikeda, S. Takeyama, Y. Suga, H. Nakahara, and Y. Muraoka, Magnetic-field-induced insulator–metal transition in W-doped VO2 at 500 T, Nat. Commun. 11, 3591 (2020).
  2. T. Nomura, Y. H. Matsuda, S. Takeyama, A. Matsuo, K. Kindo, J. L. Her, and T. C. Kobayashi, Novel phase of solid oxygen induced by ultrahigh magnetic fields, Phys. Rev. Lett. 112, 247201 (2014).
  3. A. Ikeda, Y. H. Matsuda, K. Sato, Y. Ishii, H. Sawabe, D. Nakamura, S. Takeyama, and J. Nasu, Signature of spin-triplet exciton condensations in LaCoO3 at ultrahigh magnetic fields up to 600 T, Nat. Commun. 14, 1744 (2023).
  4. S. Hahn, K. Kim, K. Kim, X. Hu, T. Painter, I. Dixon, S. Kim, K. R. Bhattarai, S. Noguchi, J. Jaroszynski, and D. C. Larbalestier, 45.5-Tesla direct-current magnetic field generated with a high-temperature superconducting magnet, Nature (London) 570, 496 (2019).
  5. D. Nakamura, A. Ikeda, H. Sawabe, Y. H. Matsuda, and S. Takeyama, Record indoor magnetic field of 1200 T generated by electromagnetic flux-compression, Rev. Sci. Instrum. 89, 095106 (2018).
  6. A. Ikeda, K. Noda, K. Shimbori, K. Seki, D. Bhoi, A. Ishita, J. Nakamura, K. Matsubayashi, and K. Akiba, A concise 40-T pulse magnet for condensed matter experiments, J. Appl. Phys. 136, 175902 (2024).
  7. R. Z. Levitin, A. K. Zvezdin, M. von Ortenberg, V. V. Platonov, V. I. Plis, A. I. Popov, N. Puhlmann, and O. M. Tatsenko, Faraday effect in Tb3Ga5O12 in a rapidly increasing ultrastrong magnetic field, Phys. Solid State 44, 2107 (2002).
  8. X. Chen, X. Qian, K. Meng, J. Zhao, and Y. Ji, The measurement of magneto-optical Kerr effect of ultrathin films in a pulsed magnetic field, Measurement 46, 52 (2013).
  9. S.-Y. Lin, Y.-K. Liao, and C.-B. Wu, Magneto optical Kerr effect measurement with pulsed magnetic field, Chin. J. Phys. 55, 698 (2017).
  10. J. Xia, Y. Maeno, P. T. Beyersdorf, M. M. Fejer, and A. Kapitulnik, High resolution polar Kerr effect measurements of Sr2RuO4: Evidence for broken time-reversal symmetry in the superconducting state, Phys. Rev. Lett. 97, 167002 (2006).
  11. E. R. Schemm, W. J. Gannon, C. M. Wishne, W. P. Halperin, and A. Kapitulnik, Observation of broken time-reversal symmetry in the heavy-fermion superconductor UPt3, Science 345, 190 (2014).
  12. E. R. Schemm, R. E. Baumbach, P. H. Tobash, F. Ronning, E. D. Bauer, and A. Kapitulnik, Evidence for broken time-reversal symmetry in the superconducting phase of URu2Si2, Phys. Rev. B 91, 140506(R) (2015).
  13. R. Shimano, G. Yumoto, J. Y. Yoo, R. Matsunaga, S. Tanabe, H. Hibino, T. Morimoto, and H. Aoki, Quantum Faraday and Kerr rotations in graphene, Nat. Commun. 4, 1841 (2013).
  14. B. Huang, G. Clark, E. Navarro-Moratalla, D. R. Klein, R. Cheng, K. L. Seyler, D. Zhong, E. Schmidgall, M. A. McGuire, D. H. Cobden, W. Yao, D. Xiao, P. Jarillo-Herrero, and X. Xu, Layer-dependent ferromagnetism in a van der Waals crystal down to the monolayer limit, Nature (London) 546, 270 (2017).
  15. J. Xia, P. T. Beyersdorf, M. M. Fejer, and A. Kapitulnik, Modified Sagnac interferometer for high-sensitivity magneto-optic measurements at cryogenic temperatures, Appl. Phys. Lett. 89, 062508 (2006).
  16. D. R. Saykin, C. Farhang, E. D. Kountz, D. Chen, B. R. Ortiz, C. Shekhar, C. Felser, S. D. Wilson, R. Thomale, J. Xia, and A. Kapitulnik, High resolution polar Kerr effect studies of CsV3Sb5: Tests for time-reversal symmetry breaking below the charge-order transition, Phys. Rev. Lett. 131, 016901 (2023).
  17. Y. Hu, S. Yamane, G. Mattoni, K. Yada, K. Obata, Y. Li, Y. Yao, Z. Wang, J. Wang, C. Farhang, J. Xia, Y. Maeno, and S. Yonezawa, Time-reversal symmetry breaking in charge density wave of CsV3Sb5 detected by polar Kerr effect, arXiv:2208.08036.
  18. C. Farhang, J. Wang, B. R. Ortiz, S. D. Wilson, and J. Xia, Unconventional specular optical rotation in the charge ordered state of kagome metal CsV3Sb5, Nat. Commun. 14, 5326 (2023).
  19. J. Wang, C. Farhang, B. R. Ortiz, S. D. Wilson, and J. Xia, Resolving the discrepancy between MOKE measurements at 1550-nm wavelength on kagome metal CsV3Sb5, Phys. Rev. Mater. 8, 014202 (2024).
  20. J. Xia, Optical studies of broken time-reversal symmetry in solids using sagnac interferometry, Ph.D. thesis, Stanford University, 2008.
  21. Š. Višňovský, V. Pařízek, M. Nývlt, P. Kielar, V. Prosser, and R. Krishnan, Magneto-optical Kerr spectra of nickel, J. Magn. Magn. Mater. 127, 135 (1993).
  22. L. Uba, S. Uba, and V. N. Antonov, Magneto-optical Kerr spectroscopy of noble metals, Phys. Rev. B 96, 235132 (2017).
  23. K. Buschow, P. van Engen, and R. Jongebreur, Magneto-optical properties of metallic ferromagnetic materials, J. Magn. Magn. Mater. 38, 1 (1983).
  24. J. M. MacLaren and W. Huang, Theoretical predictions of the polar Kerr effect in Fe and Co, J. Appl. Phys. 79, 6196 (1996).
  25. A. Delin, O. Eriksson, B. Johansson, S. Auluck, and J. M. Wills, Calculated magneto-optical properties of cubic and tetragonal Fe, Co, and Ni, Phys. Rev. B 60, 14105 (1999).
  26. W. F. J. Fontijn, P. J. van der Zaag, M. A. C. Devillers, V. A. M. Brabers, and R. Metselaar, Optical and magneto-optical polar Kerr spectra of Fe3O4 and Mg2+- or Al3+-substituted Fe3O4, Phys. Rev. B 56, 5432 (1997).
  27. S. Matsumoto, T. Goto, Y. Syono, and Y. Nakagawa, Magneto-optical study of low-temperature phase transition in magnetite, J. Phys. Soc. Jpn. 44, 162 (1978).
  28. H. Mitamura, R. Watanuki, E. Kampert, T. Förster, A. Matsuo, T. Onimaru, N. Onozaki, Y. Amou, K. Wakiya, K. T. Matsumoto, I. Yamamoto, K. Suzuki, S. Zherlitsyn, J. Wosnitza, M. Tokunaga, K. Kindo, and T. Sakakibara, Improved accuracy in high-frequency AC transport measurements in pulsed high magnetic fields, Rev. Sci. Instrum. 91, 125107 (2020).

Outline

Information

Phys. Rev. Research 8, 013169– Published 13 February, 2026
  • Received 22 August 2025
  • Accepted 5 December 2025
