Paramagnetic half-moon-shaped diffuse scattering arising from three-dimensional magnetic frustration

Nelly Natsch1,*, Tara N. Tošić1, Jian-Rui Soh2, and Nicola A. Spaldin1,†

  • *Contact author: nelly.natsch@gmail.com
  • †Contact author: nspaldin@ethz.ch
PDF

Phys. Rev. Research 8, 033373 – Published 29 September, 2026

DOI: https://doi.org/10.1103/v9pz-nxph

Abstract

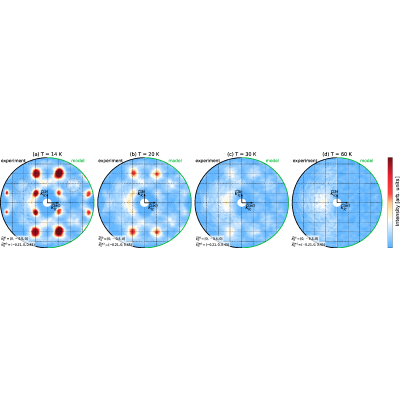

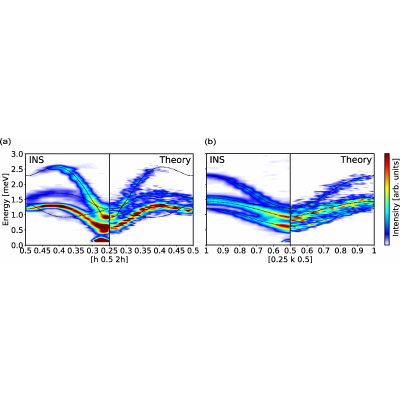

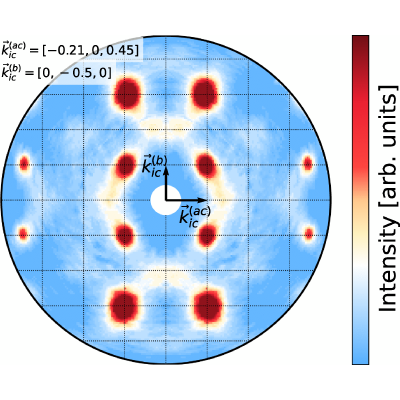

We use spin dynamics simulations to determine the origin of the unusual correlated diffuse scattering, characterized by half-moon shapes bridging the magnetic Bragg peaks, observed in the polarized elastic neutron scattering from manganese tungstate, MnWO4. We first fit a Heisenberg Hamiltonian with 12 nearest-neighbor exchange interactions and single-ion anisotropy to the experimental ground-state magnon dispersion. We then show via spin dynamics simulations that our model Hamiltonian both reproduces the experimentally observed half-moon features and captures their persistence into the paramagnetic regime. Moreover, we identify the three-dimensional, competing antiferromagnetic interactions driving this behavior. Our work complements earlier studies of half-moon-shaped signatures in pyrochlore and triangular structures, by providing insight into their origin and showing that the half moons in MnWO4 result from three-dimensional competing exchange interactions, in the absence of the spin-liquid behavior with which they are usually associated.

View figure in article

Physics Subject Headings (PhySH)

Article Text

References (33)

  1. H. Yan, R. Pohle, and N. Shannon, Half moons are pinch points with dispersion, Phys. Rev. B 98, 140402 (2018).
  2. M. Udagawa, L. D. C. Jaubert, C. Castelnovo, and R. Moessner, Out-of-equilibrium dynamics and extended textures of topological defects in spin ice, Phys. Rev. B 94, 104416 (2016).
  3. T. Mizoguchi, L. Jaubert, and M. Udagawa, Clustering of topological charges in a kagome classical spin liquid, Phys. Rev. Lett. 119, 077207 (2017).
  4. J. A. M. Paddison, M. J. Gutmann, J. R. Stewart, M. G. Tucker, M. T. Dove, D. A. Keen, and A. L. Goodwin, Magnetic structure of paramagnetic MnO, Phys. Rev. B 97, 014429 (2018).
  5. X. Bai, J. Paddison, E. Kapit, S. Koohpayeh, J.-J. Wen, S. Dutton, A. Savici, A. Kolesnikov, G. Granroth, C. Broholm, J. Chalker, and M. Mourigal, Magnetic excitations of the classical spin liquid MgCr2O4, Phys. Rev. Lett. 122, 097201 (2019).
  6. K. Tomiyasu, T. Yokobori, Y. Kousaka, R. I. Bewley, T. Guidi, T. Watanabe, J. Akimitsu, and K. Yamada, Emergence of highly degenerate excited states in the frustrated magnet MgCr2O4, Phys. Rev. Lett. 110, 077205 (2013).
  7. P. H. Conlon and J. T. Chalker, Absent pinch points and emergent clusters: Further neighbor interactions in the pyrochlore Heisenberg antiferromagnet, Phys. Rev. B 81, 224413 (2010).
  8. S. Holbein, Neutron scattering studies on complex magnetic structures in magnetoelectric materials, Ph.D. thesis, Universität zu Köln, Köln, 2016.
  9. T. Mizoguchi, L. D. C. Jaubert, R. Moessner, and M. Udagawa, Magnetic clustering, half-moons, and shadow pinch points as signals of a proximate Coulomb phase in frustrated Heisenberg magnets, Phys. Rev. B 98, 144446 (2018).
  10. H. Weitzel, Kristallstrukturverfeinerung von Wolframiten und Columbiten, Z. Kristallogr. Cryst. Mater. 144, 238 (1976).
  11. Y. Xiao, C. M. N. Kumar, S. Nandi, Y. Su, W. T. Jin, Z. Fu, E. Faulhaber, A. Schneidewind, and T. Brückel, Spin-wave and electromagnon dispersions in multiferroic MnWO4 as observed by neutron spectroscopy: Isotropic Heisenberg exchange versus anisotropic Dzyaloshinskii-Moriya interaction, Phys. Rev. B 93, 214428 (2016).
  12. J. Wang, R. S. Fishman, Y. Qiu, J. A. Fernandez-Baca, G. Ehlers, K.-C. Liang, Y. Wang, B. Lorenz, C. W. Chu, and F. Ye, Comprehensive inelastic neutron scattering study of the multiferroic Mn1−xCoxWO4, Phys. Rev. B 98, 214425 (2018).
  13. F. Ye, R. S. Fishman, J. A. Fernandez-Baca, A. A. Podlesnyak, G. Ehlers, H. A. Mook, Y. Wang, B. Lorenz, and C. W. Chu, Long-range magnetic interactions in the multiferroic antiferromagnet MnWO4, Phys. Rev. B 83, 140401 (2011).
  14. G. Lautenschläger, H. Weitzel, T. Vogt, R. Hock, A. Böhm, M. Bonnet, and H. Fuess, Magnetic phase transitions of MnWO4 studied by the use of neutron diffraction, Phys. Rev. B 48, 6087 (1993).
  15. H. Dachs, Zur Deutung der magnetischen Struktur des Hübnerits, MnWO4, Solid State Commun. 7, 1015 (1969).
  16. H. Ehrenberg, H. Weitzel, H. Fuess, and B. Hennion, Magnon dispersion in MnWO4, J. Phys.: Condens. Matter 11, 2649 (1999).
  17. N. Leo, A. Bergman, A. Cano, N. Poudel, B. Lorenz, M. Fiebig, and D. Meier, Polarization control at spin-driven ferroelectric domain walls, Nat. Commun. 6, 6661 (2015).
  18. T. N. Tošić, P. P. Deen, A. Simonov, and N. A. Spaldin, Origin of correlated diffuse scattering in the hexagonal manganites, Phys. Rev. Res. 6, L042037 (2024).
  19. UppASD, UppASD tutorial, 2022, last accessed on 15 Sep 2026, github.com/UppASD/UppASD-tutorial.
  20. FIZ-Karlsruhe, Inorganic crystal structure database, entry for structural formula MnWO4, 2024, last accessed on 15 Sep 2026, icsd.products.fiz-karlsruhe.de/en.
  21. I. Urcelay-Olabarria, J. M. Perez-Mato, J. L. Ribeiro, J. L. García-Muñoz, E. Ressouche, V. Skumryev, and A. A. Mukhin, Incommensurate magnetic structures of multiferroic MnWO4 studied within the superspace formalism, Phys. Rev. B 87, 014419 (2013).
  22. S. Janas, J. Lass, A.-E. Ţuţueanu, M. L. Haubro, C. Niedermayer, U. Stuhr, G. Xu, D. Prabhakaran, P. P. Deen, S. Holm-Dahlin, and K. Lefmann, Classical spin liquid or extended critical range in h−YMnO3? Phys. Rev. Lett. 126, 107203 (2021).
  23. G. Shirane, S. M. Shapiro, and J. M. Tranquada, Neutron Scattering with a Triple-Axis Spectrometer: Basic Techniques (Cambridge University Press, Cambridge, UK, 2002).
  24. K. Taniguchi, N. Abe, H. Sagayama, S. Ohtani, T. Takenobu, Y. Iwasa, and T. Arima, Magnetic-field dependence of the ferroelectric polarization and spin-lattice coupling in multiferroic MnWO4, Phys. Rev. B 77, 064408 (2008).
  25. T. Finger, Analyse magnetischer Korrelationen in geschichteten oder multiferroischen Übergangsmetalloxiden durch Neutronenstreuung, Ph.D. thesis, Universität zu Köln, 2013.
  26. T. Finger, D. Senff, K. Schmalzl, W. Schmidt, L. P. Regnault, P. Becker, L. Bohatý, and M. Braden, Polarized-neutron-scattering studies on the chiral magnetism in multiferroic MnWO4, J. Phys.: Conf. Ser. 211, 012001 (2010).
  27. S. Biesenkamp, N. Qureshi, Y. Sidis, P. Becker, L. Bohatý, and M. Braden, Structural dimerization in the commensurate magnetic phases of NaFe(WO4)2, Phys. Rev. B 102, 144429 (2020).
  28. L. Chen, D.-W. Qu, H. Li, B.-B. Chen, S.-S. Gong, J. von Delft, A. Weichselbaum, and W. Li, Two-temperature scales in the triangular-lattice Heisenberg antiferromagnet, Phys. Rev. B 99, 140404 (2019).
  29. D. Hohlwein, J.-U. Hoffmann, and R. Schneider, Magnetic interaction parameters from paramagnetic diffuse neutron scattering in MnO, Phys. Rev. B 68, 140408 (2003).
  30. S.-H. Lee, C. Broholm, W. Ratcliff, G. Gasparovic, Q. Huang, T. H. Kim, and S.-W. Cheong, Emergent excitations in a geometrically frustrated magnet, Nature (London) 418, 856 (2002).
  31. K. Tomiyasu, H. Suzuki, M. Toki, S. Itoh, M. Matsuura, N. Aso, and K. Yamada, Molecular spin resonance in the geometrically frustrated magnet MgCr2O4 by inelastic neutron scattering, Phys. Rev. Lett. 101, 177401 (2008).
  32. T. J. Sato, S. H. Lee, T. Katsufuji, M. Masaki, S. Park, J. R. D. Copley, and H. Takagi, Unconventional spin fluctuations in the hexagonal antiferromagnet YMnO3, Phys. Rev. B 68, 014432 (2003).
  33. N. Natsch, T. Tošić, J.-R. Soh, and N. Spaldin, Paramagnetic half-moon shaped diffuse scattering arising from 3D magnetic frustration [Dataset], Materials Cloud Archive, 2026, https://doi.org/10.24435/materialscloud:s5-a8.
