Factors determining ion rejection and one-step freeze desalination

Dachuang Shi*, Le Zhou*, Yixiang Wang, Yanguang Zhou, and Zhigang Li†

  • *These authors contributed equally to this work.
  • †Contact author: mezli@ust.hk
PDF

Phys. Rev. Research 7, 033196 – Published 27 August, 2025

DOI: https://doi.org/10.1103/s77l-lvl4

Abstract

Freeze desalination is an emerging, membrane-free desalination method that utilizes the ion rejection phenomenon during the freezing of seawater, where salt ions tend to be rejected by ice. However, it requires the ion rejection rate to be higher than 98.2% to generate drinking water; i.e., at least 98.2% of the salt ions remain in the liquid phase. This poses a challenge for one-step seawater freezing due to the trapping of salt ions in ice. In this work, we first reveal that the ion rejection phenomenon is governed by the competition between two factors: ice growth and ion diffusion, which can be described by two characteristic timescales, τice and τion, respectively. To enhance the ion rejection rate, the ratio τice/τion should be increased. Based on this criterion, we propose a freeze desalination method by freezing flowing seawater, where τion is reduced due to the enhancement of the ion diffusivity caused by flow shear, to obtain potable water through a single cycle of seawater freezing with the ion rejection rate exceeding 98.2%. With additional temperature control, the productivity of drinking water can be further improved. The proposed freeze desalination method shows great potential for commercialization.

View figure in article

Physics Subject Headings (PhySH)

Article Text

Supplemental Material

References (45)

  1. UN DESA, The Sustainable Development Goals Report 2023: Special ed., UN DESA (2023).
  2. M. Alhaj, F. Tahir, and S. G. Al-Ghamdi, Life-cycle environmental assessment of solar-driven multi-effect desalination (MED) plant, Desalination 524, 115451 (2022).
  3. H. T. El-Dessouky, H. M. Ettouney, and Y. Al-Roumi, Multi-stage flash desalination: Present and future outlook, Chem. Eng. J. 73, 173 (1999).
  4. A. A. Tareemi and S. W. Sharshir, A state-of-art overview of multi-stage flash desalination and water treatment: Principles, challenges, and heat recovery in hybrid systems, Sol. Energy 266, 112157 (2023).
  5. L. F. Greenlee, D. F. Lawler, B. D. Freeman, B. Marrot, and P. Moulin, Reverse osmosis desalination: Water sources, technology, and today's challenges, Water Res. 43, 2317 (2009).
  6. Y. J. Lim, K. Goh, M. Kurihara, and R. Wang, Seawater desalination by reverse osmosis: Current development and future challenges in membrane fabrication—A review, J. Membr. Sci. 629, 119292 (2021).
  7. B. Peñate and L. García-Rodríguez, Current trends and future prospects in the design of seawater reverse osmosis desalination technology, Desalination 284, 1 (2012).
  8. N. Akther, A. Sodiq, A. Giwa, S. Daer, H. A. Arafat, and S. W. Hasan, Recent advancements in forward osmosis desalination: A review, Chem. Eng. J. 281, 502 (2015).
  9. A. Najim, A review of advances in freeze desalination and future prospects, Npj Clean Water 5, 15 (2022).
  10. M. Ayaz, M. A. Namazi, M. A. ud Din, M. I. M. Ershath, A. Mansour, and el-H. M. Aggoune, Sustainable seawater desalination: Current status, environmental implications and future expectations, Desalination 540, 116022 (2022).
  11. P. S. Goh, W. J. Lau, M. H. D. Othman, and A. F. Ismail, Membrane fouling in desalination and its mitigation strategies, Desalination 425, 130 (2018).
  12. M. T. Khan, C.-L. de O. Manes, C. Aubry, L. Gutierrez, and J. P. Croue, Kinetic study of seawater reverse osmosis membrane fouling, Environ. Sci. Technol. 47, 10884 (2013).
  13. C. D. Peters, D. Li, Z. Mo, N. P. Hankins, and Q. She, Exploring the limitations of osmotically assisted reverse osmosis: Membrane fouling and the limiting flux, Environ. Sci. Technol. 56, 6678 (2022).
  14. L. N. Sim, T. H. Chong, A. H. Taheri, S. T. V. Sim, L. Lai, W. B. Krantz, and A. G. Fane, A review of fouling indices and monitoring techniques for reverse osmosis, Desalination 434, 169 (2018).
  15. Y. Lu, Y. Hu, D. Xu, and L. Wu, Optimum design of reverse osmosis seawater desalination system considering membrane cleaning and replacing, J. Membr. Sci. 282, 7 (2006).
  16. S. Luo, Y. Jin, R. Tao, H. Li, C. Li, J. Wang, and Z. Li, Molecular understanding of ion rejection in the freezing of aqueous solutions, Phys. Chem. Chem. Phys. 23, 13292 (2021).
  17. W. H. Organization, Guidelines for Drinking-Water Quality: Fourth Edition Incorporating First Addendum (World Health Organization, Geneva, Switzerland, 2017).
  18. M. G. Worster and J. S. Wettlaufer, Natural convection, solute trapping, and channel formation during solidification of saltwater, J. Phys. Chem. B 101, 6132 (1997).
  19. M. G. Worster and D. W. Rees Jones, Sea-ice thermodynamics and brine drainage, Philos. Trans. R. Soc. A Math. Phys. Eng. Sci. 373, 20140166 (2015).
  20. J.-Q. Zhong, A. T. Fragoso, A. J. Wells, and J. S. Wettlaufer, Finite-sample-size effects on convection in mushy layers, J. Fluid Mech. 704, 89 (2012).
  21. Y. Du, Z. Wang, L. Jiang, E. Calzavarini, and C. Sun, Sea water freezing modes in a natural convection system, J. Fluid Mech. 960, A35 (2023).
  22. D. Walker and T. Andrews, II. Ice observations, Proc. R. Soc. Lond. 9, 609 (1859).
  23. K. El Kadi, I. Adeyemi, and I. Janajreh, Application of directional freezing for seawater desalination: Parametric analysis using experimental and computational methods, Desalination 520, 115339 (2021).
  24. S. Moharramzadeh, S. K. Ong, J. Alleman, and K. S. Cetin, Parametric study of the progressive freeze concentration for desalination, Desalination 510, 115077 (2021).
  25. R. Fujioka, L. P. Wang, G. Dodbiba, and T. Fujita, Application of progressive freeze-concentration for desalination, Desalination 319, 33 (2013).
  26. A. Najim, and S. Krishnan, Experimental study on progressive freeze-concentration-based desalination employing a rectangular channel crystallizer, Environ. Sci.: Wat. Res. Technol. 9, 850 (2023).
  27. H. Zhang, I. Janajreh, M. I. Hassan Ali, and K. Askar, Freezing desalination: Heat and mass validated modeling and experimental parametric analyses, Case Stud. Therm. Eng. 26, 101189 (2021).
  28. H. Shin, B. Kalista, S. Jeong, and A. Jang, Optimization of simplified freeze desalination with surface scraped freeze crystallizer for producing irrigation water without seeding, Desalination 452, 68 (2019).
  29. A. P. Thompson et al., LAMMPS—A flexible simulation tool for particle-based materials modeling at the atomic, meso, and continuum scales, Comput. Phys. Commun. 271, 108171 (2022).
  30. R. C. DeMille and V. Molinero, Coarse-grained ions without charges: Reproducing the solvation structure of NaCl in water using short-ranged potentials, J. Chem. Phys. 131, 034107 (2009).
  31. C. Zhao, Y. Lin, X. Wu, X. Zhang, and F. Chu, Nanoscale insights on the freezing front propagation and ion behaviors during seawater freezing, Appl. Surf. Sci. 641, 158499 (2023).
  32. F. Chu, S. Li, C. Zhao, Y. Feng, Y. Lin, X. Wu, X. Yan, and N. Miljkovic, Interfacial ice sprouting during salty water droplet freezing, Nat. Commun. 15, 2249 (2024).
  33. C. Zhao, Z. Hu, Y. Lin, X. Wu, and F. Chu, Molecular insights into surface wettability for heterogeneous ice nucleation of seawater on solid surfaces, Int. J. Heat Mass Transf. 237, 126426 (2025).

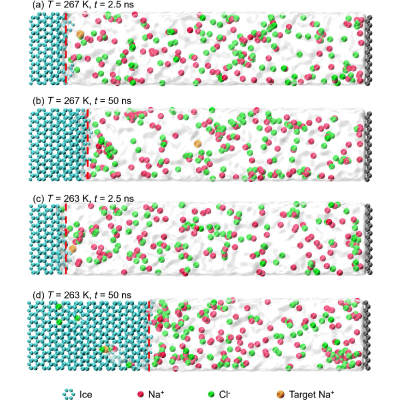

  34. D. Shi, L. Zhou, Y. Wang, Y. Zhou, and Z. Li, Visual materials for the paper factors determining ion rejection and one-step freeze desalination, Zenodo, https://doi.org/10.5281/zenodo.16938489 (2025). These two video supplements present the dynamics of target Na+ in the two cases in Fig. 2. Video S1 shows the ice formation process at T = 267 K. Video S2 shows the ice formation process at T = 263 K. The target Na+ is highlighted with a red dashed circle.
  35. R. A. Nistor, T. E. Markland, and B. J. Berne, Interface-limited growth of heterogeneously nucleated ice in supercooled water, J. Phys. Chem. B 118, 752 (2014).
  36. A. H. Nguyen and V. Molinero, Identification of clathrate hydrates, hexagonal ice, cubic ice, and liquid water in simulations: The CHILL+ algorithm, J. Phys. Chem. B 119, 9369 (2015).
  37. A. Stukowski, Visualization and analysis of atomistic simulation data with ovito—The open visualization tool, Model. Simul. Mater. Sci. Eng. 18, 015012 (2009).
  38. CRC Handbook of Chemistry and Physics, 97th ed., edited by W. M. Haynes (CRC Press, Boca Raton, FL, 2016).
  39. S. Luo, C. Li, F. Li, J. Wang, and Z. Li, Ice crystallization in shear flows, J. Phys. Chem. C 123, 21042 (2019).
  40. S. Luo, J. Wang, and Z. Li, Homogeneous ice nucleation under shear, J. Phys. Chem. B 124, 3701 (2020).
  41. Y. Wang, D. Shi, G. Liu, B. Huang, and Z. Li, Shear-enhanced ion rejection during seawater freezing, J. Phys. Chem. B 127, 10404 (2023).
  42. See Supplemental Material at http://link.aps.org/supplemental/10.1103/s77l-lvl4 for Supplemental Figures regarding MD simulations and details about experiments.
  43. B. R. Munson, D. F. Young, and T. H. Okiishi, Fundamentals of Fluid Mechanics, 6th ed. (John Wiley & Sons Inc., Hoboken, NJ, 2009).
  44. A. A. Altohamy, M. A. Sharafeldin, M. A. Abdelrahman, A. A. A. Attia, and I. M. M. Elsemary, An experimental study of a newly designed freezing desalination unit equipped with reversed vapor compression cycle, Case Stud. Therm. Eng. 28, 101610 (2021).
  45. M. I. Rashad, M. A. Farahat, H. A. Faiad, and S. Ahmed, An experimental investigation on a crushing and washing-free freezing desalination system based on brine extraction during melting, Appl. Therm. Eng. 230, 120731 (2023).
