Anisotropic interactions induce dynamical spin freezing in artificial colloidal ice

Leonardo G. Alanis-Cantú and Antonio Ortiz-Ambriz*

  • *Contact author: aortiza@tec.mx
PDF

Phys. Rev. Research 8, 033051 – Published 13 July, 2026

DOI: https://doi.org/10.1103/q96k-2pcs

Abstract

Artificial colloidal ice is an icelike system used to study the effects of frustration in controlled environments, where all degrees of freedom can be accessed at a length scale large enough for optical visualization and in real time. We modify this model system by inducing anisotropic interactions through an in-plane magnetic field. In this regime, the system has a well-defined ground state consisting of a checkerboard pattern of fully charged vertices. However, Brownian dynamics simulations are unable to reach this ground state and instead remain frozen in metastable disordered states, even in the absence of quenched disorder in the lattice. This arrest is caused by the local magnetic enhancement of the potential barrier that the particles need to cross to find a lower energy state.

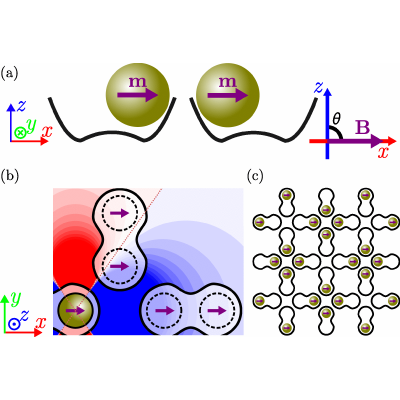

View figure in article

Physics Subject Headings (PhySH)

Article Text

Supplemental Material

References (39)

  1. S. F. Edwards and P. W. Anderson, Theory of spin glasses, J. Phys. F: Met. Phys. 5, 965 (1975).
  2. J. de Nobel and F. J. du Chatenier, Specific heats of dilute alloys of manganese in silver and copper at low temperatures and in magnetic fields, Physica 25, 969 (1959).
  3. J. Zimmerman and F. Hoare, Low-temperature specific heat of dilute Cu-Mn alloys, J. Phys. Chem. Solids 17, 52 (1960).
  4. S. Süllow, G. J. Nieuwenhuys, A. A. Menovsky, J. A. Mydosh, S. A. M. Mentink, T. E. Mason, and W. J. L. Buyers, Spin glass behavior in URh2Ge2, Phys. Rev. Lett. 78, 354 (1997).
  5. A. Krimmel, J. Hemberger, M. Nicklas, G. Knebel, W. Trinkl, M. Brando, V. Fritsch, A. Loidl, and E. Ressouche, Spin-glass behavior in PrAu2Si2, Phys. Rev. B 59, R6604(R) (1999).
  6. P. Schiffer, A. P. Ramirez, D. A. Huse, P. L. Gammel, U. Yaron, D. J. Bishop, and A. J. Valentino, Frustration induced spin freezing in a site-ordered magnet: Gadolinium gallium garnet, Phys. Rev. Lett. 74, 2379 (1995).
  7. E. A. Goremychkin, R. Osborn, B. D. Rainford, R. T. Macaluso, D. T. Adroja, and M. Koza, Spin-glass order induced by dynamic frustration, Nat. Phys. 4, 766 (2008).
  8. M. Hadouchi, A. Assani, M. Saadi, Y. Kopelevich, R. R. da Silva, A. Lahmar, H. Bouyanfif, M. El Marssi, and L. El Ammari, Unconventional spin-glass-like state in AgCo2V3O10, the novel magnetically frustrated material, J. Magn. Magn. Mater. 491, 165623 (2019).
  9. X.-M. Zhang, C.-R. Li, X.-H. Zhang, W.-X. Zhang, and X.-M. Chen, Unusual slow magnetic relaxation in helical Co3(OH)2 ferrimagnetic chain based cobalt hydroxysulfates, Chem. Mater. 20, 2298 (2008).
  10. B. D. Gaulin, J. N. Reimers, T. E. Mason, J. E. Greedan, and Z. Tun, Spin freezing in the geometrically frustrated pyrochlore antiferromagnet Tb2Mo2O7, Phys. Rev. Lett. 69, 3244 (1992).
  11. N. P. Raju, E. Gmelin, and R. K. Kremer, Magnetic-susceptibility and specific-heat studies of spin-glass-like ordering in the pyrochlore compounds R2Mo2O7(R=Y,Sm, or Gd), Phys. Rev. B 46, 5405 (1992).
  12. J. N. Reimers, J. E. Greedan, R. K. Kremer, E. Gmelin, and M. A. Subramanian, Short-range magnetic ordering in the highly frustrated pyrochlore Y2Mn2O7, Phys. Rev. B 43, 3387 (1991).
  13. J. Snyder, J. S. Slusky, R. J. Cava, and P. Schiffer, How ‘spin ice’ freezes, Nature (London) 413, 48 (2001).
  14. J. Snyder, B. G. Ueland, J. S. Slusky, H. Karunadasa, R. J. Cava, and P. Schiffer, Low-temperature spin freezing in the Dy2Ti2O7 spin ice, Phys. Rev. B 69, 064414 (2004).
  15. P. M. M. Thygesen, J. A. M. Paddison, R. Zhang, K. A. Beyer, K. W. Chapman, H. Y. Playford, M. G. Tucker, D. A. Keen, M. A. Hayward, and A. L. Goodwin, Orbital dimer model for the spin-glass state in Y2Mo2O7, Phys. Rev. Lett. 118, 067201 (2017).
  16. K. Mitsumoto, C. Hotta, and H. Yoshino, Spin-orbital glass transition in a model of a frustrated pyrochlore magnet without quenched disorder, Phys. Rev. Lett. 124, 087201 (2020).
  17. K. Mitsumoto and H. Yoshino, Replica theory for disorder-free spin-lattice glass transition on a treelike simplex network, Phys. Rev. B 107, 054412 (2023).
  18. R. F. Wang, C. Nisoli, R. S. Freitas, J. Li, W. McConville, B. J. Cooley, M. S. Lund, N. Samarth, C. Leighton, V. H. Crespi, and P. Schiffer, Artificial ‘spin ice’ in a geometrically frustrated lattice of nanoscale ferromagnetic islands, Nature (London) 439, 303 (2006).
  19. Y. Lao, F. Caravelli, M. Sheikh, J. Sklenar, D. Gardeazabal, J. D. Watts, A. M. Albrecht, A. Scholl, K. Dahmen, C. Nisoli, and P. Schiffer, Classical topological order in the kinetics of artificial spin ice, Nat. Phys. 14, 723 (2018).
  20. N. Rougemaille, F. Montaigne, B. Canals, A. Duluard, D. Lacour, M. Hehn, R. Belkhou, O. Fruchart, S. El Moussaoui, A. Bendounan, and F. Maccherozzi, Artificial kagome arrays of nanomagnets: A frozen dipolar spin ice, Phys. Rev. Lett. 106, 057209 (2011).
  21. E. Mengotti, L. J. Heyderman, A. F. Rodríguez, F. Nolting, R. V. Hügli, and H.-B. Braun, Real-space observation of emergent magnetic monopoles and associated Dirac strings in artificial kagome spin ice, Nat. Phys. 7, 68 (2011).
  22. M. S. Andersson, S. D. Pappas, H. Stopfel, E. Östman, A. Stein, P. Nordblad, R. Mathieu, B. Hjörvarsson, and V. Kapaklis, Thermally induced magnetic relaxation in square artificial spin ice, Sci. Rep. 6, 37097 (2016).
  23. S. A. Morley, D. Alba Venero, J. M. Porro, S. T. Riley, A. Stein, P. Steadman, R. L. Stamps, S. Langridge, and C. H. Marrows, Vogel-Fulcher-Tammann freezing of a thermally fluctuating artificial spin ice probed by x-ray photon correlation spectroscopy, Phys. Rev. B 95, 104422 (2017).
  24. M. Saccone, F. Caravelli, K. Hofhuis, S. Parchenko, Y. A. Birkhölzer, S. Dhuey, A. Kleibert, S. van Dijken, C. Nisoli, and A. Farhan, Direct observation of a dynamical glass transition in a nanomagnetic artificial Hopfield network, Nat. Phys. 18, 517 (2022).
  25. M. Saccone, F. Caravelli, K. Hofhuis, S. Dhuey, A. Scholl, C. Nisoli, and A. Farhan, Real-space observation of ergodicity transitions in artificial spin ice, Nat. Commun. 14, 5674 (2023).
  26. A. Ortiz-Ambriz, C. Nisoli, C. Reichhardt, C. J. O. Reichhardt, and P. Tierno, Colloquium: Ice rule and emergent frustration in particle ice and beyond, Rev. Mod. Phys. 91, 041003 (2019).
  27. A. Ortiz-Ambriz and P. Tierno, Engineering of frustration in colloidal artificial ices realized on microfeatured grooved lattices, Nat. Commun. 7, 10575 (2016).
  28. C. Nisoli, Unexpected phenomenology in particle-based ice absent in magnetic spin ice, Phys. Rev. Lett. 120, 167205 (2018).
  29. E. C. Oğuz, A. Ortiz-Ambriz, H. Shem-Tov, E. Babià-Soler, P. Tierno, and Y. Shokef, Topology restricts quasidegeneracy in sheared square colloidal ice, Phys. Rev. Lett. 124, 238003 (2020).
  30. C. Rodríguez-Gallo, A. Ortiz-Ambriz, C. Nisoli, and P. Tierno, Geometrical control of topological charge transfer in Shakti-Cairo colloidal ice, Commun. Phys. 6, 113 (2023).
  31. A. Libál, C. Reichhardt, and C. J. O. Reichhardt, Realizing colloidal artificial ice on arrays of optical traps, Phys. Rev. Lett. 97, 228302 (2006).
  32. F. Martinez-Pedrero, A. Ortiz-Ambriz, I. Pagonabarraga, and P. Tierno, Colloidal microworms propelling via a cooperative hydrodynamic conveyor belt, Phys. Rev. Lett. 115, 138301 (2015).
  33. M. Ostinato and P. Tierno, Tracking topological defects in a plasma state of a quenched colloidal ice, Phys. Rev. B 111, 014414 (2025).
  34. See Supplemental Material at http://link.aps.org/supplemental/10.1103/q96k-2pcs for two videos showing the evolution of the order parameter for fast and slow fields.
  35. A. Libal, A. del Campo, C. Nisoli, C. Reichhardt, and C. J. O. Reichhardt, Quenched dynamics of artificial spin ice, Phys. Rev. Res. 2, 033433 (2020).
  36. Y. Han, Y. Shokef, A. M. Alsayed, P. Yunker, T. C. Lubensky, and A. G. Yodh, Geometric frustration in buckled colloidal monolayers, Nature (London) 456, 898 (2008).
  37. J. Liang, X. Feng, N. Zheng, H. Wang, R. Ni, and Z. Zhang, Glass transition in monolayers of rough colloidal ellipsoids, Phys. Rev. Lett. 134, 038202 (2025).
  38. D. Zhou, F. Wang, B. Li, X. Lou, and Y. Han, Glassy spin dynamics in geometrically frustrated buckled colloidal crystals, Phys. Rev. X 7, 021030 (2017).
  39. A. del Campo and W. H. Zurek, Universality of phase transition dynamics: Topological defects from symmetry breaking, Int. J. Mod. Phys. A 29, 1430018 (2014).
