General model and modulation strategies for Sagnac-based encoders
Phys. Rev. Research 8, 033069 – Published 17 July, 2026
DOI: https://doi.org/10.1103/q2sy-sw7h
Abstract

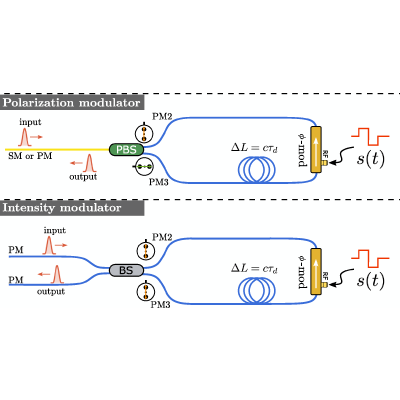

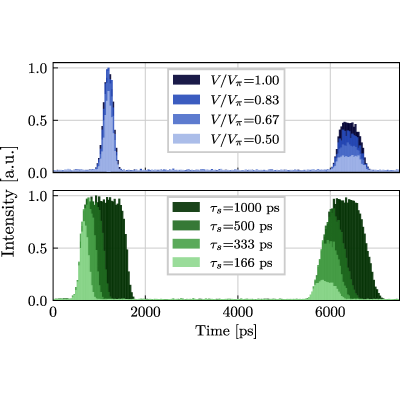

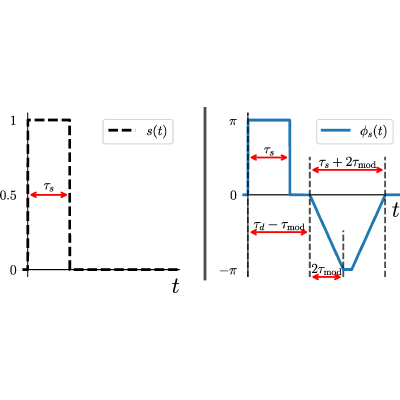

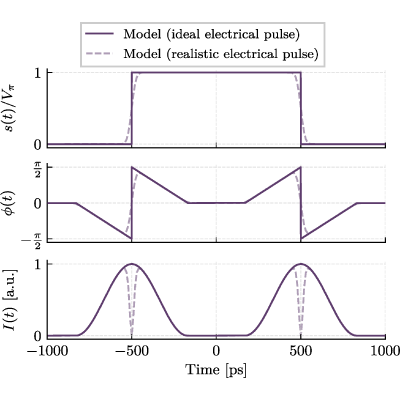

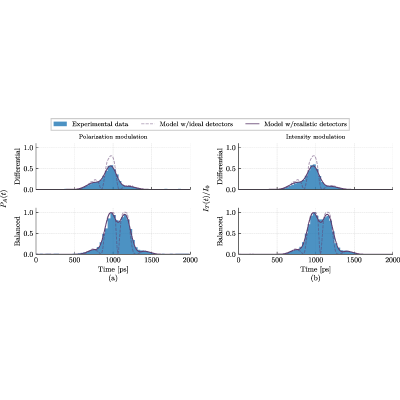

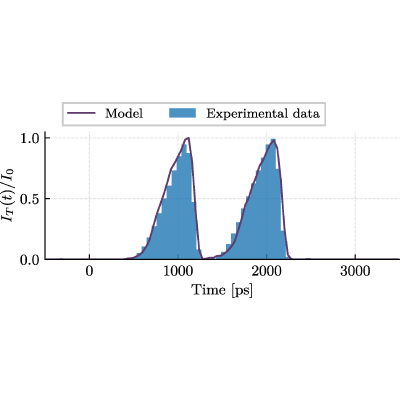

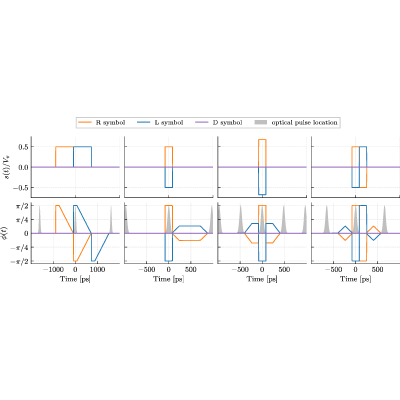

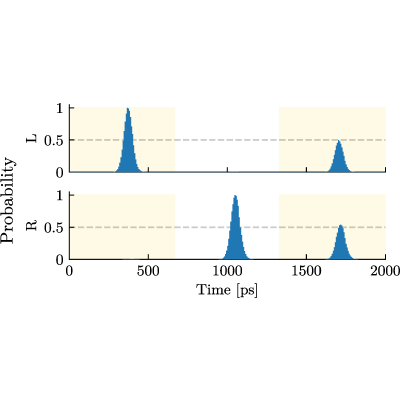

In recent decades, there has been an increasing demand for faster modulation schemes. Electro-optic modulators are essential components in modern photonic systems, enabling high-speed control of light for applications ranging from telecommunications to quantum communication. Conventional inline and Mach-Zehnder modulators, while widely adopted, are limited by bias drift, high operating voltages, and polarization-mode dispersion. Sagnac loop-based modulators have recently emerged as a promising alternative, offering inherent stability against environmental fluctuations and eliminating the need for active bias control. In this work, we present a comprehensive model of the Sagnac modulator that captures both intensity and polarization modulation. We analyze the role of asymmetry in the loop, highlighting its impact on the achievable repetition rate, and propose modulation strategies to overcome these constraints. Finally, we investigate the symmetric Sagnac configuration and demonstrate practical techniques for achieving robust modulation while mitigating experimental challenges, including optical pulse carving and polarization modulation at repetition rates up to 1.5 GHz, the maximum achievable for our hardware implementation without increasing the modulation voltage. Our results establish the Sagnac modulator as a versatile and stable platform for next-generation photonic and quantum communication systems.
Physics Subject Headings (PhySH)
Article Text
References (19)
- D. R. Carlson, D. D. Hickstein, W. Zhang, A. J. Metcalf, F. Quinlan, S. A. Diddams, and S. B. Papp, Ultrafast electro-optic light with subcycle control, Science 361, 1358 (2018).
- M. Xu, M. He, H. Zhang, J. Jian, Y. Pan, X. Liu, L. Chen, X. Meng, H. Chen, Z. Li, X. Xiao, S. Yu, S. Yu, and X. Cai, High-performance coherent optical modulators based on thin-film lithium niobate platform, Nat. Commun. 11, 3911 (2020).
- E. Wooten, K. Kissa, A. Yi-Yan, E. Murphy, D. Lafaw, P. Hallemeier, D. Maack, D. Attanasio, D. Fritz, G. McBrien, and D. Bossi, A review of lithium niobate modulators for fiber-optic communications systems, IEEE J. Sel. Top. Quantum Electron. 6, 69 (2000).
- P. Townsend, J. Rarity, and P. Tapster, Single photon interference in 10 km long optical fibre interferometer, Electron. Lett. 29, 634 (1993).
- P. D. Townsend, A. Ougazzaden, and P. R. Tapster, Enhanced single photon fringe visibility in a 10 km-long prototype quantum cryptography channel, Electron. Lett. 29, 1291 (1993).
- C. H. Bennett and G. Brassard, Quantum cryptography: Public key distribution and coin tossing, Theor. Comput. Sci. 560, 7 (2014).
- W.-Y. Hwang, Quantum key distribution with high loss: Toward global secure communication, Phys. Rev. Lett. 91, 057901 (2003).
- G. L. Roberts, M. Pittaluga, M. Minder, M. Lucamarini, J. F. Dynes, Z. L. Yuan, and A. J. Shields, Patterning-effect mitigating intensity modulator for secure decoy-state quantum key distribution, Opt. Lett. 43, 5110 (2018).
- M. Avesani, C. Agnesi, A. Stanco, G. Vallone, and P. Villoresi, Stable, low-error, and calibration-free polarization encoder for free-space quantum communication, Opt. Lett. 45, 4706 (2020).
- C. Agnesi, M. Avesani, A. Stanco, P. Villoresi, and G. Vallone, All-fiber self-compensating polarization encoder for quantum key distribution, Opt. Lett. 44, 2398 (2019).
- R. Alferness, Waveguide electrooptic modulators, IEEE Trans. Microwave Theory Tech. 30, 1121 (1982).
- D. Scalcon, E. Bazzani, G. Vallone, P. Villoresi, and M. Avesani, Low-error encoder for time-bin and decoy states for quantum key distribution, npj Quantum Inf. 11, 22 (2025).
- K. Vijayadharan, M. R. Bolaños, M. Avesani, G. Vallone, P. Villoresi, and C. Agnesi, A Sagnac-based arbitrary time-bin state encoder for quantum communication applications, EPJ Quantum Technol. 12, 129 (2025).
- I. Lucio-Martinez, P. Chan, X. Mo, S. Hosier, and W. Tittel, Proof-of-concept of real-world quantum key distribution with quantum frames, New J. Phys. 11, 095001 (2009).
- Z.-X. Wang, H.-X. Xu, J. Li, H.-C. Yu, J.-Q. Huang, H. Han, C.-L. Wang, P. Zhang, F.-F. Yin, K. Xu, B. Liu, and Y.-T. Dai, 10 GHz robust polarization modulation towards high-speed satellite-based quantum communication, EPJ Quantum Technol. 12, 47 (2025).
- Y. Li, Y.-H. Li, H.-B. Xie, Z.-P. Li, X. Jiang, W.-Q. Cai, J.-G. Ren, J. Yin, S.-K. Liao, and C.-Z. Peng, High-speed robust polarization modulation for quantum key distribution, Opt. Lett. 44, 5262 (2019).
- D. Rusca, A. Boaron, M. Curty, A. Martin, and H. Zbinden, Security proof for a simplified Bennett-Brassard 1984 quantum-key-distribution protocol, Phys. Rev. A 98, 052336 (2018).
- W. Luo, Y. Li, Y. Li, X. Tao, L. Han, W. Cai, J. Yin, J. Ren, S. Liao, and C. Peng, Intrinsically stable 2-GHz polarization modulation for satellite-based quantum key distribution, IEEE Photon. J. 14, 1 (2022).
- G. Vallone, F. Berra, C. Agnesi, A. Stanco, P. Villoresi, and M. Avesani, Metodo di modulazione della polarizzazione di impulsi ottici per la generazione di chiavi crittografiche quantistiche, e relativo modulatore di polarizzazione, patent pending, patent deposit number 102025000008883 (deposit date 20 May 2025).
