Lattice surgery-based logical state teleportation via noisy links

Áron Márton*, Luis Colmenarez, Lukas Bödeker, and Markus Müller

  • *Contact author: a.marton@fz-juelich.de
PDF

Phys. Rev. Research 7, 033238 – Published 10 September, 2025

DOI: https://doi.org/10.1103/ppng-vbqj

Abstract

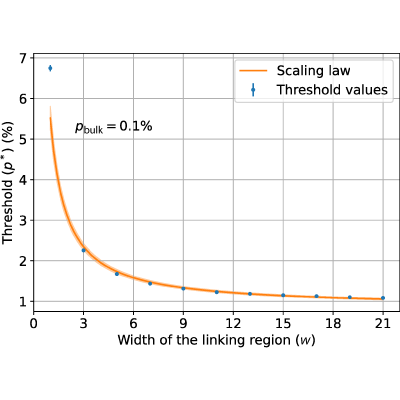

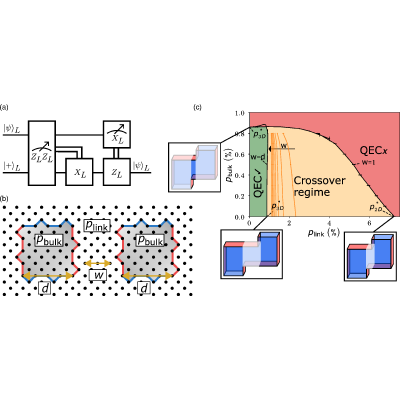

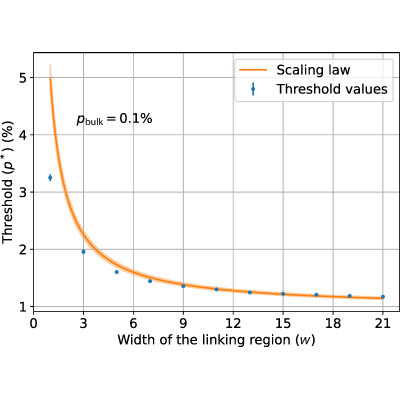

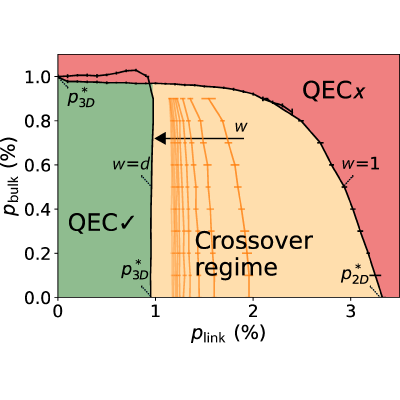

For planar architectures, surface code-based quantum error correction is one of the most promising approaches to fault-tolerant quantum computation. This is partially due to the variety of fault-tolerant logical protocols that can be implemented in two dimensions using local operations. One such protocol is the lattice surgery-based logical state teleportation, which transfers a logical quantum state from an initial location on a quantum chip to a target location through a linking region of qubits. This protocol serves as a basis for higher-level routines, such as the entangling cnot gate or magic state injection. In this work, we investigate the correctability phase diagram of this protocol for distinct error rates inside the surface code patches and within the linking region. We adopt techniques from statistical physics to describe the numerically observed crossover regime between correctable and uncorrectable quantum error correction phases, where the correctability depends on the separation between the initial and target locations. We find that inside the crossover regime the correctability-threshold lines decay as a power law with increasing separation, which we explain accurately using a finite-size scaling analysis. Our results indicate that the logical state teleportation protocol can tolerate much higher noise rates in the linking region compared to the bulk of the surface code patches, provided the separation between the positions is relatively small.

View figure in article

Physics Subject Headings (PhySH)

Article Text

References (49)

  1. A. Kitaev, Fault-tolerant quantum computation by anyons, Ann. Phys. 303, 2 (2003).
  2. S. B. Bravyi and A. Y. Kitaev, Quantum codes on a lattice with boundary, arXiv:quant-ph/9811052.
  3. A. G. Fowler, M. Mariantoni, J. M. Martinis, and A. N. Cleland, Surface codes: Towards practical large-scale quantum computation, Phys. Rev. A 86, 032324 (2012).
  4. E. Dennis, A. Kitaev, A. Landahl, and J. Preskill, Topological quantum memory, J. Math. Phys. 43, 4452 (2002).
  5. G. Q. AI, Quantum error correction below the surface code threshold, Nature (London) 638, 920 (2024).
  6. G. Q. AI, Suppressing quantum errors by scaling a surface code logical qubit, Nature (London) 614, 676 (2023).
  7. G. Q. AI, Demonstrating dynamic surface codes, arXiv:2412.14360.
  8. J. F. Marques, B. M. Varbanov, M. S. Moreira, H. Ali, N. Muthusubramanian, C. Zachariadis, F. Battistel, M. Beekman, N. Haider, W. Vlothuizen, A. Bruno, B. M. Terhal, and L. DiCarlo, Logical-qubit operations in an error-detecting surface code, Nat. Phys. 18, 80 (2022).
  9. S. Krinner, N. Lacroix, A. Remm, A. Di Paolo, E. Genois, C. Leroux, C. Hellings, S. Lazar, F. Swiadek, J. Herrmann, G. J. Norris, C. K. Andersen, M. Müller, A. Blais, C. Eichler, and A. Wallraff, Realizing repeated quantum error correction in a distance-three surface code, Nature (London) 605, 669 (2022).
  10. B. Hetényi and J. R. Wootton, Creating entangled logical qubits in the heavy-hex lattice with topological codes, PRX Quantum 5, 040334 (2024).
  11. D. Bluvstein et al., Logical quantum processor based on reconfigurable atom arrays, Nature (London) 626, 58 (2023).
  12. P. S. Rodriguez et al., Experimental demonstration of logical magic state distillation, Nature (2025), doi:10.1038/s41586-025-09367-3.
  13. C. Ryan-Anderson et al., High-fidelity teleportation of a logical qubit using transversal gates and lattice surgery, Science 385, 1327 (2024).
  14. B. J. Brown, K. Laubscher, M. S. Kesselring, and J. R. Wootton, Poking holes and cutting corners to achieve Clifford gates with the surface code, Phys. Rev. X 7, 021029 (2017).
  15. C. Gidney, Inplace access to the surface code Y basis, Quantum 8, 1310 (2024).
  16. G. P. Gehér, C. McLauchlan, E. T. Campbell et al., Error-corrected Hadamard gate simulated at the circuit level, Quantum 8, 1394 (2024).
  17. D. Horsman, A. G. Fowler, S. Devitt, and R. V. Meter, Surface code quantum computing by lattice surgery, New J. Phys. 14, 123011 (2012).
  18. C. Chamberland and E. T. Campbell, Universal quantum computing with twist-free and temporally encoded lattice surgery, PRX Quantum 3, 010331 (2022).
  19. C. Chamberland and E. T. Campbell, Circuit-level protocol and analysis for twist-based lattice surgery, Phys. Rev. Res. 4, 023090 (2022).
  20. D. Litinski, A game of surface codes: Large-scale quantum computing with lattice surgery, Quantum 3, 128 (2019).
  21. S. Bravyi and A. Kitaev, Universal quantum computation with ideal Clifford gates and noisy ancillas, Phys. Rev. A 71, 022316 (2005).
  22. S. Bravyi and J. Haah, Magic-state distillation with low overhead, Phys. Rev. A 86, 052329 (2012).
  23. C. Gidney, N. Shutty, and C. Jones, Magic state cultivation: Growing T states as cheap as CNOT gates, arXiv:2409.17595.
  24. B. J. Brown, A fault-tolerant non-Clifford gate for the surface code in two dimensions, Sci. Adv. 6, eaay4929 (2020).
  25. R. S. Gupta, N. Sundaresan, T. Alexander, C. J. Wood, S. T. Merkel, M. B. Healy, M. Hillenbrand, T. Jochym-O'Connor, J. R. Wootton, T. J. Yoder, A. W. Cross, M. Takita, and B. J. Brown, Encoding a magic state with beyond break-even fidelity, Nature (London) 625, 259 (2024).
  26. K. Laubscher, D. Loss, and J. R. Wootton, Universal quantum computation in the surface code using non-Abelian islands, Phys. Rev. A 100, 012338 (2019).
  27. I. Besedin, M. Kerschbaum, J. Knoll, I. Hesner, L. Bödeker, L. Colmenarez, L. Hofele, N. Lacroix, C. Hellings, F. Swiadek, A. Flasby, M. B. Panah, D. C. Zanuz, M. Müller, and A. Wallraff, Realizing lattice surgery on two distance-three repetition codes with superconducting qubits, arXiv:2501.04612.
  28. N. Lacroix et al., Scaling and logic in the color code on a superconducting quantum processor, Nature (2025), doi:10.1038/s41586-025-09061-4.
  29. A. Erhard, H. P. Nautrup, M. Meth, L. Postler, R. Stricker, M. Stadler, V. Negnevitsky, M. Ringbauer, P. Schindler, H. J. Briegel, R. Blatt, N. Friis, and T. Monz, Entangling logical qubits with lattice surgery, Nature (London) 589, 220 (2021).
  30. J. Ramette, J. Sinclair, N. P. Breuckmann, and V. Vuletić, Fault-tolerant connection of error-corrected qubits with noisy links, npj Quantum Inf. 10, 58 (2024).
  31. J. Sinclair, J. Ramette, B. Grinkemeyer, D. Bluvstein, M. D. Lukin, and V. Vuletić, Fault-tolerant optical interconnects for neutral-atom arrays, Phys. Rev. Res. 7, 013313 (2025).
  32. C. Wang, J. Harrington, and J. Preskill, Confinement-Higgs transition in a disordered gauge theory and the accuracy threshold for quantum memory, Ann. Phys. 303, 31 (2003).
  33. H. Bombin and M. A. Martin-Delgado, Optimal resources for topological two-dimensional stabilizer codes: Comparative study, Phys. Rev. A 76, 012305 (2007).
  34. H. Bombín, C. Dawson, R. V. Mishmash, N. Nickerson, F. Pastawski, and S. Roberts, Logical blocks for fault-tolerant topological quantum computation, PRX Quantum 4, 020303 (2023).
  35. B. Domokos, Á. Márton, and J. K. Asbóth, Characterization of errors in a CNOT between surface code patches, Quantum 8, 1577 (2024).
  36. C. Gidney, Stim: A fast stabilizer circuit simulator, Quantum 5, 497 (2021).
  37. J. Edmonds, Paths, trees, and flowers, Can. J. Math. 17, 449 (1965).
  38. O. Higgott, PyMatching: A Python package for decoding quantum codes with minimum-weight perfect matching, ACM Trans. Quantum Comput. 3, 1 (2022).
  39. O. Higgott and C. Gidney, Sparse Blossom: Correcting a million errors per core second with minimum-weight matching, Quantum 9, 1600 (2025).
  40. M. Müller, L. A. Colmenárez Gómez, L. Bödeker, and A. Marton, Data and codes for “Lattice surgery-based logical state teleportation via noisy links” [Data set], Zenodo (2025), https://doi.org/10.5281/zenodo.15257403.
  41. S. J. S. Tan, C. A. Pattison, M. McEwen, and J. Preskill, Resilience of the surface code to error bursts, arXiv:2406.18897.
  42. C. T. Chubb and S. T. Flammia, Statistical mechanical models for quantum codes with correlated noise, Ann. Inst. Henri Poincare D 8, 269 (2021).
  43. H. Bombin, R. S. Andrist, M. Ohzeki, H. G. Katzgraber, and M. A. Martin-Delgado, Strong resilience of topological codes to depolarization, Phys. Rev. X 2, 021004 (2012).
  44. H. G. Katzgraber, H. Bombin, and M. A. Martin-Delgado, Error threshold for color codes and random three-body Ising models, Phys. Rev. Lett. 103, 090501 (2009).
  45. A. Lyons, Understanding stabilizer codes under local decoherence through a general statistical mechanics mapping, arXiv:2403.03955.
  46. D. Vodola, M. Rispler, S. Kim, and M. Müller, Fundamental thresholds of realistic quantum error correction circuits from classical spin models, Quantum 6, 618 (2022).
  47. M. Rispler, D. Vodola, M. Müller, and S. Kim, The random coupled-plaquette gauge model and the surface code under circuit-level noise, arXiv:2412.14004.
  48. A. Sriram, N. O'Dea, Y. Li, T. Rakovszky, and V. Khemani, Non-uniform noise rates and Griffiths phases in topological quantum error correction, Phys. Rev. B 111, 224208 (2025).
  49. A. Zabalo, M. J. Gullans, J. H. Wilson, S. Gopalakrishnan, D. A. Huse, and J. H. Pixley, Critical properties of the measurement-induced transition in random quantum circuits, Phys. Rev. B 101, 060301 (2020).
