Information thermodynamics of cellular ion pumps

Julián D. Jiménez-Paz1,2,3, Matthew P. Leighton1,4,*,†, and David A. Sivak1,*,‡

  • *These authors contributed equally to this work.
  • †Contact author: matthew.leighton@yale.edu
  • ‡Contact author: dsivak@sfu.ca
PDF

Phys. Rev. Research 8, 013155 – Published 10 February, 2026

DOI: https://doi.org/10.1103/n121-br2w

Abstract

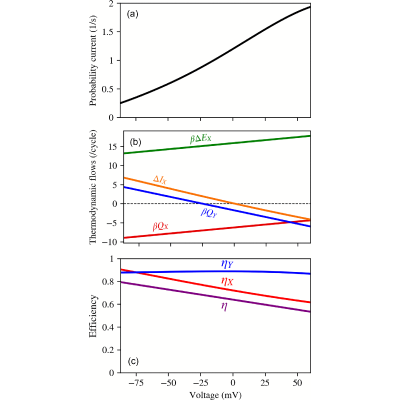

The framework of bipartite stochastic thermodynamics is a powerful tool to analyze a composite system's internal thermodynamics. It has been used to study the components of different molecular machines such as ATP synthase. However, this approach has not yet been used to describe ion-transporting proteins despite their high-level functional similarity. Here, we study the bipartite thermodynamics of the sodium-potassium pump in the nonequilibrium steady state. Using a physically intuitive partition between the ATP-consuming subsystem and the ion-transporting subsystem, we find considerable information flow comparable to other molecular machines, and Maxwell-demon behavior in the ATP-consuming subsystem. We vary ion concentrations and transmembrane voltage in a range including the neuronal action potential, and find that the information flow inverts during depolarization.

View figure in article

Physics Subject Headings (PhySH)

Article Text

References (51)

  1. C. M. Armstrong, The Na/K pump, Cl ion, and osmotic stabilization of cells, Proc. Natl. Acad. Sci. USA 100, 6257 (2003).
  2. N. Xu, On the concept of resting potential—Pumping ratio of the Na+/K+ pump and concentration ratios of potassium ions outside and inside the cell to sodium ions inside and outside the cell, J. Membr. Biol. 246, 75 (2013).
  3. C. Brodie, A. Bak, A. Shainberg, and S. R. Sampson, Role of Na-K ATPase in regulation of resting membrane potential of cultured rat skeletal myotubes, J. Cell. Physiol. 130, 191 (1987).
  4. L. de Meis, A. P. Arruda, and D. P. Carvalho, Role of sarco/endoplasmic reticulum Ca2+-ATPase in thermogenesis, Biosci. Rep. 25, 181 (2005).
  5. Electrogenic Ion Pumps, Current Topics in Membranes and Transport, Conference on Membrane Transport Processes, edited by C. L. Slayman (Academic Press, New York, 1982), Vol. 16.
  6. P. Läuger, Thermodynamic and kinetic properties of electrogenic ion pumps, Biochim. Biophys. Acta 779, 307 (1984).
  7. M. Suzuki, V. Tseeb, K. Oyama, and S. Ishiwata, Microscopic detection of thermogenesis in a single HeLa cell, Biophys. J. 92, L46 (2007).
  8. A. Lervik, F. Bresme, S. Kjelstrup, and J. M. Rubí, On the thermodynamic efficiency of Ca2+-ATPase molecular machines, Biophys. J. 103, 1218 (2012).
  9. R. J. Clarke, M. Catauro, H. H. Rasmussen, and H.-J. Apell, Quantitative calculation of the role of the Na+,K+-ATPase in thermogenesis, Biochim. Biophys. Acta 1827, 1205 (2013).
  10. V. Balzani, A. Credi, F. M. Raymo, and J. F. Stoddart, Artificial molecular machines, Angew. Chem. Int. Ed. 39, 3348 (2000).
  11. C. S. Korosec, I. N. Unksov, P. Surendiran, R. Lyttleton, P. M. G. Curmi, C. N. Angstmann, R. Eichhorn, H. Linke, and N. R. Forde, Motility of an autonomous protein-based artificial motor that operates via a burnt-bridge principle, Nat. Commun. 15, 1511 (2024).
  12. J. M. R. Parrondo, J. M. Horowitz, and T. Sagawa, Thermodynamics of information, Nat. Phys. 11, 131 (2015).
  13. U. Seifert, Stochastic thermodynamics: Principles and perspectives, Eur. Phys. J. B 64, 423 (2008).
  14. L. Peliti and S. Pigolotti, Stochastic Thermodynamics: An Introduction (Princeton University Press, Princeton, NJ, 2021).
  15. C. Jarzynski, Equalities and inequalities: Irreversibility and the second law of thermodynamics at the nanoscale, Annu. Rev. Condens. Matter Phys. 2, 329 (2011).
  16. M. P. Leighton and D. A. Sivak, Flow of energy and information in molecular machines, Annu. Rev. Phys. Chem. 76, 379 (2025).
  17. E. Lathouwers and D. A. Sivak, Internal energy and information flows mediate input and output power in bipartite molecular machines, Phys. Rev. E 105, 024136 (2022).
  18. M. P. Leighton, J. Ehrich, and D. A. Sivak, Information arbitrage in bipartite heat engines, Phys. Rev. X 14, 041038 (2024).
  19. R. Takaki, M. L. Mugnai, and D. Thirumalai, Information flow, gating, and energetics in dimeric molecular motors, Proc. Natl. Acad. Sci. USA 119, e2208083119 (2022).
  20. J. du Buisson, J. Ehrich, M. P. Leighton, A. Kundu, T. K. Saha, J. Bechhoefer, and D. A. Sivak, Hunting for Maxwell's demon in the wild, arXiv:2504.11329.
  21. S. Amano, M. Esposito, E. Kreidt, D. A. Leigh, E. Penocchio, and B. M. W. Roberts, Insights from an information thermodynamics analysis of a synthetic molecular motor, Nat. Chem. 14, 530 (2022).
  22. S. Corra, M. T. Bakić, J. Groppi, M. Baroncini, S. Silvi, E. Penocchio, M. Esposito, and A. Credi, Kinetic and energetic insights into the dissipative non-equilibrium operation of an autonomous light-powered supramolecular pump, Nat. Nanotechnol. 17, 746 (2022).
  23. M. Dyla, M. Kjærgaard, H. Poulsen, and P. Nissen, Structure and mechanism of P-type ATPase ion pumps, Annu. Rev. Biochem. 89, 583 (2020).
  24. H. Kandori, Ion-pumping microbial rhodopsins, Front. Mol. Biosci. 2, 1 (2015).
  25. H. Sze and S. Chanroj, Plant endomembrane dynamics: Studies of K+/H+ antiporters provide insights on the effects of pH and ion homeostasis, Plant Physiol. 177, 875 (2018).
  26. J. C. Skou, The influence of some cations on an adenosine triphosphatase from peripheral nerves, Biochim. Biophys. Acta 23, 394 (1957).
  27. B. F. Palmer, Regulation of potassium homeostasis, Clin. J. Am. Soc. Nephrol. 10, 1050 (2015).
  28. J. Ehrich and D. A. Sivak, Energy and information flows in autonomous systems, Front. Phys. 11, 1108357 (2023).
  29. R. W. Albers, Biochemical aspects of active transport, Annu. Rev. Biochem. 36, 727 (1967).
  30. R. L. Post, C. Hegyvary, and S. Kume, Activation by adenosine triphosphate in the phosphorylation kinetics of sodium and potassium ion transport adenosine triphosphatase, J. Biol. Chem. 247, 6530 (1972).
  31. G. Guennebaud and B. Jacob, Eigen v3, 2010, http://eigen.tuxfamily.org/.
  32. GitHub code, https://github.com/jujimenezp/NaKATPase_Info_Thermodynamics.
  33. A. I. Brown and D. A. Sivak, Theory of nonequilibrium free energy transduction by molecular machines, Chem. Rev. 120, 434 (2020).
  34. M. Esposito, Stochastic thermodynamics under coarse graining, Phys. Rev. E 85, 041125 (2012).
  35. T. M. Cover, Elements of Information Theory (John Wiley & Sons, Hoboken, NJ, USA, 1999).
  36. A. C. Barato and U. Seifert, Thermodynamic cost of external control, New J. Phys. 19, 073021 (2017).
  37. M. P. Leighton and D. A. Sivak, Inferring subsystem efficiencies in bipartite molecular machines, Phys. Rev. Lett. 130, 178401 (2023).
  38. E. Lutz and S. Ciliberto, Information: From Maxwell's demon to Landauer's eraser, Phys. Today 68, 30 (2015).
  39. I. M. Glynn, A hundred years of sodium pumping, Annu. Rev. Physiol. 64, 1 (2002).
  40. B. P. Bean, The action potential in mammalian central neurons, Nat. Rev. Neurosci. 8, 451 (2007).
  41. A. L. Hodgkin and A. F. Huxley, A quantitative description of membrane current and its application to conduction and excitation in nerve, J. Physiol. 117, 500 (1952).
  42. D. Purves, G. J. Augustine, D. Fitzpatrick, L. C. Katz, A.-S. LaMantia, J. O. McNamara, and S. M. Williams, Voltage-gated ion channels, in Neuroscience, 2nd ed. (Sinauer Associates, Sunderland, MA, USA, 2001).
  43. J. Golowasch, G. Thomas, A. L. Taylor, A. Patel, A. Pineda, C. Khalil, and F. Nadim, Membrane capacitance measurements revisited: Dependence of capacitance value on measurement method in nonisopotential neurons, J. Neurophysiol. 102, 2161 (2009).
  44. K. Tran, N. P. Smith, D. S. Loiselle, and E. J. Crampin, A thermodynamic model of the cardiac sarcoplasmic/endoplasmic Ca2+ (SERCA) pump, Biophys. J. 96, 2029 (2009).
  45. C. Toyoshima and G. Inesi, Structural basis of ion pumping by Ca2+-ATPase of the sarcoplasmic reticulum, Annu. Rev. Biochem. 73, 269 (2004).
  46. J. M. Shin, K. Munson, O. Vagin, and G. Sachs, The gastric HK-ATPase: Structure, function, and inhibition, Pflugers Arch. 457, 609 (2009).
  47. M. Gerry, D. Kirby, B. S. Alexandrov, D. Segal, and A. Zilman, Specificity and tunability of efflux pumps: A new role for the proton gradient? PLoS Comput. Biol. 21, e1012772 (2025).
  48. J. Piñero, R. Solé, and A. Kolchinsky, Optimization of nonequilibrium free energy harvesting illustrated on bacteriorhodopsin, Phys. Rev. Res. 6, 013275 (2024).
  49. M. E. Tagluk and R. Tekin, The influence of ion concentrations on the dynamic behavior of the Hodgkin–Huxley model-based cortical network, Cognit. Neurodyn. 8, 287 (2014).
  50. R. J. Clarke (private communication).
  51. J. Jiménez-Paz, jujimenezp/NaKATPase_Info_Thermodynamics: Final results, Zenodo (2026), https://zenodo.org/records/18459184.
