Electrochemical response of biological membranes to localized currents and external electric fields

Joshua B. Fernandes1,2,*, Hyeongjoo Row1,3,*, Kranthi K. Mandadapu1,2,†, and Karthik Shekhar1,3,4,‡

  • *These authors contributed equally to this work.
  • †Contact author: kranthi@berkeley.edu
  • ‡Contact author: kshekhar@berkeley.edu
PDF

Phys. Rev. Research 8, 013137 – Published 9 February, 2026

DOI: https://doi.org/10.1103/m446-4lnj

Abstract

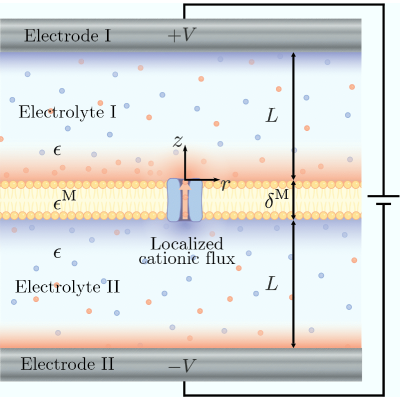

Electrochemical phenomena in biology often unfold in confined geometries where micrometer- to millimeter-scale domains coexist with nanometer-scale interfacial diffuse charge layers. We analyze a model lipid membrane-electrolyte system where an ion channellike current flows across the membrane while parallel electrodes simultaneously apply a step voltage, emulating an extrinsic electric field. Matched asymptotic expansions of the Poisson-Nernst-Planck equations show that, under physiological conditions, the diffuse charge layers rapidly reach a quasisteady state, and the bulk electrolyte remains electroneutral. As a result, all free charge is confined to the nanometer-scale screening layers at the membrane and electrode interfaces. The bulk electric potential satisfies Laplace's equation and is dynamically coupled to the interfacial layers through time-dependent boundary conditions. This multiscale coupling partitions the space-time response into distinct regimes. At sufficiently long times, we show that the system can be represented by an equivalent circuit analogous to those used in classical cable theory. We derive closed-form expressions of the transmembrane potential within each regime and verify them against nonlinear numerical simulations. Our results show how electrode-induced screening and confinement effects influence the electrochemical response over multiple length and timescales in biological systems.

View figure in article

Physics Subject Headings (PhySH)

Article Text

Supplemental Material

References (62)

  1. H. Lodish, Molecular Cell Biology (W.H. Freeman, New York, NY, 2000).
  2. B. Hille, Ionic Channels of Excitable Membranes (Oxford University Press, Oxford, 1992).
  3. H. Row, J. B. Fernandes, K. K. Mandadapu, and K. Shekhar, Spatiotemporal dynamics of ionic reorganization near biological membrane interfaces, Phys. Rev. Res. 7, 013185 (2025).
  4. M. Bikson, M. Inoue, H. Akiyama, J. K. Deans, J. E. Fox, H. Miyakawa, and J. G. Jefferys, Effects of uniform extracellular DC electric fields on excitability in rat hippocampal slices in vitro, J. Physiol. 557, 175 (2004).
  5. T. Radman, R. L. Ramos, J. C. Brumberg, and M. Bikson, Role of cortical cell type and morphology in subthreshold and suprathreshold uniform electric field stimulation in vitro, Brain Stimulation 2, 215 (2009).
  6. J. T. Francis, B. J. Gluckman, and S. J. Schiff, Sensitivity of neurons to weak electric fields, J. Neurosci. 23, 7255 (2003).
  7. E. Neher and B. Sakmann, The patch clamp technique, Sci. Am. 266, 44 (1992).
  8. J. W. Moore and K. S. Cole, Voltage clamp techniques, in Physical Techniques in Biological Research, edited by W. L. Nastuk (Academic Press, Cambridge, MA, 1963), pp. 263–321.
  9. J. Farhadi, J. B. Fernandes, K. Shekhar, and K. K. Mandadapu, Capacitive response of biological membranes, Phys. Rev. E 111, 064412 (2025).
  10. W. Nernst, Zur kinetik der in lösung befindlichen körper, Z. Phys. Chem. 2U, 613 (1888).
  11. W. Nernst, Die elektromotorische wirksamkeit der jonen, Z. Phys. Chem. 4U, 129 (1889).
  12. M. Planck, Ueber die potentialdifferenz zwischen zwei verdünnten lösungen binärer electrolyte, Ann. Phys. 276, 561 (1890).
  13. D. P. Chen, V. Barcilon, and R. S. Eisenberg, Constant fields and constant gradients in open ionic channels, Biophys. J. 61, 1372 (1992).
  14. M. Z. Bazant, K. Thornton, and A. Ajdari, Diffuse-charge dynamics in electrochemical systems, Phys. Rev. E 70, 021506 (2004).
  15. J. R. Macdonald, Binary electrolyte small-signal frequency response, J. Electroanal. Chem. Interfacial Electrochem. 53, 1 (1974).
  16. A. A. Kornyshev and M. A. Vorotyntsev, Conductivity and space charge phenomena in solid electrolytes with one mobile charge carrier species, a review with original material, Electrochim. Acta 26, 303 (1981).
  17. M. Janssen and M. Bier, Transient dynamics of electric double-layer capacitors: Exact expressions within the Debye-Falkenhagen approximation, Phys. Rev. E 97, 052616 (2018).
  18. S. Zhao, B. Balu, Z. Yu, M. J. Miksis, and P. M. Vlahovska, Diffuse-charge dynamics across a capacitive interface in a DC electric field, Phys. Rev. E 111, 055404 (2025).
  19. P. Dayan and L. F. Abbott, Theoretical Neuroscience, Computational Neuroscience (MIT Press, Cambridge, MA, 2001).
  20. K. D. Fong, H. K. Bergstrom, B. D. McCloskey, and K. K. Mandadapu, Transport phenomena in electrolyte solutions: Nonequilibrium thermodynamics and statistical mechanics, AIChE J. 66, e17091 (2020).
  21. A. G. Volkov and T. Hampton, Energetics of membrane permeability, Adv. Planar Lipid Bilayers Liposomes 8, 155 (2008).
  22. H. Nymeyer and H.-X. Zhou, A method to determine dielectric constants in nonhomogeneous systems: Application to biological membranes, Biophys. J. 94, 1185 (2008).
  23. M. Gouy, Sur la constitution de la charge électrique à la surface d’un électrolyte, J. Phys. Theor. Appl. 9, 457 (1910).
  24. D. L. Chapman, LI. A contribution to the theory of electrocapillarity, Lond. Edinb. Dublin Philos. Mag. J. Sci. 25, 475 (1913).
  25. H. Moldenhauer, I. Díaz-Franulic, F. González-Nilo, and D. Naranjo, Effective pore size and radius of capture for K+ ions in K-channels, Sci. Rep. 6, 19893 (2016).
  26. A. Kovetz, Electromagnetic Theory (Clarendon Press, Oxford, 2000).
  27. See Supplemental Material at https://link.aps.org/supplemental/10.1103/m446-4lnj for mathematical details on the problem linearization, boundary-layer theory, approximate solutions, and external current calculations, which includes Refs. [56, 57, 58, 59, 60, 61, 62].
  28. CRC Handbook of Chemistry and Physics, edited by W. Haynes, 93rd ed. (CRC Press, Boca Raton, FL, 2012).
  29. R. Milo and R. Phillips, Cell Biology by the Numbers, 1st ed. (Garland Science, New York, NY, 2015).
  30. A. L. Hodgkin and A. F. Huxley, A quantitative description of membrane current and its application to conduction and excitation in nerve, J. Physiol. 117, 500 (1952).
  31. T. Y. Tsong, Electroporation of cell membranes, Biophys. J. 60, 297 (1991).
  32. T. Kotnik, L. Rems, M. Tarek, and D. Miklavčič, Membrane electroporation and electropermeabilization: Mechanisms and models, Annu. Rev. Biophys. 48, 63 (2019).
  33. W.-T. Huang and D. Levitt, Theoretical calculation of the dielectric constant of a bilayer membrane, Biophys. J. 17, 111 (1977).
  34. P. Debye and H. Falkenhagen, Dispersion der leitfähigkeit starker elektrolyte, Z. Elektrochem. Angew. Phys. Chem. 34, 562 (1928).
  35. E. J. Hinch, Perturbation Methods, Cambridge Texts in Applied Mathematics (Cambridge University Press, Cambridge, 1991).
  36. C. M. Bender and S. A. Orszag, Advanced Mathematical Methods for Scientists and Engineers I: Asymptotic Methods and Perturbation Theory (Springer Science & Business Media, New York, NY, 2013).
  37. Since τD/τC=(nD/2+χ)η, this ratio might not be small for large χ even when η≪1. However, choosing any timescale asymptotically greater than τD (e.g., τB) preserves the validity of the leading-order equations (see Sec. III of the Supplemental Material [27]).
  38. P. Papadopoulos, Introduction to the Finite Element Method (University of California, Berkeley, CA, 2015).
  39. T. J. R. Hughes, The Finite Element Method: Linear Static and Dynamic Finite Element Analysis (Courier Corporation, Glouster, MA, 2012).
  40. M. W. Scroggs, J. S. Dokken, C. N. Richardson, and G. N. Wells, Construction of arbitrary order finite element degree-of-freedom maps on polygonal and polyhedral cell meshes, ACM Trans. Math. Software 48, 1 (2022).
  41. M. W. Scroggs, I. A. Baratta, C. N. Richardson, and G. N. Wells, Basix: A runtime finite element basis evaluation library, J. Open Source Softw. 7, 3982 (2022).
  42. M. S. Alnæs, A. Logg, K. B. Ølgaard, M. E. Rognes, and G. N. Wells, Unified form language: A domain-specific language for weak formulations of partial differential equations, ACM Trans. Math. Softw. 40, 1 (2014).
  43. C. Geuzaine and J.-F. Remacle, Gmsh: A 3-D finite element mesh generator with built-in pre- and post-processing facilities, Int. J. Numer. Methods Eng. 79, 1309 (2009).
  44. J.-F. Remacle, J. Lambrechts, B. Seny, E. Marchandise, A. Johnen, and C. Geuzaine, Blossom-Quad: A non-uniform quadrilateral mesh generator using a minimum-cost perfect-matching algorithm, Int. J. Numer. Methods Eng. 89, 1102 (2012).
  45. See Sec.  4b in the Supplemental Material of Ref. [3].
  46. W. Rall, Theory of physiological properties of dendrites, Ann. N.Y. Acad. Sci. 96, 1071 (1962).
  47. K. S. Cole and H. J. Curtis, Electric impedance of Nitella during activity, J. General Physiol. 22, 37 (1938).
  48. A. L. Hodgkin and W. A. H. Rushton, The electrical constants of a crustacean nerve fibre, Proc. R. Soc. London. Ser. B 133, 444 (1946).
  49. J. L. Hoorweg, Ueber die elektrischen eigenschaften der nerven, Pflugers Arch. Gesamte Physiol. Menschen Tiere 71, 128 (1898).
  50. A. L. Hodgkin, A. F. Huxley, and B. Katz, Measurement of current-voltage relations in the membrane of the giant axon of Loligo, J. Physiol. 116, 424 (1952).
  51. A. Ajdari, Electro-osmosis on inhomogeneously charged surfaces, Phys. Rev. Lett. 75, 755 (1995).
  52. M. Z. Bazant and T. M. Squires, Induced-charge electrokinetic phenomena: Theory and microfluidic applications, Phys. Rev. Lett. 92, 066101 (2004).
  53. F. Ziebert, M. Z. Bazant, and D. Lacoste, Effective zero-thickness model for a conductive membrane driven by an electric field, Phys. Rev. E 81, 031912 (2010).
  54. Y. A. D. Omar, Z. G. Lipel, and K. K. Mandadapu, (2+δ)-dimensional theory of the electromechanics of lipid membranes. III. Constitutive models, Phys. Rev. E 112, 024407 (2025).
  55. Z. Yu, S. Zhao, M. J. Miksis, and P. M. Vlahovska, Instability of a fluctuating biomimetic membrane driven by an applied uniform dc electric field, Phys. Rev. E 112, 054408 (2025).
  56. P. Debye and E. Hückel, Zur theorie der elektrolyte, Phys. Z. 24, 185 (1923).
  57. M. Abramowitz and I. A. Stegun, Handbook of Mathematical Functions with Formulas, Graphs, and Mathematical Tables (US Government Printing Office, Washington, DC, 1968).
  58. G. B. Arfken, H. J. Weber, and F. E. Harris, Mathematical Methods for Physicists: A Comprehensive Guide (Academic Press, Waltham, MA, 2011).
  59. J. Crank, The Mathematics of Diffusion (Oxford University Press, Oxford, UK, 1979).
  60. J. Shen, T. Tang, and L.-L. Wang, Spectral Methods: Algorithms, Analysis and Applications (Springer Science & Business Media, Berlin, Germany, 2011), Vol. 41.
  61. M. Majic, The image of a point charge in an infinite conducting cylinder, arXiv:2001.10651.
  62. NIST digital library of mathematical functions, edited by F. W. J. Olver, A. B. Olde Daalhuis, D. W. Lozier, B. I. Schneider, R. F. Boisvert, C. W. Clark, B. R. Miller, B. V. Saunders, H. S. Cohl, and M. A. McClain, 2025, https://dlmf.nist.gov/, Release 1.2.4 of 2025-03-15.

Outline

Information

Phys. Rev. Research 8, 013137– Published 9 February, 2026
  • Received 15 September 2025
  • Accepted 19 November 2025
Crossmark - Check for updates button
Creative Commons Logo

Published by the American Physical Society under the terms of the Creative Commons Attribution 4.0 International license. Further distribution of this work must maintain attribution to the author(s) and the published article's title, journal citation, and DOI.
