Magnetic anisotropy and intermediate valence in CeCo5 ferromagnet

Alexander B. Shick* and Evgenia A. Tereshina-Chitrova

  • *Contact author: shick@fzu.cz
PDF

Phys. Rev. Research 8, 023079 – Published 27 April, 2026

DOI: https://doi.org/10.1103/k5st-k138

Abstract

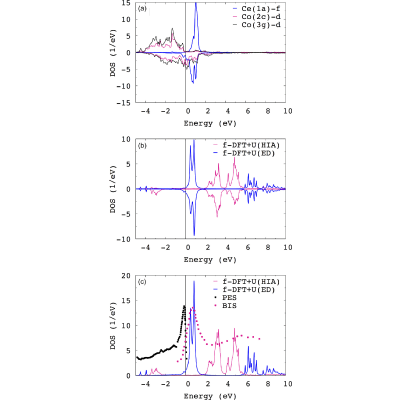

The intermediate valence of Ce in CeCo5 challenges standard density functional theory (DFT) and static DFT+U approaches, which fail to capture its magnetic properties. By combining DFT+U with exact diagonalization of the Anderson impurity model for the Ce 4f shell, we find a substantial reduction of Ce spin and orbital moments, consistent with DFT+DMFT (dynamical mean-field theory), arising from Ce4+−Ce3+ valence fluctuations. The total magnetic moment of 6.70 µB agrees with experiment, and the calculated 4f density of states reproduces photoemission and bremsstrahlung isochromat spectra. The uniaxial magnetic anisotropy energy reaches 4.8 meV/f.u. when Coulomb correlations on both Ce 4f and Co 3d shells are included, in very good agreement with experimental data. These results highlight the importance of dynamical correlations and provide guidance for exploring high-performance, low-rare-earth-content permanent magnets.

View figure in article

Physics Subject Headings (PhySH)

Article Text

Supplemental Material

References (40)

  1. O. Gutfleisch, M. A. Willard, E. Bruck, C. H. Chen, S. Sankar, and J. P. Liu, Magnetic materials and devices for the 21st century: Stronger, lighter, and more energy efficient, Adv. Mater. 23, 821 (2011).
  2. E. A. Tereshina, H. Drulis, Y. Skourski, and I. S. Tereshina, Strong room-temperature easy-axis anisotropy in Tb2Fe17H3: An exception among R2Fe17 hydrides, Phys. Rev. B 87, 214425 (2013).
  3. A. M. Gabay and G. C. Hadjipanayis, Recent developments in RFe12-type compounds for permanent magnets, Scr. Mater. 154, 284 (2018).
  4. T. N. Lamichhane, M. T. Onyszczak, O. Palasyuk, S. Sharikadze, T.-H. Kim, M. J. Kramer, R. W. McCallum, A. L. Wysocki, M. C. Nguyen, V. P. Antropov, et al., Single-crystal permanent magnets: Extraordinary magnetic behavior in the Ta-, Cu-, and Fe-substituted CeCo5 systems, Phys. Rev. Appl. 11, 014052 (2019).
  5. F. Meyer-Liautaud, S. Derkaoui, C. H. Allibert, and R. Castanet, Structural and thermodynamic data on the pseudobinary phases R(Co1−xCux)5 with R = Sm, Y, Ce, J. Less-Common Met. 127, 231 (1987).
  6. L. Nordstrom, O. Eriksson, M. S. S. Brooks, and B. Johansson, Theory of ferromagnetism in CeCo5, Phys. Rev. B 41, 9111 (1990).
  7. R. Xie and H. Zhang, Mixed valence nature of the Ce 4f state in CeCo5 based on spin-polarized DFT DMFT calculations, Phys. Rev. B 106, 224411 (2022).
  8. K. Haule, Quantum Monte Carlo impurity solver for cluster dynamical mean-field theory and electronic structure calculations with adjustable cluster base, Phys. Rev. B 75, 155113 (2007).
  9. R. K. Chouhan and D. Padyal, Cu substituted CeCo5: New optimal permanent magnetic material with reduced criticality, J. Alloys Compd. 723, 208 (2017).
  10. M. I. Bartashevich, T. Goto, R. J. Radwanski, and A. V. Korolyov, Magnetic anisotropy and high-field magnetization process of CeCo5, J. Magn. Magn. Mater. 131, 61 (1994).
  11. A. V. Andreev, Thermal expansion anomalies and spontaneous magnetostriction in rare-earth intermetallics with cobalt and iron, in Handbook of Magnetic Materials, edited by K. H. J. Buschow (Elsevier, Amsterdam, 1995), Vol. 8, Chap. 2, p. 59.
  12. Y. Lee, Z. Ning, R. Flint, R. J. McQueeney, I. I. Mazin, and L. Ke, Importance of enforcing Hund's rules in density functional theory calculations of rare earth magnetocrystalline anisotropy, npj Comput. Mater. 11, 168 (2025).
  13. M. C. Nguyen, Y. Yao, C-Z. Wang, K.-M. Ho, and V. P. Antropov, Magnetocrystalline anisotropy in cobalt based magnets: A choice of correlation parameters and the relativistic effects, J. Phys.: Condens. Matter 30, 195801 (2018).
  14. C. E. Patrick and J. B. Staunton, Temperature-dependent magnetocrystalline anisotropy of rare earth/transition metal permanent magnets from first principles: The light RCo5 (R = Y, La-Gd) intermetallics, Phys. Rev. Mater. 3, 101401(R) (2019).
  15. V. I. Anisimov, J. Zaanen, and O. K. Andersen, Band theory and Mott insulators: Hubbard U instead of Stoner I, Phys. Rev. B 44, 943 (1991).
  16. A. B. Shick, S.-i. Fujimori, and W. E. Pickett, UTe2: A nearly insulating half-filled j=5/25f3 heavy-fermion metal, Phys. Rev. B 103, 125136 (2021).
  17. A. B. Shick, U. D. Wdowik, I. Halevy, and D. Legut, Spin and orbital magnetic moments of UTe2 induced by the external magnetic field, Sci. Rep. 14, 25337 (2024).
  18. G. D. Mahan, Many-Particle Physics (Springer Science & Business Media, Boston, MA, 2000).
  19. A. I. Lichtenstein and M. I. Katsnelson, Ab initio calculations of quasiparticle band structure in correlated systems: LDA++ approach, Phys. Rev. B 57, 6884 (1998).
  20. See Supplemental Material at http://link.aps.org/supplemental/10.1103/k5st-k138 for the details of the electronic structure calculations, which also contains Refs. [21, 22, 23, 24].
  21. A. H. MacDonald, W. E. Pickett, and D. D. Koelling, A linearised relativistic augmented-plane-wave method utilising approximate pure spin basis functions, J. Phys. C: Solid State Phys. 13, 2675 (1980).
  22. M. S. S. Brooks, O. Eriksson, and B. Johansson, 3d−5d band magnetism in rare earth transition metal intermetallics: LuFe2, J. Phys.: Condens. Matter 1, 5861 (1989).
  23. C. Zhu, R. H. Byrd, P. Lu, J. Nocedal, L-BFGS-B: Fortran subroutines for large-scale bound-constrained optimization, ACM Trans. Math. Software, 23, 550 (1997).
  24. J. L. Morales and J. Nocedal, Remark on “Algorithm 778: L-BFGS-B: Fortran subroutines for large-scale bound constrained optimization”, ACM Trans. Math. Software 38, 1 (2011).
  25. J. Kolorenc, A. I. Poteryaev, and A. I. Lichtenstein, Valence-band satellite in ferromagnetic nickel: LDA DMFT study with exact diagonalization, Phys. Rev. B 85, 235136 (2012).
  26. A. B. Shick, J. Kolorenc, A. I. Lichtenstein, and L. Havela, Electronic structure and spectral properties of Am, Cm, and Bk: Charge-density self-consistent LDA HIA calculations in the FP-LAPW basis, Phys. Rev. B 80, 085106 (2009).
  27. A. B. Shick, V. Janis, V. Drchal, and W. E. Pickett, Spin and orbital magnetic state of UGe2 under pressure, Phys. Rev. B 70, 134506 (2004).
  28. O. Kristanovski, A. B. Shick, F. Lechermann, and A. I. Lichtenstein, Role of nonspherical double counting in DFT DMFT: Total energy and structural optimization of pnictide superconductors, Phys. Rev. B 97, 201116(R) (2018).
  29. A. B. Shick, D. L. Novikov, and A. J. Freeman, Relativistic spin-polarized theory of magnetoelastic coupling and magnetic anisotropy strain dependence: Application to Co/Cu(001), Phys. Rev. B 56, R14259 (1997).
  30. A. B. Shick, A. I. Liechtenstein, and W. E. Pickett, Implementation of the LDA1U method using the full-potential linearized augmented plane-wave basis, Phys. Rev. B 60, 10763 (1999).
  31. A. B. Shick and W. E. Pickett, Magnetism, spin-orbit coupling, and superconducting pairing in UGe2, Phys. Rev. Lett. 86, 300 (2001).
  32. D. van der Marel and G. A. Sawatzky, Electron-electron interaction and localization in d and f transition metals, Phys. Rev. B 37, 10674 (1988).
  33. I. Campbell, Indirect exchange for rare earths in metals, J. Phys. F: Met. Phys. 2, L47 (1972).
  34. A. B. Shick, I. Halevy, M. Tchaplianka, and D. Legut, Itinerant-localized dichotomy in magnetic anisotropic properties of U-based ferromagnets, Sci. Rep. 13, 2646 (2023).
  35. J. Trygg, B. Johansson, O. Eriksson, and J. M. Wills, Total energy calculation of the magnetocrystalline anisotropy energy in the ferromagnetic 3d metals, Phys. Rev. Lett. 75, 2871 (1995).
  36. S. Imada, S. Suga, T. Sato, R. Jung, and H. Ido, Electronic and magnetic states of RCo5−xBx investigated by photoemission and soft X-ray MCD, J. Magn. Magn. Mater. 226-230, 1193 (2001).
  37. F. U. Hillebrecht, J. C. Fuggle, G. A. Sawatzky, M. Campagna, O. Gunnarsson, and K. Schonhammer, Transition to non-magnetic f states in Ce intermetallic compounds studied by bremsstrahlung isochromat spectroscopy, Phys. Rev. B 30, 1777 (1984).
  38. M. D. Kuzmin and A. M. Tishin, Magnetocaloric effect and magnetic refrigeration, in Handbook of Magnetic Materials, edited by K. H. J. Buschow (Elsevier, Amsterdam, 2008), Vol. 17, p.1.
  39. T. Yoshioka and H. Tsuchiura, Site-specific magnetic anisotropies in R2Fe14B systems, Appl. Phys. Lett. 112, 162405 (2018).
  40. A. B. Shick and E. A. Tereshina-Chitrova, Data on Magnetic anisotropy and intermediate valence in CeCo ferromagnet, Zenodo (2026) https://doi.org/10.5281/zenodo.19352168.
