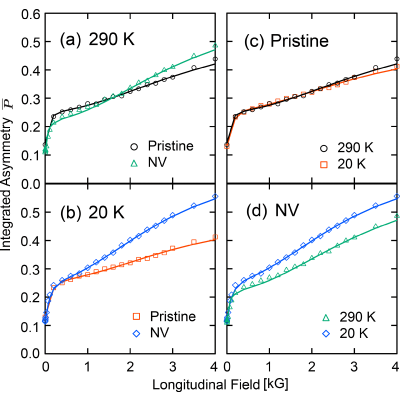

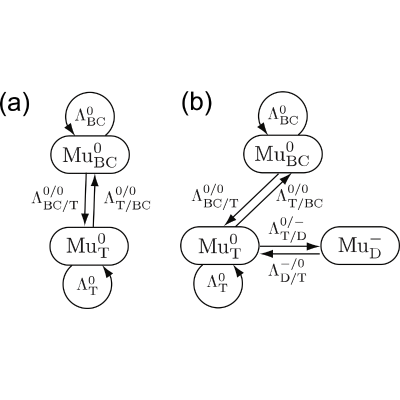

Muonium (Mu), a bound state of a positively charged muon and an electron, can diffuse through crystal lattices and interact with defect centers in insulators and semiconductors. We demonstrate that this Mu’s diffusive property can be used to probe defects in a diamond crystal lattice, specifically, substitutional nitrogen atoms (${\mathrm{N}}_{\text{s}}^0$) and nitrogen-vacancy (NV) centers in type-Ib diamond. Upon interaction with these defects, Mu can exchange its electron’s spin or change its charge state, which results in muon spin relaxation. However, muons in diamond (and semiconductors in general) can be in a few distinctive muonium states, with each state contributing to the muon signal. In addition, these states can undergo site and charge exchange interaction, forming a dynamic network. Hence, to study the Mu interaction with point defects, the muon data have to be deconvoluted to isolate signals from the diffusing species. To achieve this goal, we have modeled the Mu state exchange dynamics and numerically simulated the time evolution of muon spin polarization by the density matrix method. With a global curve fit to a set of longitudinal field scan data, one can extract the Mu transition rates that involve interaction with the defect centers. The diffusing tetrahedral interstitial Mu was found to interact with the paramagnetic ${\mathrm{N}}_{\text{s}}^0$ center via electron spin exchange. In contrast, they are converted to form a diamagnetic center upon interaction with the negatively charged NV center.

Close

PrevNext

Reuse & PermissionsView figure in article

•
•
•
•

• NV centers
• Point defects
• Muonium
• Nitrogen vacancy centers in diamond
• Muon spin relaxation & rotation
