Suppressing emittance growth via ion cloud traps in low-energy beam transport

Hui Liao1, Weidong Chen1,*, Benzheng Chen1, Hui Li1, Yongchuan Xiao1, Yongjia Lü1, Xiuxia Cao1, Shengjin Liu1, Huachang Liu1 et al.

Sheng Wang1,† and Liang Lu2

  • *Contact author: chenwd@ihep.ac.cn
  • †Contact author: wangs@ihep.ac.cn
PDF

Phys. Rev. Research 8, 043023 – Published 7 October, 2026

DOI: https://doi.org/10.1103/hrgq-mrtk

Abstract

Space-charge compensation is routinely used to mitigate emittance growth in linear accelerator beam transport lines. Severe space-charge effects and incomplete compensation within low-energy beam transport sections universally induce beam divergence and emittance degradation, constituting a key bottleneck for low-energy, high-intensity beams. This work investigates the evolution of residual-gas-generated secondary-ion clouds under applied electric fields and their impact on primary beam emittance growth. By implementing barrier electrodes to confine the secondary-ion cloud, we achieve substantial reductions in both the emittance and beam radius of an H− beam while preserving full beam intensity. The proposed ion cloud trap scheme also has important implications for neutral beam injection in magnetic confinement fusion and high-current ion implanters, providing insights into low-energy charged particle transport across diverse ion-beam platforms.

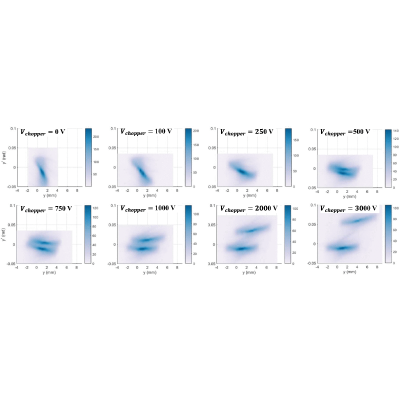

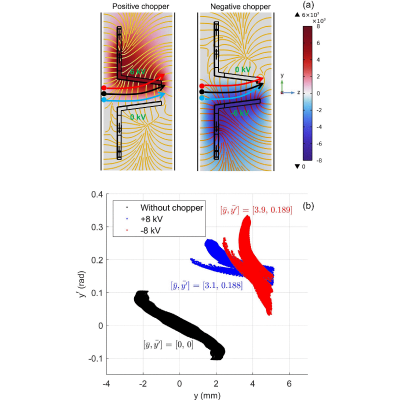

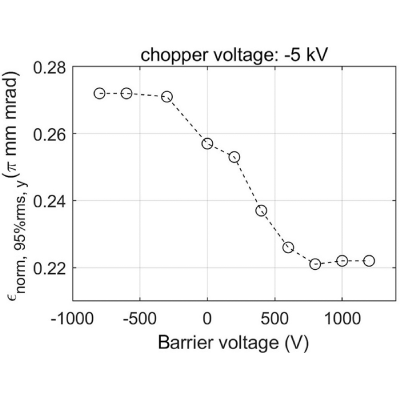

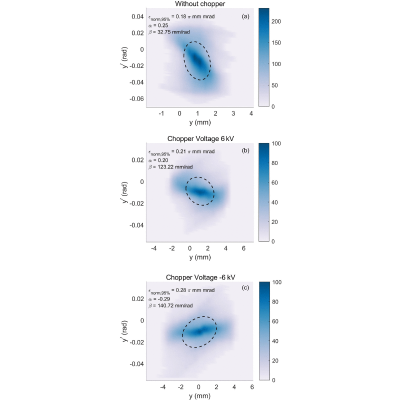

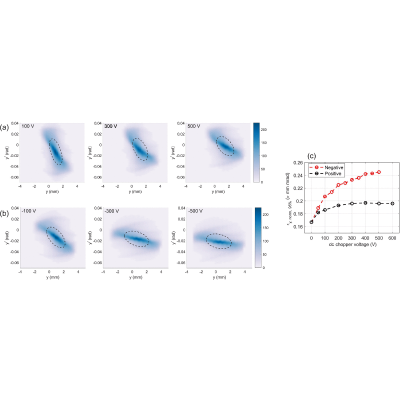

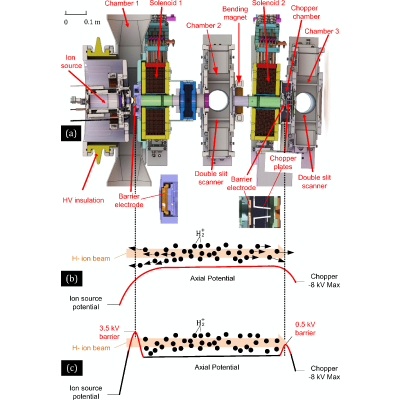

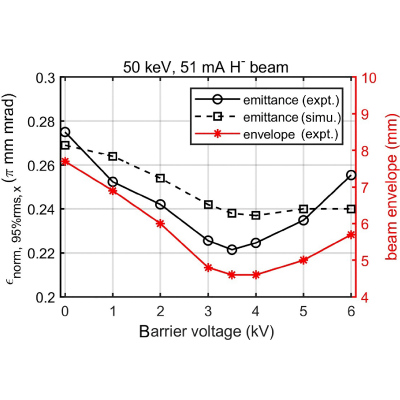

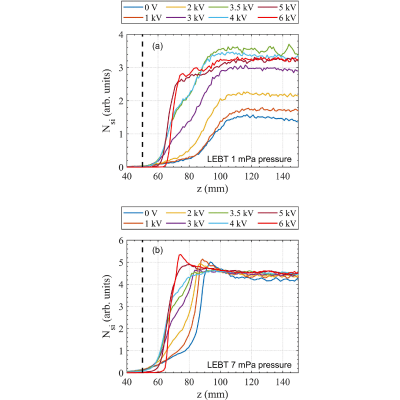

View figure in article

Physics Subject Headings (PhySH)

Article Text

References (34)

  1. S. Henderson, W. Abraham, A. Aleksandrov, C. Allen, J. Alonso, D. Anderson, D. Arenius, T. Arthur, S. Assadi, J. Ayers, et al., The Spallation Neutron Source accelerator system design, Nucl. Instrum. Methods Phys. Res. Sect. A 763, 610 (2014).
  2. A. Ueno, J-PARC H− ion source and space-charge neutralized LEBT for 100-mA high energy and high duty factor LINACs, Rev. Sci. Instrum. 91, 033312 (2020).
  3. L. Neri, L. Celona, S. Gammino, D. Mascali, G. Castro, G. Torrisi, B. Cheymol, A. Ponton, A. Galatà, G. Patti, A. Gozzo, L. Lega, and G. Ciavola, Improved design of proton source and low energy beam transport line for European Spallation Source, Rev. Sci. Instrum. 85, 02A723 (2014).
  4. R. S. Hemsworth, D. Boilson, P. Blatchford, M. D. Palma, G. Chitarin, H. P. L. de Esch, F. Geli, M. Dremel, J. Graceffa, D. Marcuzzi, G. Serianni, D. Shah, M. Singh, M. Urbani, and P. Zaccaria, Overview of the design of the ITER heating neutral beam injectors, New J. Phys. 19, 025005 (2017).
  5. E. Sartori, M. Agostini, M. Barbisan, M. Bigi, M. Boldrin, M. Brombin, R. Casagrande, S. Dal Bello, M. Dan, B. Duteil, et al., First operations with caesium of the negative ion source SPIDER, Nucl. Fusion 62, 086022 (2022).
  6. M. Current, L. Rubin, and F. Sinclair, Commercial ion implantation systems, in Ion Implantation and Annealing Applications, Science and Technology: Contributions from IIT School, Edition 2024, edited by W. Lerch and M. Current (Springer Nature Switzerland, Cham, 2026), pp. 133–182.
  7. M. Tsukihara, M. Sugitani, M. Kabasawa, H. Murooka, J. Murakami, and Y. Hidaka, Introducing the lex/lex3, new low energy high current implanters, in Proceedings of the 14th International Conference on Ion Implantation Technology (IEEE, New York, 2002), pp. 373–376.
  8. T. P. Wangler, Multiparticle dynamics with space charge, in RF Linear Accelerators (Wiley‐VCH Verlag GmbH & Co. KGaA, Germany, 2008), Chap. 9, pp. 282–340.
  9. M. Chimura, H. Harada, and M. Kinsho, Beam emittance growth due to the strong space-charge field at low energy of a high-intensity ion linac and its mitigation using an octupole magnetic field, Prog. Theor. Exp. Phys. 2022, 063G01 (2022).
  10. V. N. Gorshkov, A. M. Zavalov, and I. A. Soloshenko, Process of compensation of the space charge of a negative ion beam in a gas, Plasma Phys. Rep. 33, 1032 (2007).
  11. I. A. Soloshenko, Physics of ion beam plasma and problems of intensive ion beam transportation (invited), Rev. Sci. Instrum. 67, 1646 (1996).
  12. N. Chauvin, O. Delferrière, R. Duperrier, R. Gobin, P. A. P. Nghiem, and D. Uriot, Transport of intense ion beams and space charge compensation issues in low energy beam lines (invited), Rev. Sci. Instrum. 83, 02B320 (2012).
  13. P. Spädtke, The role of space charge compensation for ion beam extraction and ion beam transport (invited), Rev. Sci. Instrum. 85, 02A744 (2014).
  14. A. BenIsmail, R. Duperrier, D. Uriot, and N. Pichoff, Space charge compensation studies of hydrogen ion beams in a drift section, Phys. Rev. ST Accel. Beams 10, 070101 (2007).
  15. C. A. Valerio-Lizarraga, I. Leon-Monzon, and R. Scrivens, Negative ion beam space charge compensation by residual gas, Phys. Rev. ST Accel. Beams 18, 080101 (2015).
  16. R. Gobin, P.-Y. Beauvais, R. Ferdinand, P.-A. Leroy, L. Celona, G. Ciavola, and S. Gammino, Improvement of beam emittance of the CEA high intensity proton source SILHI, Rev. Sci. Instrum. 70, 2652 (1999).
  17. P.-Y. Beauvais, R. Ferdinand, R. Gobin, J. M. Lagniel, P.-A. Leroy, L. Celona, G. Ciavola, S. Gammino, B. Pottin, and J. Sherman, Emittance improvement of the electron cyclotron resonance high intensity light ion source proton beam by gas injection in the low energy beam transport, Rev. Sci. Instrum. 71, 1413 (2000).
  18. V. Toivanen, O. Steczkiewicz, O. Tarvainen, T. Ropponen, J. Ärje, and H. Koivisto, The effects of beam line pressure on the beam quality of an electron cyclotron resonance ion source, Nucl. Instrum. Methods Phys. Res. Sect. B 268, 1508 (2010).
  19. H. Riege, Neutralization principles for the extraction and transport of ion beams, Nucl. Instrum. Methods Phys. Res. Sect. A 451, 394 (2000).
  20. O. Meusel, M. Droba, D. Noll, K. Schulte, P. P. Schneider, and C. Wiesner, Beam transport and space charge compensation strategies (invited), Rev. Sci. Instrum. 87, 02B937 (2016).
  21. P. Veltri, M. Cavenago, and G. Serianni, Study of space charge compensation phenomena in charged particle beams, Rev. Sci. Instrum. 83, 02B709 (2012).
  22. H. Y. Liu, C. Zuo, T. Y. Chen, H. H. Xia, B. W. Peng, and D. Z. Chen, Space charge compensation and residual-field effects in negative-ion NBI beam transport through the drift section, Nucl. Fusion 66, 096002 (2026).
  23. P. Veltri, M. Cavenago, and G. Serianni, Spatial characterization of the space charge compensation of negative ion beams, AIP Conf. Proc. 1515, 541 (2013).
  24. N. Fonnesu, M. Agostini, R. Pasqualotto, G. Serianni, and P. Veltri, Tomographic reconstruction of the beam emissivity profile in the negative ion source NIO1, Nucl. Fusion 56, 126018 (2016).
  25. L. Prost, J.-P. Carneiro, and A. Shemyakin, Low emittance growth in a low energy beam transport line with un-neutralized section, Phys. Rev. Accel. Beams 21, 020101 (2018).
  26. N. Chauvin, O. Delferrière, R. Duperrier, D. Uriot, R. Gobin, and P. A. P. Nghiem, Source and injector design for intense light ion beams including space charge neutralisation, in 25th International Linear Accelerator Conference (LINAC10 OC, 2011), p. TH302.
  27. H. Liao, W. Chen, H. Li, B. Chen, Y. Xiao, Y. Lv, X. Cao, S. Liu, J. Peng, X. Feng, and S. Liu, Removal of stripped protons produced in low-energy beam transport for superconducting linac, Phys. Rev. Accel. Beams 28, 023502 (2025).
  28. W. Chen, H. Li, R. L. Zhu, K. J. Xue, X. Cao, Y. J. Lü, S. J. Liu, Y. C. Xiao, S. M. Liu, and H. F. Ouyang, Operation of RF-driven negative hydrogen ion source in China Spallation Neutron Source, Rev. Sci. Instrum. 90, 113320 (2019).
  29. W. Chen, H. Li, Y. J. Lü, X. X. Cao, S. J. Liu, Y. C. Xiao, H. Liao, and K. J. Xue, Over 7200 hours commissioning of RF-driven negative hydrogen ion source developed at CSNS, J. Inst. 18, P04030 (2023).
  30. T. Kalvas, Development and use of computational tools for modelling negative hydrogen ion source extraction systems, Ph.D. dissertation, University of Jyväskylä, Department of Physics, 2013.
  31. B. Chen, H. Liao, H. Li, Y. Xiao, X. Cao, S. Liu, Y. Han, and W. Chen, Suppression of overcompensation by secondary electrons for negative ion beams in residual gas, Phys. Rev. Accel. Beams 28, 100101 (2025).
  32. C. Poggi, A. Pimazzoni, E. Sartori, and G. Serianni, Phase-space characterization of negative ion beams for fusion, Nucl. Fusion 65, 026064 (2025).
  33. M. Graf, B. Vanderberg, V. Benveniste, D. Tieger, and J. Ye, Low energy ion beam transport, in Proceedings of the 14th International Conference on Ion Implantation Technology (IEEE, New York, 2002), pp. 359–364.
  34. T. Kurauchi, H. Kai, Y. Uchida, S. K. Hahto, G. Sacco, T. Matsumoto, and N. Hamamoto, Space charge neutralization system for low-energy high-current implanter, MRS Adv. 10, 541 (2025).
