Acoustic, electromagnetic, and elastic space-time media that compute their own inverse

Dirk-Jan van Manen*, Johannes Aichele, and Jonas Müller

Marc Serra-Garcia

Kees Wapenaar

  • Department of Earth and Planetary Sciences, ETH Zurich, Sonneggstrasse 5, 8092 Zurich, Switzerland

  • AMOLF, Science Park 104, 1098 XG Amsterdam, The Netherlands

  • Department of Geoscience and Engineering, TU Delft, Stevinweg 1, 2628 CN Delft, The Netherlands

  • *Contact author: vdirk@ethz.ch
PDF

Phys. Rev. Research 8, 033358 – Published 23 September, 2026

DOI: https://doi.org/10.1103/hghj-fgsw

Abstract

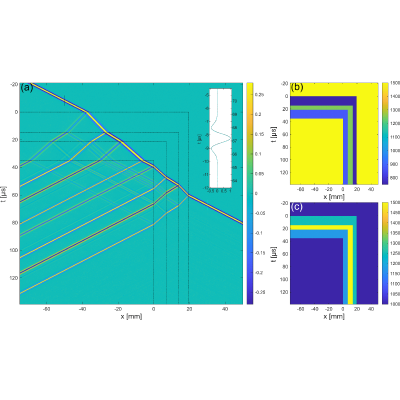

Time materials are materials with acoustic, electromagnetic, or elastic properties that change while waves are propagating through them. Waves can scatter from such temporal inhomogeneities, but due to causality, they cannot reflect back in time. As a result, time-scattered wave fields do not resemble space-scattered wave fields—which are spatially mirrored—but instead look like copies of the original signal traveling back in time. Consequently, they can form an ingredient for physical solvers of inverse problems that rely on time-reversal transformations. Here, we investigate the use of time reflections for calculating so-called focusing wave fields. We establish a one-to-one mapping between focusing wave fields and the transmitted wave fields produced by time scattering. This mapping is then used to construct a space-time medium where the time scattering anticipates the space scattering and “computes” the exact inverse transmission response for the space scattering. We demonstrate the construction with a simple numerical example of a single pulse encountering a series of time boundaries before reaching a spatial inhomogeneity. The time boundaries scatter the single pulse into a focusing wave field that subsequently focuses through the spatial inhomogeneity. With certain mild assumptions, the transmitted wave has both the same wave shape and amplitude as the original pulse, yielding a transmission coefficient of unity.

View figure in article

Physics Subject Headings (PhySH)

Article Text

References (33)

  1. D. Horsman, S. Stepney, R. C. Wagner, and V. Kendon, When does a physical system compute? Proc. R. Soc. A 470, 20140182 (2014).
  2. H. Jaeger, B. Noheda, and W. G. van der Wiel, Toward a formal theory for computing machines made out of whatever physics offers, Nat. Commun. 14, 4911 (2023).
  3. G. Tanaka, T. Yamane, J. B. Héroux, R. Nakane, N. Kanazawa, S. Takeda, H. Numata, D. Nakano, and A. Hirose, Recent advances in physical reservoir computing: A review, Neural Networks 115, 100 (2019).
  4. T. Inagaki, Y. Haribara, K. Igarashi, T. Sonobe, S. Tamate, T. Honjo, A. Marandi, P. L. McMahon, T. Umeki, K. Enbutsu, et al., A coherent Ising machine for 2000-node optimization problems, Science 354, 603 (2016).
  5. I. Oguz, N. Dinc, M. Yildirim, J. Ke, I. Yoo, Q. Wang, F. Yang, C. Moser, and D. Psaltis, Optical diffusion models for image generation, Adv. Neural Inf. Process. Syst. 37, 59150 (2024).
  6. A. Cordaro, B. Edwards, V. Nikkhah, A. Alù, N. Engheta, and A. Polman, Solving integral equations in free space with inverse-designed ultrathin optical metagratings, Nat. Nanotechnol. 18, 365 (2023).
  7. F. Zangeneh-Nejad, D. L. Sounas, A. Alù, and R. Fleury, Analogue computing with metamaterials, Nat. Rev. Mater. 6, 207 (2021).
  8. T. W. Hughes, I. A. Williamson, M. Minkov, and S. Fan, Wave physics as an analog recurrent neural network, Sci. Adv. 5, eaay6946 (2019).
  9. T. Dubček, D. Moreno-Garcia, T. Haag, P. Omidvar, H. R. Thomsen, T. S. Becker, L. Gebraad, C. Bärlocher, F. Andersson, S. D. Huber, et al., In-sensor passive speech classification with phononic metamaterials, Adv. Funct. Mater. 34, 2311877 (2024).
  10. J. Weng, Y. Ding, C. Hu, X.-F. Zhu, B. Liang, J. Yang, and J. Cheng, Meta-neural-network for real-time and passive deep-learning-based object recognition, Nat. Commun. 11, 6309 (2020).
  11. C. Qian, Z. Wang, H. Qian, T. Cai, B. Zheng, X. Lin, Y. Shen, I. Kaminer, E. Li, and H. Chen, Dynamic recognition and mirage using neuro-metamaterials, Nat. Commun. 13, 2694 (2022).
  12. A. Fichtner, H.-P. Bunge, and H. Igel, The adjoint method in seismology: I. Theory, Phys. Earth Planet. Interact. 157, 86 (2006).
  13. J. Tromp, C. Tape, and Q. Liu, Seismic tomography, adjoint methods, time reversal and banana-doughnut kernels, Geophys. J. Int. 160, 195 (2005).
  14. P. J. Werbos, Backpropagation through time: What it does and how to do it, Proc. IEEE 78, 1550 (1990).
  15. R. J. Williams and D. Zipser, A learning algorithm for continually running fully recurrent neural networks, Neural Comput. 1, 270 (1989).
  16. M. Hermans, B. Schrauwen, P. Bienstman, and J. Dambre, Automated design of complex dynamic systems, PLoS One 9, e86696 (2014).
  17. V. Lopez-Pastor and F. Marquardt, Self-learning machines based on Hamiltonian echo backpropagation, Phys. Rev. X 13, 031020 (2023).
  18. G. Pourcel and M. Ernoult, Learning long range dependencies through time reversal symmetry breaking, Adv. Neural Info. Proc. Syst. 38, 72615 (2026).
  19. G. Pourcel, D. Basu, M. Ernoult, and A. Gilra, Lagrangian-based equilibrium propagation: Generalisation to arbitrary boundary conditions & equivalence with Hamiltonian echo learning, arXiv:2506.06248.
  20. N. D. Cin, F. Marquardt, and C. C. Wanjura, Training nonlinear optical neural networks with scattering backpropagation, arXiv:2508.11750.
  21. F. Morgenthaler, Velocity modulation of electromagnetic waves, IRE Trans. Microwave Theory Tech. 6, 167 (1958).
  22. J. T. Mendonça and P. K. Shukla, Time refraction and time reflection: Two basic concepts, Phys. Scr. 65, 160 (2002).
  23. V. Bacot, M. Labousse, A. Eddi, M. Fink, and E. Fort, Time reversal and holography with spacetime transformations, Nat. Phys. 12, 972 (2016).
  24. M. A. Salem and C. Caloz, Space-time cross-mapping and application to wave scattering, arXiv:1504.02012.
  25. K. Wapenaar, F. Broggini, E. Slob, and R. Snieder, Three-dimensional single-sided Marchenko inverse scattering, data-driven focusing, Green's function retrieval, and their mutual relations, Phys. Rev. Lett. 110, 084301 (2013).
  26. K. Wapenaar, J. Thorbecke, J. van der Neut, F. Broggini, E. Slob, and R. Snieder, Marchenko imaging, Geophysics 79, WA39 (2014).
  27. T. T. Koutserimpas and R. Fleury, Electromagnetic fields in a time-varying medium: Exceptional points and operator symmetries, IEEE Trans. Antennas Propag. 68, 6717 (2020).
  28. K. Wapenaar, Green's functions, propagation invariants, reciprocity theorems, wave-field representations, and propagator matrices in two-dimensional time-dependent materials, Proc. R. Soc. A 481, 20240479 (2025).
  29. K. Wapenaar and E. C. Slob, Green's matrix and propagator matrix for three-dimensional electromagnetic wave propagation and scattering in a time-variant material, Prog. Electromagn. Res. 186, 11 (2026).
  30. K. Wapenaar, J. Aichele, and D.-J. van Manen, Waves in space-dependent and time-dependent materials: A systematic comparison, Wave Motion 130, 103374 (2024).
  31. C. Caloz and Z. L. Deck-Léger, Spacetime metamaterials—Part II: Theory and applications, IEEE Trans. Antennas Propag. 68, 1583 (2020).
  32. Note that even if the time-scattered and focusing wave fields can be mapped onto each other bijectively, the arrows are not all pointing in the same direction. Therefore, one must be cautious when interpreting this mapping and the corresponding physics.
  33. L. Li, M. Wang, J. Wang, and X. Zhao, The control of ultrasonic transmission by the metamaterials structure of electrorheological fluid and metal foam, Smart Mater. Struct. 26, 115006 (2017).
