Symmetry-deformed toric codes and the quantum dimer model

Jiaxin Qiao, Yoshito Watanabe*, and Simon Trebst

  • *Contact author: watanabe@thp.uni-koeln.de
PDF

Phys. Rev. Research 7, 043342 – Published 30 December, 2025

DOI: https://doi.org/10.1103/f8p8-b5gw

Abstract

Motivated by the recent introduction of a U(1)-symmetric toric code (TC) model, we investigate symmetry-based deformations of topological order by systematically deconstructing the Gauss-law-enforcing star terms of the TC Hamiltonian. This “term-dropping” protocol introduces global symmetries that go beyond the alternative framework of “ungauging” topological order in symmetry-deformed models and gives rise to models such as the U(1)TC or XYTC. These models inherit (emergent) subsystem symmetries (from the original 1-form symmetry of the TC) that can give rise to (subextensive) ground-state degeneracies, which can still be organized by the eigenvalues of Wilson loop operators. However, we demonstrate that these models do not support topological or fracton order (as has been conjectured in the literature) due to the loss of (emergent) gauge symmetry. An extreme deformation of the TC is the quantum dimer model (QDM), which we discuss along the family of symmetry-deformed models from the perspective of subsystem symmetries, sublattice modulation, and quantum order-by-disorder mechanisms resulting in rich phase diagrams. For the QDM, this allows us to identify an emergent SO(2) symmetry for what appears to be a gapless ground state (by numerical standards) that is unstable to the formation of a plaquette valence bond solid upon sublattice modulation.

View figure in article

Physics Subject Headings (PhySH)

Article Text

References (51)

  1. X. Chen, Z.-C. Gu, Z.-X. Liu, and X.-G. Wen, Symmetry protected topological orders and the group cohomology of their symmetry group, Phys. Rev. B 87, 155114 (2013).
  2. X.-G. Wen, Topological orders in rigid states, Int. J. Mod. Phys. B 04, 239 (1990).
  3. X. G. Wen and Q. Niu, Ground-state degeneracy of the fractional quantum hall states in the presence of a random potential and on high-genus Riemann surfaces, Phys. Rev. B 41, 9377 (1990).
  4. T. Senthil and M. P. A. Fisher, Z2 Gauge theory of electron fractionalization in strongly correlated systems, Phys. Rev. B 62, 7850 (2000).
  5. M. Levin and Z.-C. Gu, Braiding statistics approach to symmetry-protected topological phases, Phys. Rev. B 86, 115109 (2012).
  6. J. Haegeman, K. Van Acoleyen, N. Schuch, J. I. Cirac, and F. Verstraete, Gauging quantum states: From global to local symmetries in many-body systems, Phys. Rev. X 5, 011024 (2015).
  7. S. Vijay, J. Haah, and L. Fu, Fracton topological order, generalized lattice gauge theory, and duality, Phys. Rev. B 94, 235157 (2016).
  8. Y.-M. Lu and A. Vishwanath, Classification and properties of symmetry-enriched topological phases: Chern-Simons approach with applications to Z2 spin liquids, Phys. Rev. B 93, 155121 (2016).
  9. M. Barkeshli, P. Bonderson, M. Cheng, and Z. Wang, Symmetry fractionalization, defects, and gauging of topological phases, Phys. Rev. B 100, 115147 (2019).
  10. A. Y. Kitaev, Fault-tolerant quantum computation by anyons, Ann. Phys. 303, 2 (2003).
  11. K.-H. Wu, A. Khudorozhkov, G. Delfino, D. Green, and C. Chamon, U(1) Symmetry enriched toric code, Phys. Rev. B 108, 115159 (2023).
  12. M. Vieweg and K. P. Schmidt, Fracton and topological order in the XY checkerboard toric code, Phys. Rev. Res. 7, L032048 (2025).
  13. U. Schollwöck, The density-matrix renormalization group in the age of matrix product states, Ann. Phys. 326, 96 (2011).
  14. S. Yan, D. A. Huse, and S. R. White, Spin-Liquid ground state of the S=1/2 kagome Heisenberg antiferromagnet, Science 332, 1173 (2011).
  15. M. P. Zaletel, R. S. K. Mong, and F. Pollmann, Topological characterization of fractional quantum Hall ground states from microscopic Hamiltonians, Phys. Rev. Lett. 110, 236801 (2013).
  16. A. Szasz, J. Motruk, M. P. Zaletel, and J. E. Moore, Chiral spin liquid phase of the triangular lattice Hubbard model: A density matrix renormalization group study, Phys. Rev. X 10, 021042 (2020).
  17. Y.-C. He, M. P. Zaletel, M. Oshikawa, and F. Pollmann, Signatures of Dirac cones in a DMRG study of the kagome Heisenberg model, Phys. Rev. X 7, 031020 (2017).
  18. Z. Nussinov and J. van den Brink, Compass models: Theory and physical motivations, Rev. Mod. Phys. 87, 1 (2015).
  19. R. Moessner and S. L. Sondhi, Ising models of quantum frustration, Phys. Rev. B 63, 224401 (2001).
  20. L.-P. Henry and T. Roscilde, Order-by-disorder and quantum Coulomb phase in quantum square ice, Phys. Rev. Lett. 113, 027204 (2014).
  21. Y. Kato and S. Onoda, Numerical evidence of quantum melting of spin ice: Quantum-to-Classical crossover, Phys. Rev. Lett. 115, 077202 (2015).
  22. Z. Wang and L. Pollet, Renormalized classical spin liquid on the ruby lattice, Phys. Rev. Lett. 134, 086601 (2025).
  23. L. Tagliacozzo, T. R. de Oliveira, S. Iblisdir, and J. I. Latorre, Scaling of entanglement support for matrix product states, Phys. Rev. B 78, 024410 (2008).
  24. F. Pollmann, S. Mukerjee, A. M. Turner, and J. E. Moore, Theory of finite-entanglement scaling at one-dimensional quantum critical points, Phys. Rev. Lett. 102, 255701 (2009).
  25. S. Trebst, P. Werner, M. Troyer, K. Shtengel, and C. Nayak, Breakdown of a topological phase: Quantum phase transition in a loop gas model with tension, Phys. Rev. Lett. 98, 070602 (2007).
  26. I. S. Tupitsyn, A. Kitaev, N. V. Prokof'ev, and P. C. E. Stamp, Topological multicritical point in the phase diagram of the toric code model and three-dimensional lattice gauge Higgs model, Phys. Rev. B 82, 085114 (2010).
  27. S. Dusuel, M. Kamfor, R. Orús, K. P. Schmidt, and J. Vidal, Robustness of a perturbed topological phase, Phys. Rev. Lett. 106, 107203 (2011).
  28. C. Castelnovo, S. Trebst, and M. Troyer, Topological order and quantum criticality, in Understanding Quantum Phase Transitions (CRC Press, Boca Raton, 2010), pp. 169–192.
  29. Our prediction, though not examined here, could be directly tested via QMC simulations.
  30. J. B. Kogut, An introduction to lattice gauge theory and spin systems, Rev. Mod. Phys. 51, 659 (1979).
  31. E. Fradkin and S. H. Shenker, Phase diagrams of lattice gauge theories with Higgs fields, Phys. Rev. D 19, 3682 (1979).
  32. C. Xu and J. E. Moore, Strong-weak coupling self-duality in the two-dimensional quantum phase transition of p+ip superconducting arrays, Phys. Rev. Lett. 93, 047003 (2004).

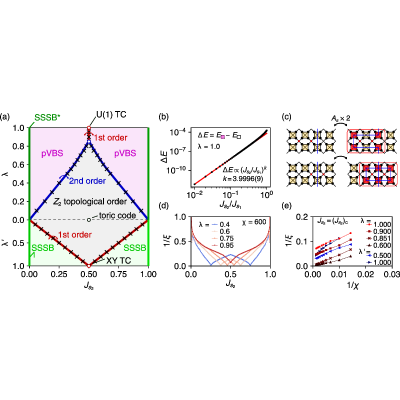

  33. In Ref. [12], an interpolation parameter ϕ is used to define the star term of the XYTC as As=cos(ϕ)As(x)+sin(ϕ)As(y), where As(α) is given by ∏i∈sσiα with α=x,y. The mapping to our interpolation parameter λ′ can be expressed as ϕ=arctan[λ′/(2−λ′)]. The self-dual point (at which the phase transition occurs) is then identified by the condition Js1cos(ϕ)=Js2sin(ϕ). For Js1=1−Js2, this yields Js2=0.5λ′ for a given λ′, which agrees with our phase diagram shown in Fig. 2.
  34. A. H. Castro Neto, P. Pujol, and E. Fradkin, Ice: A strongly correlated proton system, Phys. Rev. B 74, 024302 (2006).
  35. M. Hermele, M. P. A. Fisher, and L. Balents, Pyrochlore photons: The U(1) spin liquid in a S=12 three-dimensional frustrated magnet, Phys. Rev. B 69, 064404 (2004).
  36. R. Moessner and K. S. Raman, Quantum dimer models, in Introduction to Frustrated Magnetism: Materials, Experiments, Theory (Springer, Berlin, 2011), pp. 437–479.
  37. O. F. Syljuåsen, Continuous-time diffusion Monte Carlo method applied to the quantum dimer model, Phys. Rev. B 71, 020401(R) (2005).
  38. O. F. Syljuåsen, Plaquette phase of the square-lattice quantum dimer model: Quantum Monte Carlo calculations, Phys. Rev. B 73, 245105 (2006).
  39. A. Ralko, D. Poilblanc, and R. Moessner, Generic mixed columnar-plaquette phases in Rokhsar-Kivelson models, Phys. Rev. Lett. 100, 037201 (2008).
  40. D. Banerjee, M. Bögli, C. P. Hofmann, F.-J. Jiang, P. Widmer, and U.-J. Wiese, Interfaces, strings, and a soft mode in the square lattice quantum dimer model, Phys. Rev. B 90, 245143 (2014).
  41. D. Banerjee, M. Bögli, C. P. Hofmann, F.-J. Jiang, P. Widmer, and U.-J. Wiese, Finite-volume energy spectrum, fractionalized strings, and low-energy effective field theory for the quantum dimer model on the square lattice, Phys. Rev. B 94, 115120 (2016).
  42. Z. Yan, Z. Zhou, O. F. Syljuåsen, J. Zhang, T. Yuan, J. Lou, and Y. Chen, Widely existing mixed phase structure of the quantum dimer model on a square lattice, Phys. Rev. B 103, 094421 (2021).
  43. C. L. Henley, Ordering due to disorder in a frustrated vector antiferromagnet, Phys. Rev. Lett. 62, 2056 (1989).
  44. M. Vieweg, V. Kott, L. Lenke, A. Schellenberger, and K. P. Schmidt, Absence of topological order in the U(1) checkerboard toric code, arXiv:2506.00126.
  45. M. Saffman, T. G. Walker, and K. Mølmer, Quantum information with Rydberg atoms, Rev. Mod. Phys. 82, 2313 (2010).
  46. H. Labuhn, D. Barredo, S. Ravets, S. de Léséleuc, T. Macrì, T. Lahaye, and A. Browaeys, Tunable two-dimensional arrays of single Rydberg atoms for realizing quantum Ising models, Nature (London) 534, 667 (2016).
  47. A. Browaeys and T. Lahaye, Many-body physics with individually controlled Rydberg atoms, Nat. Phys. 16, 132 (2020).
  48. G. Semeghini, H. Levine, A. Keesling, S. Ebadi, T. T. Wang, D. Bluvstein, R. Verresen, H. Pichler, M. Kalinowski, R. Samajdar, A. Omran, S. Sachdev, A. Vishwanath, M. Greiner, V. Vuletić, and M. D. Lukin, Probing topological spin liquids on a programmable quantum simulator, Science 374, 1242 (2021).
  49. R. Verresen and A. Vishwanath, Unifying Kitaev magnets, kagomé dimer models, and ruby Rydberg spin liquids, Phys. Rev. X 12, 041029 (2022).
  50. J. Qiao, Y. Watanabe, and S. Trebst, Data underpinning “Symmetry-deformed toric codes and the quantum dimer model” [Data set], Zenodo (2025), http://doi.org/10.5281/zenodo.15483183.
  51. J. Hauschild, et al., Tensor network Python (tenpy) version 1, SciPost Phys. Codebases 41 (2024).
