  • Letter
  • Open Access

Coincidence measurement of two-photon double ionization of argon through an autoionizing resonance

Sebastian Hell1, Julian Späthe1, Morten Førre2, Robert Klas3,4, Jan Rothhardt3,4,5, Jens Limpert3,4,5, Robert Moshammer6, Christian Ott6, Gerhard G. Paulus1,5 et al.

Stephan Fritzsche5 and Matthias Kübel1,5,*

  • *Contact author: matthias.kuebel@uni-jena.de
PDF

Phys. Rev. Research 7, L032030 – Published 8 August, 2025

DOI: https://doi.org/10.1103/f63d-4hrh

Abstract

We present coincidence measurements of two-photon double ionization (TPDI) of argon driven by femtosecond pulses tunable around 26.5eV photon energy, which are obtained from a high-harmonic generation source. The measured photoelectron spectra are interpreted with regard to three TPDI mechanisms. Theoretical predictions are obtained by an approximate model for direct TPDI and atomic structure calculations, which are implemented into a Monte Carlo simulation. The prevailing mechanism involves the excitation and prompt photoionization of an autoionizing resonance in neutral argon. We provide evidence for pronounced electron-electron interaction in this ultrafast ionization process. Furthermore, we show that the dominant TPDI mechanism can be altered by slight tuning of the photon energy. The present work paves the way for scrutinizing and controlling nonlinear photoionization in the extreme ultraviolet using table-top sources.

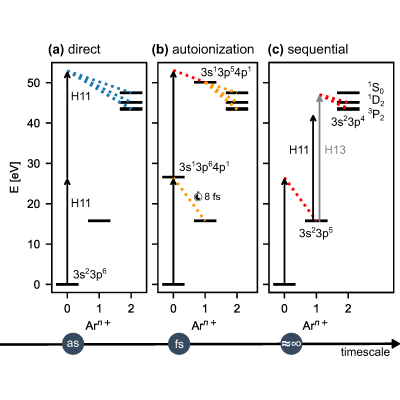

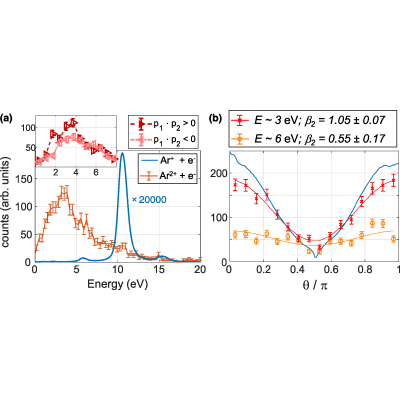

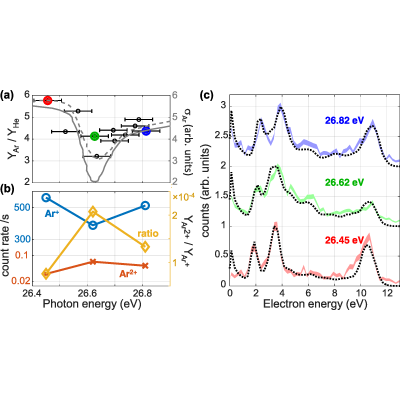

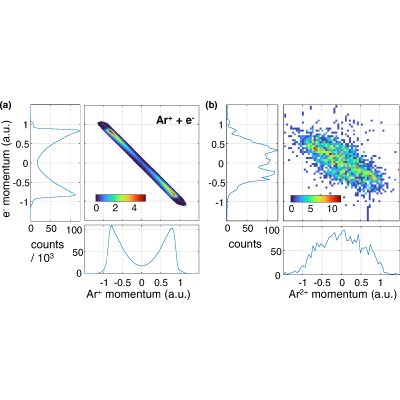

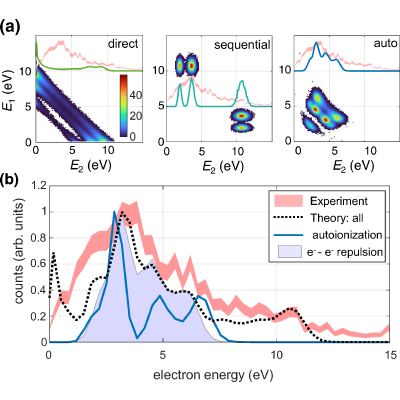

View figure in article

Physics Subject Headings (PhySH)

Article Text

References (43)

  1. L. A. A. Nikolopoulos and P. Lambropoulos, Multichannel theory of two-photon single and double ionization of helium, J. Phys. B 34, 545 (2001).
  2. D. A. Horner, F. Morales, T. N. Rescigno, F. Martín, and C. W. McCurdy, Two-photon double ionization of helium above and below the threshold for sequential ionization, Phys. Rev. A 76, 030701 (2007).
  3. J. Feist, S. Nagele, R. Pazourek, E. Persson, B. I. Schneider, L. A. Collins, and J. Burgdörfer, Probing electron correlation via attosecond XUV pulses in the two-photon double ionization of helium, Phys. Rev. Lett. 103, 063002 (2009).
  4. S. X. Hu, J. Colgan, and L. A. Collins, Triple-differential cross-sections for two-photon double ionization of He near threshold, J. Phys. B 38, L35 (2005).
  5. J. Feist, S. Nagele, R. Pazourek, E. Persson, B. I. Schneider, L. A. Collins, and J. Burgdörfer, Nonsequential two-photon double ionization of helium, Phys. Rev. A 77, 043420 (2008).
  6. M. Førre, S. Selstø, and R. Nepstad, Nonsequential two-photon double ionization of atoms: Identifying the mechanism, Phys. Rev. Lett. 105, 163001 (2010).
  7. W.-C. Jiang, J.-Y. Shan, Q. Gong, and L.-Y. Peng, Virtual sequential picture for nonsequential two-photon double ionization of helium, Phys. Rev. Lett. 115, 153002 (2015).
  8. S. Chattopadhyay, C. Marante, B. I. Schneider, and L. Argenti, Two-photon double ionization with finite pulses: Application of the virtual sequential model to helium, Phys. Rev. A 108, 013114 (2023).
  9. S. Fritzsche, A. N. Grum-Grzhimailo, E. V. Gryzlova, and N. M. Kabachnik, Angular distributions and angular correlations in sequential two-photon double ionization of atoms, J. Phys. B 41, 165601 (2008).
  10. R. Pazourek, J. Feist, S. Nagele, E. Persson, B. I. Schneider, L. A. Collins, and J. Burgdörfer, Universal features in sequential and nonsequential two-photon double ionization of helium, Phys. Rev. A 83, 053418 (2011).
  11. E. V. Gryzlova, A. N. Grum-Grzhimailo, M. D. Kiselev, and S. M. Burkov, Two-photon sequential double ionization of argon in the region of Rydberg autoionizing states of Ar+, Eur. Phys. J. D 73, 93 (2019).
  12. S. Chattopadhyay, C. Marante, B. I. Schneider, C. W. McCurdy, and L. Argenti, Two-electron interference in two-photon attosecond double ionization of neon, Phys. Rev. A 110, 013106 (2024).
  13. R. Dörner, V. Mergel, O. Jagutzki, L. Spielberger, J. Ullrich, R. Moshammer, and H. Schmidt-Böcking, Cold target recoil ion momentum spectroscopy: A ‘momentum microscope’ to view atomic collision dynamics, Phys. Rep. 330, 95 (2000).
  14. J. Ullrich, R. Moshammer, A. Dorn, R. Dörner, L. P. H. Schmidt, and H. Schmidt-Böcking, Recoil-ion and electron momentum spectroscopy: Reaction-microscopes, Rep. Prog. Phys. 66, 1463 (2003).
  15. T. Weber, H. Giessen, M. Weckenbrock, G. Urbasch, A. Staudte, L. Spielberger, O. Jagutzki, V. Mergel, M. Vollmer, and R. Dörner, Correlated electron emission in multiphoton double ionization, Nature (London) 405, 658 (2000).
  16. R. Dörner, T. Weber, M. Weckenbrock, A. Staudte, M. Hattass, H. Schmidt-Böcking, R. Moshammer, and J. Ullrich, Multiple ionization in strong laser fields, Adv. At. Mol. Opt. Phys. 48, 1 (2002).
  17. B. Bergues, M. Kübel, N. G. Kling, C. Burger, and M. F. Kling, Single-cycle non-sequential double ionization, J. Sel. Top. Quantum Electron. 21, 8701009 (2015).
  18. R. Moshammer et al., Few-photon multiple ionization of Ne and Ar by strong free-electron-laser pulses, Phys. Rev. Lett. 98, 203001 (2007).
  19. A. Rudenko et al. Recoil-ion momentum distributions for two-photon double ionization of He and Ne by 44 eV free-electron laser radiation, Phys. Rev. Lett. 101, 073003 (2008).
  20. M. Kurka et al., Two-photon double ionization of Ne by free-electron laser radiation: a kinematically complete experiment, J. Phys. B 42, 141002 (2009).
  21. S. Augustin, M. Schulz, G. Schmid, K. Schnorr, E. V. Gryzlova, H. Lindenblatt, S. Meister, Y. F. Liu, F. Trost, L. Fechner, A. N. Grum-Grzhimailo, S. M. Burkov, M. Braune, R. Treusch, M. Gisselbrecht, C. D. Schröter, T. Pfeifer, and R. Moshammer, Signatures of autoionization in the angular electron distribution in two-photon double ionization of Ar, Phys. Rev. A 98, 033408 (2018).
  22. M. Straub, T. Ding, M. Rebholz, G. D. Borisova, A. Magunia, H. Lindenblatt, S. Meister, F. Trost, Y. Wang, S. Palutke, M. Braune, S. Düsterer, R. Treusch, C. H. Greene, R. Moshammer, T. Pfeifer, and C. Ott, Differential measurement of electron ejection after two-photon two-electron excitation of helium, Phys. Rev. Lett. 129, 183204 (2022).
  23. Y. Nabekawa, H. Hasegawa, E. J. Takahashi, and K. Midorikawa, Production of doubly charged helium ions by two-photon absorption of an intense sub-10-fs soft x-ray pulse at 42 eV photon energy, Phys. Rev. Lett. 94, 043001 (2005).
  24. H. Hasegawa, E. J. Takahashi, Y. Nabekawa, K. L. Ishikawa, and K. Midorikawa, Multiphoton ionization of He by using intense high-order harmonics in the soft-x-ray region, Phys. Rev. A 71, 023407 (2005).
  25. E. P. Benis, D. Charalambidis, T. N. Kitsopoulos, G. D. Tsakiris, and P. Tzallas, Two-photon double ionization of rare gases by a superposition of harmonics, Phys. Rev. A 74, 051402 (2006).
  26. P. Tzallas, D. Charalambidis, N. A. Papadogiannis, K. Witte, and G. D. Tsakiris, Direct observation of attosecond light bunching, Nature (London) 426, 267 (2003).
  27. T. Sekikawa, A. Kosuge, T. Kanai, and S. Watanabe, Nonlinear optics in the extreme ultraviolet, Nature (London) 432, 605 (2004).
  28. B. Bergues, D. E. Rivas, M. Weidman, A. A. Muschet, W. Helml, A. Guggenmos, V. Pervak, U. Kleineberg, G. Marcus, R. Kienberger, D. Charalambidis, P. Tzallas, H. Schröder, F. Krausz, and L. Veisz, Tabletop nonlinear optics in the 100-eV spectral region, Optica 5, 237 (2018).
  29. B. Major, O. Ghafur, K. Kovács, K. Varjú, V. Tosa, M. J. J. Vrakking, and B. Schütte, Compact intense extreme-ultraviolet source, Optica 8, 960 (2021).
  30. M. Kretschmar, A. Hadjipittas, B. Major, J. Tümmler, I. Will, T. Nagy, M. J. J. Vrakking, A. Emmanouilidou, and B. Schütte, Attosecond investigation of extreme-ultraviolet multi-photon multi-electron ionization, Optica 9, 639 (2022).
  31. R. Klas, S. Demmler, M. Tschernajew, S. Hädrich, Y. Shamir, A. Tünnermann, J. Rothhardt, and J. Limpert, Table-top milliwatt-class extreme ultraviolet high harmonic light source, Optica 3, 1167 (2016).
  32. A. Comby, D. Descamps, S. Beauvarlet, A. Gonzalez, F. Guichard, S. Petit, Y. Zaouter, and Y. Mairesse, Cascaded harmonic generation from a fiber laser: a milliwatt XUV source, Opt. Express 27, 20383 (2019).
  33. R. Klas, A. Kirsche, M. Gebhardt, J. Buldt, H. Stark, S. Hädrich, J. Rothhardt, and J. Limpert, Ultra-short-pulse high-average-power megahertz-repetition-rate coherent extreme-ultraviolet light source, PhotoniX 2, 4 (2021).
  34. J. Späthe, S. Hell, M. Wünsche, R. Klas, J. Rothhardt, J. Limpert, T. Siefke, G. G. Paulus, and M. Kübel, Laser-driven high-flux source of coherent quasi-monochromatic extreme ultraviolet radiation for coincidence spectroscopy, arXiv:2507.02561.
  35. S. L. Sorensen, T. Åberg, J. Tulkki, E. Rachlew-Källne, G. Sundström, and M. Kirm, Argon 3s autoionization resonances, Phys. Rev. A 50, 1218 (1994).
  36. S. A. Yulin, F. Schaefers, T. Feigl, and N. Kaiser, Enhanced reflectivity and stability of Sc/Si multilayers, in Advances in Mirror Technology for X-Ray, EUV Lithography, Laser, and Other Applications, edited by A. M. Khounsary, U. Dinger, and K. Ota, International Society for Optics and Photonics (SPIE, Bellingham, WA, 2004), Vol. 5193, pp. 155–163.
  37. R. Houlgate, J. West, K. Codling, and G. Marr, The angular distribution of the 3p electrons and the partial cross section of the 3s electrons of argon from threshold to 70 eV, J. Electron Spectrosc. Relat. Phenom. 9, 205 (1976).
  38. M. D. Kiselev, P. A. Carpeggiani, E. V. Gryzlova, S. M. Burkov, M. Reduzzi, A. Dubrouil, D. Faccialá, M. Negro, K. Ueda, F. Frassetto, F. Stienkemeier, Y. Ovcharenko, M. Meyer, M. Di Fraia, O. Plekan, K. C. Prince, C. Callegari, G. Sansone, and A. N. Grum-Grzhimailo, Photoelectron spectra and angular distribution in sequential two-photon double ionization in the region of autoionizing resonances of ArII and KrII, J. Phys. B 53, 244006 (2020).
  39. S. Fritzsche, A fresh computational approach to atomic structures, processes and cascades, Comput. Phys. Commun. 240, 1 (2019).
  40. I. P. Grant, Relativistic Quantum Theory of Atoms and Molecules: Theory and Computation (Springer, Heidelberg, Germany, 2007).
  41. S. Fritzsche, A. Sahoo, L. Sharma, Z. Wu, and S. Schippers, Merits of atomic cascade computations, Eur. Phys. J. D 78, 75 (2024).
  42. E. Clementi, D. Raimondi, and W. P. Reinhardt, Atomic screening constants from SCF functions. II. Atoms with 37 to 86 electrons, J. Chem. Phys. 47, 1300 (1967).
  43. C. Altucci, R. Bruzzese, C. de Lisio, M. Nisoli, S. Stagira, S. De Silvestri, O. Svelto, A. Boscolo, P. Ceccherini, L. Poletto, G. Tondello, and P. Villoresi, Tunable soft-x-ray radiation by high-order harmonic generation, Phys. Rev. A 61, 021801 (1999).

Outline

Information

Phys. Rev. Research 7, L032030– Published 8 August, 2025
  • Received 25 March 2025
  • Accepted 8 July 2025
Crossmark - Check for updates button
Creative Commons Logo

Published by the American Physical Society under the terms of the Creative Commons Attribution 4.0 International license. Further distribution of this work must maintain attribution to the author(s) and the published article's title, journal citation, and DOI.
