Visualizing phonon edge states on molybdenum disulfide

Patrick Giese1, Mathias Stokkebye Nissen2, Stig Helveg3, and Jakob Schiøtz1,*

  • *Contact author: schiotz@fysik.dtu.dk
PDF

Phys. Rev. Research 8, L022049 – Published 12 June, 2026

DOI: https://doi.org/10.1103/f4y5-bps4

Abstract

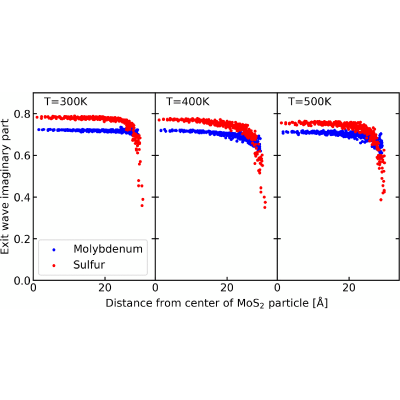

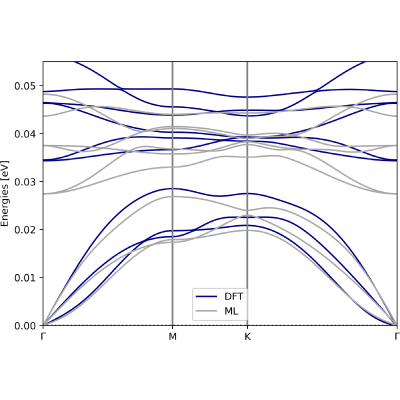

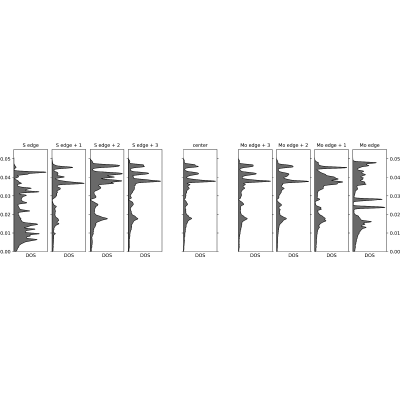

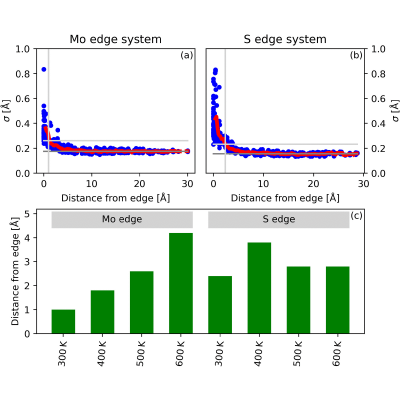

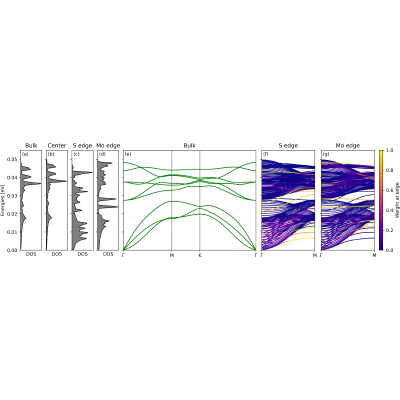

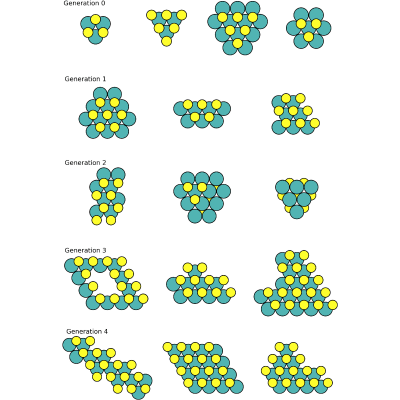

We employ molecular dynamics (MD) simulations to study atom vibrational amplitudes in carbon-supported molybdenum disulfide (MoS2) nanoparticles. Enhanced and correlated atom vibrational amplitudes are observed as the nanoparticle edges are approached from the bulk, consistent with recent experimental high-resolution transmission electron microscopy (HRTEM) observations by Chen et al. [Nat. Commun. 12, 5007 (2021)]. Analysis of phonon modes in finite systems explains the experimental observation by low-energy phonon modes confined at the nanoparticle edge, underscoring the need of full MD modeling for accurate HRTEM image interpretation. Noticeably, we introduce a workflow for training equivariant neural network-based machine learning potentials using limited density functional theory (DFT) calculations. This approach effectively captures both covalent and van der Waals interactions, enabling accurate extrapolations of DFT calculations to larger systems with built-in error estimation.

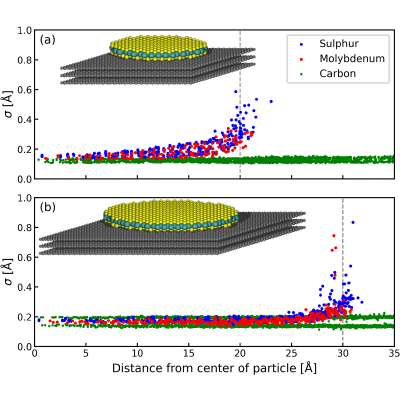

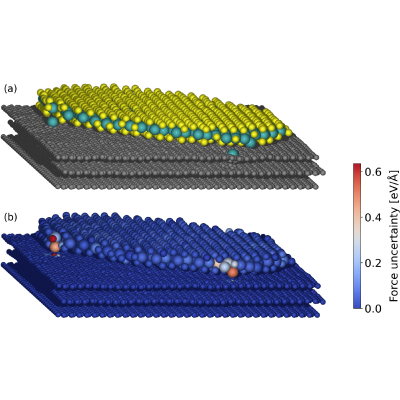

View figure in article

Physics Subject Headings (PhySH)

Article Text

Supplemental Material

References (31)

  1. C. Kisielowski et al., Detection of single atoms and buried defects in three dimensions by aberration-corrected electron microscope with 0.5-Å information limit, Microsc. Microanal. 14, 469 (2008).
  2. R. Erni, M. D. Rossell, C. Kisielowski, and U. Dahmen, Atomic-resolution imaging with a sub-50-pm electron probe, Phys. Rev. Lett. 102, 096101 (2009).
  3. F.-R. Chen, D. Van Dyck, C. Kisielowski, L. P. Hansen, B. Barton, and S. Helveg, Probing atom dynamics of excited Co-Mo-S nanocrystals in 3D, Nat. Commun. 12, 5007 (2021).
  4. Z. Chen, Y. Jiang, Y.-T. Shao, M. E. Holtz, M. Odstrčil, M. Guizar-Sicairos, I. Hanke, S. Ganschow, D. G. Schlom, and D. A. Muller, Electron ptychography achieves atomic-resol- ution limits set by lattice vibrations, Science 372, 826 (2021).
  5. R. F. Loane, P. Xu, and J. Silcox, Thermal vibrations in convergent-beam electron diffraction, Acta Crystallogr. A 47, 267 (1991).
  6. S. Hillyard and J. Silcox, Detector geometry, thermal diffuse scattering and strain effects in ADF STEM imaging, Ultramicroscopy 58, 6 (1995).
  7. D. Van Dyck, Persistent misconceptions about incoherence in electron microscopy, Ultramicroscopy 111, 894 (2011).
  8. J. S. Smith, B. Nebgen, N. Lubbers, O. Isayev, and A. E. Roitberg, Less is more: Sampling chemical space with active learning, J. Chem. Phys. 148, 241733 (2018).
  9. N. Thomas, T. Smidt, S. Kearnes, L. Yang, L. Li, K. Kohlhoff, and P. Riley, Tensor field networks: Rotation- and translation-equivariant neural networks for 3D point clouds, arXiv:1802.08219.
  10. S. Batzner, A. Musaelian, L. Sun, M. Geiger, J. P. Mailoa, M. Kornbluth, N. Molinari, T. E. Smidt, and B. Kozinsky, E(3)-equivariant graph neural networks for data-efficient and accurate interatomic potentials, Nat. Commun. 13, 2453 (2022).
  11. J. Madsen and T. Susi, The abTEM code: Transmission electron microscopy from first principles, Open Res. Eur. 1, 24 (2021).
  12. M. Igami, M. Fujita, and S. Mizuno, Phonon dispersion of nano-graphite ribbons, Appl. Surf. Sci. 130, 870 (1998).

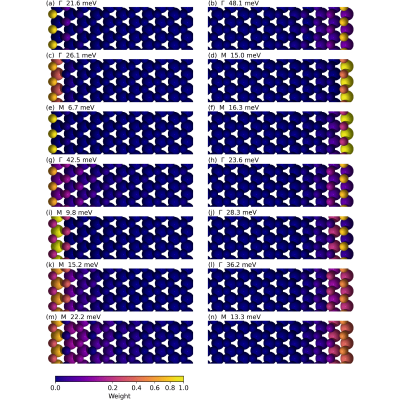

  13. See Supplemental Material at http://link.aps.org/supplemental/10.1103/f4y5-bps4 for animated renderings of the phonon modes in Fig. 4 and the files are named by the edge, the k point, and the energy in meV.
