Advanced muon-spin spectroscopy with high lateral resolution using Si-pixel detectors

Lukas Mandok1, Pascal Isenring2,3, Heiko Augustin1, Niklaus Berger4, Marius Köppel5, Jonas A. Krieger2, Hubertus Luetkens2, Thomas Prokscha2, Thomas Rudzki1 et al.

André Schöning1 and Zaher Salman2,*

  • 1Physics Institute, Heidelberg University, Im Neuenheimer Feld 226, 69120 Heidelberg, Germany
  • 2PSI Center for Neutron and Muon Sciences, 5232 Villigen PSI, Switzerland
  • 3Physik Institut, University of Zürich, Winterthurerstrasse 190, CH-8057 Zürich, Switzerland
  • 4Institute for Nuclear Physics, Johannes Gutenberg-Universität Mainz, Johann-Joachim-Becher-Weg 45, 55099 Mainz, Germany
  • 5Institute for Particle Physics and Astrophysics, ETH Zürich, CH-8093 Zürich, Switzerland

  • *Contact author: zaher.salman@psi.ch
PDF

Phys. Rev. Research 8, 013092 – Published 28 January, 2026

DOI: https://doi.org/10.1103/f4jb-39yn

Abstract

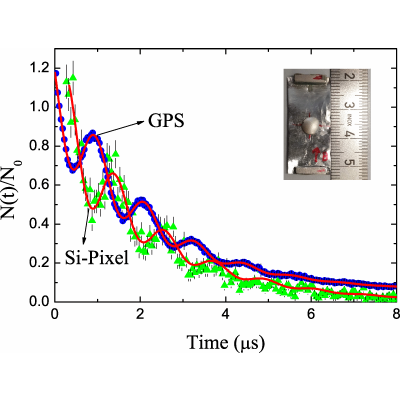

Muon-spin spectroscopy at continuous sources has stagnated at a stopped muon rate of ∼40kHz for the last few decades. The major limiting factor is the requirement of a single muon in the sample during the typical 10µs data gate window. To overcome this limit and to be able to perform muon-spin relaxation/rotation (µSR) measurements on millimeter-sized samples, one can use vertex reconstruction methods to construct µSR spectra. This is now possible thanks to the availability of very thin monolithic Si-pixel chips, which offer minimal particle scattering and high count rate. Here, we present results from a Si-pixel-based spectrometer that utilizes vertex reconstruction schemes for the incoming muons and emitted positrons. With this spectrometer, we were able to obtain a first vertex reconstructed (vx-μSR) spectrum. The unique capabilities and benefits of such a vx-µSR spectrometer are discussed.

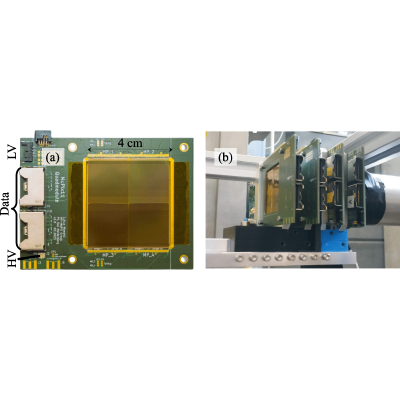

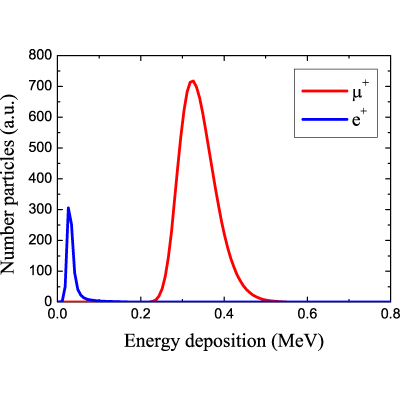

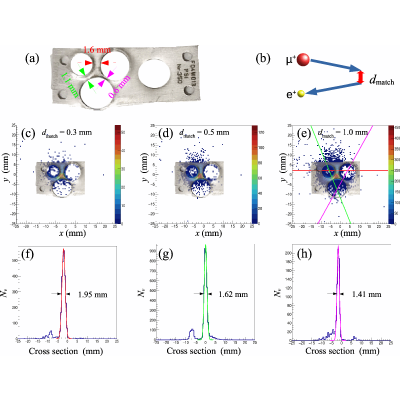

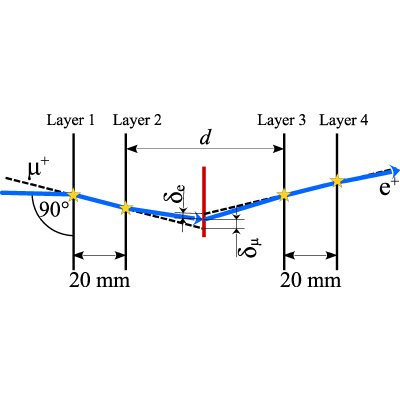

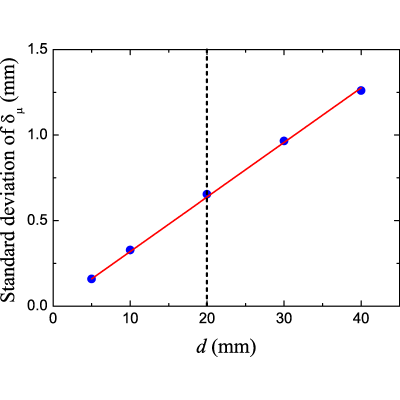

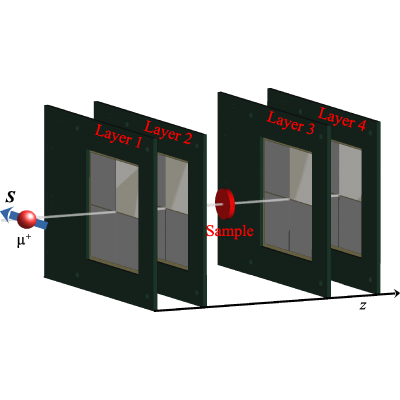

View figure in article

Physics Subject Headings (PhySH)

Article Text

References (23)

  1. H. C. Augustin, Development of a novel slow control interface and suppression of signal line crosstalk enabling HV-MAPS as sensor technology for Mu3e, Ph.D. thesis, Ruprecht-Karls-Universität Heidelberg, 2021.
  2. M. Aiba, et al., Science case for the new high-intensity Muon beams HIMB at PSI, arXiv:2111.05788 [hep-ex].
  3. H. Augustin, N. Berger, S. Dittmeier, D. M. Immig, D. Kim, L. Mandok, A. M. Gonzalez, M. Menzel, L. O. S. Noehte, I. Perić, A. Schmidt, A. Schöning, L. Vigani, A. Weber, and B. Weinläder, MuPix10: First results from the final design, JPS Conf. Proc. 34, 010012 (2021).
  4. H. Augustin, N. Berger, S. Dittmeier, C. Grzesik, J. Hammerich, Q. Huang, L. Huth, M. Kiehn, A. Kozlinskiy, F. Meier Aeschbacher, I. Perić, A.-K. Perrevoort, A. Schöning, S. Shrestha, D. vom Bruch, F. Wauters, and D. Wiedner, The MuPix system-on-chip for the Mu3e experiment, Nucl. Instrum. Methods Phys. Res. Sect. A 845, 194 (2017).
  5. H. Augustin, et al., The MuPix high voltage monolithic active pixel sensor for the mu3e experiment, J. Instrum. 10, C03044 (2015).
  6. H. Augustin, N. Berger, S. Dittmeier, J. Hammerich, U. Hartenstein, Q. Huang, L. Huth, D. Immig, A. Kozlinskiy, F. M. Aeschbacher, I. Perić, A.-K. Perrevoort, A. Schöning, S. Shrestha, I. Sorokin, A. Tyukin, D. vom Bruch, F. Wauters, D. Wiedner, and M. Zimmermann, MuPix7—A fast monolithic HV-CMOS pixel chip for Mu3e, J. Instrum. 11, C11029 (2016).
  7. H. Augustin, N. Berger, S. Dittmeier, C. Grzesik, J. Hammerich, U. Hartenstein, Q. Huang, L. Huth, D. M. Immig, M. Kiehn, A. Kozlinskiy, F. Meier Aeschbacher, A. Meneses González, I. Perić, A.-K. Perrevoort, A. Schöning, S. Shrestha, D. vom Bruch, F. Wauters, and D. Wiedner, Efficiency and timing performance of the MuPix7 high-voltage monolithic active pixel sensor, Nucl. Instrum. Methods Phys. Res. Sect. A 902, 158 (2018).
  8. H. Augustin, N. Berger, S. Dittmeier, F. Ehrler, C. Grzesik, J. Hammerich, A. Herkert, L. Huth, J. Kröger, F. M. Aeschbacher, I. Perić, M. Prathapan, R. Schimassek, A. Schöning, I. Sorokin, A. Weber, D. Wiedner, H. Zhang, and M. Zimmermann, MuPix8—Large area monolithic HVCMOS pixel detector for the Mu3e experiment, Nucl. Instrum. Methods Phys. Res. Sect. A 936, 681 (2019).
  9. H. Augustin, et al., Performance of the large scale HV-CMOS pixel sensor MuPix8, J. Instrum. 14, C10011 (2019).
  10. I. Perić, A novel monolithic pixelated particle detector implemented in high-voltage CMOS technology, Nucl. Instrum. Methods Phys. Res. Sect. A 582, 876 (2007).
  11. K. Arndt, et al., Technical design of the phase I Mu3e experiment, Nucl. Instrum. Methods Phys. Res. Sect. A 1014, 165679 (2021).
  12. H. Augustin, et al., The Mu3e data acquisition, IEEE Trans. Nucl. Sci. 68, 1833 (2021).
  13. M. Köppel, Data flow in the Mu3e DAQ, IEEE Trans. Nucl. Sci. 70, 898 (2023).
  14. DE5a-NET FPGA development kit user manual, Terasic Inc., 2019, v1.2.2., https://www.mouser.lt/datasheet/2/598/DE5a_Net_User_Manual-1228659.pdf
  15. K. Sedlak, T. Shiroka, A. Stoykov, and R. Scheuermann, Geant4 simulation of the new alc µSR spectrometer, IEEE Trans. Nucl. Sci. 57, 2187 (2010).
  16. Z. Salman, P. Baker, S. Blundell, S. Cottrell, S. Giblin, A. Hillier, B. Holsman, P. King, T. Lancaster, J. Lord, I. McKenzie, J. Nightingale, F. Pratt, and R. Scheuermann, HiFi—A new high field muon spectrometer at ISIS, Phys. B: Condens. Matter 404, 978 (2009).
  17. S. Agostinelli, et al., Geant4—a simulation toolkit, Nucl. Instrum. Methods Phys. Res. Sect. A 506, 250 (2003).
  18. P. Isenring and Z. Salman, The effect of magnetic fields on vertex reconstructed muon-spin spectroscopy, arXiv:2510.10094 [physics].
  19. D. Dannheim, et al., Corryvreckan: A modular 4D track reconstruction and analysis software for test beam data, J. Instrum. 16, P03008 (2021).
  20. M. Williams, J. Kröger, L. Huth, P. Schütze, and S. Spannagel, Corryvreckan—A modular 4D track reconstruction and analysis software for test beam data (2.0.0), Zenodo (2020), https://doi.org/10.5281/zenodo.4384186.
  21. A. Amato, H. Luetkens, K. Sedlak, A. Stoykov, R. Scheuermann, M. Elender, A. Raselli, and D. Graf, The new versatile general purpose surface-muon instrument (GPS) based on silicon photomultipliers for µSR measurements on a continuous-wave beam, Rev. Sci. Instrum. 88, 093301 (2017).
  22. M. Köppel, Data flow in the Mu3e data acquisition system, Ph.D. thesis, Johannes Gutenberg-Universität Mainz, 2024.
  23. Z. Salman, Advanced muon-spin spectroscopy with high lateral resolution using Si-pixel detectors, [Data set] Zenodo (2025), http://doi.org/10.5281/zenodo.15046013.
