Quantum printing and induced vorticity in superconductors II: Laguerre-Gaussian beam

Tien-Tien Yeh1,2,*, Hennadii Yerzhakov2, Logan Bishop-Van Horn3, Srinivas Raghu3, and Alexander Balatsky1,2,†

  • *Contact author: ttyeh0212@gmail.com
  • †Contact author: balatsky@hotmail.com
PDF

Phys. Rev. Research 7, 043112 – Published 28 October, 2025

DOI: https://doi.org/10.1103/dqv7-w2w4

Abstract

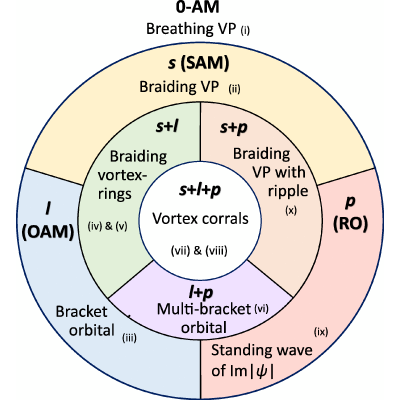

The challenge of controlling the quantum states of matter via light has been at the forefront of modern research on driven quantum matter. We explore the imprinting effects of structured light on superconductors, demonstrating how the quantum numbers of light—specifically spin angular momentum, orbital angular momentum, and radial order—can be transferred to the superconducting (SC) order parameter and control vortex dynamics. Using Laguerre-Gaussian beams, we show that by tuning the quantum numbers and the amplitude of the electric field, it is possible to manipulate a variety of vortex dynamics, including breathing vortex pairs, braiding vortex pairs, vortex droplets, and swirling two-dimensional vortex rings. More complex structures of vortex clusters, such as vortex flake structures, and standing wave motions, also emerge under specific quantum numbers. These results demonstrate the ability to control SC vortex motion and phase structures through structured light, offering potential applications in quantum fluids and optical control of superconducting states. Our findings present a diagram that links light's quantum numbers to the resulting SC vortex dynamics, highlighting the capacity of light to transfer its symmetry onto superconducting condensates. We point out that this approach represents the extension of printing to quantum printing by light in a coherent state of electrons.

View figure in article

Physics Subject Headings (PhySH)

See Also

Quantum printing and induced vorticity in superconductors I: Linearly polarized light

Tien-Tien Yeh, Hennadii Yerzhakov, Logan Bishop-Van Horn, Srinivas Raghu, and Alexander Balatsky
Phys. Rev. Research 7, 043111 (2025)

Article Text

Supplemental Material

References (43)

  1. Y. Zhao and H. Xu, Laser-induced thermocapillary flows on a flowing soap film, Phys. Rev. Fluids 9, L022001 (2024).
  2. X. Zhu, C. Vannahme, E. Højlund-Nielsen, N. A. Mortensen, and A. Kristensen, Plasmonic colour laser printing, Nat. Nanotechnol. 11, 325 (2016).
  3. Y. Zhang, Y. Jiao, C. Li, C. Chen, J. Li, Y. Hu, D. Wu, and J. Chu, Bioinspired micro/nanostructured surfaces prepared by femtosecond laser direct writing for multi-functional applications, Int. J. Extreme Manuf. 2, 032002 (2020).
  4. X. Zhu, W. Yan, U. Levy, N. A. Mortensen, and A. Kristensen, Resonant laser printing of structural colors on high-index dielectric metasurfaces, Sci. Adv. 3, e1602487 (2017).
  5. D. Böcherer, R. Montazeri, Y. Li, S. Tisato, L. Hambitzer, and D. Helmer, Decolorization of lignin for high-resolution 3D printing of high lignin-content composites, Adv. Sci. 11, 2406311 (2024).
  6. B. Garai, A. Mallick, and R. Banerjee, Photochromic metal–organic frameworks for inkless and erasable printing, Chem. Sci. 7, 2195 (2016).
  7. M. Regehly, Y. Garmshausen, M. Reuter, N. F. König, E. Israel, D. P. Kelly, C.-Y. Chou, K. Koch, B. Asfari, and S. Hecht, Xolography for linear volumetric 3D printing, Nature (London) 588, 620 (2020).
  8. D. Loterie, P. Delrot, and C. Moser, High-resolution tomographic volumetric additive manufacturing, Nat. Commun. 11, 852 (2020).
  9. R. Zhao, L. Huang, and Y. Wang, Recent advances in multi-dimensional metasurfaces holographic technologies, PhotoniX 1, 20 (2020).
  10. M. Basini, M. Pancaldi, B. Wehinger, M. Udina, T. Tadano, M. Hoffmann, A. Balatsky, and S. Bonetti, Terahertz electric-field driven dynamical multiferroicity in SrTiO3, Nature (London) 628, 534 (2024).
  11. C. Davies, F. Fennema, A. Tsukamoto, I. Razdolski, A. Kimel, and A. Kirilyuk, Phononic switching of magnetization by the ultrafast Barnett effect, Nature (London) 628, 540 (2024).
  12. J. Luo, T. Lin, J. Zhang, X. Chen, E. R. Blackert, R. Xu, B. I. Yakobson, and H. Zhu, Large effective magnetic fields from chiral phonons in rare-earth halides, Science 382, 698 (2023).
  13. H. Fujita and M. Sato, Encoding orbital angular momentum of light in magnets, Phys. Rev. B 96, 060407 (2017).
  14. C. D. Parmee, M. R. Dennis, and J. Ruostekoski, Optical excitations of skyrmions, knotted solitons, and defects in atoms, Commun. Phys. 5, 54 (2022).
  15. T. Mizushima and M. Sato, Imprinting spiral Higgs waves onto superconductors with vortex beams, Phys. Rev. Res. 5, L042004 (2023).
  16. I. Gnusov, S. Harrison, S. Alyatkin, K. Sitnik, J. Töpfer, H. Sigurdsson, and P. Lagoudakis, Quantum vortex formation in the “rotating bucket” experiment with polariton condensates, Sci. Adv. 9, eadd1299 (2023).
  17. L. Dominici, A. Rahmani, D. Colas, D. Ballarini, M. De Giorgi, G. Gigli, D. Sanvitto, F. P. Laussy, and N. Voronova, Coupled quantum vortex kinematics and Berry curvature in real space, Commun. Phys. 6, 197 (2023).
  18. H. Yerzhakov, T.-T. Yeh, and A. Balatsky, Induction of orbital currents and Kapitza stabilization in superconducting circuits with Laguerre-Gaussian microwave beams, Phys. Rev. B 110, 144519 (2024).
  19. Y. Fang, J. Kuttruff, D. Nabben, and P. Baum, Structured electrons with chiral mass and charge, Science 385, 183 (2024).
  20. T.-T. Yeh, H. Yerzhakov, L. B.-V. Horn, S. Raghu, and A. Balatsky, preceding paper, Quantum printing and induced vorticity in superconductors I: Linearly polarized light, Phys. Rev. Res. 7, 043111 (2025).
  21. DeepAI, 3D Objects Generator (September 2024 version), https://deepai.org/machine-learning-model/text2img.
  22. L. Kramer and R. J. Watts-Tobin, Theory of dissipative current-carrying states in superconducting filaments, Phys. Rev. Lett. 40, 1041 (1978).
  23. R. J. Watts-Tobin, Y. Krahenbuhl, and L. Kramer, Nonequilibrium theory of dirty, current-carrying superconductors: Phase-slip oscillators in narrow filaments near Tc, J. Low Temp. Phys. 42, 459 (1981).
  24. L. Bishop-Van Horn, PyTDGL: Time-dependent Ginzburg-Landau in Python, Comput. Phys. Commun. 291, 108799 (2023).
  25. GitHub repository link of LG-TDGL: https://github.com/TienTienYeh/lg-tdgl.
  26. See Supplemental Material at http://link.aps.org/supplemental/10.1103/dqv7-w2w4 for instructions of simulation codes and videos.
  27. A. Forbes, M. De Oliveira, and M. R. Dennis, Structured light, Nat. Photon. 15, 253 (2021).
  28. J. Wang, J. Liu, S. Li, Y. Zhao, J. Du, and L. Zhu, Orbital angular momentum and beyond in free-space optical communications, Nanophotonics 11, 645 (2022).
  29. X. Gu, M. Krenn, M. Erhard, and A. Zeilinger, Gouy phase radial mode sorter for light: Concepts and experiments, Phys. Rev. Lett. 120, 103601 (2018).
  30. J. Pearl, Current distribution in superconducting films carrying quantized fluxoids, Appl. Phys. Lett. 5, 65 (1964).
  31. C. Kittel and P. McEuen, Introduction to Solid State Physics (John Wiley & Sons, Hoboken, New Jersey, 2018).
  32. T. R. Lemberger, I. Hetel, J. W. Knepper, and F. Yang, Penetration depth study of very thin superconducting Nb films, Phys. Rev. B 76, 094515 (2007).
  33. J. Draskovic, T. R. Lemberger, B. Peters, F. Yang, J. Ku, A. Bezryadin, and S. Wang, Measuring the superconducting coherence length in thin films using a two-coil experiment, Phys. Rev. B 88, 134516 (2013).
  34. T. Yokoyama, Creation of superconducting vortices by angular momentum of light, J. Phys. Soc. Jpn. 89, 103703 (2020).
  35. V. Plastovets, I. Tokman, B. Lounis, A. Mel’nikov, and A. Buzdin, All-optical generation of Abrikosov vortices by the inverse Faraday effect, Phys. Rev. B 106, 174504 (2022).
  36. N. B. Kopnin, Theory of Nonequilibrium Superconductivity (Oxford University Press, 2001), Vol. 110.
  37. A. Bencheikh, M. Fromager, and K. A. Ameur, Generation of Laguerre–Gaussian LGp0 beams using binary phase diffractive optical elements, Appl. Opt. 53, 4761 (2014).
  38. M. Crommie, C. Lutz, D. Eigler, and E. Heller, Quantum corrals, Physica D 83, 98 (1995).
  39. G. E. Volovik, Superfluids in rotation: Landau–Lifshitz vortex sheets vs Onsager–Feynman vortices, Phys. Usp. 58, 897 (2015).
  40. E. Thuneberg, Introduction to the vortex sheet of superfluid He3-A, Phys. B: Condens. Matter 210, 287 (1995).
  41. V. V. Dremov, S. Y. Grebenchuk, A. G. Shishkin, D. S. Baranov, R. A. Hovhannisyan, O. V. Skryabina, N. Lebedev, I. A. Golovchanskiy, V. I. Chichkov, C. Brun et al., Local Josephson vortex generation and manipulation with a magnetic force microscope, Nat. Commun. 10, 4009 (2019).
  42. pyTDGL: Time-dependent Ginzburg Landau in Python, https://py-tdgl.readthedocs.io/en/latest/.
  43. J. Downs, Practical Conic sections: The Geometric Properties of Ellipses, Parabolas and Hyperbolas (Courier Corporation, Garden City, New York, 2003).
