Optically induced orbital polarization in bulk Ge and GaAs

F. Scali, M. Finazzi, F. Bottegoni, and C. Zucchetti*

  • *Contact author: carlo.zucchetti@polimi.it

Phys. Rev. Research 8, 023163 – Published 14 May, 2026

DOI: https://doi.org/10.1103/c71s-44nt

Abstract

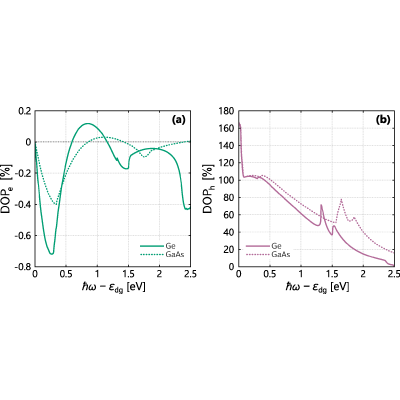

Optical orientation enables the injection of spin-polarized electron and hole populations in III-V and group-IV semiconductors. In particular, absorption of circularly polarized light near the direct gap generates spin-oriented electrons in the conduction band with polarization up to 50%, while hole polarization, opposite to that of electrons, can reach 83%. In recent years, increasing attention has focused on the orbital angular momentum, as charge-to-orbital conversion in semiconductors has been shown to be significantly more efficient than charge-to-spin. This has opened possibilities for exerting torques on ferromagnets in a semiconductive platform and is motivating research on the generation of carrier populations with net orbital angular momentum. In this framework, here, we exploit a “full-zone” k·p model to theoretically investigate the injection of orbital angular momentum in bulk Ge and GaAs by means of the absorption of circularly polarized photons. We show that the orbital polarization of holes considerably exceeds 100% for photon energies close to the direct gap of the semiconductors. These results offer a route for generating high orbital polarizations and suggest that semiconductors are a convenient platform for future development of orbitronic and opto-orbitronic devices.

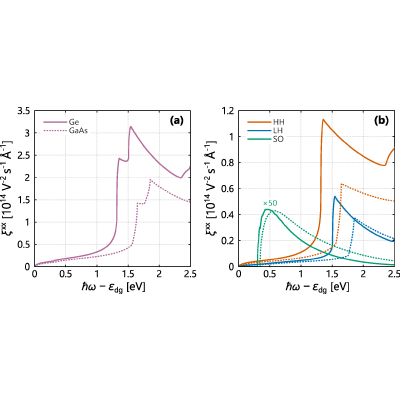

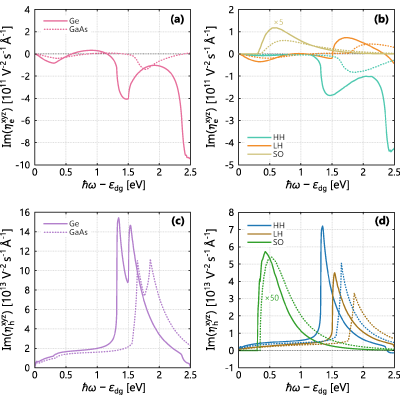

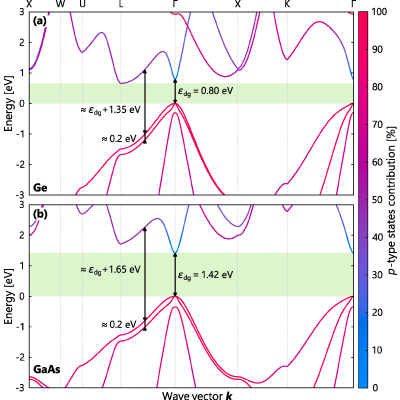

View figure in article

Physics Subject Headings (PhySH)

Article Text

References (38)

  1. I. Žutić, J. Fabian, and S. D. Sarma, Spintronics: Fundamentals and applications, Rev. Mod. Phys. 76, 323 (2004).
  2. G. Prenat, K. Jabeur, P. Vanhauwaert, G. D. Pendina, F. Oboril, R. Bishnoi, M. Ebrahimi, N. Lamard, O. Boulle, K. Garello, J. Langer, B. Ocker, M.-C. Cyrille, P. Gambardella, M. Tahoori, and G. Gaudin, Ultra-fast and high-reliability SOT-MRAM: From cache replacement to normally-off computing, IEEE Trans. Multi-Scale Comput. Syst. 2, 49 (2016).
  3. K. Ando, S. Takahashi, K. Harii, K. Sasage, J. Ieda, S. Maekawa, and E. Saitoh, Electric manipulation of spin relaxation using the spin Hall effect, Phys. Rev. Lett. 101, 036601 (2008).
  4. B. A. Bernevig, T. L. Hughes, and S.-C. Zhang, Orbitronics: The intrinsic orbital current in p-doped silicon, Phys. Rev. Lett. 95, 066601 (2005).
  5. G. Sala and P. Gambardella, Giant orbital Hall effect and orbital-to-spin conversion in 3d, 5d, and 4f metallic heterostructures, Phys. Rev. Res. 4, 033037 (2022).
  6. Y. G. Choi, D. Jo, K. H. Ko, D. Go, K. H. Kim, H. G. Park, C. Kim, B. C. Min, G. M. Choi, and H. W. Lee, Observation of orbital Hall effect in a light metal Ti, Nature (London) 619, 52 (2023).
  7. D. Jo, D. Go, G.-M. Choi, and H.-W. Lee, Spintronics meets orbitronics: Emergence of orbital angular momentum in solids, npj Spintron. 2, 19 (2024).
  8. T. Adamantopoulos, M. Merte, D. Go, F. Freimuth, S. Blügel, and Y. Mokrousov, Orbital Rashba effect as a platform for robust orbital photocurrents, Phys. Rev. Lett. 132, 076901 (2024).
  9. E. Santos, J. E. Abrão, J. L. Costa, J. G. S. Santos, G. Rodrigues-Junior, J. B. S. Mendes, and A. Azevedo, Negative orbital Hall effect in germanium, Phys. Rev. Appl. 22, 064071 (2024).
  10. E. S. Santos, J. E. Abrão, J. L. Costa, J. G. S. Santos, K. R. Mello, A. S. Vieira, T. C. R. Rocha, T. J. A. Mori, R. O. R. Cunha, J. B. S. Mendes, and A. Azevedo, Bulk and interface effects based on Rashba-like states in Ti and Ru nanoscale-thick films: Implications for orbital-charge conversion in spintronic devices, ACS Appl. Nano Mater. 8, 4300 (2025).
  11. J. H. Cullen, H. Liu, and D. Culcer, Giant orbital Hall effect due to the bulk states of 3D topological insulators, npj Spintron. 3, 22 (2025).
  12. A. Veneri, T. G. Rappoport, and A. Ferreira, Extrinsic orbital Hall effect: Orbital skew scattering and crossover between diffusive and intrinsic orbital transport, Phys. Rev. Lett. 134, 136201 (2025).
  13. J. E. Hirsch, Spin Hall effect, Phys. Rev. Lett. 83, 1834 (1999).
  14. I. Lyalin, S. Alikhah, M. Berritta, P. M. Oppeneer, and R. K. Kawakami, Magneto-optical detection of the orbital Hall effect in chromium, Phys. Rev. Lett. 131, 156702 (2023).
  15. R. Matsumoto, R. Ohshima, M. Funato, Y. Ando, D. Go, Y. Mokrousov, and M. Shiraishi, Observation of orbital Hall effect in Si, arXiv:2501.14237.
  16. G. Lampel, Nuclear dynamic polarization by optical electronic saturation and optical pumping in semiconductors, Phys. Rev. Lett. 20, 491 (1968).
  17. R. Allenspach, F. Meier, and D. Pescia, Optical orientation of electrons in surface states, Phys. Rev. Lett. 51, 2148 (1983).
  18. P. A. Dainone, N. F. Prestes, P. Renucci, A. Bouché, M. Morassi, X. Devaux, M. Lindemann, J.-M. George, H. Jaffrès, A. Lemaitre, et al., Controlling the helicity of light by electrical magnetization switching, Nature (London) 627, 783 (2024).
  19. G. F. Q. Rosen, P. I. Tamborenea, and T. Kuhn, Interplay between optical vortices and condensed matter, Rev. Mod. Phys. 94, 035003 (2022).
  20. G. F. Quinteiro and P. I. Tamborenea, Twisted-light-induced optical transitions in semiconductors: Free-carrier quantum kinetics, Phys. Rev. B 82, 125207 (2010).
  21. A. A. Gunyaga, M. V. Durnev, and S. A. Tarasenko, Photocurrents induced by structured light, Phys. Rev. B 108, 115402 (2023).
  22. O. J. G. Sanchez, G.-H. Peng, W.-H. Li, C.-H. Shih, C.-H. Chien, and S.-J. Cheng, Enhanced photo-excitation and angular-momentum imprint of gray excitons in WSe2 monolayers by spin-orbit-coupled vector vortex beams, ACS Nano 18, 11425 (2024).
  23. F. Bottegoni, C. Zucchetti, G. Isella, M. Bollani, M. Finazzi, and F. Ciccacci, Spin-orbit interaction and spin-charge conversion in semiconductors, Riv. Nuovo Cim. 43, 45 (2020).
  24. M. Cardona and F. H. Pollak, Energy-band structure of germanium and silicon: The k·p method, Phys. Rev. 142, 530 (1966).
  25. S. Richard, F. Aniel, and G. Fishman, Energy-band structure of Ge, Si, and GaAs: A thirty-band k·p method, Phys. Rev. B 70, 235204 (2004).
  26. D. Rideau, M. Feraille, L. Ciampolini, M. Minondo, C. Tavernier, H. Jaouen, and A. Ghetti, Strain-induced changes in the band structure of silicon: A first-principles study, Phys. Rev. B 74, 195208 (2006).
  27. N. Fraj, I. Saïdi, S. Ben Radhia, and K. Boujdaria, Band structures of AlAs, GaP, and SiGe alloys: A 30 k×p model, J. Appl. Phys. 102, 053703 (2007).
  28. Z. Song, W. Fan, C. S. Tan, Q. Wang, D. Nam, D. H. Zhang, and G. Sun, Band structure of Ge1−xSnx alloy: A full-zone 30-band k·p model, New J. Phys. 21, 073037 (2019).
  29. P. Mudi, S. K. Khamari, S. Khan, C. Zucchetti, F. Bottegoni, and T. K. Sharma, Full-zone optical spin injection in AlxGa1−x As alloys, J. Phys. D: Appl. Phys. 58, 015108 (2025).
  30. F. Nastos, J. Rioux, M. Strimas-Mackey, B. S. Mendoza, and J. E. Sipe, Bulk photogalvanic effects in semiconductors, Phys. Rev. B 76, 205113 (2007).
  31. J. Rioux and J. E. Sipe, Optical injection and control of spin and orbital angular momentum in semiconductors, Phys. Rev. B 81, 155215 (2010).
  32. H. Jeschke, Computational Methods in Solid State Theory: SS 2016 (Frankfurt am Main, Germany, 2016).
  33. A. Najmaie, R. D. R. Bhat, and J. E. Sipe, All-optical injection and control of spin and electrical currents in quantum wells, Phys. Rev. B 68, 165348 (2003).
  34. J. L. Cheng, J. Rioux, J. Fabian, and J. E. Sipe, Theory of optical spin orientation in silicon, Phys. Rev. B 83, 165211 (2011).
  35. C. Rinaldi, M. Cantoni, M. Marangoni, C. Manzoni, G. Cerullo, and R. Bertacco, Wide-range optical spin orientation in Ge from near-infrared to visible light, Phys. Rev. B 90, 161304(R) (2014).
  36. F. Pezzoli, A. Balocchi, E. Vitiello, T. Amand, and X. Marie, Optical orientation of electron spins and valence-band spectroscopy in germanium, Phys. Rev. B 91, 201201(R) (2015).
  37. F. Bottegoni, C. Zucchetti, G. Isella, E. Pinotti, M. Finazzi, and F. Ciccacci, Modeling the photo-induced inverse spin-Hall effect in Pt/semiconductor junctions, J. Appl. Phys. 124, 033902 (2018).
  38. F. Scali, M. Finazzi, F. Bottegoni, and C. Zucchetti, Data regarding the manuscript: Optically induced orbital polarization in bulk Ge and GaAs [Data set], Zenodo (2026), doi:10.5281/zenodo.19481064.
