Aging in a two-dimensional swarmalator crystal with delayed interactions

Chanin Kumpeerakij1,2,*, Thiparat Chotibut3,4,†, and Oleg Kogan5,‡

  • *Contact author: chanin.kumpeerakij@colorado.edu
  • †Contact author: thiparatc@gmail.com
  • ‡Contact author: oleg.kogan@qc.cuny.edu
PDF

Phys. Rev. Research 8, 023335 – Published 26 June, 2026

DOI: https://doi.org/10.1103/bx11-ktk3

Abstract

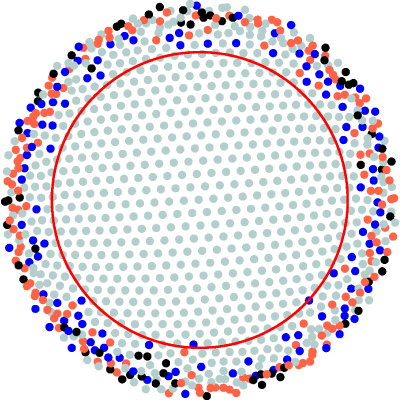

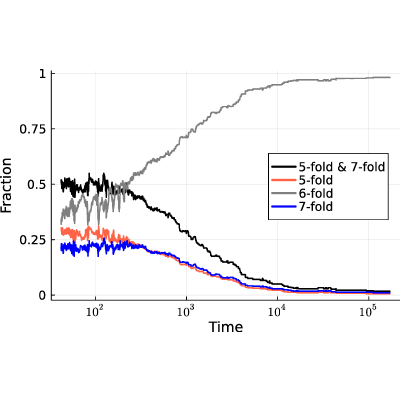

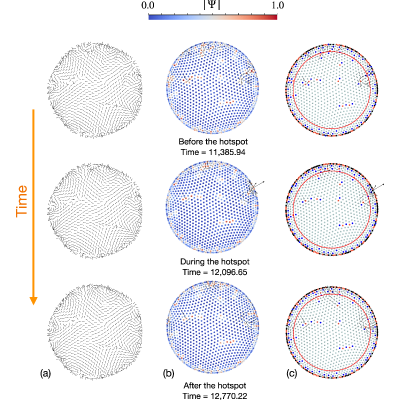

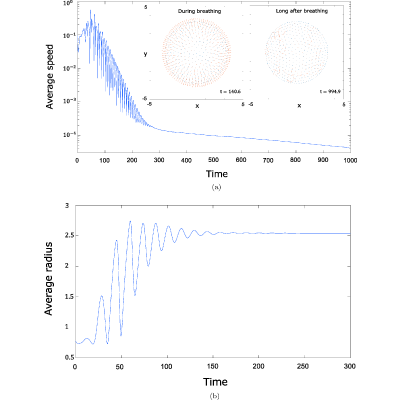

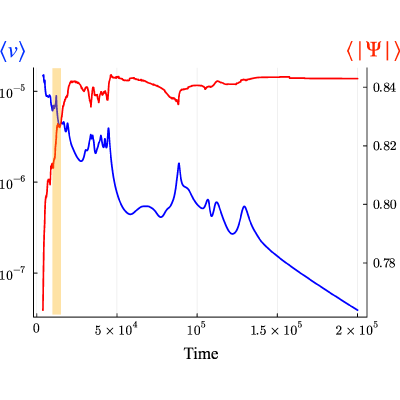

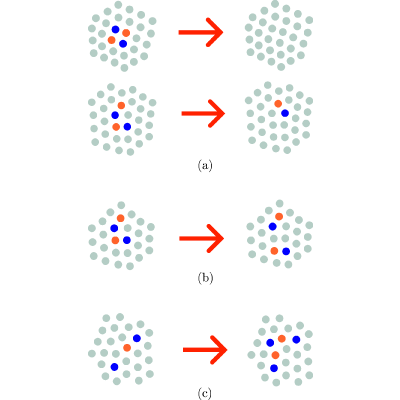

Time delay can have a significant impact on the properties of collective organization of active matter. In the previous paper [Phys. Rev. E 109, 014205 (2024)], we discussed delay-induced breathing in a system of swarmalators—a model coupling particles’ internal phases to spatial interactions. Here, we build on that study to investigate the aging phenomenon in this system. It is the aging of a two-dimensional crystal with defects and inhomogeneous lattice constants and takes place after the breathing transients subside. We show that aging proceeds through the gradual elimination of fivefold and sevenfold coordination number defects, which merge pairwise or migrate to the cluster boundary, incrementally increasing the hexatic order parameter in the bulk. Despite this process, defects usually do not fully disappear; some residual number of defects remain frozen in the interior. However, we found that it is possible to achieve a nearly total elimination of coordination number defects at sufficiently low delay—when the surface of the cluster develops a sufficeintly thick fluidized “boiling layer.” This mechanism of boundary-mediated annealing reveals a nonequilibrium pathway to achieving high crystalline order in the bulk and raises a tantalizing possibility for controlling defects in active matter with free boundaries.

View figure in article

Physics Subject Headings (PhySH)

Article Text

Supplemental Material

References (53)

  1. S. Ramaswamy, The mechanics and statistics of active matter, Annu. Rev. Condens. Matter Phys. 1, 323 (2010).
  2. M. C. Marchetti, J.-F. Joanny, S. Ramaswamy, T. B. Liverpool, J. Prost, M. Rao, and R. A. Simha, Hydrodynamics of soft active matter, Rev. Mod. Phys. 85, 1143 (2013).
  3. T. Vicsek and A. Zafeiris, Collective motion, Phys. Rep. 517, 71 (2012).
  4. G. Gompper, R. G. Winkler, T. Speck, A. Solon, C. Nardini, F. Peruani, H. Löwen, R. Golestanian, U. B. Kaupp, L. Alvarez, T. Kiørboe, E. Lauga, W. C. K. Poon, A. DeSimone, P. L. Muiño, J. M. Yeomans, A. Doostmohammadi, T. N. Shendruk, M. Arroyo, and D. Marenduzzo, The 2020 motile active matter roadmap, J. Phys.: Condens. Matter 32, 193001 (2020).
  5. M. R. Shaebani, A. Wysocki, R. G. Winkler, G. Gompper, and H. Rieger, Computational models for active matter, Nat. Rev. Phys. 2, 181 (2020).
  6. K. P. O’Keeffe, H. Hong, and S. H. Strogatz, Oscillators that sync and swarm, Nat. Commun. 8, 1504 (2017).
  7. M. J. Bowick, N. Fakhri, M. C. Marchetti, and S. Ramaswamy, Symmetry, thermodynamics, and topology in active matter, Phys. Rev. X 12, 010501 (2022).
  8. S. Shankar, A. Souslov, M. J. Bowick, M. C. Marchetti, and V. Vitelli, Topological active matter, Nat. Rev. Phys. 4, 380 (2022).
  9. L. D. Landau and E. M. Lifshitz, Statistical Physics, Part 1 (Butterworth-Heinemann, Oxford, 1980), 3rd ed.
  10. M. Fruchart, Y. Zhou, and V. Vitelli, Nonreciprocal phase transitions, Nature (London) 592, 363 (2021).
  11. A. Doostmohammadi, M. F. Adamer, S. P. Thampi, and J. M. Yeomans, Stabilization of active matter by flow-vortex lattices and defect ordering, Nat. Commun. 7, 10557 (2016).
  12. H. H. Wensink, J. Dunkel, S. Heidenreich, K. Drescher, R. E. Goldstein, H. Löwen, and J. M. Yeomans, Meso-scale turbulence in living fluids, Proc. Natl. Acad. Sci. USA 109, 14308 (2012).
  13. V. Soni, L. R. Gómez, and W. T. M. Irvine, Emergent geometry of inhomogeneous planar crystals, Phys. Rev. X 8, 011039 (2018).
  14. J. H. Weijs, R. Jeanneret, R. Dreyfus, and D. Bartolo, Emergent hyperuniformity in periodically driven emulsions, Proc. Natl. Acad. Sci. USA 112, E7035 (2015).
  15. J. Toner and Y. Tu, Flocks, herds, and schools: A quantitative theory of flocking, Phys. Rev. E 58, 4828 (1998).
  16. N. Blum, A. Li, K. O’Keeffe, and O. Kogan, Swarmalators with delayed interactions, Phys. Rev. E 109, 014205 (2024).
  17. G. Petrungaro, L. G. Morelli, and K. Uriu, Information flow in the presence of cell mixing and signaling delays during embryonic development, in Seminars in Cell & Developmental Biology (Elsevier, London, UK, 2019), Vol. 93, pp. 26–35.
  18. L. Berthier and J. Kurchan, Non-equilibrium glass transitions in driven and active matter, Nat. Phys. 9, 310 (2013).
  19. K. Paul, A. Mutneja, S. K. Nandi, and S. Karmakar, Dynamical heterogeneity in active glasses is inherently different from its equilibrium behavior, Proc. Natl. Acad. Sci. USA 120, e2217073120 (2023).
  20. L. Cipelletti, L. Ramos, S. Manley, E. Pitard, D. Weitz, E. Pashkovski, and M. Johansson, Universal non-diffusive slow dynamics in aging soft matter, Faraday Discuss. 123, 237 (2003).
  21. L. M. Janssen, A. Kaiser, and H. Löwen, Aging and rejuvenation of active matter under topological constraints, Sci. Rep. 7, 5667 (2017).
  22. L. Berthier, E. Flenner, and G. Szamel, Glassy dynamics in dense systems of active particles, J. Chem. Phys. 150, 200901 (2019).
  23. J. M. Kosterlitz and D. J. Thouless, Long range order and metastability in two dimensional solids and superfluids. (Application of dislocation theory), J. Phys. C 5, L124 (1972).
  24. J. M. Kosterlitz and D. J. Thouless, Ordering, metastability and phase transitions in two-dimensional systems, J. Phys. C 6, 1181 (1973).
  25. B. I. Halperin and D. R. Nelson, Theory of two-dimensional melting, Phys. Rev. Lett. 41, 121 (1978).
  26. D. R. Nelson and B. I. Halperin, Dislocation-mediated melting in two dimensions, Phys. Rev. B 19, 2457 (1979).
  27. A. P. Young, Melting and the vector Coulomb gas in two dimensions, Phys. Rev. B 19, 1855 (1979).
  28. P. Digregorio, D. Levis, L. F. Cugliandolo, G. Gonnella, and I. Pagonabarraga, Unified analysis of topological defects in 2D systems of active and passive disks, Soft Matter 18, 566 (2022).
  29. L. Galliano, M. E. Cates, and L. Berthier, Two-dimensional crystals far from equilibrium, Phys. Rev. Lett. 131, 047101 (2023).
  30. M. Paoluzzi, D. Levis, and I. Pagonabarraga, From flocking to glassiness in dense disordered polar active matter, Commun. Phys. 7, 57 (2024).
  31. G. Janzen and L. M. C. Janssen, Aging in thermal active glasses, Phys. Rev. Res. 4, L012038 (2022).
  32. G. Janzen and L. M. C. Janssen, Rejuvenation and memory effects in active glasses induced by thermal and active cycling, Phys. Rev. Res. 6, 023257 (2024).
  33. P. Digregorio, D. Levis, A. Suma, L. F. Cugliandolo, G. Gonnella, and I. Pagonabarraga, Full phase diagram of active Brownian disks: From melting to motility-induced phase separation, Phys. Rev. Lett. 121, 098003 (2018).
  34. R. Singh and R. Adhikari, Universal hydrodynamic mechanisms for crystallization in active colloidal suspensions, Phys. Rev. Lett. 117, 228002 (2016).
  35. See Supplemental Material at http://link.aps.org/supplemental/10.1103/bx11-ktk3 for a collection of videos that shows the dynamical behavior of the system.
  36. N. S. Blum, Swarming oscillators with time-delayed interactions, 2021, https://digitalcommons.calpoly.edu/physsp/205/.
  37. I. Chuang, B. Yurke, A. N. Pargellis, and N. Turok, Coarsening dynamics in uniaxial nematic liquid crystals, Phys. Rev. E 47, 3343 (1993).
  38. B. Yurke, A. N. Pargellis, T. Kovacs, and D. A. Huse, Coarsening dynamics of the XY model, Phys. Rev. E 47, 1525 (1993).
  39. L. Williamson and B. Blackie, Anomalous phase ordering of a quenched ferromagnetic superfluid, SciPost Phys. 7, 029 (2019).
  40. A. Chardac, S. Shankar, M. C. Marchetti, and D. Bartolo, Emergence of dynamic vortex glasses in disordered polar active fluids, Proc. Natl. Acad. Sci. USA 118, e2018218118 (2021).
  41. W. Liu and U. C. Täuber, Aging phenomena in the two-dimensional complex Ginzburg-Landau equation, Europhys. Lett. 128, 30006 (2020).
  42. M. Arnold and R. Nigmatullin, Dynamics of vortex defect formation in two-dimensional Coulomb crystals, Phys. Rev. B 106, 104106 (2022).
  43. Y. Rouzaire and D. Levis, Dynamics of topological defects in the noisy Kuramoto model in two dimensions, Front. Phys. 10, 976515 (2022).
  44. C. Hung, G. Vetterick, E. Hopkins, J. Balwin, P. Baldo, M. Kirk, A. Misra, and M. Taheri, Insight into defect cluster annihilation at grain boundaries in an irradiated nanocrystalline iron, J. Nucl. Mater. 566, 153761 (2022).
  45. A. Aitkaliyeva, L. He, H. Wen, B. Miller, X.-M. Bai, and T. Allen, Irradiation effects in generation IV nuclear reactor materials, in Structural Materials for Generation IV Nuclear Reactors, edited by P. Yvon (Elsevier, Cambridge, 2017), pp. 253–283.
  46. R. Zheng, L. Yang, and L. Zhang, Grain boundary migration as a self-healing mechanism of tungsten at high temperature, Metals 12, 1491 (2022).
  47. N. V. Doan and G. Martin, Elimination of irradiation point defects in crystalline solids: Sink strengths, Phys. Rev. B 67, 134107 (2003).
  48. S. J. Gerbode, U. Agarwal, D. C. Ong, C. M. Liddell, F. Escobedo, and I. Cohen, Glassy dislocation dynamics in 2D colloidal dimer crystals, Phys. Rev. Lett. 105, 078301 (2010).
  49. C. Kumpeerakij, Delayed interaction swarmalator, 2025, https://github.com/chku-ucb/delayed-interaction-swarmalator (see “Readme” file for more details).
  50. C. Tsitouras, Runge-Kutta pairs of orders 5(4) using the minimal set of simplifying assumptions, AIP Conf. Proc. 1168, 69 (2009).
  51. S.-W. Cheng, T. K. Dey, and J. Shewchuk, Delaunay Mesh Generation, Chapman & Hall/CRC Computer & Information Science Series (Chapman & Hall/CRC, Philadelphia, PA, 2009).
  52. J. Schindelin, I. Arganda-Carreras, E. Frise, V. Kaynig, M. Longair, T. Pietzsch, S. Preibisch, C. Rueden, S. Saalfeld, B. Schmid, J.-Y. Tinevez, D. J. White, V. Hartenstein, K. Eliceiri, P. Tomancak, and A. Cardona, Fiji: An open-source platform for biological-image analysis, Nat. Methods 9, 676 (2012).
  53. D. Ershov, M.-S. Phan, J. W. Pylvänäinen, S. U. Rigaud, L. Le Blanc, A. Charles-Orszag, J. R. W. Conway, R. F. Laine, N. H. Roy, D. Bonazzi, G. Duménil, G. Jacquemet, and J.-Y. Tinevez, TrackMate 7: integrating state-of-the-art segmentation algorithms into tracking pipelines, Nat Methods 19, 829 (2022).
