Observation of narrow-band γ radiation from a boron-doped diamond superlattice with an 855 MeV electron beam

Hartmut Backe1,*, José Baruchel2, Simon Bénichou2, Rébecca Dowek2, David Eon3,†, Pierre Everaere2, Lutz Kirste4, Pascal Klag1, Werner Lauth1,‡ et al.

Patrik Straňák4 and Thu Nhi Tran Caliste2,§

  • *Contact author: backe@uni-mainz.de
  • †Contact author: david.eon@neel.cnrs.fr
  • ‡Contact author: lauthw@uni-mainz.de
  • §Contact author: thu-nhi.tran-thi@esrf.fr
PDF

Phys. Rev. Research 8, 023200 – Published 22 May, 2026

DOI: https://doi.org/10.1103/bp89-s2v1

Abstract

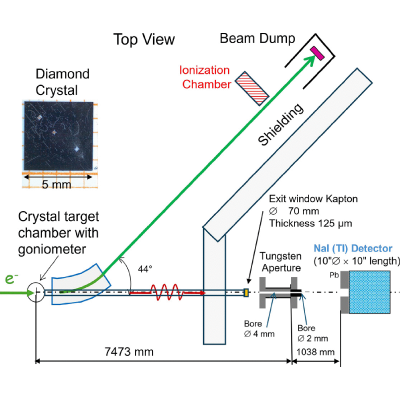

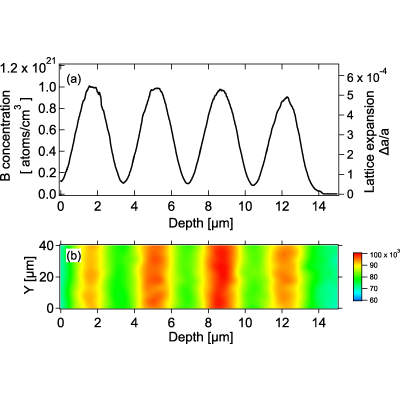

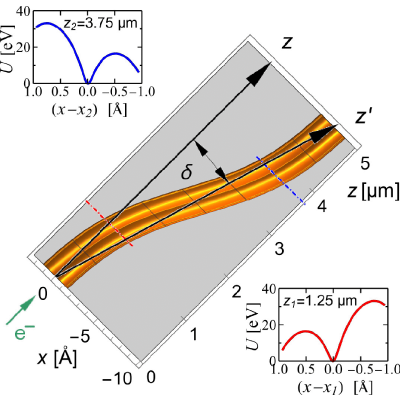

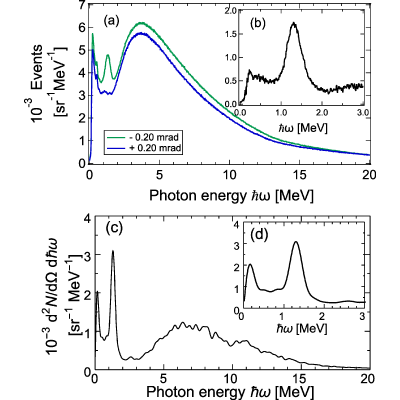

We report the first observation of narrow-band 1.3 MeV γ radiation from a crystalline diamond microundulator. A diamond superlattice was grown with a periodically varying boron doping profile. Four sinusoidally deformed (110) periods resulted with a period length of 5.0 µm and an amplitude of 0.098 nm. A channeling experiment was performed with the 855 MeV electron beam of the Mainz Microtron MAMI accelerator facility. A clear peak was detected with a large sodium iodide scintillation detector close to the expected photon energy of 1.28 MeV. Key characteristics of the peak, including photon energy, width, and intensity, were reproduced fairly well by Monte Carlo simulation calculations. Based on the latter, optimized boron doping profiles were designed for a hypothetical 3 GeV electron beam, enabling preparation of a highly directional γ-ray beam with a photon energy of 14.5 MeV. The predicted spectral bandwidth is 13%, however, with a high-energy continuum tail. The on-target photon flux at a beam current of 100 µA would be about 1012s−1.

View figure in article

Physics Subject Headings (PhySH)

Article Text

References (36)

  1. J. Kleemann, N. Pietralla, U. Friman-Gayer, J. Isaak, O. Papst, K. Prifti, V. Werner, A. D. Ayangeakaa, T. Beck, G. Colò, et al., Gamma decay of the Sm154 isovector giant dipole resonance: Smekal-Raman scattering as a novel probe of nuclear ground-state deformation, Phys. Rev. Lett. 134, 022503 (2025).
  2. A. Zilges, D. Balabanski, J. Isaak, and N. Pietralla, Photonuclear reactions—From basic research to applications, Prog. Part. Nucl. Phys. 122, 103903 (2022).
  3. Photonuclear Production of Radioisotopes, IAEA Publishing Section IAEA TECDOC Series 2051 (International Atomic Energy Agency, Vienna, Austria, 2024), https://www-pub.iaea.org/MTCD/publications/PDF/TE-2051web.pdf.
  4. C. Howell, M. Ahmed, A. Afanasev, D. Alesini, J. R. M. Annand, A. Aprahamian, D. L. Balabanski, S. V. Benson, A. Bernstein, C. R. Brune, et al., International workshop on next generation gamma-ray source, J. Phys. G: Nucl. Part. Phys. 49, 010502 (2022).
  5. D. Budker, J. C. Berengut, V. V. Flambaum, M. Gorchtein, J. Jin, F. Karbstein, M. W. Krasny, Y. A. Litvinov, A. Pálffy, V. Pascalutsa, A. Petrenko, A. Surzhykov, P. G. Thirolf, M. Vanderhaeghen, H. A. Weidenmüller, and V. Zelevinsky, Expanding nuclear physics horizons with the Gamma Factory, Ann. Phys. (NY) 534, 2100284 (2022).
  6. H. R. Weller, M. W. Ahmed, H. Gao, W. Tornow, Y. K. Wu, M. Gai, and R. Miskimen, Research opportunities at the upgraded HIγS facility, Prog. Part. Nucl. Phys. 62, 257 (2009).
  7. V. V. Kaplin, S. V. Plotnikov, and S. A. Vorob’ev, Radiation by charged particles channeled in deformed crystals, Phys. Status Solidi (B) 97, K89 (1980); Sov. Phys. Techn. Phys. 25, 650 (1980) [Zh. Tekh. Fiz. 50, 1079 (1980)].
  8. V. G. Baryshevsky, I. Y. Dubovskaya, and A. O. Grubich, Generation of γ-quanta by channeled particles in the presence of a variable external field, Phys. Lett. A 77, 61 (1980).
  9. A. V. Korol, A. V. Solov’yov, and W. Greiner, Channeling of positrons through periodically bent crystals: On the feasibility of crystalline undulator and gamma-laser, Int. J. Mod. Phys. E 13, 867 (2004).
  10. S. Bellucci and V. A. Maisheev, Radiation of relativistic particles for quasiperiodic motion in a transparent medium, J. Phys.: Condens. Matter 18, S2083 (2006).
  11. V. G. Baryshevsky and V. V. Tikhomirov, Crystal undulators: From the prediction to the mature simulations, Nucl. Instrum. Methods Phys. Res. Sect. B 309, 30 (2013).
  12. G. B. Sushko, A. V. Korol, W. Greiner, and A. V. Solov’yov, Sub-GeV electron and positron channeling in straight, bent and periodically bent silicon crystals, J. Phys.: Conf. Ser. 438, 012018 (2013).
  13. V. G. Baryshevsky, High-Energy Nuclear Optics of Polarized Particles (World Scientific, Singapore, 2012).
  14. A. V. Korol, A. V. Solov’yov, and W. Greiner, Channeling and Radiation in Periodically Bent Crystals, 2nd ed. (Springer, Berlin, 2014).
  15. A. Korol and A. Solov’yov, Novel Lights Sources Beyond free Electron Lasers (Springer Nature Switzerland AG, Cham, Switzerland, 2022).
  16. J. Lindhard, Influence of crystal lattice on motion of energetic charged particles, Mat. Fys. Medd. Dan. Vid. Selsk. 34, 1 (1965).
  17. H. Backe, W. Lauth, P. Klag, and T. N. Tran Caliste, Planar channeling of 855 MeV electrons in a boron-doped (110) diamond undulator—A case study, Nucl. Instrum. Methods Phys. Res. Sect. A 1073, 170236 (2025).
  18. H. Ikezi, Y. R. Lin-Liu, and T. Ohkawa, Channeling radiation in a periodically distorted crystal, Phys. Rev. B 30, 1567 (1984).
  19. U. Mikkelsen and E. Uggerhøj, A crystalline undulator based on graded composition strained layers in a superlattice, Nucl. Instrum. Methods Phys. Res. Sect. B 160, 435 (2000).
  20. A. V. Korol and A. V. Solov’yov, Electron and positron channelling and photon emission processes in boron doped periodically bent diamond, Nucl. Instrum. Methods Phys. Res. Sect. A 1083, 171160 (2026).
  21. H. Backe, D. Krambrich, W. Lauth, K. Andersen, J. L. Hansen, and U. I. Uggerhøj, Radiation emission at channeling of electrons in a strained layer Si1−xGex undulator crystal, Nucl. Instrum. Methods Phys. Res. Sect. B 309, 37 (2013).
  22. H. Backe, D. Krambrich, W. Lauth, K. K. Andersen, J. L. Hansen, and U. I. Uggerhøj, Channeling and radiation of electrons in silicon single crystals and Si1−xGex crystalline undulators, J. Phys.: Conf. Ser. 438, 012017 (2013).
  23. T. N. Wistisen, K. K. Andersen, S. Yilmaz, R. Mikkelsen, J. L. Hansen, U. I. Uggerhøj, W. Lauth, and H. Backe, Experimental realization of a new type of crystalline undulator, Phys. Rev. Lett. 112, 254801 (2014).
  24. T. N. Wistisen, U. I. Uggerhøj, J. L. Hansen, W. Lauth, and P. Klag, Radiation collimation in a thick crystalline undulator, Eur. Phys. J. D 71, 124 (2017).
  25. U. I. Uggerhøj and T. N. Wistisen, Intense and energetic radiation from crystalline undulators, Nucl. Instrum. Methods Phys. Res. Sect. B 355, 35 (2015).
  26. T. Wojewoda, P. Achatz, L. Ortéga, F. Omnès, C. Marcenat, E. Bourgeois, X. Blase, F. Jomard, and E. Bustarret, Doping-induced anisotropic lattice strain in homoepitaxial heavily boron-doped diamond, Diam. Relat. Mater. 17, 1302 (2008).
  27. D. Boshoff, M. Copeland, F. Haffejee, Q. Kilbourn, B. MacKenzie, C. Mercer, A. Osato, C. Williamson, P. Sihoyiya, M. Motsoai, M. Connell, C. Henning, S. Connell, N. L. Palmer, T. Brooks, J. Härtwig, T. N. T. Thi, U. Uggerhøj, and the PEARL Collaboration, The search for diamond crystal undulator radiation, in Proceedings of the 61th Annual Conference of the South African Institute of Physics (SAIP-2016), Johannesburg, South Africa, July 4–8 (South African Institute of Physics, 2016), pp. 112–117.
  28. T. N. T. Caliste, L. Kirste, and J. Baruchel, An advanced Bragg diffraction imaging technique to characterize defects: The examples of GaN and AlN, Microelectron. Eng. 276, 112012 (2023).
  29. J. Baruchel, D. Eon, R. Dowek, P. Everaere, L. Kirste, P. Straňák, C. Detlefs, C. Yildirim, W. Lauth, and T. N. Tran-Caliste, Growth and characterization of periodically boron-doped diamond layers (in preparation).
  30. A. V. Pavlov, A. V. Korol, V. K. Ivanov, and A. V. Solov’yov, Channeling of electrons and positrons in straight and periodically bent diamond (110) crystals, Eur. Phys. J. D 74, 21 (2020).
  31. A. V. Pavlov, A. V. Korol, V. K. Ivanov, and A. V. Solov’yov, Channeling and radiation of electrons and positrons in the diamond heterocrystals, St. Petersburg Polytech. Univ. J. Phys. Math. 14, 190 (2021).
  32. H. Backe, De-channeling in terms of instantaneous transition rates: Computer simulations for 855 MeV electrons at (110) planes of diamond, Eur. Phys. J. D 76, 153 (2022).
  33. M. B. H. Breese, Beam bending using graded composition strained layers, Nucl. Instrum. Methods Phys. Res. Sect. B 132, 540 (1997).
  34. G. B. Sushko, A. V. Korol, and A. V. Solov’yov, Intensive γ-ray light sources based on oriented single crystals, Phys. Rev. Accel. Beams 27, 100703 (2024).
  35. P. A. Adderley, S. Ahmed, T. Allisonand, R. Bachimanchi, K. Baggett, M. BastaniNejad, B. Bevins, M. Bevins, M. Bickley, R. M. Bodenstein, et al., The continuous electron beam accelerator facility at 12 GeV, Phys. Rev. Accel. Beams 27, 084802 (2024).
  36. V. M. Biryukov, Y. A. Chesnokov, and V. I. Kotov, in Crystal Channeling and Its Application at High-Energy Accelerators, edited by F. Bonaudi and C. W. Fabjan (Springer, Berlin, 1997), Chap. 2.4 Computer Simulation, p. 62.
