Recrystallization in string-fluid complex plasmas

E. Joshi1,*, M. Y. Pustylnik1, M. H. Thoma2, H. M. Thomas1, and M. Schwabe1,3

  • 1Institut für Materialphysik im Weltraum, Deutsches Zentrum für Luft- und Raumfahrt, 51147 Köln, Germany
  • 2I. Physikalisches Institut, Justus-Liebig Universität Gießen, 35392 Gießen, Germany
  • 3Deutsches Zentrum für Luft- und Raumfahrt (DLR), Institut für Physik der Atmosphäre, 82234 Oberpfaffenhofen, Germany

  • *eshita.joshi@dlr.de
PDF

Phys. Rev. Research 5, L012030 – Published 2 March, 2023

DOI: https://doi.org/10.1103/PhysRevResearch.5.L012030

Abstract

Complex plasmas, i.e., low-temperature plasmas containing suspensions of solid microparticles, exhibit electrorheological properties which are manifested by the formation of stringlike clusters (SLCs) in microgravity experiments. It is thought that SLCs form due to a long-range effective attraction between the particles under the influence of a directed ion flow. We performed molecular dynamics (MD) simulations of negatively charged microparticles with positive model wakes to mimic the effect of ion flow in experiments, and achieved SLC formation without long-range attraction between the microparticles. We show that long-range-reduced repulsion was enough to obtain the SLCs similar to the experiments and found that the simulations with the long-range attraction became unstable due to particle accelerations. Destruction and recrystallization of the stringlike structure was also studied experimentally using the Plasmakristall-4 facility on board the International Space Station, and the experimental findings were compared to those from three–dimensional MD simulations. We found excellent qualitative agreement between simulation and experiment when recrystallization was simulated using an interparticle potential without effective long-range attraction.

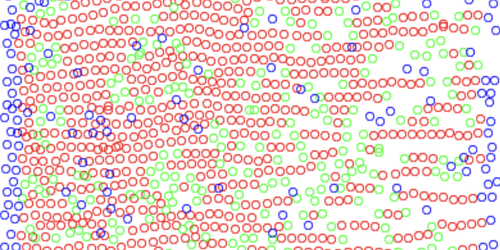

View figure in article

Physics Subject Headings (PhySH)

synopsis

Stringy Particles in Complex Plasmas

Published 2 March, 2023

Simulations and an experiment aboard the International Space Station show that changes in the system’s repulsive forces are behind the alignment of particles embedded in an electrified plasma.

See more in Physics

Article Text

Supplemental Material

References (37)

  1. P. M. Adriani and A. P. Gast, A microscopic model of electrorheology, Phys. Fluids 31, 2757 (1988).
  2. T.-j. Chen, R. N. Zitter, and R. Tao, Laser Diffraction Determination of the Crystalline Structure of an Electrorheological Fluid, Phys. Rev. Lett. 68, 2555 (1992).
  3. U. Dassanayake, S. Fraden, and A. van Blaaderen, Structure of electrorheological fluids, J. Chem. Phys. 112, 3851 (2000).
  4. Y. D. Liu and H. J. Choi, Electrorheological fluids: Smart soft matter and characteristics, Soft Matter 8, 11961 (2012).
  5. A. V. Ivlev, G. E. Morfill, H. M. Thomas, C. Räth, G. Joyce, P. Huber, R. Kompaneets, V. E. Fortov, A. M. Lipaev, V. I. Molotkov, T. Reiter, M. Turin, and P. Vinogradov, First Observation of Electrorheological Plasmas, Phys. Rev. Lett. 100, 095003 (2008).
  6. M. Schwabe, S. A. Khrapak, S. K. Zhdanov, M. Y. Pustylnik, C. Räth, M. Fink, M. Kretschmer, A. M. Lipaev, V. I. Molotkov, A. S. Schmitz, M. H. Thoma, A. D. Usachev, A. V. Zobnin, G. I. Padalka, V. E. Fortov, O. F. Petrov, and H. M. Thomas, Slowing of acoustic waves in electrorheological and string-fluid complex plasmas, New J. Phys. 22, 083079 (2020).
  7. C. Dietz, J. Budak, T. Kamprich, M. Kretschmer, and M. H. Thoma, Phase transition in electrorheological plasmas, Contrib. Plasma Phys. 61, e202100079 (2021).
  8. V. Fortov, A. Ivlev, S. Khrapak, A. Khrapak, and G. Morfill, Complex (dusty) plasmas: Current status, open issues, perspectives, Phys. Reports 421, 1 (2005).
  9. G. E. Morfill and A. V. Ivlev, Complex plasmas: An interdisciplinary research field, Rev. Mod. Phys. 81, 1353 (2009).
  10. L. Wörner, C. Räth, V. Nosenko, S. K. Zhdanov, H. M. Thomas, G. E. Morfill, J. Schablinski, and D. Block, String structures in driven 3D complex-plasma clusters, Europhys. Lett. 100, 35001 (2012).
  11. S. Mitic, B. A. Klumov, S. A. Khrapak, and G. E. Morfill, Three dimensional complex plasma structures in a combined radio frequency and direct current discharge, Phys. Plasmas 20, 043701 (2013).
  12. M. Y. Pustylnik, B. Klumov, M. Rubin-Zuzic, A. M. Lipaev, V. Nosenko, D. Erdle, A. D. Usachev, A. V. Zobnin, V. I. Molotkov, G. Joyce, H. M. Thomas, M. H. Thoma, O. F. Petrov, V. E. Fortov, and O. Kononenko, Three-dimensional structure of a string-fluid complex plasma, Phys. Rev. Res. 2, 033314 (2020).
  13. S. Mitic, M. Y. Pustylnik, D. Erdle, A. M. Lipaev, A. D. Usachev, A. V. Zobnin, M. H. Thoma, H. M. Thomas, O. F. Petrov, V. E. Fortov, and O. Kononenko, Long-term evolution of the three-dimensional structure of string-fluid complex plasmas in the PK-4 experiment, Phys. Rev. E 103, 063212 (2021).
  14. C. Park and R. E. Robertson, Alignment of particles by an electric field, Mater. Sci. Eng. 257, 295 (1998).
  15. M. Nambu, S. V. Vladimirov, and P. K. Shukla, Attractive forces between charged particulates in plasmas, Phys. Lett. A 203, 40 (1995).
  16. S. V. Vladimirov and O. Ishihara, On plasma crystal formation, Phys. Plasmas 3, 444 (1996).
  17. A. V. Ivlev, M. H. Thoma, C. Räth, G. Joyce, and G. E. Morfill, Complex Plasmas in External Fields: The Role of Non-Hamiltonian Interactions, Phys. Rev. Lett. 106, 155001 (2011).
  18. O. Arp, J. Goree, and A. Piel, Particle chains in a dilute dusty plasma with subsonic ion flow, Phys. Rev. E 85, 046409 (2012).
  19. H. Jung, F. Greiner, O. H. Asnaz, J. Carstensen, and A. Piel, Exploring the wake of a dust particle by a continuously approaching test grain, Phys. Plasmas 22, 053702 (2015).
  20. V. Yaroshenko and M. Pustylnik, Possible mechanisms of string formation in complex plasmas at elevated pressures, Molecules 26, 308 (2021).
  21. M. Y. Pustylnik, M. A. Fink, V. Nosenko, T. Antonova, T. Hagl, H. M. Thomas, A. V. Zobnin, A. M. Lipaev, A. D. Usachev, V. I. Molotkov, O. F. Petrov, V. E. Fortov, C. Rau, C. Deysenroth, S. Albrecht, M. Kretschmer, M. H. Thoma, G. E. Morfill, R. Seurig, A. Stettner et al., Plasmakristall-4: New complex (dusty) plasma laboratory on board the International Space Station, Rev. Sci. Instrum. 87, 093505 (2016).
  22. C. Knapek, D. Samsonov, S. Zhdanov, U. Konopka, and G. E. Morfill, Structural Properties and Melting of 2D-Plasma Crystals, New Vistas in Dusty Plasmas: Fourth International Conference on the Physics of Dusty Plasmas, AIP Conf. Proc. No. 799 (AIP, Melville, NY, 2005), p. 231.
  23. C. A. Knapek, D. Samsonov, S. Zhdanov, U. Konopka, and G. E. Morfill, Recrystallization of a 2D Plasma Crystal, Phys. Rev. Lett. 98, 015004 (2007).
  24. V. Nosenko, S. K. Zhdanov, A. V. Ivlev, C. A. Knapek, and G. E. Morfill, 2D Melting of Plasma Crystals: Equilibrium and Nonequilibrium Regimes, Phys. Rev. Lett. 103, 015001 (2009).
  25. See Supplemental Material at http://link.aps.org/supplemental/10.1103/PhysRevResearch.5.L012030 for additional information, plots, and animations.
  26. V. Nosenko, M. Pustylnik, M. Rubin-Zuzic, A. M. Lipaev, A. V. Zobnin, A. D. Usachev, H. M. Thomas, M. H. Thoma, V. E. Fortov, O. Kononenko, and A. Ovchinin, Shear flow in a three-dimensional complex plasma in microgravity conditions, Phys. Rev. Res. 2, 033404 (2020).
  27. S. Plimpton, Fast parallel algorithms for short-range molecular dynamics, J. Comput. Phys. 117, 1 (1995).
  28. J. Hammerberg, D. Lemons, M. Murillo, and D. Winske, Molecular dynamics simulations of plasma crystal formation including wake effects, IEEE Trans. Plasma Sci. 29, 247 (2001).
  29. P. Ludwig, H. Kählert, and M. Bonitz, Ion-streaming induced order transition in three-dimensional dust clusters, Plasma Phys. Controlled Fusion 54, 045011 (2012).
  30. D. Kana, C. Dietz, and M. H. Thoma, Simulation of electrorheological plasmas with superthermal ion drift, Phys. Plasmas 27, 103703 (2020).
  31. See https://github.com/EshitaJoshi/strings_extension for the extension to the lammps code.
  32. The data generated by the simulation can be found at https://dx.doi.org/10.5281/zenodo.5845076.
  33. T. Antonova, S. A. Khrapak, M. Y. Pustylnik, M. Rubin-Zuzic, H. M. Thomas, A. M. Lipaev, A. D. Usachev, V. I. Molotkov, and M. H. Thoma, Particle charge in PK-4 dc discharge from ground-based and microgravity experiments, Phys. Plasmas 26, 113703 (2019).
  34. G. I. Sukhinin, A. V. Fedoseev, S. N. Antipov, O. F. Petrov, and V. E. Fortov, Dust particle radial confinement in a dc glow discharge, Phys. Rev. E 87, 013101 (2013).
  35. G. I. Sukhinin, A. V. Fedoseev, M. V. Salnikov, S. N. Antipov, O. F. Petrov, and V. E. Fortov, Influence of ion drag force on radial distribution of dust particles and void formation in a DC glow discharge, Europhys. Lett. 103, 35001 (2013).
  36. M. Pustylnik, A. Pikalev, A. Zobnin, I. Semenov, H. Thomas, and O. Petrov, Physical aspects of dust–plasma interactions, Contrib. Plasma Phys. 61, e202100126 (2021).
  37. L. Wörner, A. V. Ivlev, L. Couëdel, P. Huber, M. Schwabe, T. Hagl, M. Mikikian, L. Boufendi, A. Skvortsov, A. M. Lipaev, V. I. Molotkov, O. F. Petrov, V. E. Fortov, H. M. Thomas, and G. E. Morfill, The effect of a direct current field on the microparticle charge in the plasma afterglow, Phys. Plasmas 20, 123702 (2013).
