Modeling scattering matrix containing evanescent modes for wavefront shaping applications in disordered media

Michael Raju1,2,*, Baptiste Jayet1, and Stefan Andersson-Engels1,2

  • *Contact author: michaelraju@umail.ucc.ie
PDF

Phys. Rev. Research 8, 033123 – Published 29 July, 2026

DOI: https://doi.org/10.1103/86th-pl8q

Abstract

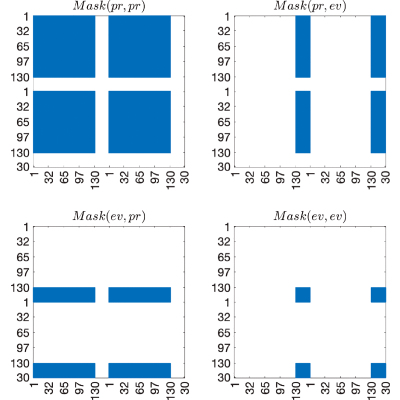

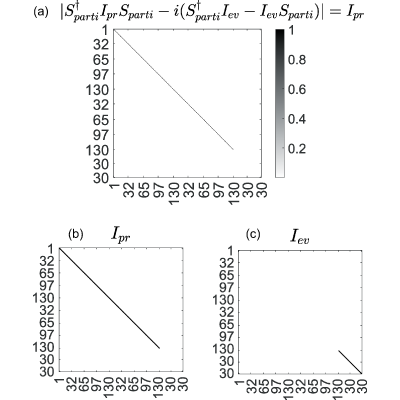

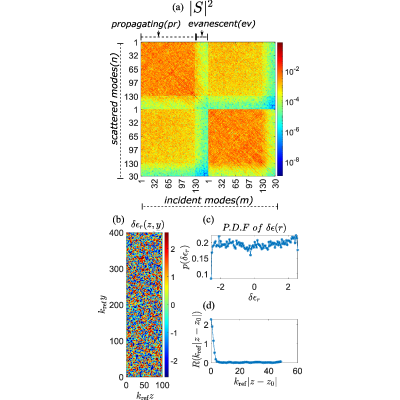

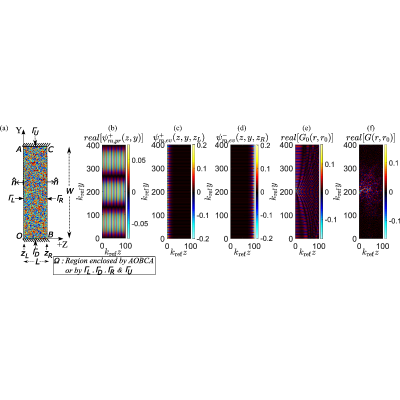

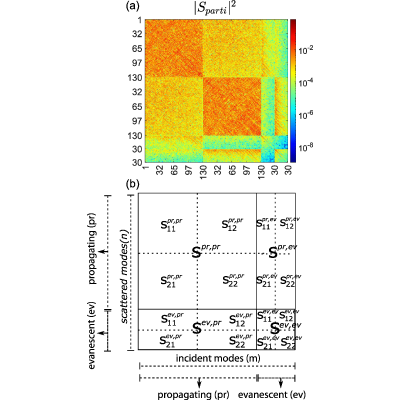

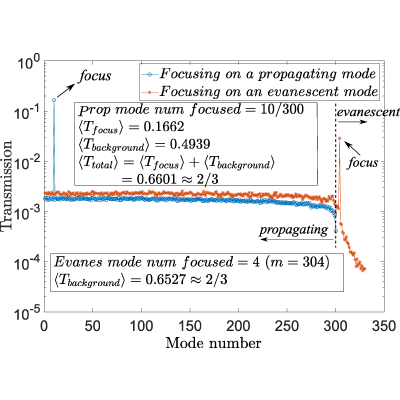

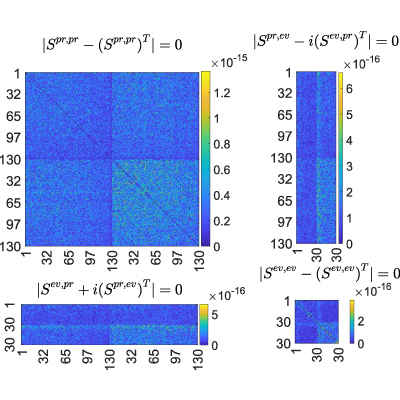

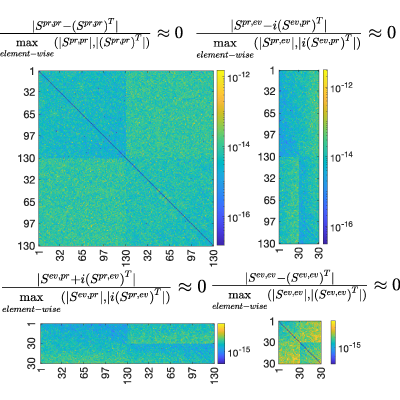

We developed an open-source scalar wave transport model to estimate the generalized scattering matrix (S-matrix) of a disordered medium in the diffusion regime. The term generalized refers to the incorporation of evanescent wave field modes alongside propagating modes in the estimation of the S-matrix. To achieve this, we employed the scalar Kirchhoff-Helmholtz boundary integral formulation together with the Green’s function perturbation method, thereby extending the conventional Fisher-Lee relations to include evanescent modes. The estimated S-matrix, which satisfies the generalized unitarity and reciprocity relations, is modeled for a two-dimensional disordered waveguide. The generalized transmission matrix contained within the S-matrix is utilized to estimate the optimal phase-conjugate wavefront for focusing onto an evanescent mode. The phenomenon of a universal transmission value of 2/3 for such an optimal phase conjugate wavefront is demonstrated in the context of evanescent wave mode focusing through a diffusive disorder. The presented code framework may be of interest to wavefront shaping researchers for visualizing and estimating wave transport properties in general.

View figure in article

Physics Subject Headings (PhySH)

Article Text

Supplemental Material

References (42)

  1. S. Rotter and S. Gigan, Light fields in complex media: Mesoscopic scattering meets wave control, Rev. Mod. Phys. 89, 015005 (2017).
  2. I. M. Vellekoop and A. Mosk, Focusing coherent light through opaque strongly scattering media, Opt. Lett. 32, 2309 (2007).
  3. S. M. Popoff, A. D. Goetschy, S. Liew, A. D. Stone, and H. Cao, Coherent control of total transmission of light through disordered media, Phys. Rev. Lett. 112, 133903 (2014).
  4. C. W. Hsu, S. F. Liew, A. Goetschy, H. Cao, and A. D. Stone, Correlation-enhanced control of wave focusing in disordered media, Nat. Phys. 13, 497 (2017).
  5. O. Katz, F. Ramaz, S. Gigan, and M. Fink, Controlling light in complex media beyond the acoustic diffraction-limit using the acousto-optic transmission matrix, Nat. Commun. 10, 717 (2019).
  6. O. S. Ojambati, H. Yılmaz, A. Lagendijk, A. P. Mosk, and W. L. Vos, Coupling of energy into the fundamental diffusion mode of a complex nanophotonic medium, New J. Phys. 18, 043032 (2016).
  7. R. Sarma, A. G. Yamilov, S. Petrenko, Y. Bromberg, and H. Cao, Control of energy density inside a disordered medium by coupling to open or closed channels, Phys. Rev. Lett. 117, 086803 (2016).
  8. N. Bender, A. Yamilov, A. Goetschy, H. Yılmaz, C. W. Hsu, and H. Cao, Depth-targeted energy delivery deep inside scattering media, Nat. Phys. 18, 309 (2022).
  9. S. M. Popoff, G. Lerosey, R. Carminati, M. Fink, A. C. Boccara, and S. Gigan, Measuring the transmission matrix in optics: An approach to the study and control of light propagation in disordered media, Phys. Rev. Lett. 104, 100601 (2010).
  10. D. S. Fisher and P. A. Lee, Relation between conductivity and transmission matrix, Phys. Rev. B 23, 6851 (1981).
  11. A. Goetschy and A. Stone, Filtering random matrices: The effect of incomplete channel control in multiple scattering, Phys. Rev. Lett. 111, 063901 (2013).
  12. H. Yılmaz, C. W. Hsu, A. Yamilov, and H. Cao, Transverse localization of transmission eigenchannels, Nat. Photonics 13, 352 (2019).
  13. E. Akkermans and G. Montambaux, Mesoscopic Physics of Electrons and Photons (Cambridge University Press, Cambridge, UK, 2007).
  14. G. Lerosey, J. De Rosny, A. Tourin, and M. Fink, Focusing beyond the diffraction limit with far-field time reversal, Science 315, 1120 (2007).
  15. J. Park, C. Park, K. Lee, Y.-H. Cho, and Y. Park, Time-reversing a monochromatic subwavelength optical focus by optical phase conjugation of multiply-scattered light, Sci. Rep. 7, 41384 (2017).
  16. R. Carminati, J. J. Sáenz, J.-J. Greffet, and M. Nieto-Vesperinas, Reciprocity, unitarity, and time-reversal symmetry of the S-matrix of fields containing evanescent components, Phys. Rev. A 62, 012712 (2000).
  17. W. Choi, A. P. Mosk, Q.-H. Park, and W. Choi, Transmission eigenchannels in a disordered medium, Phys. Rev. B 83, 134207 (2011).
  18. S. H. Tseng, A. Taflove, D. Maitland, and V. Backman, Pseudospectral time domain simulations of multiple light scattering in three-dimensional macroscopic random media, Radio Sci. 41, 2005RS003408 (2006).
  19. C. Liu, L. Bi, R. L. Panetta, P. Yang, and M. A. Yurkin, Comparison between the pseudo-spectral time domain method and the discrete dipole approximation for light scattering simulations, Opt. Express 20, 16763 (2012).
  20. S. Sukhov, D. Haefner, and A. Dogariu, Coupled dipole method for modeling optical properties of large-scale random media, Phys. Rev. E 77, 066709 (2008).
  21. M. I. Mishchenko, L. Liu, D. W. Mackowski, B. Cairns, and G. Videen, Multiple scattering by random particulate media: Exact 3D results, Opt. Express 15, 2822 (2007).
  22. N. Byrnes and M. R. Foreman, Random matrix theory of polarized light scattering in disordered media, Waves Random Complex Medium 36, 249 (2026).
  23. M. Davy, Z. Shi, and A. Z. Genack, Focusing through random media: Eigenchannel participation number and intensity correlation, Phys. Rev. B 85, 035105 (2012).
  24. See Supplemental Material at https://link.aps.org/supplemental/10.1103/86th-pl8q for analytical derivations, numerical implementation details, eigenchannel visualizations, and additional validation.
  25. J. Schmitt and G. Kumar, Turbulent nature of refractive-index variations in biological tissue, Opt. Lett. 21, 1310 (1996).
  26. L. B. Felsen, F. Akleman, and L. Sevgi, Wave propagation inside a two-dimensional perfectly conducting parallel-plate waveguide: Hybrid ray-mode techniques and their visualizations, IEEE Antennas Propag. Mag. 46, 69 (2004).
  27. R. Carminati and J. C. Schotland, Principles of Scattering and Transport of Light (Cambridge University Press, Cambridge, UK, 2021).
  28. Olivier J. F. Martin, A. Dereux, and C. Girard, Iterative scheme for computing exactly the total field propagating in dielectric structures of arbitrary shape, J. Opt. Soc. Am. A 11, 1073 (1994).
  29. O. J. Martin, C. Girard, and A. Dereux, Generalized field propagator for electromagnetic scattering and light confinement, Phys. Rev. Lett. 74, 526 (1995).
  30. P. Dömötör, P. Földi, M. G. Benedict, B. W. Shore, and W. P. Schleich, Scattering of a particle with internal structure from a single slit: Exact numerical solutions, New J. Phys. 17, 023044 (2015).
  31. S. Datta, Electronic Transport in Mesoscopic Systems (Cambridge University Press, Cambridge, UK, 1997).
  32. N. Byrnes and M. R. Foreman, Symmetry constraints for vector scattering and transfer matrices containing evanescent components: Energy conservation, reciprocity, and time reversal, Phys. Rev. Res. 3, 013129 (2021).
  33. Y. V. Gulyaev, Y. N. Barabanenkov, M. Y. Barabanenkov, and S. A. Nikitov, Optical theorem for electromagnetic field scattering by dielectric structures and energy emission from the evanescent wave, Phys. Rev. E 72, 026602 (2005).
  34. I. M. Vellekoop and A. P. Mosk, Universal optimal transmission of light through disordered materials, Phys. Rev. Lett. 101, 120601 (2008).
  35. P. Mello, Averages on the unitary group and applications to the problem of disordered conductors, J. Phys. A: Math. Gen. 23, 4061 (1990).
  36. P. A. Mello and A. D. Stone, Maximum-entropy model for quantum-mechanical interference effects in metallic conductors, Phys. Rev. B 44, 3559 (1991).
  37. C. Jin, New methods and theory for increasing transmission of light through highly-scattering random media, media, Ph.D. thesis, University of Michigan, Ann Arbor, 2014.
  38. H.-C. Lin, Z. Wang, and C. W. Hsu, Fast multi-source nanophotonic simulations using augmented partial factorization, Nat. Comput. Sci. 2, 815 (2022).
  39. M. Raju, B. Jayet, and S. Andersson-Engels, matlab code packages for “Modeling scattering matrix containing evanescent modes for wavefront shaping applications in disordered media”, Zenodo, 2024, https://doi.org/10.5281/zenodo.10963078.
  40. M. Y. Barabanenkov, Y. N. Barabanenkov, Y. V. Gulyaev, and S. Nikitov, Energy emission from evanescent wave and interference of opposite wave streams, Phys. Lett. A 364, 421 (2007).
  41. https://github.com/michaelraju/Generalized-S-Matrix.
  42. M. Raju, B. Jayet, and S. Andersson-Engels, Dataset for Modeling scattering matrix containing evanescent modes for wavefront shaping applications in disordered media, Data set, Zenodo, 2024, https://doi.org/10.5281/zenodo.10960970.
