Magnetism in EuAlSi and the Eu1−xSrxAlSi solid solution

Dorota I. Walicka1,2,3,*, Olivier Blacque2, Karolina Gornicka4,5,6, Jonathan S. White3, Tomasz Klimczuk4,5,†, and Fabian O. von Rohr1

  • 1Department of Quantum Matter Physics, University of Geneva, CH-1211 Geneva, Switzerland
  • 2Department of Chemistry, University of Zurich, CH-8057 Zurich, Switzerland
  • 3Laboratory for Neutron Scattering and Imaging, PSI Center for Neutron and Muon Sciences, 5232 Villigen, Switzerland
  • 4Faculty of Applied Physics and Mathematics, Gdansk University of Technology, 80-233 Gdansk, Poland
  • 5Advanced Materials Center, Gdansk University of Technology, 80-233 Gdansk, Poland
  • 6Materials Science and Technology Division, Oak Ridge National Laboratory, Oak Ridge, Tennessee 37831, USA

  • *Contact author: dorota.walicka@psi.ch
  • †Contact author: tomasz.klimczuk@pg.edu.pl

Phys. Rev. Research 7, 033126 – Published 6 August, 2025

DOI: https://doi.org/10.1103/69sn-hpxm

Abstract

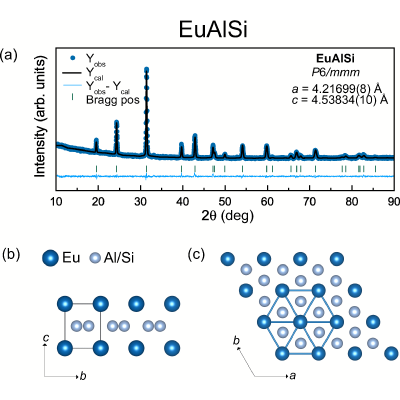

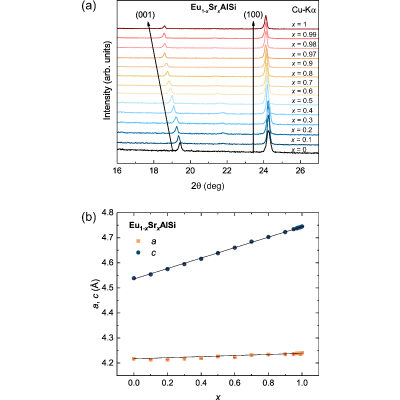

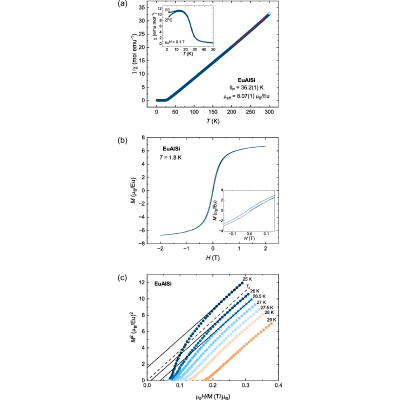

The magnetic properties of EuAlSi, a compound comprising a honeycomb lattice of Al/Si atoms and a triangular lattice of Eu atoms, are presented. By means of single-crystal x-ray diffraction, we find that EuAlSi crystallizes in an AlB2-type structure with space group P6/mmm and unit cell parameters a=4.2229(10)Å and c=4.5268(12)Å. Our magnetic measurements indicate that EuAlSi is a soft ferromagnetic material with TCurie=25.8K. The susceptibility follows the Curie-Weiss law at high temperatures, which allowed us to determine the paramagnetic Curie temperature θP=36.2(1)K and an effective magnetic moment μeff=8.07(1)µB/Eu. This value is in agreement with the theoretical value of 7.9µB for Eu2+ free ion. Moreover, we have prepared the Eu1−xSrxAlSi solid solution, where the atoms in the triangular lattice were systematically exchanged, in order to study the evolution of the collective quantum properties from the ferromagnetic EuAlSi toward the superconducting SrAlSi. Across the Eu1−xSrxAlSi solid solution, the unit cell parameters change linearly, following Vegard’s law, and making the system reliable for studying composition dependence of the interplay between the crystal structure and physical properties. As the Sr content increases, i.e., x increases, we note a consistent reduction of μeff and TCurie. Long-range magnetic order in Eu1−xSrxAlSi persists up to x=0.95, whereas superconductivity is only observed for samples with x>0.97.

View figure in article

Physics Subject Headings (PhySH)

Article Text

Supplemental Material

References (37)

  1. Y. Cao, V. Fatemi, S. Fang, K. Watanabe, T. Taniguchi, E. Kaxiras, and P. Jarillo-Herrero, Unconventional superconductivity in magic-angle graphene superlattices, Nature (London) 556, 43 (2018).
  2. J. Nagamatsu, N. Nakagawa, T. Muranaka, Y. Zenitani, and J. Akimitsu, Superconductivity at 39 K in magnesium diboride, Nature (London) 410, 63 (2001).
  3. M. J. Evans, Y. Wu, V. F. Kranak, N. Newman, A. Reller, F. J. Garcia-Garcia, and U. Häussermann, Structural properties and superconductivity in the ternary intermetallic compounds MAB (M = Ca, Sr, Ba; A = Al, Ga, In; B = Si, Ge, Sn), Phys. Rev. B 80, 064514 (2009).
  4. D. I. Walicka, Z. Guguchia, J. Lago, O. Blacque, K. Ma, H. Liu, R. Khasanov, and F. O. von Rohr, Two-gap to single-gap superconducting transition on a honeycomb lattice in Ca1−xSrxAlSi, Phys. Rev. Res. 3, 033192 (2021).
  5. V. H. Tran, M. Sahakyan, and Z. Bukowski, Discovery of superconductivity in AlB2-type hexagonal YGa2, J. Phys.: Condens. Matter 33, 315401 (2021).
  6. D. I. Walicka, R. Lefèvre, O. Blacque, S. A. López-Paz, C. W. Rischau, A. Cervellino, C. A. Triana, and F. O. von Rohr, Structural phase transition and superconductivity in 2H-BaGaGe with buckled honeycomb layers, Phys. Rev. Mater. 7, 074805 (2023).
  7. D. I. Walicka, O. Blacque, T. Klimczuk, and F. O. von Rohr, From weak- to strong-coupling superconductivity in the AlB2-type solid solution SrGa1−xAlxGe with honeycomb layers, J. Phys.: Condens. Matter 37, 045704 (2025).
  8. T. Kurumaji, T. Nakajima, M. Hirschberger, A. Kikkawa, Y. Yamasaki, H. Sagayama, H. Nakao, Y. Taguchi, T.-H. Arima, and Y. Tokura, Skyrmion lattice with a giant topological Hall effect in a frustrated triangular-lattice magnet, Science 365, 914 (2019).
  9. Z.-Y. Pan, C.-D. Cao, X.-J. Bai, R.-B. Song, J.-B. Zheng, and L.-B. Duan, Structures and physical properties of R2TX3 compounds, Chin. Phys. B 22, 056102 (2013).
  10. R. Mallik, E. Sampathkumaran, M. Strecker, G. Wortmann, P. Paulose, and Y. Ueda, Complex magnetism in a new alloy, Eu2PdSi3, with two crystallographically inequivalent sites, J. Magn. Magn. Mater. 185, L135 (1998).
  11. S. Majumdar, R. Mallik, E. V. Sampathkumaran, K. Rupprecht, and G. Wortmann, Magnetic behavior of Eu2CuSi3: Large negative magnetoresistance above the Curie temperature, Phys. Rev. B 60, 6770 (1999).
  12. C. D. Cao, R. Klingeler, H. Vinzelberg, N. Leps, W. Löser, G. Behr, F. Muranyi, V. Kataev, and B. Büchner, Magnetic anisotropy and ferromagnetic correlations above the Curie temperature in Eu2CuSi3 single crystals, Phys. Rev. B 82, 134446 (2010).
  13. R. Pöttgen and D. Johrendt, Equiatomic intermetallic europium compounds: Syntheses, crystal chemistry, chemical bonding, and physical properties, Chem. Mater. 12, 875 (2000).
  14. T.-S. You, Y. Grin, and G. J. Miller, Planar versus puckered nets in the polar intermetallic series EuGaTt (Tt = Si, Ge, Sn), Inorg. Chem. 46, 8801 (2007).
  15. O. S. Zarechnyuk and T. I. Yanson, Ternary phase diagram for the system Al-Eu-Si for the concentration range 0–33 at.% Eu, Dopov. Akad. Nauk Ukr. RSR, Ser. B 4, 31 (1982).
  16. R. C. Clark and J. S. Reid, The analytical calculation of absorption in multifaceted crystals, Acta Crystallogr. A 51, 887 (1995).
  17. CrysAlisPro (Version 1.171.43.117a), Rigaku Oxford Diffraction Ltd, Yarnton, Oxfordshire, England, 2024.
  18. O. V. Dolomanov, L. J. Bourhis, R. J. Gildea, J. A. Howard, and H. Puschmann, OLEX2: A complete structure solution, refinement and analysis program, J. Appl. Crystallogr. 42, 339 (2009).
  19. G. M. Sheldrick, SHELXT—integrated space-group and crystal-structure determination, Acta Crystallogr. A 71, 3 (2015).
  20. G. M. Sheldrick, Crystal structure refinement with SHELXL, Acta Crystallogr. C 71, 3 (2015).
  21. A. L. Spek, Structure validation in chemical crystallography, Acta Crystallogr. D 65, 148 (2009).
  22. See Supplemental Material at http://link.aps.org/supplemental/10.1103/69sn-hpxm for magnetic measurements and summary table of magnetic and superconducting parameters of the Eu1−xSrxAlSi solid solution.
  23. L. Salamakha, E. Bauer, G. Hilscher, H. Michor, O. Sologub, P. Rogl, and G. Giester, Structural and physical properties diversity of new CaCu5-type related europium platinum borides, Inorg. Chem. 52, 4185 (2013).
  24. C.-K. Tian, C. Wang, W. Ji, J.-C. Wang, T.-L. Xia, L. Wang, J.-J. Liu, H.-X. Zhang, and P. Cheng, Domain wall pinning and hard magnetic phase in Co-doped bulk single crystalline Fe3GeTe2, Phys. Rev. B 99, 184428 (2019).
  25. K. Górnicka, W. Xie, E. M. Carnicom, R. J. Cava, and T. Klimczuk, Synthesis and physical properties of the 10.6 K ferromagnet NdIr3, Phys. Rev. B 99, 104430 (2019).
  26. A. Arrott, Criterion for ferromagnetism from observations of magnetic isotherms, Phys. Rev. 108, 1394 (1957).
  27. R. Lefèvre and F. O. von Rohr, A heavy fermion Zn-deficient CaBe2Ge2-type phase with rare Ce-based ferromagnetism and large magnetoresistance, Chem. Mater. 34, 2352 (2022).
  28. A. K. Pramanik and A. Banerjee, Critical behavior at paramagnetic to ferromagnetic phase transition in Pr0.5Sr0.5MnO3: A bulk magnetization study, Phys. Rev. B 79, 214426 (2009).
  29. Z. Fu, L. Qin, K. Sun, L. Hao, Y.-Z. Zheng, W. Lohstroh, G. Günther, M. Russina, Y. Liu, Y. Xiao, W. Jin, and D. Chen, Low-temperature spin dynamics of ferromagnetic molecular ring Cr8Y8, npj Quantum Mater. 5, 32 (2020).
  30. R. B. Adhikari, P. Shen, D. L. Kunwar, I. Jeon, M. B. Maple, M. Dzero, and C. C. Almasan, Magnetic field dependence of the Schottky anomaly in filled skutterudites Pr1−xEuxPt4Ge12, Phys. Rev. B 100, 174509 (2019).
  31. D. Kaczorowski, B. Belan, and R. Gladyshevskii, Magnetic and electrical properties of EuPdGe3, Solid State Commun. 152, 839 (2012).
  32. N. Kumar, P. K. Das, R. Kulkarni, A. Thamizhavel, S. K. Dhar, and P. Bonville, Antiferromagnetic ordering in EuPtGe3, J. Phys.: Condens. Matter 24, 036005 (2012).
  33. A. Tari, The Specific Heat of Matter at Low Temperatures (Imperial Collage Press, London, 2003).
  34. S. Blundell, Magnetism in Condensed Matter, Oxford Master Series in Physics (‎Oxford University Press, Oxford, 2001).
  35. R. S. D. Mudiyanselage, T. Klimczuk, and W. Xie, Critical charge transfer pairs in intermetallic superconductors, in Comprehensive Inorganic Chemistry III, 3rd ed. (Elsevier, Amsterdam, Netherlands, 2023), Vol. 1-10, pp. 217–235.
  36. B. T. Matthias, H. Suhl, and E. Corenzwit, Spin exchange in superconductors, Phys. Rev. Lett. 1, 92 (1958).
  37. The crystal structure is available via the CCDC database (CCDC/FIZ No. 2384678).
