Phase structure of below-threshold harmonics in aligned molecules: A few-level model system

Samuel Schöpa1, Lina Bielke1, Falk-Erik Wiechmann1,2, Franziska Fennel1,2, and Dieter Bauer1,2,*

  • *Contact author: dieter.bauer@uni-rostock.de
PDF

Phys. Rev. Research 8, L022022 – Published 4 May, 2026

DOI: https://doi.org/10.1103/5fjm-8ps7

Abstract

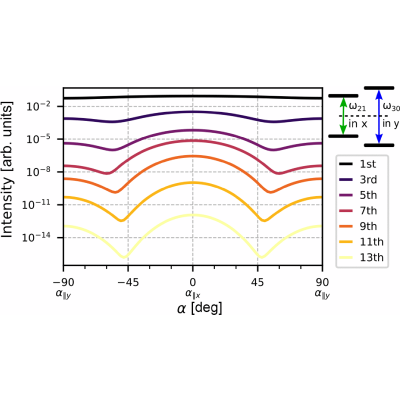

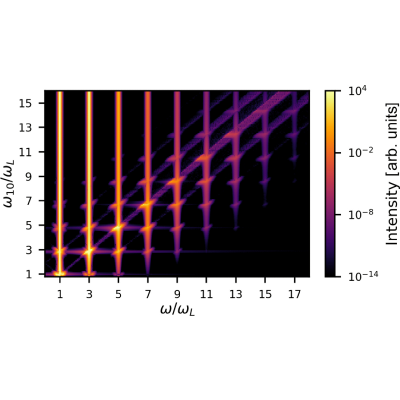

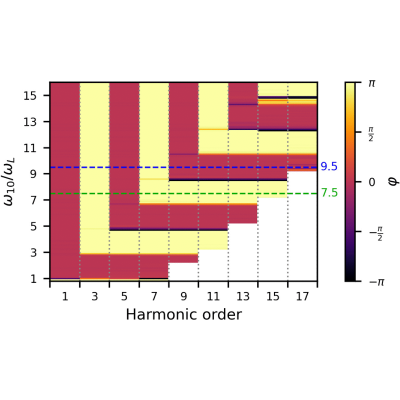

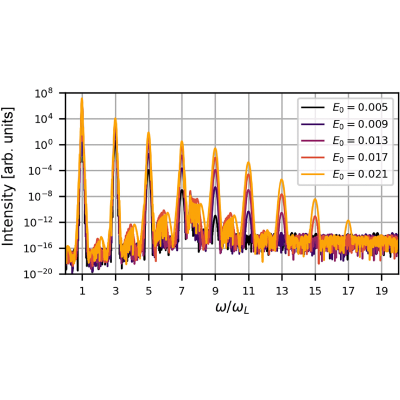

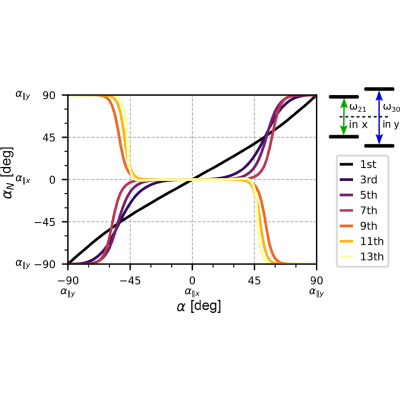

We utilize few-level model systems to analyze the polarization and phase properties of below-threshold harmonics generated from aligned molecules. In a two-level system, we find that the phase of emitted harmonics undergoes a distinct change. For harmonics with photon energies below the transition energy between the dominant field-dressed states, the phase alternates by π between successive odd harmonic orders. In contrast, the phase remains constant for harmonics above the transition energy. Exploiting this behavior, we construct a four-level model composed of two uncoupled two-level systems aligned along orthogonal directions. We demonstrate that with selected transition frequencies lower-order harmonics follow the polarization of the linearly polarized driving field while higher-order harmonics exhibit a mirrored polarization. The model predicts that aligned systems with orthogonal transition dipoles may show analogous phase and polarization features in the below-threshold regime.

View figure in article

Physics Subject Headings (PhySH)

Article Text

Supplemental Material

References (32)

  1. K. C. Kulander, K. J. Schafer, and J. L. Krause, Dynamics of short-pulse excitation, ionization and harmonic conversion, in Super-Intense Laser-Atom Physics, edited by B. Piraux, A. L’Huillier, and K. Rzążewski (Springer US, Boston, MA, 1993), pp. 95–110.
  2. P. B. Corkum, Plasma perspective on strong field multiphoton ionization, Phys. Rev. Lett. 71, 1994 (1993).
  3. H. Soifer, P. Botheron, D. Shafir, A. Diner, O. Raz, B. D. Bruner, Y. Mairesse, B. Pons, and N. Dudovich, Near-threshold high-order harmonic spectroscopy with aligned molecules, Phys. Rev. Lett. 105, 143904 (2010).
  4. F. Dong, Y. Tian, S. Yu, S. Wang, S. Yang, and Y. Chen, Polarization properties of below-threshold harmonics from aligned molecules H2+ in linearly polarized laser fields, Opt. Express 23, 18106 (2015).
  5. W.-H. Xiong, L.-Y. Peng, and Q. Gong, Recent progress of below-threshold harmonic generation, J. Phys. B 50, 032001 (2017).
  6. P.-C. Li, Y.-L. Sheu, and S.-I. Chu, Role of nuclear symmetry in below-threshold harmonic generation of molecules, Phys. Rev. A 101, 011401(R) (2020).
  7. J. Long, Y. Chen, X. Zhu, L. He, P. Lan, and P. Lu, Below- and near-threshold harmonic generation from multiple orbitals, J. Phys. B 56, 055601 (2023).
  8. D. C. Yost, T. R. Schibli, J. Ye, J. L. Tate, J. Hostetter, M. B. Gaarde, and K. J. Schafer, Vacuum-ultraviolet frequency combs from below-threshold harmonics, Nat. Phys. 5, 815 (2009).
  9. M. F. Zhu, J. Zhang, L. Q. Hua, Z. R. Xiao, S. P. Xu, X. Y. Lai, and X. J. Liu, Molecular structural effects in below- and near-threshold harmonics in XUV-comb generation, Phys. Rev. A 104, 043111 (2021).
  10. J. A. Hostetter, J. L. Tate, K. J. Schafer, and M. B. Gaarde, Semiclassical approaches to below-threshold harmonics, Phys. Rev. A 82, 023401 (2010).
  11. T. Zuo, S. Chelkowski, and A. D. Bandrauk, Harmonic generation by the H2+ molecular ion in intense laser fields, Phys. Rev. A 48, 3837 (1993).
  12. D. Martinez, High-order harmonic generation and dynamic localization in a driven two-level system, a non-perturbative solution using the Floquet–Green formalism, J. Phys. A 38, 9979 (2005).
  13. F. I. Gauthey, C. H. Keitel, P. L. Knight, and A. Maquet, Phase of harmonics from strongly driven two-level atoms, Phys. Rev. A 55, 615 (1997).
  14. C. F. de Morisson Faria and I. Rotter, High-order harmonic generation in a driven two-level atom: Periodic level crossings and three-step processes, Phys. Rev. A 66, 013402 (2002).
  15. H. Yamagata, J. Norton, E. Hontz, Y. Olivier, D. Beljonne, J. L. Brédas, R. J. Silbey, and F. C. Spano, The nature of singlet excitons in oligoacene molecular crystals, J. Chem. Phys. 134, 204703 (2011).
  16. M. B. Gaarde and K. J. Schafer, Enhancement of many high-order harmonics via a single multiphoton resonance, Phys. Rev. A 64, 013820 (2001).
  17. E. S. Toma, P. Antoine, A. de Bohan, and H. G. Muller, Resonance-enhanced high-harmonic generation, J. Phys. B 32, 5843 (1999).
  18. R. A. Ganeev, M. Suzuki, M. Baba, H. Kuroda, and T. Ozaki, Strong resonance enhancement of a single harmonic generated in the extreme ultraviolet range, Opt. Lett. 31, 1699 (2006).
  19. S.-K. Son, S. Han, and S.-I. Chu, Floquet formulation for the investigation of multiphoton quantum interference in a superconducting qubit driven by a strong ac field, Phys. Rev. A 79, 032301 (2009).
  20. I. A. Ivanov and A. S. Kheifets, Resonant enhancement of generation of harmonics, Phys. Rev. A 78, 053406 (2008).
  21. S.-I. Chu and D. A. Telnov, Beyond the Floquet theorem: Generalized Floquet formalisms and quasienergy methods for atomic and molecular multiphoton processes in intense laser fields, Phys. Rep. 390, 1 (2004).
  22. S. Hazanov, A. Gorlach, R. Ruimy, D. Yakushevskiy, M. Even Tzur, M. F. Ciappina, and I. Kaminer, High interharmonic generation from isolated bound states, ACS Photon. 12, 2440 (2025).
  23. L. Plaja and L. Roso, High-order harmonic generation in a two-level atom, J. Mod. Opt. 40, 793 (1993).
  24. See Supplemental Material at http://link.aps.org/supplemental/10.1103/5fjm-8ps7 for the derivation of the continued-fraction equation for the Fourier-transformed dipole of a TLS for periodic driving, which includes Refs. [23, 25].
  25. V. Kapoor, M. Ruggenthaler, and D. Bauer, Periodicity of the time-dependent Kohn-Sham equation and the Floquet theorem, Phys. Rev. A 87, 042521 (2013).
  26. L. Craciunescu, M. Asbach, S. Wirsing, S. Hammer, F. Unger, K. Broch, F. Schreiber, G. Witte, A. Dreuw, P. Tegeder, F. Fantuzzi, and B. Engels, Cluster-based approach utilizing optimally tuned TD-DFT to calculate absorption spectra of organic semiconductor thin films, J. Chem. Theory Comput. 19, 9369 (2023).
  27. F. Würthner, Perylene bisimide dyes as versatile building blocks for functional supramolecular architectures, Chem. Commun. 14, 1564 (2004).
  28. M. Lein, N. Hay, R. Velotta, J. P. Marangos, and P. L. Knight, Role of the intramolecular phase in high-harmonic generation, Phys. Rev. Lett. 88, 183903 (2002).
  29. P. M. Paul, E. S. Toma, P. Breger, G. Mullot, F. Augé, P. Balcou, H. G. Muller, and P. Agostini, Observation of a train of attosecond pulses from high harmonic generation, Science 292, 1689 (2001).
  30. W. Boutu, S. Haessler, H. Merdji, P. Breger, G. Waters, M. Stankiewicz, L. J. Frasinski, R. Taieb, J. Caillat, A. Maquet, P. Monchicourt, B. Carre, and P. Salieres, Coherent control of attosecond emission from aligned molecules, Nat. Phys. 4, 545 (2008).
  31. F.-E. Wiechmann, S. Schöpa, L. Bielke, S. Rindelhardt, S. Patchkovskii, F. Morales, M. Richter, D. Bauer, and F. Fennel, High-order harmonic generation in an organic molecular crystal, Nat. Commun. 16, 9890 (2025).
  32. S. Schöpa, L. Bielke, F.-E. Wiechmann, F. Fennel, and D. Bauer, Dataset for manuscript “Phase structure of below-threshold harmonics in aligned molecules: A few-level model system” (2026), https://doi.org/10.18453/rosdok_id00005151.

Outline

Information

Phys. Rev. Research 8, L022022– Published 4 May, 2026
  • Received 29 October 2025
  • Accepted 13 March 2026
