  • Letter
  • Open Access

Sub-recoil transverse momentum width in a cold ytterbium atomic beam

Toshiyuki Hosoya1,2, Tomoya Sato3, Ryotaro Inoue3,*, and Mikio Kozuma2,3,†

  • *Present address: Nanofiber Quantum Technologies, Inc.
  • †Contact author: kozuma@qnav.iir.isct.ac.jp
PDF

Phys. Rev. Research 7, L042013 – Published 10 October, 2025

DOI: https://doi.org/10.1103/4rkj-z4qp

Abstract

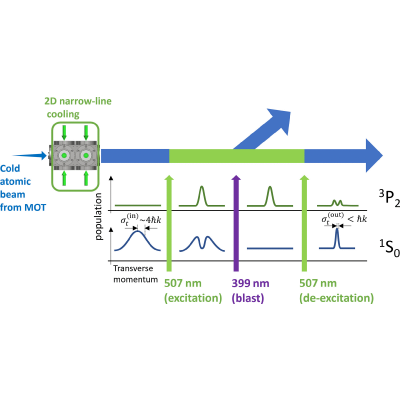

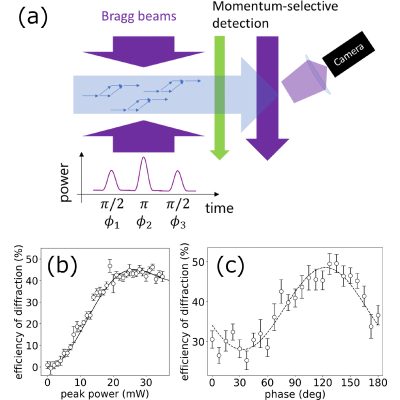

We demonstrate the generation of a slow ytterbium atomic beam with a transverse momentum width of 0.44(6) times the photon recoil associated with Bragg diffraction, and a flux of 6.7(9)×106 atoms/s. This is achieved by applying momentum filtering through a long-lived metastable state to atoms prepared in a slow beam via two-dimensional transverse laser cooling. The resulting narrow momentum distribution enables efficient quasi-Bragg diffraction, which we exploit to realize a Bragg interferometer. These results mark a significant step toward continuous, high-precision, and magnetically insensitive angular rate measurements using cold alkaline-earth(-like) atomic beams.

View figure in article

Physics Subject Headings (PhySH)

Article Text

References (31)

  1. J. F. Clauser, Ultra-high sensitivity accelerometers and gyroscopes using neutral atom matter-wave interferometry, Physica B+C 151, 262 (1988).
  2. F. Riehle, T. Kisters, A. Witte, J. Helmcke, and C. J. Bordé, Optical Ramsey spectroscopy in a rotating frame: Sagnac effect in a matter-wave interferometer, Phys. Rev. Lett. 67, 177 (1991).
  3. T. L. Gustavson, P. Bouyer, and M. A. Kasevich, Precision rotation measurements with an atom interferometer gyroscope, Phys. Rev. Lett. 78, 2046 (1997).
  4. T. L. Gustavson, A. Landragin, and M. A. Kasevich, Rotation sensing with a dual atom-interferometer Sagnac gyroscope, Class. Quantum Gravity 17, 2385 (2000).
  5. D. Titterton and J. L. Weston, Strapdown Inertial Navigation Technology (Institution of Engineering and Technology, London, 2004).
  6. S. Dimopoulos, P. W. Graham, J. M. Hogan, and M. A. Kasevich, General relativistic effects in atom interferometry, Phys. Rev. D 78, 042003 (2008).
  7. J. K. Stockton, K. Takase, and M. A. Kasevich, Absolute geodetic rotation measurement using atom interferometry, Phys. Rev. Lett. 107, 133001 (2011).
  8. M. He et al., The space cold atom interferometer for testing the equivalence principle in the China Space Station, npj Microgravity 9, 58 (2023).
  9. D. Savoie, M. Altorio, B. Fang, L. A. Sidorenkov, R. Geiger, and A. Landragin, Interleaved atom interferometry for high-sensitivity inertial measurements, Sci. Adv. 4, eaau7948 (2018).
  10. Y. Feng, H. Xue, X. Wang, S. Chen, and Z. Zhou, Observation of Ramsey fringes using stimulated Raman transitions in a laser-cooled continuous rubidium atomic beam, Appl. Phys. B 118, 139 (2015).
  11. J. Kwolek, C. Fancher, M. Bashkansky, and A. Black, Three-dimensional cooling of an atom-beam source for high-contrast atom interferometry, Phys. Rev. Appl. 13, 044057 (2020).
  12. J. M. Kwolek and A. T. Black, Continuous sub-Doppler-cooled atomic beam interferometer for inertial sensing, Phys. Rev. Appl. 17, 024061 (2022).
  13. Z.-X. Meng, P.-Q. Yan, S.-Z. Wang, X.-J. Li, H.-B. Xue, and Y.-Y. Feng, Closed-loop dual-atom-interferometer inertial sensor with continuous cold atomic beams, Phys. Rev. Appl. 21, 034050 (2024).
  14. I. Nosske, L. Couturier, F. Hu, C. Tan, C. Qiao, J. Blume, Y. H. Jiang, P. Chen, and M. Weidemüller, Two-dimensional magneto-optical trap as a source for cold strontium atoms, Phys. Rev. A 96, 053415 (2017).
  15. E. Wodey, R. J. Rengelink, C. Meiners, E. M. Rasel, and D. Schlippert, A robust, high-flux source of laser-cooled ytterbium atoms, J. Phys. B 54, 035301 (2021).
  16. H. Müller, S.-W. Chiow, and S. Chu, Atom-wave diffraction between the Raman-Nath and the Bragg regime: Effective Rabi frequency, losses, and phase shifts, Phys. Rev. A 77, 023609 (2008).
  17. S. S. Szigeti, J. E. Debs, J. J. Hope, N. P. Robins, and J. D. Close, Why momentum width matters for atom interferometry with Bragg pulses, New J. Phys. 14, 023009 (2012).
  18. Y. Torii, Y. Suzuki, M. Kozuma, T. Sugiura, T. Kuga, L. Deng, and E. W. Hagley, Mach-Zehnder Bragg interferometer for a Bose-Einstein condensate, Phys. Rev. A 61, 041602 (2000).
  19. H. Müller, S.-W. Chiow, Q. Long, S. Herrmann, and S. Chu, Atom interferometry with up to 24-photon-momentum-transfer beam splitters, Phys. Rev. Lett. 100, 180405 (2008).
  20. T. Mazzoni, X. Zhang, R. Del Aguila, L. Salvi, N. Poli, and G. M. Tino, Large-momentum-transfer Bragg interferometer with strontium atoms, Phys. Rev. A 92, 053619 (2015).
  21. D. M. Giltner, R. W. McGowan, and S. A. Lee, Atom interferometer based on Bragg scattering from standing light waves, Phys. Rev. Lett. 75, 2638 (1995).
  22. C.-C. Chen, R. González Escudero, J. Minář, B. Pasquiou, S. Bennetts, and F. Schreck, Continuous Bose Einstein condensation, Nature (London) 606, 683 (2022).
  23. A. Aspect, E. Arimondo, R. Kaiser, N. Vansteenkiste, and C. Cohen-Tannoudji, Laser cooling below the one-photon recoil energy by velocity-selective coherent population trapping, Phys. Rev. Lett. 61, 826 (1988).
  24. T. Hosoya, R. Inoue, T. Sato, and M. Kozuma, High-flux cold ytterbium atomic beam source using two-dimensional laser cooling with intercombination transition, Opt. Commun. 528, 129048 (2023).
  25. S. G. Porsev and A. Derevianko, Hyperfine quenching of the metastable P0,23 states in divalent atoms, Phys. Rev. A 69, 042506 (2004).
  26. Y. Takasu, K. Komori, K. Honda, M. Kumakura, T. Yabuzaki, and Y. Takahashi, Photoassociation spectroscopy of laser-cooled ytterbium atoms, Phys. Rev. Lett. 93, 123202 (2004).
  27. W. Demtröder, Laser Spectroscopy (Springer, Berlin, Heidelberg, 1981), Vol. 5.
  28. E. A. Curtis, C. W. Oates, and L. Hollberg, Quenched narrow-line laser cooling of Ca40 to near the photon recoil limit, Phys. Rev. A 64, 031403(R) (2001).
  29. N. Mielec, M. Altorio, R. Sapam, D. Horville, D. Holleville, L. A. Sidorenkov, A. Landragin, and R. Geiger, Atom interferometry with top-hat laser beams, Appl. Phys. Lett. 113, 161108 (2018).
  30. Y. Paturel, J. Honthaas, H. Lefèvre, and F. Napolitano, One nautical mile per month fog-based strapdown inertial navigation system: A dream already within reach?, Gyroscopy Navig. 5, 1 (2014).
  31. T. Hosoya, Data for sub-recoil transverse momentum width in a cold ytterbium atomic beam [Data set], Zenodo, (2025), https://doi.org/10.5281/zenodo.15393456.
