Schottky anomaly in a cavity-coupled double quantum well

Valerii K. Kozin*, Dmitry Miserev, Daniel Loss, and Jelena Klinovaja

  • *Contact author: kozin.valera@gmail.com
PDF

Phys. Rev. Research 7, 033239 – Published 10 September, 2025

DOI: https://doi.org/10.1103/43vj-wst3

Abstract

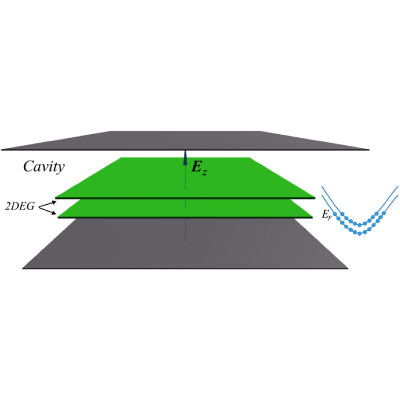

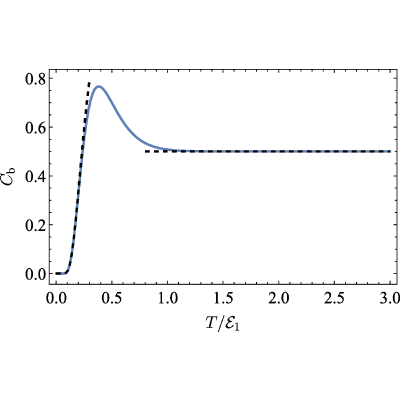

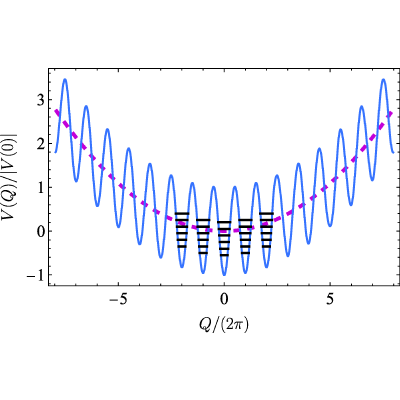

We present a theoretical study of a mesoscopic two-dimensional electron gas confined in a double quantum well that is coupled to a uniform quasistatic cavity mode via fluctuations of the dipole moment. We focus on the regime of large number of electrons participating in the virtual intersubband transitions. In this regime, the effective photonic potential is no longer quadratic but, instead, it contains large number of minima. Each minimum represents a nearly harmonic oscillator with the renormalized cavity frequency that is much greater than its bare value. The energy offset of a minimum scales quadratically with respect to the photon coordinate corresponding to this minimum. These energy offsets determine the statistical weight of each minimum, and altogether they result in the additive correction to the heat capacity of the system. This correction exhibits a Schottky anomaly and a 0.5kB plateau at low temperatures. This behavior can be associated with the emergence of a new degree of freedom. This degree of freedom does not manifest in the optical conductivity and can only be observed via the heat capacity measurement.

View figure in article

Physics Subject Headings (PhySH)

Article Text

References (51)

  1. F. Schlawin, D. M. Kennes, and M. A. Sentef, Cavity quantum materials, Appl. Phys. Rev. 9, 011312 (2022).
  2. W. Qin, A. F. Kockum, C. S. Muñoz, A. Miranowicz, and F. Nori, Quantum amplification and simulation of strong and ultrastrong coupling of light and matter, Phys. Rep. 1078, 1 (2024).
  3. O. V. Kibis, Metal-insulator transition in graphene induced by circularly polarized photons, Phys. Rev. B 81, 165433 (2010).
  4. T. Oka and H. Aoki, Photovoltaic Hall effect in graphene, Phys. Rev. B 79, 081406 (2009).
  5. N. H. Lindner, G. Refael, and V. Galitski, Floquet topological insulator in semiconductor quantum wells, Nat. Phys. 7, 490 (2011).
  6. H. Dehghani, T. Oka, and A. Mitra, Out-of-equilibrium electrons and the Hall conductance of a floquet topological insulator, Phys. Rev. B 91, 155422 (2015).
  7. M. Thakurathi, D. Loss, and J. Klinovaja, Floquet Majorana fermions and parafermions in driven Rashba nanowires, Phys. Rev. B 95, 155407 (2017).
  8. J. Klinovaja, P. Stano, and D. Loss, Topological floquet phases in driven coupled Rashba nanowires, Phys. Rev. Lett. 116, 176401 (2016).
  9. M. Thakurathi, A. A. Patel, D. Sen, and A. Dutta, Floquet generation of Majorana end modes and topological invariants, Phys. Rev. B 88, 155133 (2013).
  10. A. Kundu and B. Seradjeh, Transport signatures of Floquet Majorana fermions in driven topological superconductors, Phys. Rev. Lett. 111, 136402 (2013).
  11. L. S. Ricco, V. K. Kozin, A. C. Seridonio, and I. A. Shelykh, Accessing the degree of Majorana nonlocality in a quantum dot-optical microcavity system, Sci. Rep. 12, 1983 (2022).
  12. L. S. Ricco, V. K. Kozin, A. C. Seridonio, and I. A. Shelykh, Reshaping the Jaynes-Cummings ladder with Majorana bound states, Phys. Rev. A 106, 023702 (2022).
  13. Y. H. Wang, H. Steinberg, P. Jarillo-Herrero, and N. Gedik, Observation of Floquet-Bloch states on the surface of a topological insulator, Science 342, 453 (2013).
  14. J. W. McIver, B. Schulte, F.-U. Stein, T. Matsuyama, G. Jotzu, G. Meier, and A. Cavalleri, Light-induced anomalous Hall effect in graphene, Nat. Phys. 16, 38 (2020).
  15. V. K. Kozin, I. V. Iorsh, O. V. Kibis, and I. A. Shelykh, Periodic array of quantum rings strongly coupled to circularly polarized light as a topological insulator, Phys. Rev. B 97, 035416 (2018).
  16. N. R. Cooper, J. Dalibard, and I. B. Spielman, Topological bands for ultracold atoms, Rev. Mod. Phys. 91, 015005 (2019).
  17. K. Roux, H. Konishi, V. Helson, and J.-P. Brantut, Strongly correlated fermions strongly coupled to light, Nat. Commun. 11, 2974 (2020).
  18. F. Mivehvar, H. Ritsch, and F. Piazza, Superradiant topological Peierls insulator inside an optical cavity, Phys. Rev. Lett. 118, 073602 (2017).
  19. D. D. Sedov, V. K. Kozin, and I. V. Iorsh, Chiral waveguide optomechanics: First order quantum phase transitions with Z3 symmetry breaking, Phys. Rev. Lett. 125, 263606 (2020).
  20. V. K. Kozin, E. Thingstad, D. Loss, and J. Klinovaja, Cavity-enhanced superconductivity via band engineering, Phys. Rev. B 111, 035410 (2025).
  21. M. A. Sentef, M. Ruggenthaler, and A. Rubio, Cavity quantum-electrodynamical polaritonically enhanced electron-phonon coupling and its influence on superconductivity, Sci. Adv. 4, eaau6969 (2018).
  22. J. Li and M. Eckstein, Manipulating intertwined orders in solids with quantum light, Phys. Rev. Lett. 125, 217402 (2020).
  23. A. Chakraborty and F. Piazza, Long-range photon fluctuations enhance photon-mediated electron pairing and superconductivity, Phys. Rev. Lett. 127, 177002 (2021).
  24. H. Gao, F. Schlawin, M. Buzzi, A. Cavalleri, and D. Jaksch, Photoinduced electron pairing in a driven cavity, Phys. Rev. Lett. 125, 053602 (2020).
  25. H. Gao, F. Schlawin, and D. Jaksch, Higgs mode stabilization by photoinduced long-range interactions in a superconductor, Phys. Rev. B 104, L140503 (2021).
  26. C. J. Eckhardt, S. Chattopadhyay, D. M. Kennes, E. A. Demler, M. A. Sentef, and M. H. Michael, Theory of resonantly enhanced photo-induced superconductivity, Nat. Commun. 15, 2300 (2024).
  27. F. P. Laussy, A. V. Kavokin, and I. A. Shelykh, Exciton-polariton mediated superconductivity, Phys. Rev. Lett. 104, 106402 (2010).
  28. A. F. Kockum, A. Miranowicz, S. D. Liberato, S. Savasta, and F. Nori, Ultrastrong coupling between light and matter, Nat. Rev. Phys. 1, 19 (2019).
  29. T. Oka and S. Kitamura, Floquet engineering of quantum materials, Annu. Rev. Condens. Matter Phys. 10, 387 (2019).
  30. A. V. Kavokin, J. J. Baumberg, G. Malpuech, and F. P. Laussy, Microcavities (Oxford University Press, 2017).
  31. V. K. Kozin, I. A. Shelykh, A. V. Nalitov, and I. V. Iorsh, Topological metamaterials based on polariton rings, Phys. Rev. B 98, 125115 (2018).
  32. C. Maissen, G. Scalari, F. Valmorra, M. Beck, J. Faist, S. Cibella, R. Leoni, C. Reichl, C. Charpentier, and W. Wegscheider, Ultrastrong coupling in the near field of complementary split-ring resonators, Phys. Rev. B 90, 205309 (2014).
  33. J. Keller, G. Scalari, S. Cibella, C. Maissen, F. Appugliese, E. Giovine, R. Leoni, M. Beck, and J. Faist, Few-electron ultrastrong light-matter coupling at 300 GHz with nanogap hybrid LC microcavities, Nano Lett. 17, 7410 (2017).
  34. F. Appugliese, J. Enkner, G. L. Paravicini-Bagliani, M. Beck, C. Reichl, W. Wegscheider, G. Scalari, C. Ciuti, and J. Faist, Breakdown of topological protection by cavity vacuum fields in the integer quantum Hall effect, Science 375, 1030 (2022).
  35. X. Wang, E. Ronca, and M. A. Sentef, Cavity quantum electrodynamical Chern insulator: Towards light-induced quantized anomalous Hall effect in graphene, Phys. Rev. B 99, 235156 (2019).
  36. V. K. Kozin, D. Miserev, D. Loss, and J. Klinovaja, Quantum phase transitions and cat states in cavity-coupled quantum dots, Phys. Rev. Res. 6, 033188 (2024).
  37. E. Vlasiuk, V. K. Kozin, J. Klinovaja, D. Loss, I. V. Iorsh, and I. V. Tokatly, Cavity-induced charge transfer in periodic systems: Length-gauge formalism, Phys. Rev. B 108, 085410 (2023).
  38. O. Dmytruk and M. Schirò, Controlling topological phases of matter with quantum light, Commun. Phys. 5, 271 (2022).
  39. Y. Todorov and C. Sirtori, Few-electron ultrastrong light-matter coupling in a quantum LC circuit, Phys. Rev. X 4, 041031 (2014).
  40. U. Iqbal, Y. Todorov, and C. Mora, Dynamical Coulomb blockade: An all electrical probe of the ultrastrong light-matter coupling regime, Phys. Rev. Res. 6, 033097 (2024).
  41. Y. Todorov and C. Sirtori, Intersubband polaritons in the electrical dipole gauge, Phys. Rev. B 85, 045304 (2012).
  42. Y. Todorov, A. M. Andrews, R. Colombelli, S. De Liberato, C. Ciuti, P. Klang, G. Strasser, and C. Sirtori, Ultrastrong light-matter coupling regime with polariton dots, Phys. Rev. Lett. 105, 196402 (2010).
  43. Y. Todorov, A. M. Andrews, I. Sagnes, R. Colombelli, P. Klang, G. Strasser, and C. Sirtori, Strong light-matter coupling in subwavelength metal-dielectric microcavities at terahertz frequencies, Phys. Rev. Lett. 102, 186402 (2009).
  44. Y. Todorov, Dipolar quantum electrodynamics of the two-dimensional electron gas, Phys. Rev. B 91, 125409 (2015).
  45. P. Goulain, C. Deimert, M. Jeannin, S. Pirotta, W. J. Pasek, Z. Wasilewski, R. Colombelli, and J. Manceau, THz ultra‐strong light–matter coupling up to 200 K with continuously‐graded parabolic quantum wells, Adv. Opt. Mater. 11, 2202724 (2023).
  46. G. M. Andolina, A. De Pasquale, F. M. D. Pellegrino, I. Torre, F. H. L. Koppens, and M. Polini, Amperean superconductivity cannot be induced by deep subwavelength cavities in a two-dimensional material, Phys. Rev. B 109, 104513 (2024).
  47. M. Jeannin, G. Mariotti Nesurini, S. Suffit, D. Gacemi, A. Vasanelli, L. Li, A. G. Davies, E. Linfield, C. Sirtori, and Y. Todorov, Ultrastrong light–matter coupling in deeply subwavelength THz LC resonators, ACS Photonics 6, 1207 (2019).
  48. N. W. Ashcroft and N. D. Mermin, Solid State Physics (Holt, Rinehart and Winston, New York, 1976).
  49. J. Enkner, L. Graziotto, D. Boriçi, F. Appugliese, C. Reichl, G. Scalari, N. Regnault, W. Wegscheider, C. Ciuti, and J. Faist, Tunable vacuum-field control of fractional and integer quantum Hall phases, Nature 641, 884 (2024).
  50. C. Adam, H. Duprez, N. Lehmann, A. Yglesias, S. Cances, M. J. Ruckriegel, M. Masseroni, C. Tong, A. O. Denisov, W. W. Huang, D. Kealhofer, R. Garreis, K. Watanabe, T. Taniguchi, K. Ensslin, and T. Ihn, Entropy spectroscopy of a bilayer graphene quantum dot, arXiv:2412.18000.
  51. C. Kittel et al., Introduction to Solid State Physics, 8th ed. (Wiley, New York, 2004).
