Boltzmann sampling of frustrated J1−J2 Ising models with programmable quantum annealers

Elijah Pelofske*

  • *Contact author: epelofske@lanl.gov
PDF

Phys. Rev. Research 8, 033280 – Published 8 September, 2026

DOI: https://doi.org/10.1103/2xc3-815x

Abstract

One of the surprising, and potentially very useful, capabilities of analog quantum computers, such as D-Wave quantum annealers, is sampling from the Boltzmann, or Gibbs, distribution defined by a classical Hamiltonian. In this study, we thoroughly examine the ability of D-Wave quantum annealers to sample from the Boltzmann distribution defined by a canonical type of competing magnetic frustration J1−J2 model, the one-dimensional ANNNI (axial next-nearest-neighbor Ising) model. Boltzmann sampling error rate is quantified for standard linear-ramp anneals ranging from 5 ns annealing times up to 2000 µs on two different D-Wave quantum annealing processors. Interestingly, we find some analog hardware parameters that result in a very high accuracy (down to a total variation distance of 0.0003) and low-temperature sampling (down to β=32.2) in a frustrated region of the ANNNI model magnetic phase diagram. This bolsters the viability of current analog quantum computers for thermodynamic sampling applications of highly frustrated magnetic spin systems.

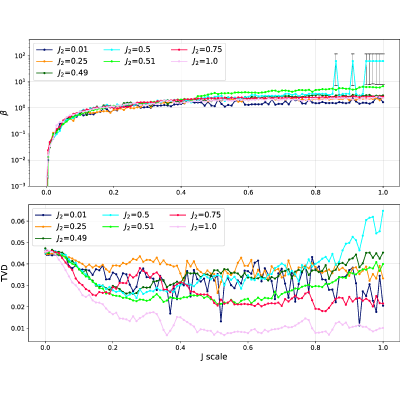

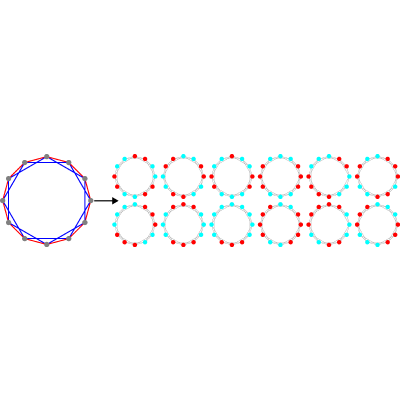

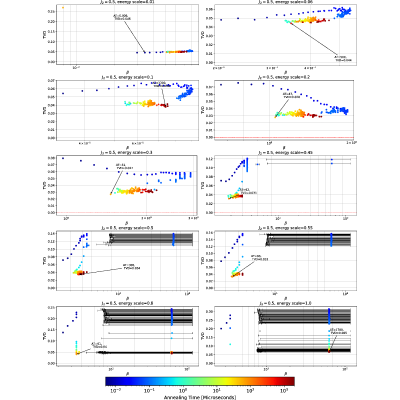

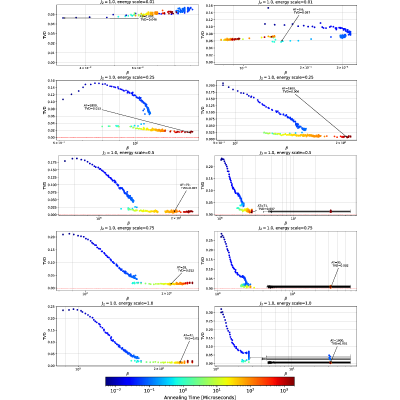

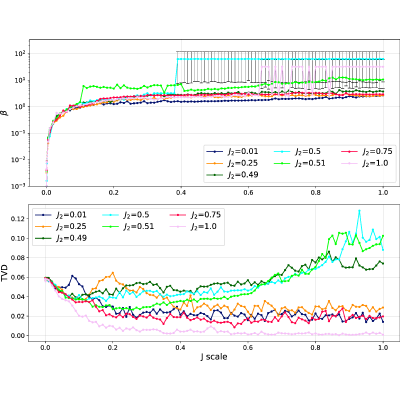

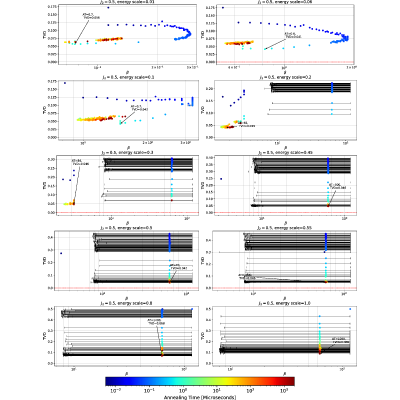

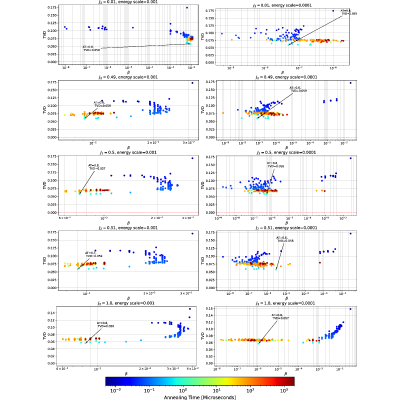

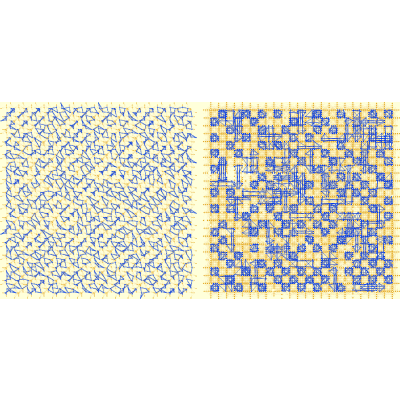

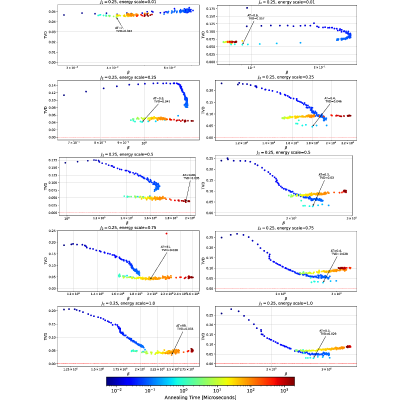

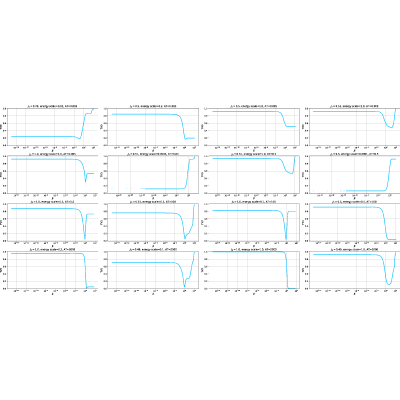

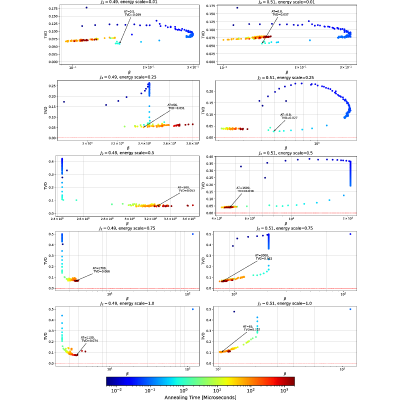

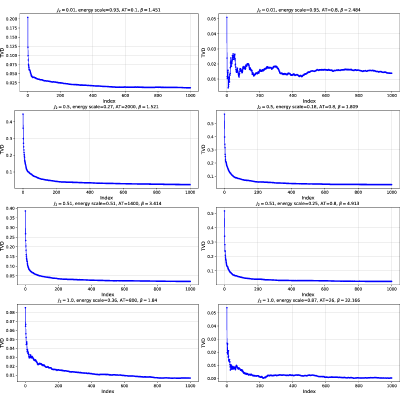

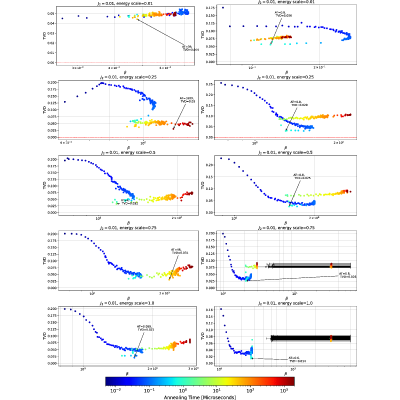

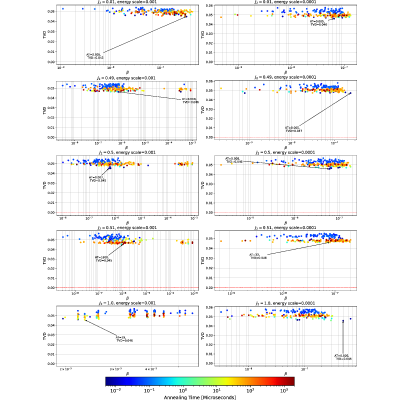

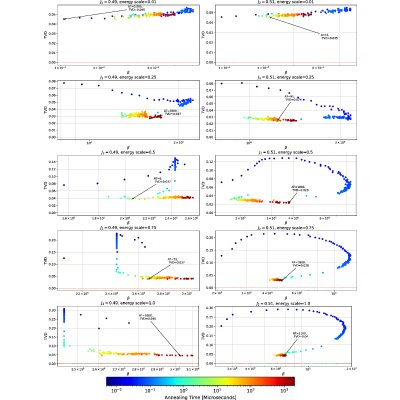

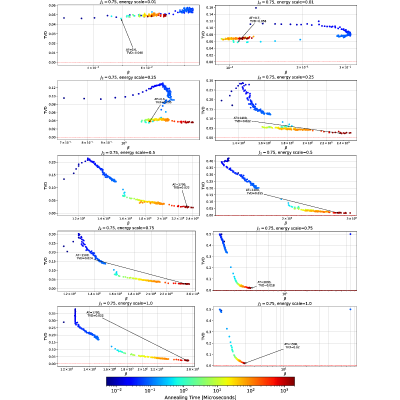

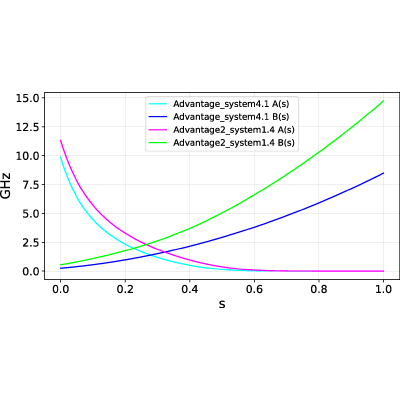

View figure in article

Physics Subject Headings (PhySH)

Article Text

References (100)
