Transition from exceptional points to observable nonlinear bifurcation points in anti-PT symmetric coupled cavity systems

Takahiro Uemura1,2, Kenta Takata2,3, and Masaya Notomi1,2,3,*

  • 1Department of Physics, Institute of Science Tokyo, 2-12-1 Ookayama, Meguro-ku, Tokyo 152-8551, Japan
  • 2NTT Basic Research Laboratories, NTT Inc., 3-1 Morinosato-Wakamiya, Atsugi-shi, Kanagawa 243-0198, Japan
  • 3Nanophotonics Center, NTT Inc., 3-1 Morinosato-Wakamiya, Atsugi-shi, Kanagawa 243-0198, Japan

  • *Contact author: notomi@phys.sci.isct.ac.jp
PDF

Phys. Rev. Research 7, 043266 – Published 8 December, 2025

DOI: https://doi.org/10.1103/2nj4-xb25

Abstract

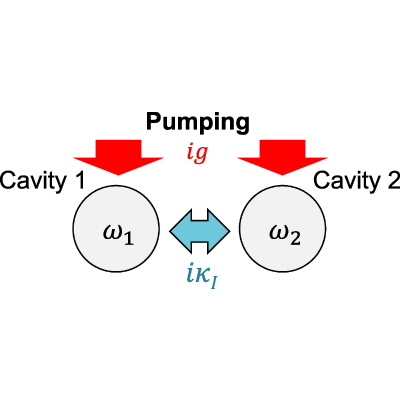

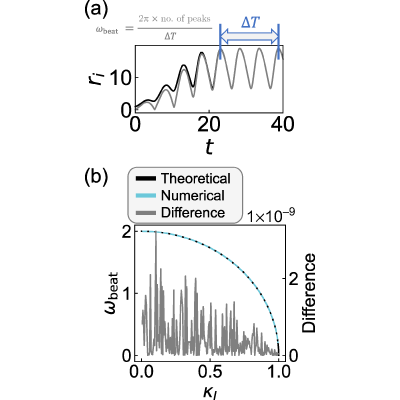

Exceptional points (EPs) in anti-parity-time (APT)-symmetric systems have attracted significant interest. While linear APT-symmetric systems exhibit structural similarities with nonlinear dissipative systems, such as mutually injection-locked lasers, the correspondence between exceptional points in linear non-Hermitian Hamiltonians and bifurcation phenomena in nonlinear lasing dynamics has remained unclear. We demonstrated that, in a two-cavity system with APT symmetry and gain saturation nonlinearity, an EP coincides with a bifurcation point of nonlinear equilibrium states, which appears exactly at the lasing threshold. Although the EP and the bifurcation point originate from fundamentally different physical concepts, the bifurcation point is observable and retains key EP characteristics even above the lasing threshold. Notably, the bifurcation point that originates from the linear EP also bridges linear and nonlinear dynamics of the system: It serves as an accessible transition point in the nonlinear dynamics between the limit cycle and synchronization regimes. Furthermore, we clarified that beat oscillation that conserves the energy difference, which is a unique dynamic in the weak-coupling regime of a linear APT system, evolves into a nonlinear limit cycle with equal amplitudes in the two cavities in the presence of gain saturation. Our findings establish a direct link between EP-induced bifurcation points and nonlinear dynamics, providing fundamental insights into non-Hermitian and nonlinear optical systems.

View figure in article

Physics Subject Headings (PhySH)

Article Text

References (43)

  1. Carl M. Bender and S. Boettcher, Real spectra in non-Hermitian Hamiltonians having PT symmetry, Phys. Rev. Lett. 80, 5243 (1998).
  2. C. M. Bender, Making sense of non-Hermitian Hamiltonians, Rep. Prog. Phys. 70, 947 (2007).
  3. A. Regensburger, C. Bersch, M.-A. Miri, G. Onishchukov, D. N. Christodoulides, and U. Peschel, Parity-time synthetic photonic lattices, Nature (London) 488, 167 (2012).
  4. L. Feng, R. El-Ganainy, and L. Ge, Non-Hermitian photonics based on parity–time symmetry, Nat. Photon. 11, 752 (2017).
  5. Ş. K. Özdemir, S. Rotter, F. Nori, and L. Yang, Parity–time symmetry and exceptional points in photonics, Nat. Mater. 18, 783 (2019).
  6. M.A. Miri and A. Alù, Exceptional points in optics and photonics, Science 363, eaar7709 (2019).
  7. Y. Choi, C. Hahn, J. W. Yoon, and S. H. Song, Observation of an anti-PT-symmetric exceptional point and energy-difference conserving dynamics in electrical circuit resonators, Nat. Commun. 9, 2182 (2018).
  8. H. Zhang, R. Huang, S.-D. Zhang, Y. Li, C.-W. Qiu, F. Nori, and H. Jing, Breaking anti-PT symmetry by spinning a resonator, Nano Lett. 20, 7594 (2020).
  9. H. Li, L. Chen, W. Wu, H. Wang, T. Wang, Y. Zhong, F. Huang, G.-S. Liu, Y. Chen, Y. Luo, and Z. Chen, Enhanced sensitivity with nonlinearity-induced exceptional points degeneracy lifting, Commun. Phys. 7, 117 (2024).
  10. W. D. Heiss and H. L. Harney, The chirality of exceptional points, Eur. Phys. J. D 17, 149 (2001).
  11. K. Takata and M. Notomi, PT-symmetric coupled-resonator waveguide based on buried heterostructure nanocavities, Phys. Rev. Appl. 7, 054023 (2017).
  12. B. Peng, Ş. K. Özdemir, F. Lei, F. Monifi, M. Gianfreda, G. L. Long, S. Fan, F. Nori, C. M. Bender, and L. Yang, Parity–time-symmetric whispering-gallery microcavities, Nat. Phys. 10, 394 (2014).
  13. B. Peng, Ş. Kaya Özdemir, M. Liertzer, W. Chen, J. Kramer, H. Yılmaz, J. Wiersig, S. Rotter, and L. Yang, Chiral modes and directional lasing at exceptional points, Proc. Natl. Acad. Sci. USA 113, 6845 (2016).
  14. J.-H. Park, A. Ndao, W. Cai, L. Hsu, A. Kodigala, T. Lepetit, Y.-H. Lo, and B. Kanté, Symmetry-breaking-induced plasmonic exceptional points and nanoscale sensing, Nat. Phys. 16, 462 (2020).
  15. R. Duggan, S. A. Mann, and A. Alù, Limitations of sensing at an exceptional point, ACS Photonics 9, 1554 (2022).
  16. R. Kononchuk, J. Cai, F. Ellis, R. Thevamaran, and T. Kottos, Exceptional-point-based accelerometers with enhanced signal-to-noise ratio, Nature (London) 607, 697 (2022).
  17. K. Takata, K. Nozaki, E. Kuramochi, S. Matsuo, K. Takeda, T. Fujii, S. Kita, A. Shinya, and M. Notomi, Observing exceptional point degeneracy of radiation with electrically pumped photonic crystal coupled-nanocavity lasers, Optica 8, 184 (2021).
  18. S. H. Strogatz, Nonlinear Dynamics and Chaos: With Applications to Physics, Biology, Chemistry, and Engineering (CRC Press, Boca Raton, 2018).
  19. K. Bai, L. Fang, T.-R. Liu, J.-Z. Li, D. Wan, and M. Xiao, Nonlinearity-enabled higher-order exceptional singularities with ultra-enhanced signal-to-noise ratio, Natl. Sci. Rev. 10, nwac259 (2023).
  20. K. J. H. Peters and S. R. K. Rodriguez, Exceptional precision of a nonlinear optical sensor at a square-root singularity, Phys. Rev. Lett. 129, 013901 (2022).
  21. K. Bai, Jai-Z. Li, Tian-R. Liu, L. Fang, D. Wan, and M. Xiao, Nonlinear exceptional points with a complete basis in dynamics, Phys. Rev. Lett. 130, 266901 (2023).
  22. A. Roy, S. Jahani, Q. Guo, A. Dutt, S. Fan, M.-A. Miri, and A. Marandi, Nondissipative non-Hermitian dynamics and exceptional points in coupled optical parametric oscillators, Optica 8, 415 (2021).
  23. S. Longhi and L. Feng, Unidirectional lasing in semiconductor microring lasers at an exceptional point [invited], Photonics Res. 5, B1 (2017).
  24. K. Ji, Q. Zhong, L. Ge, G. Beaudoin, I. Sagnes, F. Raineri, R. El-Ganainy, and A. M. Yacomotti, Tracking exceptional points above the lasing threshold, Nat. Commun. 14, 8304 (2023).
  25. A. Fischer, T. V. Raziman, W. K. Ng, J. Clarysse, D. Saxena, J. Dranczewski, S. Vezzoli, H. Schmid, K. Moselund, and R. Sapienza, Controlling lasing around exceptional points in coupled nanolasers, npj Nanophotonics 1, 6 (2024).
  26. A. E. Siegman, Lasers (University Science Books, Mill Valley, CA, 1986).
  27. R. Lang, Injection locking properties of a semiconductor laser, IEEE J. Quantum Electron. 18, 976 (1982).
  28. S. Kobayashi and T. Kimura, Injection locking in AlGaAs semiconductor laser, IEEE J. Quantum Electron. 17, 681 (1981).
  29. R. Lang and K. Kobayashi, External optical feedback effects on semiconductor injection laser properties, IEEE J. Quantum Electron. 16, 347 (1980).
  30. S. Noda, K. Kojima, and K. Kyuma, Mutual injection-locking properties of monolithically-integrated surface-emitting multiple-quantum-well distributed feedback lasers, IEEE J. Quantum Electron. 26, 1883 (1990).
  31. K. Takata, A. Marandi, and Y. Yamamoto, Quantum correlation in degenerate optical parametric oscillators with mutual injections, Phys. Rev. A 92, 043821 (2015).
  32. Z. Wang, A. Marandi, K. Wen, R. L. Byer, and Y. Yamamoto, Coherent Ising machine based on degenerate optical parametric oscillators, Phys. Rev. A 88, 063853 (2013).
  33. T. Inagaki, Y. Haribara, K. Igarashi, T. Sonobe, S. Tamate, T. Honjo, A. Marandi, P. L. McMahon, T. Umeki, K. Enbutsu, O. Tadanaga, H. Takenouchi, K. Aihara, K. Ichi Kawarabayashi, K. Inoue, S. Utsunomiya, and H. Takesue, A coherent Ising machine for 2000-node optimization problems, Science 354, 603 (2016).
  34. N. Takemura, K. Takata, M. Takiguchi, and M. Notomi, Emulating the local Kuramoto model with an injection-locked photonic crystal laser array, Sci. Rep. 11, 8587 (2021).
  35. G. Madiot, Q. Chateiller, A. Bazin, P. Loren, K. Pantzas, G. Beaudoin, I. Sagnes, and F. Raineri, Harnessing coupled nanolasers near exceptional points for directional emission, Sci. Adv. 10, eadr8283 (2024).
  36. H. Nakao, Phase reduction approach to synchronisation of nonlinear oscillators, Contemp. Phys. 57, 188 (2016).
  37. J. Mulet, C. Masoller, and C. R. Mirasso, Modeling bidirectionally coupled single-mode semiconductor lasers, Phys. Rev. A 65, 063815 (2002).
  38. H. G. Winful and L. Rahman, Synchronized chaos and spatiotemporal chaos in arrays of coupled lasers, Phys. Rev. Lett. 65, 1575 (1990).
  39. K. S. Thornburg, M. Möller, R. Roy, T. W. Carr, R.-D. Li, and T. Erneux, Chaos and coherence in coupled lasers, Phys. Rev. E 55, 3865 (1997).
  40. K. Takata, A. Mock, M. Notomi, and A. Shinya, Higher-order exceptional points unveiled by nilpotence and mathematical induction, arXiv:2510.00623.
  41. A. Naweed, Photonic coherence effects from dual-waveguide coupled pair of co-resonant microring resonators, Opt. Express 23, 12573 (2015).
  42. C. Wang, X. Jiang, G. Zhao, M. Zhang, C. W. Hsu, B. Peng, A. D. Stone, L. Jiang, and L. Yang, Electromagnetically induced transparency at a chiral exceptional point, Nat. Phys. 16, 334 (2020).
  43. H. Sakaguchi, S. Shinomoto, and Y. Kuramoto, Mutual entrainment in oscillator lattices with nonvariational type interaction, Prog. Theor. Phys. 79, 1069 (1988).
