Angular anisotropy landscape of vortex ensembles in polarized small-angle neutron scattering

Michael P. Adams1,2,*, Elizabeth M. Jefremovas3,4, and Andreas Michels3

  • *Contact author: michael.adams@mpsd.mpg.de
PDF

Phys. Rev. Research 8, 023328 – Published 23 June, 2026

DOI: https://doi.org/10.1103/1sl5-s875

Abstract

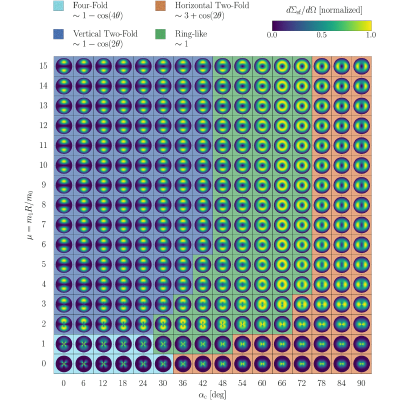

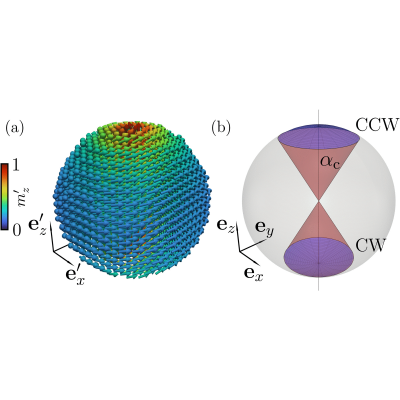

We present a symmetry-resolved classification of two-dimensional spin-flip small-angle neutron scattering (SANS) patterns arising from dilute ensembles of spherical nanoparticles hosting magnetic vortex states. Based on a linear vortex ansatz with an axially symmetric distribution of vortex axes and the corresponding analytical expression for the orientationally averaged spin-flip SANS cross section, we show that the angular scattering patterns organize into four distinct symmetry regimes: a fourfold anisotropy corresponding to coherent field-aligned magnetization, vertical and horizontal twofold anisotropies associated with aligned and isotropically distributed vortex ensembles, and an isotropic ringlike condition separating the two twofold regimes. The corresponding symmetry boundaries are obtained analytically and define a compact symmetry landscape in the parameter space of vortex amplitude and vortex-axis distribution width. Comparison with a nonlinear vortex profile shows that these symmetry regions are robust with respect to the detailed radial structure of the vortex core. The angular anisotropies are therefore governed primarily by rotational symmetry and by the statistical distribution of vortex axes, providing a compact and model-transparent classification framework of experimental polarized SANS data.

View figure in article

Physics Subject Headings (PhySH)

Article Text

References (24)

  1. M. Bersweiler, P. Bender, L. G. Vivas, M. Albino, M. Petrecca, S. Mühlbauer, S. Erokhin, D. Berkov, C. Sangregorio, and A. Michels, Size-dependent spatial magnetization profile of manganese-zinc ferrite Mn0.2Zn0.2Fe2.6O4 nanoparticles, Phys. Rev. B 100, 144434 (2019).
  2. D. Zákutná, D. Nižňanský, L. C. Barnsley, E. Babcock, Z. Salhi, A. Feoktystov, D. Honecker, and S. Disch, Field dependence of magnetic disorder in nanoparticles, Phys. Rev. X 10, 031019 (2020).
  3. L. G. Vivas, R. Yanes, D. Berkov, S. Erokhin, M. Bersweiler, D. Honecker, P. Bender, and A. Michels, Toward understanding complex spin textures in nanoparticles by magnetic neutron scattering, Phys. Rev. Lett. 125, 117201 (2020).
  4. D. Honecker, M. Bersweiler, S. Erokhin, D. Berkov, K. Chesnel, D. A. Venero, A. Qdemat, S. Disch, J. K. Jochum, A. Michels, and P. Bender, Using small-angle scattering to guide functional magnetic nanoparticle design, Nanoscale Adv. 4, 1026 (2022).
  5. M. Gerina, M. S. Angotzi, V. Mameli, V. Gajdošová, D. N. Rainer, M. Dopita, N.-J. Steinke, D. Aurélio, J. Vejpravová, and D. Zákutná, Size dependence of the surface spin disorder and surface anisotropy constant in ferrite nanoparticles, Nanoscale Adv. 5, 4563 (2023).
  6. M. Bersweiler, Y. Oba, E. Pratami Sinaga, I. Peral, I. Titov, M. P. Adams, V. Rai, K. L. Metlov, and A. Michels, Fingerprint of vortexlike flux closure in an isotropic Nd-Fe-B bulk magnet, Phys. Rev. B 108, 094434 (2023).
  7. I. Titov, M. Bersweiler, M. P. Adams, E. P. Sinaga, V. Rai, v. Liščák, M. Lahr, T. L. Schmidt, V. M. Kuchkin, A. Haller, K. Suzuki, N.-J. Steinke, D. A. Venero, D. Honecker, J. Kohlbrecher, L. F. Barquín, and A. Michels, Spin-disorder-induced angular anisotropy in polarized magnetic neutron scattering, Phys. Rev. Lett. 135, 196706 (2025).
  8. J. Borchers, K. Krycka, B. Bosch-Santos, E. de Lima Correa, A. Sharma, H. Carlton, Y. Dang, M. Donahue, C. Grüttner, R. Ivkov, and C. L. Dennis, Magnetic anisotropy dominates over physical and magnetic structure in performance of magnetic nanoflowers, Small Struct. 6, 2400410 (2025).
  9. E. L. Rösch, E. L. Wendt, R. Amin, J. Landers, M. Etzkorn, C. R. Everett, P. Müller-Buschbaum, H. Wende, M. Schilling, J. Leliaert, D. Honecker, L. Rochels, S. Disch, and A. Lak, Origin of wasp-waisted shape of magnetization hysteresis loops in CoxFe3−xO4 nanoassemblies for magnetic hyperthermia, ACS Appl. Nano Mater. 8, 18056 (2025).
  10. P. Bender, E. Wetterskog, D. Honecker, J. Fock, C. Frandsen, C. Moerland, L. K. Bogart, O. Posth, W. Szczerba, H. Gavilán, et al., Dipolar-coupled moment correlations in clusters of magnetic nanoparticles, Phys. Rev. B 98, 224420 (2018).
  11. P. Bender, D. Honecker, and L. F. Barquín, Supraferromagnetic correlations in clusters of magnetic nanoflowers, Appl. Phys. Lett. 115, 132406 (2019).
  12. D. Honecker, L. F. Barquín, and P. Bender, Magnetic structure factor of correlated moments in small-angle neutron scattering, Phys. Rev. B 101, 134401 (2020).
  13. F. J. Bonilla, L.-M. Lacroix, and T. Blon, Magnetic ground states in nanocuboids of cubic magnetocrystalline anisotropy, J. Magn. Magn. Mater. 428, 394 (2017).
  14. N. A. Usov, M. S. Nesmeyanov, and V. P. Tarasov, Magnetic vortices as efficient nano heaters in magnetic nanoparticle hyperthermia, Sci. Rep. 8, 1224 (2018).
  15. G. Niraula, D. Toneto, G. F. Goya, G. Zoppellaro, J. A. H. Coaquira, D. Muraca, J. C. Denardin, T. P. Almeida, M. Knobel, A. I. Ayesh, and S. K. Sharma, Observation of magnetic vortex configuration in non-stoichiometric Fe3O4 nanospheres, Nanoscale Adv. 5, 5015 (2023).
  16. C. Moya, M. Escoda-Torroella, J. Rodríguez-Álvarez, A. I. Figueroa, Í. García, I. B. Ferrer-Vidal, A. Gallo-Cordova, M. Puerto Morales, L. Aballe, A. Fraile Rodríguez, A. Labarta, and X. Batlle, Unveiling the crystal and magnetic texture of iron oxide nanoflowers, Nanoscale 16, 1942 (2024).
  17. E. M. Jefremovas, L. Calus, and J. Leliaert, Coercivity-size map of magnetic nanoflowers: Spin disorder tunes the vortex reversal mechanism and tailors the hyperthermia sweet spot, Small Sci. 6, e202500490 (2026).
  18. M. P. Adams and A. Michels, Minimal model for vortex nucleation and reversal in spherical magnetic nanoparticles, Phys. Rev. B 113, 224406 (2026).
  19. A. Aharoni, Introduction to the Theory of Ferromagnetism, 2nd ed. (Oxford University Press, Oxford, 2000).
  20. M. P. Adams, E. P. Sinaga, Š. Liščák, and A. Michels, Framework for polarized magnetic neutron scattering from nanoparticle assemblies with vortex-type spin textures, Phys. Rev. B 110, 014420 (2024).
  21. M. P. Adams, E. P. Sinaga, H. Kachkachi, and A. Michels, Signature of surface anisotropy in the spin-flip neutron scattering cross section of spherical nanoparticles: Atomistic simulations and analytical theory, Phys. Rev. B 109, 024429 (2024).
  22. K. L. Metlov and A. Michels, Magnetic neutron scattering by magnetic vortices in thin submicron-sized soft ferromagnetic cylinders, Sci. Rep. 6, 25055 (2016).
  23. M. P. Adams and A. Michels, NuMagSANS: A GPU-accelerated open-source software package for the generic computation of nuclear and magnetic small-angle neutron scattering observables of complex systems, J. Appl. Cryst. 59, 943 (2026).
  24. M. P. Adams, Angular anisotropy landscape of vortex ensembles in polarized small-angle neutron scattering—[Dataset], Zenodo, 2026, https://doi.org/10.5281/zenodo.19348079.
