Experimental limit on neutron orbital angular momentum detection using polarized He3

D. Sarenac1,*, O. Lailey2,3, D. V. Garrad3, P. R. Vadnere1, N. Shentevski1, C. W. Clark4, D. G. Cory2,5, J. P. Cotter6, H. Ekinci2,3 et al.

M. G. Huber7, J. W. Paster7, Y. Tzeng8, D. Alba Venero9, and D. A. Pushin2,3,†

  • *Contact author: dusansar@buffalo.edu
  • †Contact author: dmitry.pushin@uwaterloo.ca
PDF

Phys. Rev. Research 8, 043027 – Published 8 October, 2026

DOI: https://doi.org/10.1103/1mv3-khf8

Abstract

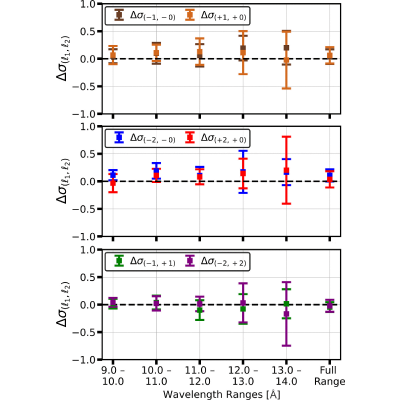

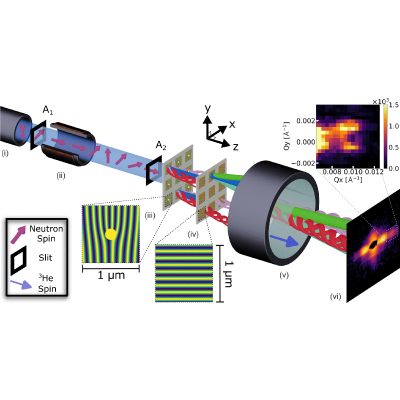

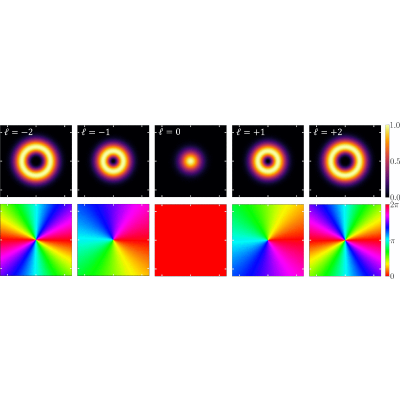

A recent proposal suggested that neutron orbital angular momentum (OAM) states could be detected via spin-polarized absorption in polarized He3, with predicted cross-section variations linked to the neutron’s OAM. We experimentally tested this hypothesis using spin-polarized neutron beams with OAM =−2 to 2, generated by fork-dislocation phase gratings and transmitted through a polarized He3 cell. Within statistical precision, no OAM-dependent change in the absorption cross section was observed. This null result places stringent constraints on polarized He3-based OAM detection schemes. The absence of an effect in the given regime is traced to the proposal’s disregard of the spatial character of neutron OAM: Unlike spin, OAM arises from the transverse phase structure of the wavefunction and couples only through spatial gradients and overlap. The transverse extent of neutron OAM modes expands rapidly, producing a doughnut-shaped intensity profile with negligible overlap with on-axis He3 nuclei, while off-axis capture samples only a locally uniform phase and reduces the interaction to the known spin dependence. These results establish the limits of absorptive nuclear methods for probing neutron OAM and emphasize the necessity of spatially resolved interactions in any viable detection scheme.

View figure in article

Physics Subject Headings (PhySH)

Article Text

References (28)

  1. H. Rubinsztein-Dunlop, A. Forbes, M. V. Berry, M. R. Dennis, D. L. Andrews, M. Mansuripur, C. Denz, C. Alpmann, P. Banzer, T. Bauer, et al., Roadmap on structured light, J. Opt. 19, 013001 (2017).
  2. K. Y. Bliokh, E. Karimi, M. J. Padgett, M. A. Alonso, M. R. Dennis, A. Dudley, A. Forbes, S. Zahedpour, S. W. Hancock, H. M. Milchberg, et al., Roadmap on structured waves, J. Opt. 25, 103001 (2023).
  3. I. P. Ivanov, Promises and challenges of high-energy vortex states collisions, Prog. Part. Nucl. Phys. 127 103987 (2022).
  4. L. Allen, M. W. Beijersbergen, R. J. C. Spreeuw, and J. P. Woerdman, Orbital angular momentum of light and the transformation of Laguerre-Gaussian laser modes, Phys. Rev. A 45, 8185 (1992).
  5. V. I. Bazhenov, M. V. Vasnetsov, and M. S. Soskin, Laser beams with wave front screw dislocations, Pis'ma Zh. Eksp. Teor. Fiz. 52, 1037 (1990) [Sov. Phys. JETP 16, 781 (1963)].
  6. J. Harris, V. Grillo, E. Mafakheri, G. C. Gazzadi, S. Frabboni, R. W. Boyd, and E. Karimi, Structured quantum waves, Nat. Phys. 11, 629 (2015).
  7. M. V. Berry and N. L. Balazs, Nonspreading wave packets, Am. J. Phys. 47, 264 (1979).
  8. D. Sarenac, O. Lailey, M. E. Henderson, H. Ekinci, C. W. Clark, D. G. Cory, L. DeBeer-Schmitt, M. G. Huber, J. S. White, K. Zhernenkov, et al., Generation of neutron Airy beams, Phys. Rev. Lett. 134, 153401 (2025).
  9. J. Durnin, J. J. Miceli, Jr., and J. H. Eberly, Diffraction-free beams, Phys. Rev. Lett. 58, 1499 (1987).
  10. D. Sarenac, M. E. Henderson, H. Ekinci, C. W. Clark, D. G. Cory, L. DeBeer-Schmitt, M. G. Huber, C. Kapahi, and D. A. Pushin, Experimental realization of neutron helical waves, Sci. Adv. 8, eadd2002 (2022).
  11. D. Sarenac, M. E. Henderson, H. Ekinci, C. W. Clark, D. G. Cory, L. DeBeer-Schmitt, M. G. Huber, O. Lailey, J. S. White, K. Zhernenkov, et al., Small-angle scattering interferometry with neutron orbital angular momentum states, Nat. Commun. 15, 10785 (2024).
  12. H. Larocque, I. Kaminer, V. Grillo, R. W. Boyd, and E. Karimi, Twisting neutrons may reveal their internal structure, Nat. Phys. 14, 1 (2018).
  13. C. T. Schmiegelow, J. Schulz, H. Kaufmann, T. Ruster, U. G. Poschinger, and F. Schmidt-Kaler, Transfer of optical orbital angular momentum to a bound electron, Nat. Commun. 7, 12998 (2016).
  14. A. Afanasev, C. E. Carlson, C. T. Schmiegelow, J. Schulz, F. Schmidt-Kaler, and M. Solyanik, Experimental verification of position-dependent angular-momentum selection rules for absorption of twisted light by a bound electron, New J. Phys. 20, 023032 (2018).
  15. A. V. Afanasev, D. V. Karlovets, and V. G. Serbo, Elastic scattering of twisted neutrons by nuclei, Phys. Rev. C 103, 054612 (2021).
  16. J. A. Sherwin, Scattering of slow twisted neutrons by ortho- and parahydrogen, Phys. Lett. A 437 128102 (2022).
  17. N. Geerits, S. Sponar, K. E. Steffen, W. M. Snow, S. R. Parnell, G. Mauri, G. N. Smith, R. M. Dalgliesh, and V. de Haan, Measuring the angular momentum of a neutron using Earth’s rotation, Phys. Rev. Res. 7, 013046 (2025).
  18. T. Jach and J. Vinson, Method for the definitive detection of orbital angular momentum states in neutrons by spin-polarized He3, Phys. Rev. C 105, L061601 (2022).
  19. M. E. Rose, Elementary Theory of Angular Momentum (New York Dover Publications, 1995).
  20. L. Passell and R. Schermer, Measurement of the spin dependence of the He3 (n, p)T reaction and of the nuclear susceptibility of adsorbed He3, Phys. Rev. 150, 146 (1966).
  21. A. T. O’Neil, I. MacVicar, L. Allen, and M. J. Padgett, Intrinsic and extrinsic nature of the orbital angular momentum of a light beam, Phys. Rev. Lett. 88, 053601 (2002).
  22. O. Arnold, J.-C. Bilheux, J. Borreguero, A. Buts, S. I. Campbell, L. Chapon, M. Doucet, N. Draper, R. F. Leal, M. Gigg, et al., Mantid—Data analysis and visualization package for neutron scattering and μsr experiments, Nucl. Instrum. Methods Phys. Res. Sect. A 764, 156 (2014).
  23. G. M. Drabkin, Analysis of energy spectrum of polarized neutrons with the aid of a magnetic field, Sov. Phys. JETP 16, 781 (1963).
  24. G. F. Knoll, Radiation Detection and Measurement, 4th ed. (John Wiley & Sons, Hoboken, NJ, 2010).
  25. O. Lailey, D. Sarenac, C. W. Clark, D. G. Cory, L. DeBeer-Schmitt, H. Ekinci, D. V. Garrad, M. E. Henderson, M. G. Huber, P. Vadnere, K. Zhernenkov, and D. A. Pushin, Multimode structured neutron beams, Opt. Express 34, 34960 (2026).
  26. T. R. Gentile, P. J. Nacher, B. Saam, and T. Walker, Optically polarized He3, Rev. Mod. Phys. 89, 045004 (2017).
  27. A. R. Wildes, Scientific reviews: Neutron polarization analysis corrections made easy, Neutron News 17, 17 (2006).
  28. O. Lailey, Data for neutron OAM and He3measurements, University of Waterloo GitLab, 2026, https://git.uwaterloo.ca/oalailey/neutron_oam_he3_data.
