  • Letter
  • Open Access

Breakthrough in field amplitude of high-temperature superconductors staggered-array undulators

Ryota Kinjo* and Satoshi Sato

Marco Calvi

  • *Contact author: ryota.kinjo@oit.ac.jp
PDF

Phys. Rev. Research 7, L042018 – Published 17 October, 2025

DOI: https://doi.org/10.1103/1f8q-lbfj

Abstract

The fundamental wavelength of undulator radiation and free-electron lasers depends on the period and magnetic field strength of the undulator. Shortening the undulator period and increasing the magnetic field strength are essential for achieving higher-energy radiation and increased flux. The most promising approach to date has been an undulator utilizing high-temperature superconductors (HTSs), particularly the bulk HTS staggered-array undulator (BHSAU). In this Letter, we demonstrated that adding a ring HTS can increase the magnetic field strength of the BHSAU to two to three times. It was found that the ring HTS not only provides an additional undulator magnetic field but also shields the solenoid magnetic field, allowing for stronger solenoid field variations without affecting the electron beam. This, in turn, enhances the magnetic field generated by the bulk HTS itself, resulting in an exceptionally strong undulator field. The magnetic field of the undulator is more than ten times stronger than that of in-vacuum permanent magnet-based structures of similar design, significantly enhancing the performance of synchrotron radiation and free-electron lasers.

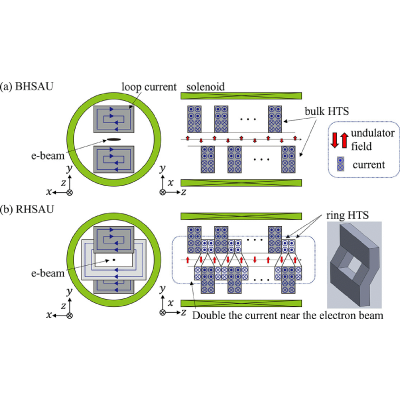

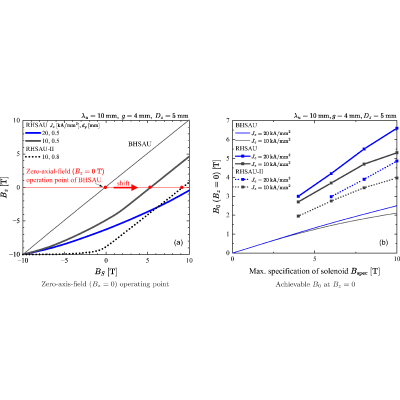

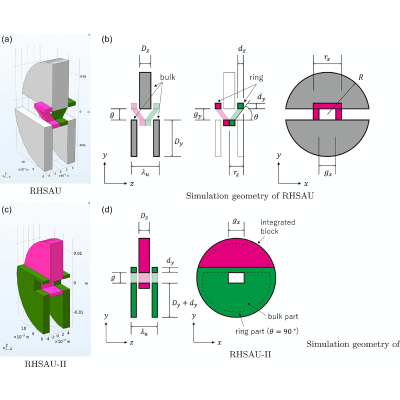

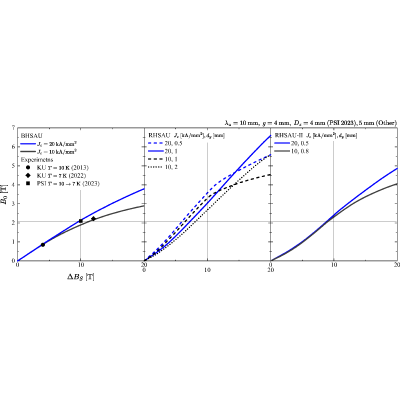

View figure in article

Physics Subject Headings (PhySH)

Article Text

References (22)

  1. M. Tomita and M. Murakami, High-temperature superconductor bulk magnets that can trap magnetic fields of over 17 Tesla at 29 K, Nature (London) 421, 517 (2003).
  2. J. H. Durrell, A. R. Dennis, J. Jaroszynski, M. D. Ainslie, K. G. B. Palmer, Y.-H. Shi, A. M. Campbell, J. Hull, M. Strasik, E. E. Hellstrom, and D. A. Cardwell, A trapped field of 17.6 T in melt-processed, bulk Gd-Ba-Cu-O reinforced with Shrink-fit steel, Supercond. Sci. Technol. 27, 082001 (2014).
  3. T. Tanaka, T. Hara, H. Kitamura, R. Tsuru, T. Bizen, X. Maréchal, and T. Seike, Application of high-temperature superconducting permanent magnets to synchrotron radiation sources, Phys. Rev. ST Accel. Beams 7, 090704 (2004).
  4. T. Tanaka, R. Tsuru, and H. Kitamura, Pure-type superconducting permanent-magnet undulator, J. Synchrotron Radiat. 12, 442 (2005).
  5. T. Tanaka, T. Hara, R. Tsuru, D. Iwaki, T. Bizen, X. Marechal, T. Seike, and H. Kitamura, Utilization of bulk high-temperature superconductors for shorter-period synchrotron radiation sources, Supercond. Sci. Technol. 19, S438 (2006).
  6. T. Tanabe, D. A. Harder, G. Rakowsky, T. Shaftan, and J. Skaritka, Insertion device R&D for NSLS-II, in Proceedings of PAC07, Albuquerque, New Mexico, USA (IEEE, New York, 2007).
  7. S. Prestemon, D. Dietderich, A. Madur, S. Marks, and R. Schlueter, High performance short-period undulators using high temperature superconductor tapes, in Proceedings of PAC09, Vancouver, BC, Canada (2009).
  8. T. Prikhna, Properties of MgB222 bulk, arXiv:0912.4906.
  9. M. Majoros, M. Sumption, M. Susner, S. Bhartiya, S. Bohnenstiehl, E. W. Collings, M. Tomsic, M. Rindfleisch, J. Phillips, D. Lyons, and J. Yue, A model superconducting helical undulator wound using a wind and react MgB2 multifilamentary wire, IEEE Trans. Appl. Supercond. 19, 1376 (2009).
  10. D. Weerakonda, A. Dennis, M. Calvi, and J. Durrell, Pulse magnetized superconducting bulk array undulator concept, Phys. Rev. Res. 6, L022060 (2024).
  11. R. Kinjo, T. Kii, H. Zen, K. Higashimura, K. Masuda, K. Nagasaki, and H. Ohgaki, A bulk high-Tc superconductor staggered array undulator, in Proceedings of FEL08, Gyeongju, Korea (2008).
  12. R. Kinjo, T. Kii, M. A. Bakr, K. Higashimura, K. Yoshida, S. Ueda, K. Masuda, K. Nagasaki, H. Ohgaki, T. Sonobe, and H. Zen, Numerical evaluation of bulk HTSC staggered array undulator by bean model, in Proceedings of FEL09, Liverpool, U.K. (2009).
  13. T. Kii, R. Kinjo, M. A. Bakr, T. Sonobe, K. Higashimura, K. Masuda, H. Ohgaki, K. Yoshida, and H. Zen, Proposal of a bulk htsc staggered array undulator, in AIP Conf. Proc. 1234, 539 (2010).
  14. R. Kinjo, M. Shibata, T. Kii, H. Zen, K. Masuda, K. Nagasaki, and H. Ohgaki, Demonstration of a high-field short-period undulator using bulk high-temperature superconductor, Appl. Phys. Express 6, 042701 (2013).
  15. R. Kinjo, K. Mishima, Y.-W. Choi, M. Omer, K. Yoshida, H. Negm, K. Torgasin, M. Shibata, K. Shimahashi, H. Imon, K. Okumura, M. Inukai, H. Zen, T. Kii, K. Masuda, K. Nagasaki, and H. Ohgaki, Magnetic property of a staggered-array undulator using a bulk high-temperature superconductor, Phys. Rev. ST Accel. Beams 17, 022401 (2014).
  16. T. Kii, Progress report of JSPS KAKENHI 17H01127 (in Japansese), https://kaken.nii.ac.jp/ja/file/KAKENHI-PROJECT-17H01127/17H01127seika.pdf (2022), accessed on 1 December 2024.
  17. K. Zhang, A. Pirotta, X. Liang, S. Hellmann, M. Bartkowiak, T. Schmidt, A. Dennis, M. Ainslie, J. Durrell, and M. Calvi, Record field in a 10 mm-period bulk high-temperature superconducting undulator, Supercond. Sci. Technol. 36, 05LT01 (2023).
  18. R. Kinjo, M. Calvi, K. Zhang, S. Hellmann, X. Liang, T. Schmidt, M. D. Ainslie, A. R. Dennis, and J. H. Durrell, Inverse analysis of critical current density in a bulk high-temperature superconducting undulator, Phys. Rev. Accel. Beams 25, 043502 (2022).
  19. M. Calvi, A. Arsenault, X. Liang, T. Schmidt, A. R. Dennis, J. H. Durrell, C. Gafa, A. Sammut, N. Sammut, M. D. Ainslie, R. Kinjo, K. Zhang, and S. Hellmann, Experimental results of a YBCO bulk superconducting undulator magnetic optimization, Phys. Rev. Accel. Beams 27, 100702 (2024).
  20. COMSOL Multiphysics®, v. 6.3. http://www.comsol.com. COMSOL AB, Stockholm, Sweden (2020).
  21. J. Sheng, M. Zhang, Y. Wang, X. Li, J. Patel, and W. Yuan, A new ring-shape high-temperature superconducting trapped-field magnet, Supercond. Sci. Technol. 30, 094002 (2017).
  22. I. Asparuhov, Staggered undulator x-ray source for low emittance electron storage ring, Ph.D. thesis, Université Grenoble Alpes, 2023.
