- Physical Review Journals
All JournalsPhysics Magazine

Physical Review Materials

Reuse & Permissions

It is not necessary to obtain permission to reuse this article or its components as it is available under the terms of the Creative Commons Attribution 4.0 International license. This license permits unrestricted use, distribution, and reproduction in any medium, provided attribution to the author(s) and the published article's title, journal citation, and DOI are maintained. Please note that some figures may have been included with permission from other third parties. It is your responsibility to obtain the proper permission from the rights holder directly for these figures.

Export citation

Export citation

Choose format for download:

Download Citation
  • Open Access

Oxygen defect formation and migration in Sr2FeO4−δ: Insights from first principles DFT calculations with the PBE+U functional

Yuri A. Mastrikov1,2,*, Denis Gryaznov1,†, Andrew Chesnokov1, Guntars Zvejnieks1, Maksim Sokolov1,3, Maija M. Kuklja2, Rotraut Merkle4, and Eugene A. Kotomin1,4

  • *Contact author: yuri.mastrikov@cfi.lu.lv
  • †Contact author: gryaznov@cfi.lu.lv
PDF

Phys. Rev. Materials 9, 105801 – Published 30 October, 2025

DOI: https://doi.org/10.1103/v8m7-prgq

Abstract

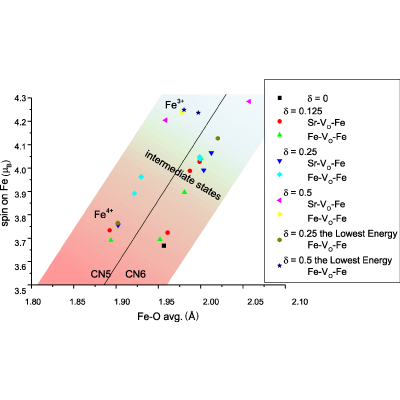

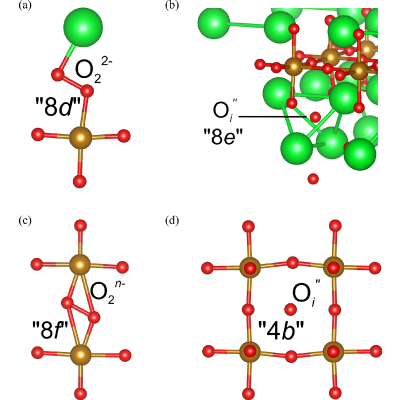

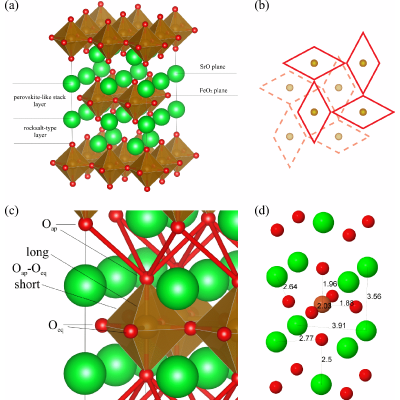

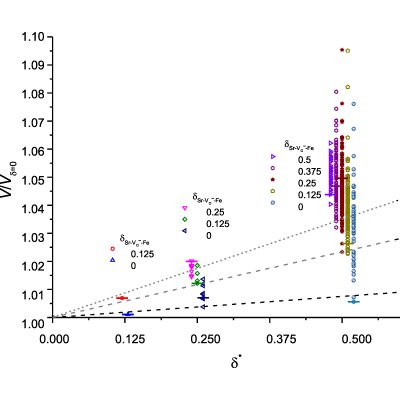

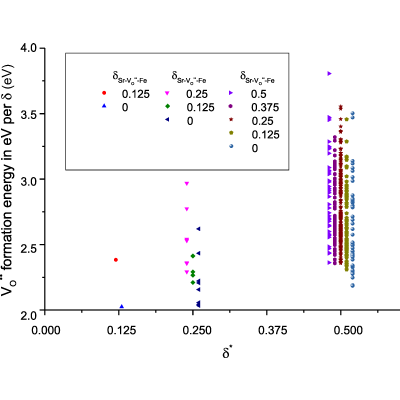

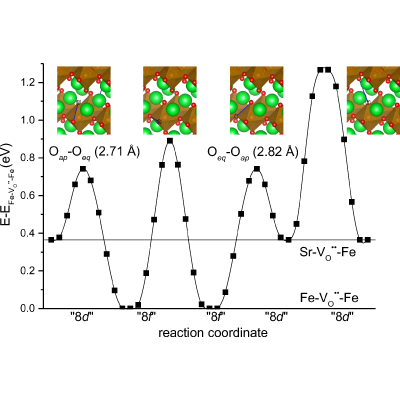

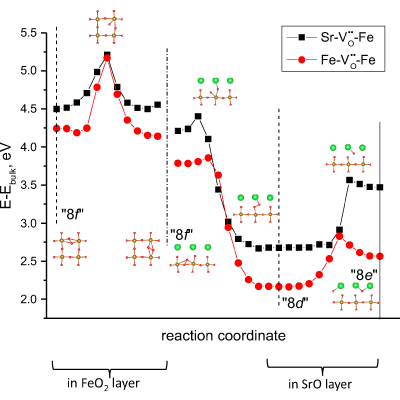

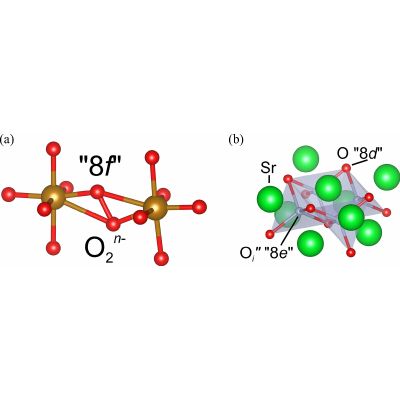

Sr2FeO4−δ is a first-order Ruddlesden-Popper perovsike-type material, prospective as a positrode (O-electrode) material for solid oxide and protonic ceramic electrochemical cells. By means of DFT+Ueff, oxygen vacancies (VO••) and interstitials (Oi″) have been modelled in a broad oxygen stoichiometry range of δ=0.125 to 0.5. For each δ value, all symmetry inequivalent configurations were identified, yielding the VO•• formation energy in the range of 2.0–2.4 eV, almost independent of δ (unlike for simple perovskites). We assign the individual Fe charge states in Sr2FeO4−δ (“oxidation state map”) based on magnetic moment and average Fe-O distance. Interestingly, VO•• and Fe3+ energetically prefer not to be nearest neighbors. Regarding oxygen interstitial species, a Sr−O22−−Fe defect is the most stable form. Oxygen interstitial transport mechanism occurs predominantly within the SrO layer with the intermediate formation of a single oxide Oi2− and an average barrier of 0.5 eV. Oxygen vacancy migration is preferred along a zig-zag path within the FeO2 layer with an effective barrier of 0.6 eV. The comprehensive analysis of Sr2FeO4−δ—serving as prototype also for higher Ruddlesden-Popper phases—including oxidation state map and oxygen defect migration, paves the way for coming investigations of the protonated materials.

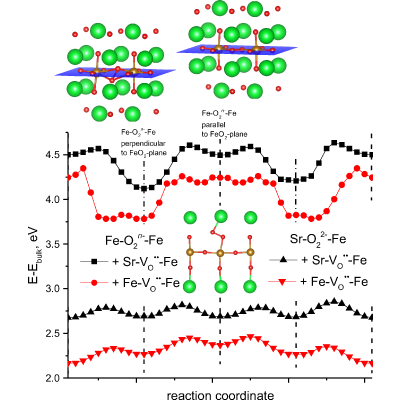

View figure in article

Physics Subject Headings (PhySH)

Article Text

Supplemental Material

References (96)

  1. A. P. Tarutin, E. A. Filonova, S. Ricote, D. A. Medvedev, and Z. Shao, Chemical design of oxygen electrodes for solid oxide electrochemical cells: A guide, Sustain. Energy Technol. Assessments 57, 103185 (2023).
  2. J. Cao, Y. Ji, and Z. Shao, Perovskites for protonic ceramic fuel cells: A review, Energy Environ. Sci. 15, 2200 (2022).
  3. M. Papac, V. Stevanović, A. Zakutayev, and R. O’Hayre, Triple ionic–electronic conducting oxides for next-generation electrochemical devices, Nat. Mater. 20, 301 (2021).
  4. R. Merkle, M. F. Hoedl, G. Raimondi, R. Zohourian, and J. Maier, Oxides with mixed protonic and electronic conductivity, Annu. Rev. Mater. Res. 51, 461 (2021).
  5. S. N. Ruddlesden and P. Popper, IUCr. New compounds of the K2NiF4 type, Acta Cryst. Short Commun. 10, 538 (1957).
  6. F. A. Kröger and H. J. Vink, Relations between the concentrations of imperfections in crystalline solids, Solid State Phys. 3, 307 (1956).
  7. R. Zohourian, R. Merkle, G. Raimondi, and J. Maier, Mixed-conducting perovskites as cathode materials for protonic ceramic fuel cells: Understanding the trends in proton uptake, Adv. Funct. Mater. 28, 1801241 (2018).
  8. M. F. Hoedl, D. Gryaznov, R. Merkle, E. A. Kotomin, and J. Maier, Interdependence of oxygenation and hydration in mixed-conducting (Ba,Sr)FeO3−δ perovskites studied by density functional theory, J. Phys. Chem. C 124, 11780 (2020).
  9. S. J. Skinner and J. A. Kilner, Oxygen diffusion and surface exchange in La2−xSrxNiO4+δ, Solid State Ionics 135, 709 (2000).
  10. E. Boehm, J.-M. Bassat, M. C. Steil, P. Dordor, F. Mauvy, and J.-C. Grenier, Oxygen transport properties of La2Ni1−xCuxO4+δ mixed conducting oxides, Solid State Sci. 5, 973 (2003).
  11. E. S. Tropin, M. V. Ananyev, A. S. Farlenkov, A. V. Khodimchuk, A. V. Berenov, A. V. Fetisov, V. A. Eremin, and A. A. Kolchugin, Surface defect chemistry and oxygen exchange kinetics in La2–xCaxNiO4+δ, J. Solid State Chem. 262, 199 (2018).
  12. C. Berger, E. Bucher, A. Egger, A. T. Strasser, N. Schrödl, C. Gspan, J. Hofer, and W. Sitte, Synthesis and characterization of the novel K2NiF4-type oxide Pr2Ni0.9Co0.1O4+δ, Solid State Ionics 316, 93 (2018).
  13. S. Eisbacher-Lubensky, A. Egger, W. Sitte, and E. Bucher, Oxygen exchange and transport properties of the first-order Ruddlesden-Popper phase La2Ni0.9Co0.1O4+δ, Solid State Ionics 397, 116255 (2023).
  14. C. Berger, E. Bucher, A. Egger, N. Schrödl, J. Lammer, C. Gspan, R. Merkle, W. Grogger, J. Maier, and W. Sitte, Oxygen surface exchange kinetics and electronic conductivity of the third-order Ruddlesden-Popper phase Pr4Ni2.7Co0.3O10−δ, Solid State Ionics 348, 115282 (2020).
  15. P. Zhong, K. Toyoura, L. Jiang, L. Chen, S. A. Ismail, N. Hatada, T. Norby, and D. Han, Protonic conduction in La2NiO4+δ and La2−xAxNiO4+δ (A=Ca, Sr, Ba) Ruddlesden–Popper type oxides, Adv. Energy Mater. 12, 2200392 (2022).
  16. A. Grimaud, F. Mauvy, J. Marc Bassat, S. Fourcade, M. Marrony, and J. Claude Grenier, Hydration and transport properties of the Pr2−xSrxNiO4+δ compounds as H+-SOFC cathodes, J. Mater. Chem. 22, 16017 (2012).
  17. A. P. Tarutin, N. A. Danilov, A. A. Kalinin, A. A. Murashkina, and D. A. Medvedev, Ba-Doped Pr2NiO4+δ electrodes for proton-conducting electrochemical cells. part 1: Structure, mechanical, and chemical properties, Int. J. Hydrogen Energy 48, 22531 (2023).
  18. E. J. Crumlin, E. Mutoro, S.-J. Ahn, G. J. la O’, D. N. Leonard, A. Borisevich, M. D. Biegalski, H. M. Christen, and Y. Shao-Horn, Oxygen reduction kinetics enhancement on a heterostructured oxide surface for solid oxide fuel cells, J. Phys. Chem. Lett. 1, 3149 (2010).
  19. Y. Chen, Z. Cai, Y. Kuru, W. Ma, H. L. Tuller, and B. Yildiz, Electronic activation of cathode superlattices at elevated temperatures–source of markedly accelerated oxygen reduction kinetics, Adv. Energy Mater. 3, 1221 (2013).
  20. S. Stämmler, R. Merkle, and J. Maier, Oxygen exchange activity of La-Sr-Co-O PLD films and quantification of (La,Sr)CoO3−δ/(La,Sr)2CoO4+δ/O2 triple phase boundary activity, J. Electrochem. Soc. 164, F454 (2017).
  21. Z. Wang, W. Yang, S. P. Shafi, L. Bi, Z. Wang, R. Peng, C. Xia, W. Liu, and Y. Lu, A high performance cathode for proton conducting solid oxide fuel cells, J. Mater. Chem. A 3, 8405 (2015).
  22. W. Tan, D. Huan, W. Yang, N. Shi, W. Wang, R. Peng, X. Wu, and Y. Lu, A first-principles study on divergent reactions of using a Sr3Fe2O7 cathode in both oxygen ion conducting and proton conducting solid oxide fuel cells, RSC Adv. 8, 26448 (2018).
  23. K. Dong, J. Hou, L. Miao, Z. Jin, D. Wang, Y. Teng, and W. Liu, A comparative study of the R-P phase Srn+1FenO3n+1 (N=1, 2 and 3) cathodes for intermediate temperature solid oxide fuel cells, Ceram. Int. 46, 19335 (2020).
  24. Z. Jin, R. Peng, Y. Xia, Z. Wang, and W. Liu, Computational investigation of Zn-Doped and undoped SrEu2Fe2O7 as potential mixed electron and proton conductors, RSC Adv. 10, 39988 (2020).
  25. M. Lehtimäki, A. Hirasa, M. Matvejeff, H. Yamauchi, and M. Karppinen, Water-containing derivative phases of the Srn+1FenO3n+1 series, J. Solid State Chem. 180, 3247 (2007).
  26. V. Øygarden, H. Fjellvåg, M. H. Sørby, and A. O. Sjåstad, Crystal structure of LaSr3Fe3O8(OH)2·xH2O, Inorg. Chem. 55, 7630 (2016).
  27. P. Adler, L. Schröder, K. Teske, M. Reehuis, A. Hoser, P. Merz, W. Schnelle, C. Felser, and M. Jansen, Oxygen deficiency in Sr2FeO4−x: Electrochemical control and impact on magnetic properties, Phys. Chem. Chem. Phys. 24, 17028 (2022).
  28. M. Abbate, G. Zampieri, J. Okamoto, A. Fujimori, S. Kawasaki, and M. Takano, X-ray absorption of the negative charge-transfer material SrFe1−xCoxO3, Phys. Rev. B 65, 165120 (2002).
  29. M. Abbate, H. Ascolani, F. Prado, and A. Caneiro, Electronic structure and band gap of the negative charge-transfer material Sr3Fe2O7, Solid State Commun. 129, 113 (2004).
  30. Y. Ling, T. Guo, X. Zhang, R. A. Budiman, Y. Fujimaki, T. Nakamura, B. Lin, T. Kawada, and K. Amezawa, Evaluation of electrical conductivity and oxygen diffusivity of the typical Ruddlesden-Popper oxide Sr3Fe2O7−δ, Ceram. Int. 43, 16264 (2017).
  31. S. E. Dann, M. T. Weller, and D. B. Currie, The synthesis and structure of Sr2FeO4, J. Solid State Chem. 92, 237 (1991).
  32. D. Gryaznov, R. Merkle, E. A. Kotomin, and J. Maier, Ab initio modelling of oxygen vacancies and protonic defects in La1−xSrxFeO3−δ perovskite solid solutions, J. Mater. Chem. A 4, 13093 (2016).
  33. Y. Ling, F. Wang, Y. Okamoto, T. Nakamura, and K. Amezawa, Oxygen nonstoichiometry and thermodynamic explanation of large oxygen-deficient Ruddlesden–Popper oxides LaxSr3−xFe2O7−δ, J. Am. Ceram. Soc. 99, 3792 (2016).
  34. E. V. Tsipis, E. N. Naumovich, M. V. Patrakeev, and V. V. Kharton, Oxygen intercalation in Ruddlesden-Popper type Sr3LaFe3O10−δ, Mater. Lett. 218, 325 (2018).
  35. N. A. Szaro, S. C. Ammal, F. Chen, and A. Heyden, An ab initio study of the oxygen defect formation and oxide ion migration in (Sr1−xPrx)2FeO4±δ, J. Power Sources 515, 230602 (2021).
  36. S. L. Dudarev, G. A. Botton, S. Y. Savrasov, C. J. Humphreys, and A. P. Sutton, Electron-energy-loss spectra and the structural stability of nickel oxide:   An LSDA+U study, Phys. Rev. B 57, 1505 (1998).
  37. G. Kresse and J. Furthmüller, Efficient iterative schemes for ab initio total-energy calculations using a plane-wave basis set, Phys. Rev. B 54, 11169 (1996).
  38. M. F. Hoedl, A. Chesnokov, D. Gryaznov, R. Merkle, E. A. Kotomin, and J. Maier, Proton migration barriers in BaFeO3−δ–insights from DFT calculations, J. Mater. Chem. A 11, 6336 (2023).
  39. See Supplemental Material at http://link.aps.org/supplemental/10.1103/v8m7-prgq for the detailed information on Sr2FeO4 and SrFeO3 basic properties, Sr2FeO4−d defect configurations and their properties, the defect interaction and formation energies, the analysis of Fe oxidation state in Sr2FeO4−d, oxygen interstitial and vacancy migration in Sr2FeO4−d. The supplemental Material also contains Refs.  [40, 52, 59].
  40. A. V. Krukau, O. A. Vydrov, A. F. Izmaylov, and G. E. Scuseria, Influence of the exchange screening parameter on the performance of screened hybrid functionals, J. Chem. Phys. 125, 224106 (2006).
  41. P. E. Blöchl, Projector augmented-wave method, Phys. Rev. B 50, 17953 (1994).
  42. D. Vanderbilt, Soft self-consistent pseudopotentials in a generalized eigenvalue formalism, Phys. Rev. B 41, 7892 (1990).
  43. G. Kresse and D. Joubert, From ultrasoft pseudopotentials to the projector augmented-wave method, Phys. Rev. B 59, 1758 (1999).
  44. H. J. Monkhorst and J. D. Pack, Special points for brillouin-zone integrations, Phys. Rev. B 13, 5188 (1976).
  45. J. P. Perdew, K. Burke, and M. Ernzerhof, Generalized gradient approximation made simple, Phys. Rev. Lett. 77, 3865 (1996).
  46. W. Tang, E. Sanville, and G. Henkelman, A grid-based bader analysis algorithm without lattice bias, J. Phys. Condens. Matter 21, 84204 (2009).
  47. J. Speight, Lange's Handbook of Chemistry, Sixteenth Edition (McGraw-Hill Education LLC, New York, 2005).
  48. S. E. Dann, M. T. Weller, D. B. Currie, M. F. Thomas, and A. D. Al-Rawwas, Structure and magnetic properties of Sr2FeO4 and Sr3Fe2O7 studied by powder neutron diffraction and Mössbauer spectroscopy, J. Mater. Chem. 3, 1231 (1993).
  49. P. Adler, M. Reehuis, N. Stüsser, S. A. Medvedev, M. Nicklas, D. C. Peets, J. Bertinshaw, C. K. Christensen, M. Etter, A. Hoser, L. Schröder, P. Merz, W. Schnelle, A. Schulz, Q. Mu, D. Bessas, A. Chumakov, M. Jansen, and C. Felser, Spiral magnetism, spin flop, and pressure-induced ferromagnetism in the negative charge-transfer-gap insulator Sr2FeO4, Phys. Rev. B 105, 054417 (2022).
  50. G. Zvejnieks, Y. Mastrikov, and D. Gryaznov, Jahn–teller distortion in Sr2FeO4: Group-theoretical analysis and hybrid DFT calculations, Sci. Rep. 13, 16446 (2023).
  51. K. Momma and F. Izumi, VESTA: A three-dimensional visualization system for electronic and structural analysis, J. Appl. Crystallogr. 41, 653 (2008).
  52. K. Okhotnikov, T. Charpentier, and S. Cadars, Supercell program: A combinatorial structure-generation approach for the local-level modeling of atomic substitutions and partial occupancies in crystals, J. Cheminform. 8, 17 (2016).
  53. R. Grau-Crespo, A. Y. Al-Baitai, I. Saadoune, and N. H. De Leeuw, Vacancy ordering and electronic structure of γ−Fe2O3 (maghemite): A theoretical investigation, J. Phys. Condens. Matter 22, 255401 (2010).
  54. M. Hoffmann, A. Ernst, W. Hergert, V. N. Antonov, W. A. Adeagbo, R. M. Geilhufe, and H. Ben Hamed, Magnetic and electronic properties of complex oxides from first-principles, Phys. Status Solidi 257, 1900671 (2020).
  55. V. M. Zainullina, M. A. Korotin, and V. L. Kozhevnikov, Electronic structure of SrFe1−x(Mn,Co)xO3−δ: A CPA case study, J. Alloys Compd. 971, 172660 (2024).
  56. J. Park, B. Xu, J. Pan, D. Zhang, S. Lany, X. Liu, J. Luo, and Y. Qi, Accurate prediction of oxygen vacancy concentration with disordered a-site cations in high-entropy perovskite oxides, npj Comput. Mater. 9, 29 (2023).
  57. W. Xie, Y.-L. Lee, Y. Shao-Horn, and D. Morgan, Oxygen point defect chemistry in Ruddlesden-Popper oxides (La1−xSrx)2MO4±δ (M=Co, Ni, Cu), J. Phys. Chem. Lett. 7, 1939 (2016).
  58. V. I. Razumovskiy, Thermodynamics of vacancy formation in the CoCrFeMnNi high entropy alloy from DFT calculations, Asp. Min. Miner. Sci. 8, 971 (2022).
  59. Y. A. Mastrikov, M. N. Sokolov, S. Koch, Y. F. Zhukovskii, A. Gopejenko, P. V. Vladimirov, V. A. Borodin, E. A. Kotomin, and A. Möslang, Ab Initio modelling of the initial stages of the ODS particle formation process, Nucl. Instruments Methods Phys. Res. Sect. B Beam Interact. with Mater. Atoms 435, 70 (2018).
  60. SCRIPTS—Transition State Tools for VASP. https://theory.cm.utexas.edu/vtsttools/scripts.html (accessed 2024-03-10).
  61. G. Henkelman, B. P. Uberuaga, and H. Jónsson, A climbing image nudged elastic band method for finding saddle points and minimum energy paths, J. Chem. Phys. 113, 9901 (2000).
  62. A. der Ven, G. Ceder, M. Asta, and P. D. Tepesch, First-principles theory of ionic diffusion with nondilute carriers, Phys. Rev. B 64, 184307 (2001).
  63. J. H. Chang, P. B. Jørgensen, S. Loftager, A. Bhowmik, J. M. G. Lastra, and T. Vegge, On-the-fly assessment of diffusion barriers of disordered transition metal oxyfluorides using local descriptors, Electrochim. Acta 388, 138551 (2021).
  64. A. J. Samin, D. A. Andersson, E. F. Holby, and B. P. Uberuaga, Ab initio based examination of the kinetics and thermodynamics of oxygen in Fe-Cr alloys, Phys. Rev. B 99, 174202 (2019).
  65. X. Zhang, S. V. Divinski, and B. Grabowski, Ab Initio prediction of vacancy energetics in HCP Al-Hf-Sc-Ti-Zr high entropy alloys and the subsystems, Acta Mater. 227, 117677 (2022).
  66. R. Dovesi, F. Pascale, B. Civalleri, K. Doll, N. M. Harrison, I. Bush, P. D’Arco, Y. Noël, M. Rérat, P. Carbonnière, M. Causà, S. Salustro, V. Lacivita, B. Kirtman, A. M. Ferrari, F. S. Gentile, J. Baima, M. Ferrero, R. Demichelis, and M. D. La Pierre, The CRYSTAL code, 1976–2020 and beyond, a long story, J. Chem. Phys. 152, 204111 (2020).
  67. I. B. Bersuker, Four modifications of the jahn–teller effects. the problem of observables: Spin–orbit interaction, tunneling splitting, and orientational polarization of solids, Phys. Chem. Chem. Phys. 25, 1556 (2023).
  68. I. B. Bersuker, Pseudo-Jahn–Teller effect—a two-state paradigm in formation, deformation, and transformation of molecular systems and solids, Chem. Rev. 113, 1351 (2013).
  69. E. Niwa, K. Wakai, T. Hori, T. Nakamura, K. Yashiro, J. Mizusaki, and T. Hashimoto, Analysis of structural phase transition behavior of Ln2NiO4+δ (Ln: Nd, Pr) with variation of oxygen content, Solid State Ionics 262, 724 (2014).
  70. T. Nakamura, K. Yashiro, K. Sato, and J. Mizusaki, Thermally-induced and chemically-induced structural changes in layered perovskite-type oxides Nd2−xSrxNiO4+δ (X=0, 0.2, 0.4), Solid State Ionics 181, 402 (2010).
  71. N. Hayashi, T. Yamamoto, A. Kitada, A. Matsuo, K. Kindo, J. Hester, H. Kageyama, and M. Takano, Field-induced ferromagnetism of Fe4+-perovskite system, Sr1−xBaxFeO3 (0≤x≤1), J. Phys. Soc. Jpn. 82, 113702 (2013).
  72. T. Das, J. D. Nicholas, and Y. Qi, Long-range charge transfer and oxygen vacancy interactions in strontium ferrite, J. Mater. Chem. A 5, 4493 (2017).
  73. Y.-L. Lee, J. Kleis, J. Rossmeisl, Y. Shao-Horn, and D. Morgan, Prediction of solid oxide fuel cell cathode activity with first-principles descriptors, Energy Environ. Sci. 4, 3966 (2011).
  74. M. F. Hoedl, Electronic structure and defect chemistry in iron perovskites, Ph.D. thesis University of Stuttgart, 2021.
  75. M. Vračar, A. Kuzmin, R. Merkle, J. Purans, E. A. Kotomin, J. Maier, and O. Mathon, Jahn-Teller distortion around Fe4+ in Sr(FexTi1−x)O3−δ from x-ray absorption spectroscopy, x-ray diffraction, and vibrational spectroscopy, Phys. Rev. B 76, 174107 (2007).
  76. H. L. Lein, K. Wiik, and T. Grande, Thermal and chemical expansion of mixed conducting La0.5Sr0.5Fe1−xCoxO3−δ materials, Solid State Ionics 177, 1795 (2006).
  77. NIST Chemistry WebBook. https://webbook.nist.gov/chemistry/ (accessed 2024-06-05).
  78. D. Gryaznov, M. W. Finnis, R. A. Evarestov, and J. Maier, Oxygen vacancy formation energies in Sr-doped complex perovskites: Ab initio thermodynamic study, Solid State Ionics 254, 11 (2014).
  79. A. Chesnokov, D. Gryaznov, and E. Kotomin, First principles calculations on CeO2 doped with Tb3+ ions, Opt. Mater. (Amst). 90, 76 (2019).
  80. J. Kilner and R. Brook, A study of oxygen ion conductivity in doped non-stoichiometric oxides, Solid State Ionics 6, 237 (1982).
  81. A. E. Bocquet, A. Fujimori, T. Mizokawa, T. Saitoh, H. Namatame, S. Suga, N. Kimizuka, Y. Takeda, and M. Takano, Electronic structure of SrFe4+O3 and related Fe perovskite oxides, Phys. Rev. B 45, 1561 (1992).
  82. S. Kitou, M. Gen, Y. Nakamura, K. Sugimoto, Y. Tokunaga, S. Ishiwata, and Taka-hisa Arima, Real-space observation of ligand hole state in cubic perovskite SrFeO3, Adv. Sci. 10, 2302839 (2023).
  83. Z. Li, R. Laskowski, T. Iitaka, and T. Tohyama, First-principles calculation of helical spin order in iron perovskite SrFeO3 and BaFeO3, Phys. Rev. B 85, 134419 (2012).
  84. T. S. Bjørheim, M. F. Hoedl, R. Merkle, E. A. Kotomin, and J. Maier, Hydroxide ion, and oxide ion affinities of closed-shell oxides: Importance for the hydration reaction and correlation to electronic structure, J. Phys. Chem. C 124, 1277 (2020).
  85. A. A. Sokol, A. Walsh, and C. R. A. Catlow, Oxygen interstitial structures in close-packed metal oxides, Chem. Phys. Lett. 492, 44 (2010).
  86. R. A. Evarestov, A. Platonenko, D. Gryaznov, Y. F. Zhukovskii, and E. A. Kotomin, First-principles calculations of oxygen interstitials in corundum: A site symmetry approach, Phys. Chem. Chem. Phys. 19, 25245 (2017).
  87. M. M. Kuklja, Y. A. Mastrikov, B. Jansang, and E. A. Kotomin, The intrinsic defects, disordering, and structural stability of BaxSr1−xCoyFe1−yO3−δ perovskite solid solutions, J. Phys. Chem. C 116, 18605 (2012).
  88. T. Brudevoll, E. A. Kotomin, and N. E. Christensen, Interstitial-oxygen-atom diffusion in MgO, Phys. Rev. B 53, 7731 (1996).
  89. A. Lushchik, V. N. Kuzovkov, E. A. Kotomin, G. Prieditis, V. Seeman, E. Shablonin, E. Vasil'chenko, and A. I. Popov, Evidence for the formation of two types of oxygen interstitials in neutron-irradiated α−Al2O3 single crystals, Sci. Rep. 11, 20909 (2021).
  90. Y. A. Mastrikov, R. Merkle, E. A. Kotomin, M. M. M. Kuklja, and J. Maier, Surface termination effects on the oxygen reduction reaction rate at fuel cell cathodes, J. Mater. Chem. A 6, 11929 (2018).
  91. A. Kushima, D. Parfitt, A. Chroneos, B. Yildiz, J. A. Kilner, and R. W. Grimes, Interstitialcy diffusion of oxygen in tetragonal La2CoO4+δ, Phys. Chem. Chem. Phys. 13, 2242 (2011).
  92. A. Chroneos, D. Parfitt, J. A. Kilner, and R. W. Grimes, Anisotropic oxygen diffusion in tetragonal La2NiO4+δ: Molecular dynamics calculations, J. Mater. Chem. 20, 266 (2010).
  93. S. Xu, R. Jacobs, and D. Morgan, Factors controlling oxygen interstitial diffusion in the Ruddlesden–Popper oxide La2–xSrxNiO4+δ, Chem. Mater. 30, 7166 (2018).
  94. C. Tealdi, C. Ferrara, P. Mustarelli, and M. S. Islam, Vacancy and interstitial oxide ion migration in heavily doped La2−xSrxCoO4±δ, J. Mater. Chem. 22, 8969 (2012).
  95. E. J. Opila, H. L. Tuller, B. J. Wuensch, and J. Maier, Oxygen tracer diffusion in La2−xSrxCuO4−y single crystals, J. Am. Ceram. Soc. 76, 2363 (1993).
  96. D. Lee and H. N. Lee, Controlling oxygen mobility in Ruddlesden–Popper oxides, Materials (Basel). 10, 368 (2017).

Outline

Information

Phys. Rev. Materials 9, 105801– Published 30 October, 2025
  • Received 23 September 2024
  • Accepted 23 May 2025
Crossmark - Check for updates button
Creative Commons Logo

Published by the American Physical Society under the terms of the Creative Commons Attribution 4.0 International license. Further distribution of this work must maintain attribution to the author(s) and the published article's title, journal citation, and DOI.

Published by the American Physical Society

Sign In to Your Journals Account

Filter

Filter

Article Lookup

Enter a citation
