Noncollinear ferrimagnetic structures and spin dynamics in Al-doped lithium ferrites

S.-H. Park1,*, A. Arauzo2,†, S. Inckemann1,‡, and M. Avdeev3,4,§

  • *Contact author: sohyun.park@lmu.de
  • †Contact author: aarauzo@unizar.es
  • ‡Contact author: sebastian.inckemann@gmx.de
  • §Contact author: max@ansto.gov.au
PDF

Phys. Rev. Materials 10, 064414 – Published 24 June, 2026

DOI: https://doi.org/10.1103/rqyh-8cdf

Abstract

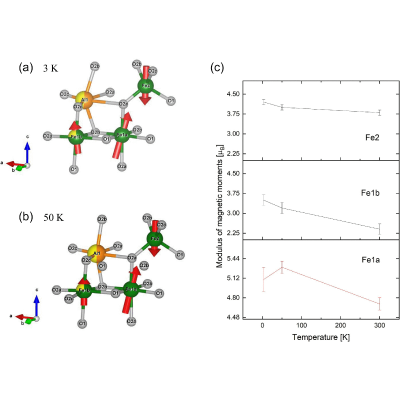

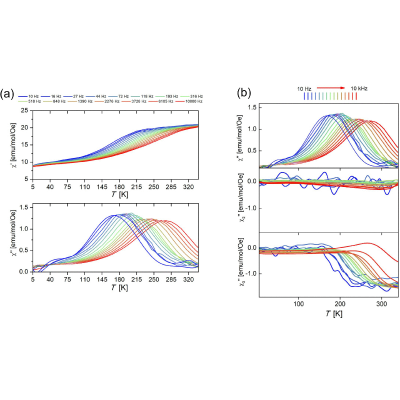

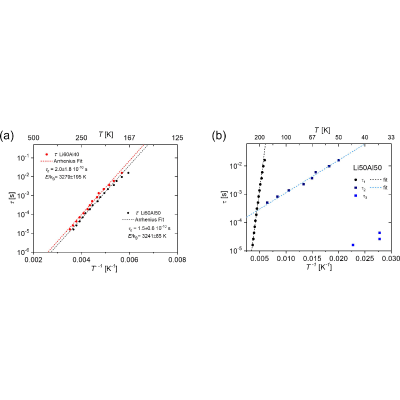

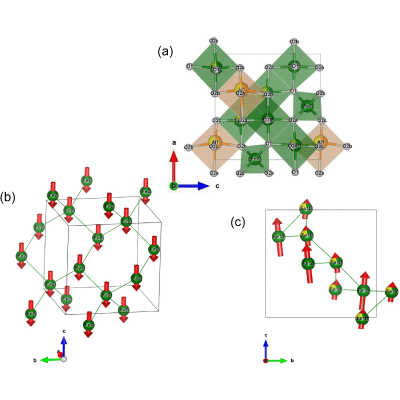

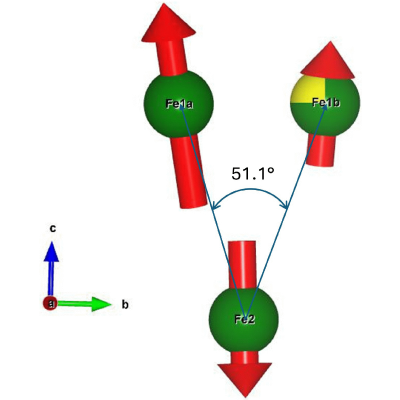

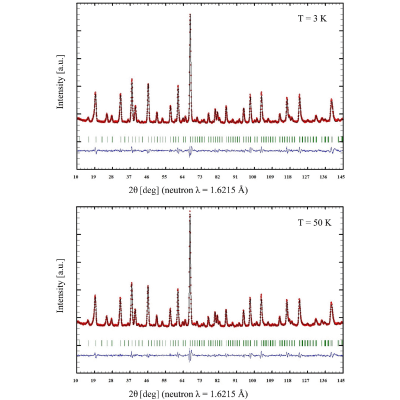

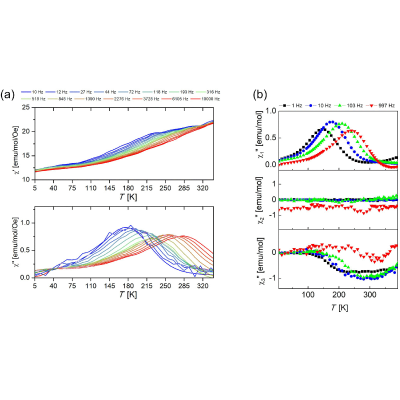

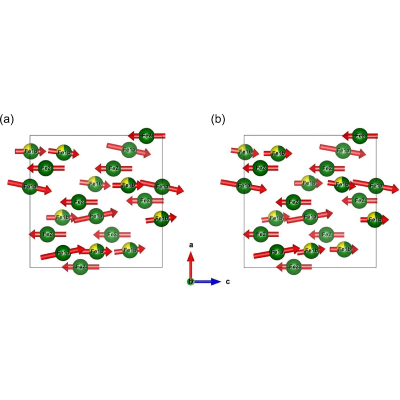

The new non-collinear magnetic order, in an Al-doped lithium ferrite (Al-LFO), (Li0.5Al0.5)(Fe0.75Li0.25)2Fe3O8 (denoted as Li50Al50), could be determined in the magnetic space group P432′12′ using high-resolution neutron powder diffraction (HRNPD) at 3 and 50 K. The largest spin-canting angle of the non-collinear octahedral B-sublattice determined from the structural analysis using 3K-HRNPD approaches the Yafet-Kittel angle 21° at 0 K, extrapolated from saturation magnetization. The spin-canting textures shown at 3 and 50 K are thermally averaged at elevated temperatures to reveal collinear spin alignments along [001] at 300 K under zero external fields. The non-collinearity of magnetic spins in Al-LFOs arises from multiple spin-reorientation (SR) processes without magnetic phase transitions below Tc (e.g., 788 K in Li50Al50). The SRs are activated above 100 K, showing Arrhenius behavior, but blocked at 5 K without altering the spontaneous magnetic polarization, as indicated by ac magnetic susceptibility data. The dilute effect of Li+ replacing Fe3+ (20% in Li60Al40 or 25% in Li50Al50) because of the respective Al3+-substitution for 40% and 50% Li+ in the geometrically frustrated B-sublattice (the hyperkagome lattice) enhances not only the lattice-distortion-induced electric polarization, but also the intrinsic spin dynamics. All SR-related features in both Al-LFOs are effectively quenched above 0.5 kOe, where all magnetic spins of Fe3+ are collinearly aligned parallel to the external magnetic fields, independent of frequency and temperature. These findings could be applied to further develop LFO-type multiferroics, e.g., for photovoltaic applications.

View figure in article

Physics Subject Headings (PhySH)

Article Text

Supplemental Material

References (29)

  1. A. Sundaresan and N. V. Ter-Oganessian, Magnetoelectric and multiferroic properties of spinels, J. Appl. Phys. 129, 060901 (2021).
  2. H. Takagi and S. Niitaka, Highly frustrated magnetism in spinels, Springer Ser. Solid State Sci. 164, 155 (2011).
  3. Q. Zhang et al., Polyhedral distortions and unusual magnetic order in spinel FeMn2O4, Chem. Mater. 35, 2330 (2023).
  4. S. Y. Kim et al., First-principles study on structural, electronic, magnetic and thermodynamic properties of lithium ferrite LiFe5O8, RSC Adv. 12, 15973 (2022).
  5. S. Inckemann, S.-H. Park, A. Arauzo, and M. Avdeev, Elucidation of atomic and magnetic structures of Al3+-doped Li-ferrite (LiFe5O8) compounds, J. Solid State Chem. 347, 125325 (2025).
  6. R. Liu et al., The magnetoelectric effect in a cubic ferrimagnetic spinel LiFe5O8 with high coupling temperature, J. Mater. Chem. C Mater. 7, 1999 (2019).
  7. R. Saha et al., Magnetoelectric effect in simple collinear antiferromagnetic spinels, Phys. Rev. B 94, 014428 (2016).
  8. Y. Sharma et al., Self-assembled room temperature multiferroic BiFeO3−LiFe5O8 nanocomposites, Adv. Funct. Mater. 30, 1906849 (2020).
  9. C. Gao, C. Cao, and J. Zhao, Structure and magnetic properties of epitaxial LiFe5O8 film with different growth temperatures, Appl. Phys. A Mater. Sci. Process 125, 1 (2019).
  10. V. J. Folen and Li ferrite, Magnetic and Other Properties of Oxides and Related Compounds (Springer, Berlin Heidelberg, Berlin, Heidelberg, 1970), pp. 325–332.
  11. V. P. Sakhnenko and N. V. Ter-Oganessian, The magnetoelectric effect due to local noncentrosymmetry, J. Phys. Condens. Matter 24, 266002 (2012).
  12. M. Avdeev and J. R. Hester, ECHIDNA: A decade of high-resolution neutron powder diffraction at OPAL, J. Appl. Crystallogr. 51, 1597 (2018).
  13. V. Petříček, L. Palatinus, J. Plášil, and M. Dušek, Jana2020 – a new version of the crystallographic computing system Jana, Z. Krist. – Cryst. Mater. 238, 271 (2023).
  14. K. Momma and F. Izumi, VESTA: A three-dimensional visualization system for electronic and structural analysis, J. Appl. Crystallogr. 41, 653 (2008).
  15. See Supplemental Material at http://link.aps.org/supplemental/10.1103/rqyh-8cdf for Table S1 interatomic distances of Li50Al50 at 3 K and 50 K; Table S2 average polyhedral distortion degrees [%] in Li50Al50 at room temperature; Fig. S1 the spin-canting arrangements in Li50Al50 at 3 and 300 K; and Fig. S2 saturation magnetization of the compounds Li50Al50, which includes Ref.  [5].
  16. Z. Song and Q. Liu, Effect of polyhedron deformation on 5d energy level of Ce3+ in lanthanide aluminum perovskites, Phys. Chem. Chem. Phys. 21, 2372 (2019).
  17. Z. Song, Z. Li, J. Zhang, Z. Chen, L. Suescun, and Q. Liu, BFIP: An online tool to calculate the best fitted idealized polyhedron, J. Appl. Crystallogr. 56, 884 (2023).
  18. P. Hirel, Atomsk: A tool for manipulating and converting atomic data files, Comput. Phys. Commun. 197, 212 (2015).
  19. R. D. Shannon, Revised effective ionic radii and systematic study of interatomic distances in halides and chalcogenides, Acta Crystallogr. A 32, 751 (1976).
  20. M. Ajmal and A. Maqsood, Structural, electrical and magnetic properties of Cu1−xZnxFe2O4 ferrites (0≤x≤1), J. Alloys Compd. 460, 54 (2008).
  21. A. P. G. Rodrigues, D. K. S. Gomes, J. H. Araujo, D. M. A. Melo, N. A. S. Oliveira, and R. M. Braga, Nanoferrites of nickel doped with cobalt: Influence of Co2+ on the structural and magnetic properties, J. Magn. Magn. Mater. 374, 748 (2015).
  22. Y. Yafet and C. Kittel, Antiferromagnetic arrangements in ferrites, Phys. Rev. 87, 290 (1952).
  23. M. U Rana, M. Ul-Islam, I. Ahmad, and T. Abbas, Determination of magnetic properties and Y–K angles in Cu–Zn–Fe–O system, J. Magn. Magn. Mater. 187, 242 (1998).
  24. J. M. D. Coey, Noncollinear spin structures, Can. J. Phys. 65, 1210 (1987).
  25. S. S. Bhatu et al., Effect of nickel substitution on structural, infrared and elastic properties of lithium ferrite, Indian Journal of Pure & Applied Physics 45, 596 (2007).
  26. C. V. Topping and S. J. Blundell, A.C. susceptibility as a probe of low-frequency magnetic dynamics, J. Phys.: Condens. Matter 31, 013001 (2019).
  27. M. Balanda, AC susceptibility studies of phase transitions and magnetic relaxation: Conventional, molecular and low-dimensional magnets, Acta Phys. Pol. A 124, 964 (2013).
  28. E. M. Clements et al., Magnetic field dependence of nonlinear magnetic response, Phys. Rev. B 97, 214438 (2018).
  29. E. C. Hunter, P. D. Battle, S. J. Blundell, C. V. Topping, F. K. K. Kirschner, and F. Lang, Muon-spin relaxation and AC magnetometry study of the ferrimagnet LaSr2Cr2SbO9, J. Solid State Chem. 279, 120935 (2019).
