Bulk magnetic properties of distorted square lattice compounds M′−LnTaO4 (Ln = Tb, Dy, Ho, Er)

Nicola D. Kelly1,*, Ivan da Silva2, and Siân E. Dutton1,†

  • *Contact author: ne281@cam.ac.uk
  • †Contact author: sed33@cam.ac.uk
PDF

Phys. Rev. Materials 10, 044404 – Published 14 April, 2026

DOI: https://doi.org/10.1103/q8ld-d9vp

Abstract

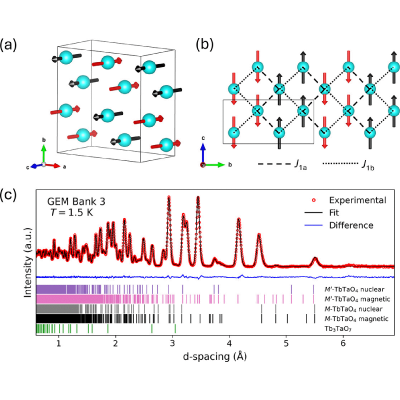

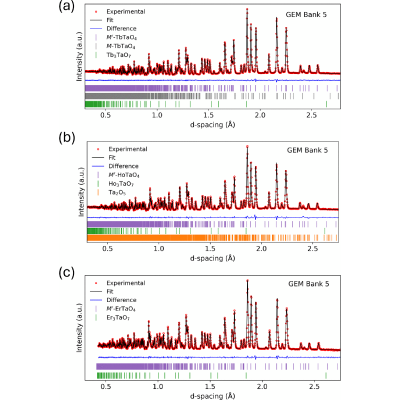

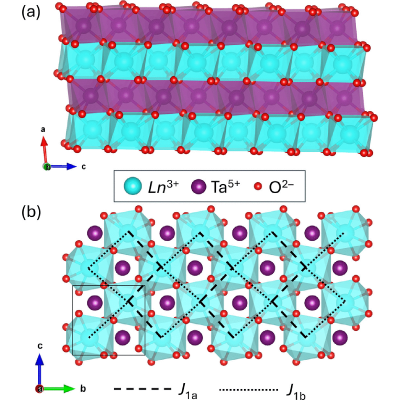

We report bulk magnetic properties of the monoclinic lanthanide tantalates, M′−LnTaO4 (Ln= Tb, Dy, Ho, Er), where the magnetic Ln3+ ions are arranged on a distorted 2D square lattice. The heavier analog M′−YbTaO4 has been investigated as a spin-orbit-coupled, quasi-two-dimensional frustrated magnet, and the properties of the other M′−LnTaO4 are expected to vary depending on the electronic configuration of the Ln ion, namely, Kramers vs non-Kramers behavior and different crystal electric field parameters. In this work, powder neutron diffraction is used to confirm the crystal structure for Ln= Tb, Ho, Er, and to determine the magnetic structure of M′−TbTaO4, which displays long-range antiferromagnetic (AFM) order below TN=2.1K. The Tb3+ moments are aligned primarily along the c axis with AFM nearest-neighbor interactions. Susceptibility data suggest that M′−DyTaO4 may display short-range ordering around 2.7 K, while M′−HoTaO4 and M′−ErTaO4 show AFM correlations but do not order above 1.8 K. Measurements of the magnetic specific heat provide evidence for a Kramers doublet ground state in M′−ErTaO4, similar to its heavier analog M′−YbTaO4.

View figure in article

Physics Subject Headings (PhySH)

Article Text

Supplemental Material

References (47)

  1. P. W. Anderson, The resonating valence bond state in La2CuO4 and superconductivity, Science 235, 1196 (1987).
  2. J. E. Greedan, Geometrically frustrated magnetic materials, J. Mater. Chem. 11, 37 (2001).
  3. J. R. Chamorro, T. M. McQueen, and T. T. Tran, Chemistry of quantum spin liquids, Chem. Rev. 121, 2898 (2021).
  4. P. Park, G. Sala, T. Proffen, M. B. Stone, A. D. Christianson, and A. F. May, Quantum magnetism in the frustrated square lattice oxyhalides YbBi2IO4 and YbBi2ClO4, Phys. Rev. B 109, 014426 (2024).
  5. M. Watanabe, N. Kurita, H. Tanaka, W. Ueno, K. Matsui, T. Goto, and M. Hagihala, Contrasting magnetic structures in SrLaCuSbO6 and SrLaCuNbO6: Spin-12 quasi-square-lattice J1−J2 Heisenberg antiferromagnets, Phys. Rev. B 105, 054414 (2022).
  6. A. H. Abdeldaim, T. Li, L. Farrar, A. A. Tsirlin, W. Yao, A. S. Gibbs, P. Manuel, P. Lightfoot, G. J. Nilsen, and L. Clark, Realising square and diamond lattice S=1/2 Heisenberg antiferromagnet models in the α and β phases of the coordination framework, KTi(C2O4)2·xH2O, Phys. Rev. Mater. 4, 104414 (2020).
  7. O. Mustonen, S. Vasala, E. Sadrollahi, K. P. Schmidt, C. Baines, H. C. Walker, I. Terasaki, F. J. Litterst, E. M. Baggio-Saitovitch, and M. Karppinen, Spin-liquid-like state in a spin-1/2 square-lattice antiferromagnet perovskite induced by d10–d0 cation mixing, Nat. Commun. 9, 1085 (2018).
  8. O. Mustonen, S. Vasala, K. P. Schmidt, E. Sadrollahi, H. C. Walker, I. Terasaki, F. J. Litterst, E. Baggio-Saitovitch, and M. Karppinen, Tuning the S=1/2 square-lattice antiferromagnet Sr2Cu(Te1−xWx)O6 from Néel order to quantum disorder to columnar order, Phys. Rev. B 98, 064411 (2018).
  9. S. Guchhait, A. Painganoor, S. S. Islam, J. Sichelschmidt, M. D. Le, M. Aouane, N. B. Christensen, and R. Nath, Magnetic and crystal electric field studies of the rare earth based square lattice antiferromagnet NdKNaNbO5, Phys. Rev. B 110, 144434 (2024).
  10. L. H. Brixner and H. Y. Chen, On the structural and luminescent properties of the M' LnTaO4 rare earth tantalates, J. Electrochem. Soc. 130, 2435 (1983).
  11. N. D. Kelly, L. Yuan, R. L. Pearson, E. Suard, I. P. Orench, and S. E. Dutton, Magnetism on the stretched diamond lattice in lanthanide orthotantalates, Phys. Rev. Mater. 6, 044410 (2022).
  12. X. Zhang, N. D. Kelly, D. Sheptyakov, C. Liu, S. Deng, S. S. Saxena, and S. E. Dutton, Magnetoelastic coupling in the stretched diamond lattice of TbTaO4, Mater. Adv. 6, 2570 (2025).
  13. A. Ramanathan, M. Mourigal, and H. S. La Pierre, Frustrated magnetism and spin anisotropy in a buckled square net YbTaO4, Inorg. Chem. 64, 158 (2025).
  14. A. P. Ramirez, Strongly geometrically frustrated magnets, Annu. Rev. Mater. Sci. 24, 453 (1994).
  15. J. Kumar, R. Roy, D. Ranaut, J. G. Nakamura, S. Kanungo, and K. Mukherjee, YbTaO4: A quasi-two-dimensional frustrated magnet possessing spin orbit entangled Kramers doublet ground state, Phys. Rev. B 110, 174420 (2024).
  16. S. P. Thompson, J. E. Parker, J. Potter, T. P. Hill, A. Birt, T. M. Cobb, F. Yuan, and C. C. Tang, Beamline I11 at Diamond: A new instrument for high resolution powder diffraction, Rev. Sci. Instrum. 80, 075107 (2009).
  17. H. M. Rietveld, A profile refinement method for nuclear and magnetic structures, J. Appl. Crystallogr. 2, 65 (1969).
  18. A. A. Coelho, TOPAS and TOPAS-Academic: An optimization program integrating computer algebra and crystallographic objects written in C++, J. Appl. Crystallogr. 51, 210 (2018).
  19. I. Hartenbach, F. Lissner, T. Nikelski, S. F. Meier, H. Müller-Bunz, and T. Schleid, Über oxotantalate der lanthanide des formeltyps MTaO4 (M = La – Nd, Sm – Lu), Z. Anorg. Allg. Chem. 631, 2377 (2005).
  20. N. D. Kelly, J. Lee, J. M. A. Steele, S. E. Dutton, and I. da Silva, M′−LnTaO4: A model for the 2D square lattice of magnetic ions, STFC ISIS Neutron and Muon Source (2025), https://doi.org/10.5286/ISIS.E.RB2520021.
  21. A. C. Hannon, Results on disordered materials from the GEneral Materials diffractometer, GEM, at ISIS, Nucl. Instrum. Methods Phys. Res. Sect. A 551, 88 (2005).
  22. V. F. Sears, Neutron scattering lengths and cross sections, Neutron News 3, 26 (1992).
  23. D. Brochier, Cryostat à température variable pour mesures neutroniques ou optiques, ILL Tech. Rep. 77/74, Institut Laue-Langevin (1977).
  24. D. Smith and F. Fickett, Low-temperature properties of silver, J. Res. Natl. Inst. Stand. Technol. 100, 119 (1995).
  25. E. S. R. Gopal, Specific Heats at Low Temperatures (Springer US, Boston, MA, 1966).
  26. S. A. Mather and P. K. Davies, Nonequilibrium phase formation in oxides prepared at low temperature: Fergusonite-related phases, J. Am. Ceram. Soc. 78, 2737 (1995).
  27. B. G. Mullens, M. Saura-Múzquiz, F. P. Marlton, M. Avdeev, H. E. A. Brand, S. Mondal, G. Vaitheeswaran, and B. J. Kennedy, Beyond the ionic radii: A multifaceted approach to understand differences between the structures of LnNbO4 and LnTaO4 fergusonites, J. Alloys Compd. 930, 167399 (2023).
  28. B. G. Mullens, M. Saura-Múzquiz, G. Cordaro, F. P. Marlton, H. E. Maynard-Casely, Z. Zhang, G. Baldinozzi, and B. J. Kennedy, Variable temperature in situ neutron powder diffraction and conductivity studies of undoped HoNbO4 and HoTaO4, Chem. Mater. 36, 5002 (2024).
  29. M. Wakeshima, H. Nishimine, and Y. Hinatsu, Crystal structures and magnetic properties of rare earth tantalates RE3TaO7 (RE = rare earths), J. Phys.: Condens. Matter 16, 4103 (2004).
  30. See Supplemental Material at http://link.aps.org/supplemental/10.1103/q8ld-d9vp for additional Rietveld refinements, tables of structural data, and further magnetic susceptibility analysis.
  31. R. D. Shannon, Revised effective ionic radii and systematic studies of interatomic distances in halides and chalcogenides, Acta Crystallogr. A 32, 751 (1976).
  32. J. Wang, X. Y. Chong, R. Zhou, and J. Feng, Microstructure and thermal properties of RETaO4 (RE = Nd, Eu, Gd, Dy, Er, Yb, Lu) as promising thermal barrier coating materials, Scr. Mater. 126, 24 (2017).
  33. V. Y. Markiv, N. M. Belyavina, M. V. Markiv, Y. Titov, A. M. Sych, A. N. Sokolov, A. A. Kapshuk, and M. S. Slobodyanyk, Peculiarities of polymorphic transformations in YbTaO4 and crystal structure of its modifications, J. Alloys Compd. 346, 263 (2002).
  34. M. E. Fisher, Relation between the specific heat and susceptibility of an antiferromagnet, Philos. Mag. 7, 1731 (1962).
  35. G. A. Bain and J. F. Berry, Diamagnetic corrections and Pascal's constants, J. Chem. Educ. 85, 532 (2008).
  36. S. Mugiraneza and A. M. Hallas, Tutorial: a beginner's guide to interpreting magnetic susceptibility data with the Curie-Weiss law, Commun. Phys. 5, 95 (2022).
  37. S. T. Bramwell, M. N. Field, M. J. Harris, and I. P. Parkin, Bulk magnetization of the heavy rare earth titanate pyrochlores: A series of model frustrated magnets, J. Phys.: Condens. Matter 12, 483 (2000).
  38. P. Mukherjee, Y. Wu, G. I. Lampronti, and S. E. Dutton, Magnetic properties of monoclinic lanthanide orthoborates, LnBO3, Ln = Gd, Tb, Dy, Ho, Er, Yb, Mater. Res. Bull. 98, 173 (2018).
  39. J. Rodríguez-Carvajal, Recent advances in magnetic structure determination by neutron powder diffraction, Physica B 192, 55 (1993).
  40. B. J. Campbell, H. T. Stokes, D. E. Tanner, and D. M. Hatch, ISODISPLACE: A web-based tool for exploring structural distortions, J. Appl. Crystallogr. 39, 607 (2006).
  41. B. C. den Hertog and M. J. P. Gingras, Dipolar interactions and origin of spin ice in Ising pyrochlore magnets, Phys. Rev. Lett. 84, 3430 (2000).
  42. P. Mukherjee, A. C. Sackville Hamilton, H. F. J. Glass, and S. E. Dutton, Sensitivity of magnetic properties to chemical pressure in lanthanide garnets Ln3A2X3O12, Ln = Gd, Tb, Dy, Ho, A = Ga, Sc, In, Te, X = Ga, Al, Li, J. Phys.: Condens. Matter 29, 405808 (2017).
  43. E. C. Koskelo, N. D. Kelly, L. A. V. Nagle-Cocco, J. D. Bocarsly, P. Mukherjee, C. Liu, Q. Zhang, and S. E. Dutton, Magnetic and magnetocaloric properties of the A2LnSbO6 lanthanide oxides on the frustrated fcc lattice, Inorg. Chem. 62, 10317 (2023).
  44. N. D. Kelly, X. Liang, S. E. Dutton, K. Yamaura, and Y. Tsujimoto, High-pressure synthesis of the quantum magnet M−YbTaO4 with a stretched diamond lattice, Phys. Rev. Mater. 10, 024411 (2026).
  45. E. Solana-Madruga, C. Ritter, C. Aguilar-Maldonado, O. Mentré, J. P. Attfield, and A. M. Arévalo-López, Mn3MnNb2O9: High-pressure triple perovskite with 1:2 B-site order and modulated spins, Chem. Commun. 57, 8441 (2021).
  46. T. R. Cao, H. Zhao, X. Huai, A. Quane, T. T. Tran, F. Ye, and G. Cao, Field-tailoring quantum materials via magneto-synthesis: Metastable metallic and magnetically suppressed phases in a trimer iridate, npj Quantum Mater. 11, 21 (2026).
  47. N. Kelly, I. da Silva, and S. Dutton, Research data supporting “Bulk magnetic properties of distorted square lattice compounds M'-LnTaO4 (Ln = Tb, Dy, Ho, Er)” Apollo - University of Cambridge Repository (2026), doi:10.17863/CAM.125160.
