- Physical Review Journals
All JournalsPhysics Magazine

Physical Review Materials

Reuse & Permissions

It is not necessary to obtain permission to reuse this article or its components as it is available under the terms of the Creative Commons Attribution 4.0 International license. This license permits unrestricted use, distribution, and reproduction in any medium, provided attribution to the author(s) and the published article's title, journal citation, and DOI are maintained. Please note that some figures may have been included with permission from other third parties. It is your responsibility to obtain the proper permission from the rights holder directly for these figures.

Export citation

Export citation

Choose format for download:

Download Citation
  • Open Access

Scandium and aluminum substitution and energy transfer processes in the undoped and Ce-doped Y3ScxAl5−xO12 scintillation crystals

V. Laguta1,*, J. Pejchal1, V. Babin1, A. Beitlerova1, Yu. Zagorodniy2, J. Jezek1,3, D. Sedmidubsky3, A. Resetic4, and M. Nikl1

  • *Contact author: laguta@fzu.cz
PDF

Phys. Rev. Materials 10, 045201 – Published 17 April, 2026

DOI: https://doi.org/10.1103/png3-xnt7

Abstract

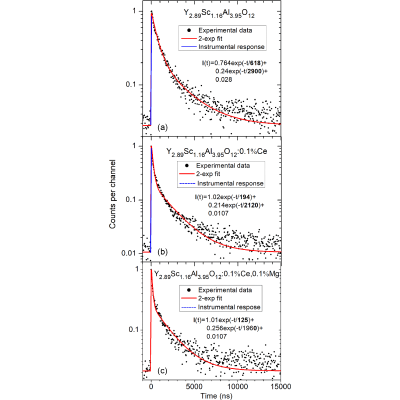

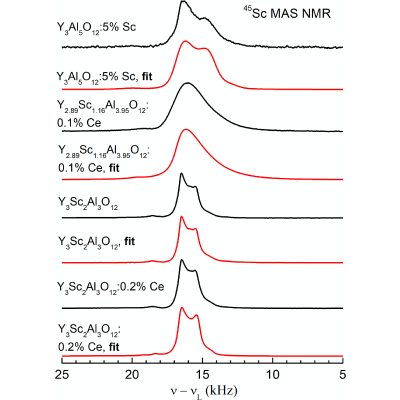

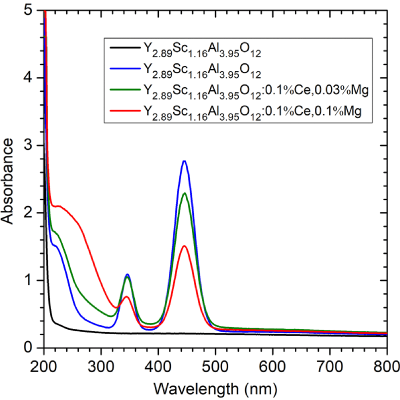

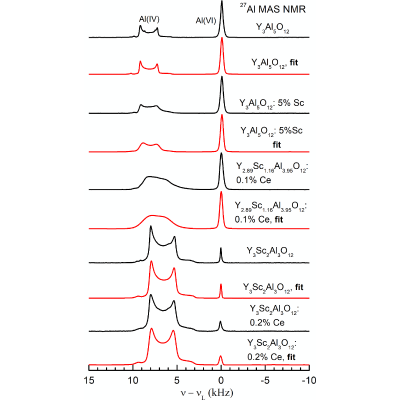

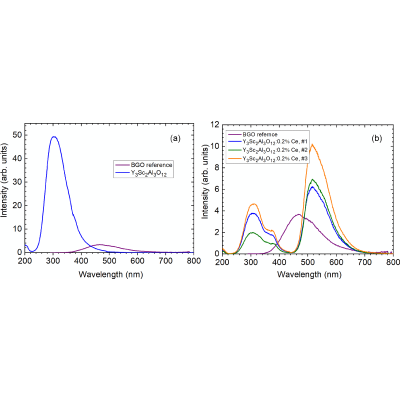

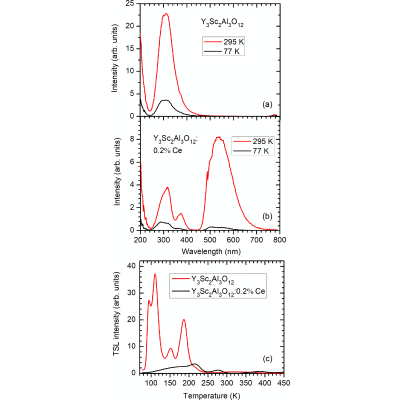

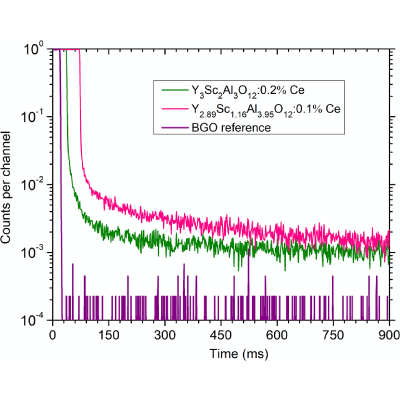

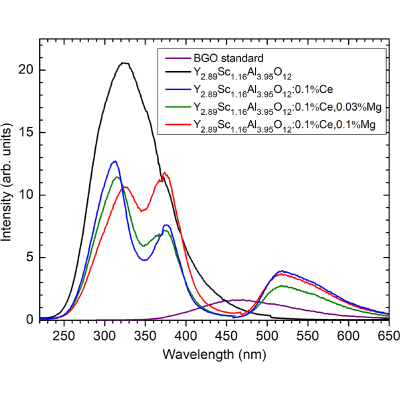

The structural and scintillation properties of pure and Ce-doped Y3ScxAl5−xO12 (x=0, 0.05, 1.16, and 2) crystals were systematically investigated. High-resolution Sc45 and Al27 magic angle spinning nuclear magnetic resonance spectroscopy revealed that Sc3+ ions predominantly occupy octahedral sites, effectively replacing Al3+ ions, while antisite Sc at Y dodecahedral positions remains below 0.2 at.%. Sc incorporation into Y3Al5O12 induces strong exciton emission at 320–324 nm, nearly 10 times higher than that of reference Bi4Ge3O12 (BGO) crystal, even at low Sc concentrations (5 at.%). Ce3+ doping introduces characteristic 5d1→4f emission at 518 nm, accelerates scintillation decay, and in combination with Mg2+ codoping, promotes the formation of Ce4+ ions that enable a fast radiative de-excitation pathway. Y3Sc2Al3O12: Ce exhibits a maximum scintillation light yield of 80–84% relative to BGO with a mean decay time of 85–110 ns. Thermostimulated liminescence and electron paramagnetic resonance studies indicate that holes are mainly trapped at oxygen ions near Sc ions (O− centers), while electrons are primarily localized at Sc antisite ions near oxygen vacancies (Sc2+–VO centers), affecting scintillation kinetics. Density functional theory calculations confirm that Sc3+ at the dodecahedral site forms a deep electron trap. These results highlight the key role of Sc and Ce in tuning emission, decay dynamics, and defect-mediated processes in Sc-admixed multicomponent garnet scintillators.

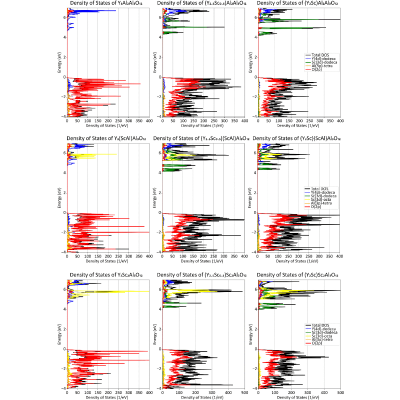

View figure in article

Physics Subject Headings (PhySH)

Article Text

Supplemental Material

References (59)

  1. K. Kamada, T. Endo, K. Tsutumi, T. Yanagida, Y. Fujimoto, A. Fukabori, A. Yoshikawa, J. Pejchal, and Martin Nikl, Composition engineering in cerium-doped (Lu,Gd)3(Ga,Al)5O12 single-crystal scintillators, Cryst. Growth Des. 11, 4484 (2011).
  2. K. Kamada, T. Yanagida, T. Endo, K. Tsutumi, Y. Usuki, M. Nikl, Y. Fujimoto, A. Fukabori, and A. Yoshikawa, 2inch diameter single crystal growth and scintillation properties of Ce:Gd3Al2Ga3O12, J. Cryst. Growth 352, 88 (2012).
  3. O. Sidletskiy, V. Kononets, K. Lebbou, S. Neicheva, O. Voloshina, V. Bondar, V. Baumer, K. Belikov, A. Gektin, and B. Grinyov, Structure and scintillation yield of Ce-doped Al–Ga substituted yttrium garnet, Mater. Res. Bull. 47, 3249 (2012).
  4. P. Dorenbos, Electronic structure and optical properties of the lanthanide activated RE3(Al1−xGax)5O12 (RE=Gd, Y, Lu) garnet compounds, J. Lumin. 134, 310 (2013).
  5. J. M. Ogiegło, A. Katelnikovas, A. Zych, T. Justel, A. Meijerink, and C. R. Ronda, Luminescence and luminescence quenching in Gd3(Ga,Al)5O12 scintillators doped with Ce3+, J. Phys. Chem. A 117, 2479 (2013).
  6. K. Brylew, W. Drozdowski, A. J. Wojtowicz, K. Kamada, and A. Yoshikawa, Studies of low temperature thermoluminescence of GAGG:Ce and LuAG:Pr scintillator crystals using the Tmax−Tstop method, J. Lumin. 154, 452 (2014).
  7. V. Laguta, Y. Zorenko, V. Gorbenko, A. Iskaliyeva, Y. Zagorodniy, O. Sidletskiy, P. Bilski, A. Twardak, and M. Nikl, Aluminum and gallium substitution in yttrium and lutetium aluminum–gallium garnets: Investigation by single-crystal NMR and TSL methods, J. Phys. Chem. C 120, 24400 (2016).
  8. I. I. Vrubel, R. G. Polozkov, I. A. Shelykh, V. M. Khanin, P. A. Rodnyi, and C. R. Ronda, Bandgap engineering in yttrium–aluminum garnet with Ga doping, Cryst. Growth Des. 17, 1863 (2017).
  9. C. Wang, D. Ding, Y. Wu, H. Li, X. Chen, J. Shi, Q. Wang, L. Ye, and G. Ren, Effect of thermal annealing on scintillation properties of Ce:Gd2Y1Ga2.7Al2.3O12 under different atmosphere, Appl. Phys. A 123, 384 (2017).
  10. M. Kitaura, H. Zen, K. Kamada, S. Kurosawa, S. Watanabe, A. Ohnishi, and K. Hara, Visualizing hidden electron trap levels in Gd3Al2Ga3O12:Ce crystals using a mid-infrared free-electron laser, Appl. Phys. Lett. 112, 031112 (2018).
  11. V. Kochurikhin, K. Kamada, K. J. Kim, M. Ivanov, L. Gushchina, Y. Shoji, M. Yoshino, and A. Yoshikawa, Czochralski growth of 4-inch diameter Ce:Gd3Al2Ga3O12 single crystals for scintillator applications, J. Cryst. Growth 531, 125384 (2020).
  12. M. Li, M. Meng, J. Chen, Y. Sun, G. Cheng, L. Chen, S. Zhao, B. Wan, H. Feng, G. Ren, et al., Abnormal site preference of Al and Ga in Gd3Al2.3Ga2.7O12:Ce crystals, Phys. Status Solidi (B) 258, 2000603 (2021).
  13. S. Nargelas, Y. Talochka, A. Vaitkevičius, G. Dosovitskiy, O. Buzanov, A. Vasil'ev, T. Malinauskas, M. Korzhik, and G. Tamulaitis, Influence of matrix composition and its fluctuations on excitation relaxation and emission spectrum of Ce ions in (GdxY1−x)3Al2Ga3O12:Ce scintillators, J. Lumin. 242, 118590 (2022).
  14. D. Spassky, F. Fedyunin, E. Rubtsova, N. Tarabrina, V. Morozov, P. Dzhevakov, K. Chernenko, N. Kozlova, E. Zabelina, V. Kasimova, et al., Structural, optical and luminescent properties of undoped Gd3AlxGa5−xO12 (x = 0,1,2,3) and Gd2YAl2Ga3O12 single crystals, Opt. Mater. 125, 112079 (2022).
  15. A. Yoshikawa, V. V. Kochurikhin, M. Yoshino, R. Murakami, T. Tomida, I. Takahashi, K. Kamada, Y. Shoji, H. Sato, R. Kucerkova, et al., Bulk single-crystal growth of Ce/Gd3(Al,Ga)5O12 from melt without a precious metal crucible by pulling from a cold container, Cryst. Growth Des. 23, 2048 (2023).
  16. T. Wu, L. Wang, Y. Shi, Q. Zhang, Y. Xiong, Q. Yuan, T. Li, K. Ma, H. Wang, J. Fang, et al., A homogeneity study on (Ce,Gd)3Ga2Al3O12 crystal scintillators grown by an optical floating zone method and a traveling solvent floating zone method, CrystEngComm. 25, 3755 (2023).
  17. Y. Wu, F. Meng, Q. Li, M. Koschan, and C. L. Melcher, Role of Ce4+ in the scintillation mechanism of codoped Gd3Ga3Al2O12:Ce, Phys. Rev. Appl. 2, 044009 (2014).
  18. M. Nikl, K. Kamada, V. Babin, J. Pejchal, K. Pilarova, E. Mihokova, A. Beitlerova, K. Bartosiewicz, S. Kurosawa, and A. Yoshikawa, Defect engineering in Ce-doped aluminum garnet single crystal scintillators, Cryst. Growth Des. 14, 4827 (2014).
  19. S. Blahuta, A. Bessiere, B. Viana, P. Dorenbos, and V. Ouspenski, Evidence and consequences of Ce4+ in LYSO:Ce,Ca and LYSO:Ce,Mg single crystals for medical imaging applications, IEEE Trans. Nucl. Sci. 60, 3134 (2013).
  20. M. T. Lucchini, V. Babin, P. Boháček, S. Gundacker, K. Kamada, M. Nikl, A. Petrosyan, A. Yoshikawa, and E. Auffray, Effect of Mg2+ ions co-doping on timing performance and radiation tolerance of cerium doped Gd3Al2Ga3O12 crystals, Nucl. Instr. Meth. Phys. Res. A 816, 176 (2016).
  21. G. Tamulatis, G. Dosovitskiy, A. Gola, M. Korjik, A. Mazzi, S. Nargelas, P. Sokolov, and A. Vaitkevičius, Improvement of response time in GAGG:Ce scintillation crystals by magnesium codoping, J. Appl. Phys. 124, 215907 (2018).
  22. G. Dantelle, G. Boulon, Y. Guyot, D. Testemale, M. Guzik, S. Kurosawa, K. Kamada, and A. Yoshikawa, Research on efficient fast scintillators: Evidence and x‐ray absorption near edge spectroscopy characterization of Ce4+ in Ce3+, Mg2+-co-doped Gd3Al2Ga3O12 garnet crystal, Phys. Status Solidi B 257, 1900510 (2020).
  23. K. Bartosiewitz, A. Markovskyi, T. Horiai, D. Szymański, S. Kurosawa, A. Yamaji, A. Yoshikawa, and Y. Zorenko, A study of Mg2+ ions effect on atoms segregation, defects formation, luminescence and scintillation properties in Ce3+ doped Gd3Al2Ga3O12 single crystals, J. Alloys Compd. 905, 164154 (2022).
  24. L. Martinazzoli, S. Nargelas, P. Boháček, R. Calá, M. Dušek, J. Rohlíček, G. Tamulaitis, E. Auffraya, and M. Nikl, Compositional engineering of multicomponent garnet scintillators: Towards an ultra-accelerated scintillation response, Mater. Adv. 3, 6842 (2022).
  25. S. Nargelas, A. Solovjovas, Y. Talochka, Ž. Podlipskas, M. Kucera, Z. Lucenicova, and G. Tamulaitis, Influence of heavy magnesium codoping on emission decay in Ce-doped multicomponent garnet scintillators, J. Mater. Chem. C 11, 12007 (2023).
  26. K. Kamada, M. Nikl, T. Kotaki, H. Saito, F. Horikoshi, M. Miyazaki, K. J. Kim, R. Murakami, M. Yoshino, A. Yamaji, et al., Multiple shaped-crystal growth of oxide scintillators using Mo crucible and die by the edge defined film fed growth method, J. Cryst. Growth 535, 125510 (2020).
  27. J. Kvapil, J. Kvapil, B. Perner, R. Autrata, and P. Schauer, Czochralski growth of YAG:Ce in a reducing protective atmosphere, J. Cryst. Growth 52, 542 (1981).
  28. D. Spassky, N. Kozlova, E. Zabelina, V. Kasimova, N. Krutyak, A. Ukhanova, V. A. Morozov, A. V. Morozov, O. Buzanov, K. Chernenko, et al., Influence of the Sc cation substituent on the structural properties and energy transfer processes in GAGG:Ce crystals, CrystEngComm 22, 2621 (2020).
  29. O. Zapadlík, J. Pejchal, R. Kučerková, A. Beitlerová, and M. Nikl, Composition-engineered GSAG garnet: Single-crystal host for fast scintillators, Cryst. Growth Des. 21, 7139 (2021).
  30. Y.-N. Xu, W. Y. Ching, and B. K. Brickeen, Electronic structure and bonding in garnet crystals Gd3Sc2Ga3O12, Gd3Sc2Al3O12, and Gd3Ga3O12 compared to Y3Al3O12, Phys. Rev. B 61, 1817 (2000).
  31. I. A. Kaurova, E. N. Domoroshchina, G. M. Kuz'micheva, and V. B. Rybakov, Evaluation of stability region for scandium-containing rare-earth garnet single crystals and their congruent-melting compositions, J. Cryst. Growth 468, 452 (2017).
  32. L. Hovhannesyan, M. V. Derdzyan, G. Badalyan, G. Kharatyan, J. Pejchal, M. Nikl, C. Dujardin, and A. G. Petrosyan, Growth of GSAG:Ce scintillation crystals by the Bridgman method: Influence of Ce concentration and codoping, CrystEngComm. 26, 4812 (2024).
  33. M. Nikl, J. Pejchal, J. Ježek, D. Sedmidubský, V. Laguta, V. Babin, A. Beitlerová, and R. Kučerková, GSAG:Ce scintillator: Material optimization and intrinsic bottlenecks, Mater. Adv. 6, 3596 (2025).
  34. Y. O. Zagorodniy, V. Chlan, H. Štěpánková, Y. Fomichov, J. Pejchal, V. V. Laguta, and M. Nikl, Gallium preference for the occupation of tetrahedral sites in Lu3(Al5−xGax)O12 multicomponent garnet scintillators according to solid-state nuclear magnetic resonance and density functional theory calculations, J. Phys. Chem. Solids 126, 93 (2019).
  35. A. Yoshikawa, M. Nikl, G. Boulon, and T. Fukuda, Challenge and study for developing of novel single crystalline optical materials using micro-pulling-down method, Opt. Mater. 30, 6 (2007).
  36. A. Yoshikawa and V. Chani, Growth of optical crystals by the micro-pulling-down method, MRS Bull. 34, 266 (2009).
  37. A. Fukabori, V. Chani, K. Kamada, and A. Yoshikawa, Growth of Yb-doped Y2O3, Sc2O3, and Lu2O3 single crystals by the micro-pulling-down technique and their optical and scintillation characterization, J. Cryst. Growth 352, 124 (2012).
  38. O. Zapadlík, J. Pejchal, F. Levchenko, R. Kučerková, A. Beitlerová, V. Vaněček, K. Jurek, and M. Nikl, The Ga-admixed GSAG:Ce single crystal scintillator: Composition tuning, J. Lumin. 263, 119984 (2023).
  39. TopSpin software for both routine and advanced NMR acquisition and analysis, https://www.bruker.com/en/products-and-solutions/mr/nmr-software/topspin.html.
  40. D. Massiot, F. Fayon, M. Capron, I. King, S. Le Calvé, B. Alonso, J. -O. Durand, B. Bujoli, Z. Gan, and G. Hoatson, Modelling one‐ and two‐dimensional solid‐state NMR spectra, Magn. Res. Chem. 40, 70 (2002).
  41. G. Kresse and J. Furthmüller, Efficient iterative schemes for ab initio total-energy calculations using a plane-wave basis set, Phys. Rev. B 54, 11169 (1996).
  42. G. Kresse and J. Furthmüller, Efficiency of ab-initio total energy calculations for metals and semiconductors using a plane-wave basis set, Comput. Mater. Sci. 6, 15 (1996).
  43. R. D. Shannon, Revised effective ionic radii and systematic studies of interatomic distances in halides and chalcogenides, Acta Cryst. A 32, 751 (1976).
  44. A. Abragam, Principles of Nuclear Magnetism (Oxford University Press, New York, 1961).
  45. J. F. Bangher, P. C. Taylor, T. Oja, and P. J. Bray, Nuclear magnetic resonance powder patterns in the presence of completely asymmetric quadrupole and chemical shift effects: Application to metavanadates, J. Chem. Phys. 50, 4914 (1969).
  46. See Supplemental Material at http://link.aps.org/supplemental/10.1103/png3-xnt7 for the high-resolution Al27 and Sc45 MAS NMR spectra of Y3ScxAl5−xO12, Ce3+ EPR data, EPR of x-ray irradiation induced centers, and details of electronic band structure calculations, which includes Refs. [33, 41, 42, 47, 48, 49].
  47. H. R. Lewis, Paramagnetic resonance of Ce3+ in yttrium aluminum garnet, J. Appl. Phys. 37, 739 (1966).
  48. F. Euler and J. A. Bruce, Oxygen coordinates of compounds with garnet structure, Acta Cryst. 19, 971 (1965).
  49. A. D. Becke, Perspective: Fifty years of density-functional theory in chemical physics, J. Chem. Phys. 140, 18A301 (2014).
  50. Th. Vosegaard, I. P. Byriel, D. A. Pawlak, K. Wozniak, and H. J. Jakobsen, Crystal structure studies on the garnet Y3Al5O12 by Al27 single-crystal NMR spectroscopy, J. Am. Chem. Soc. 120, 7900 (1998); N. Gautier, D. Massiot, I. Farnan, and J. P. Coutures, Aluminium-gallium substitution in yttrium garnets investigated by NMR, J. Chim. Phys. 92, 1843 (1995).
  51. C. Tien, E. V. Charnaya, S. Y. Sun, R. R. Wu, S. N. Ivanov, and E. N. Khazanov, Al27 and Sc45 NMR studies of the Y3ScxAl5–xO12 mixed garnets, Phys. Status Solidi B 233, 222 (2002).
  52. G. Czjzek, J. Fink, F. Götz, H. Schmidt, J. M. D. Coey, J.-P. Rebouillat, and A. Liénard, Atomic coordination and the distribution of electric field gradients in amorphous solids, Phys. Rev. B 23, 2513 (1981).
  53. K. J. D. Mackenzie and M. E. Smith, Multinuclear Solid-State NMR of Inorganic Materials, Pergamon Materials Series Vol. 6 (Elsevier Science, Amsterdam, 2002).
  54. V. Murk and N. Yaroshevich, Exciton and recombination processes in YAG crystals, J. Phys.: Condens. Matter 7, 5857 (1995).
  55. N. N. Ryskin, P. Dorenbos, C. W. E. van Eijk, and S. Kh. Batygov, Scintillation properties of Lu3Al5−xScxO12 crystals, J. Phys.: Condens. Mater 6, 10423 (1994).
  56. U. T. Hochli, Jahn-Teller effect of a d1 ion in eightfold cubic coordination, Phys. Rev. 162, 262 (1967).
  57. J. P. Perdew, K. Burke, and M. Ernzerhof, Generalized gradient approximation made simple, Phys. Rev. Lett. 77, 3865 (1996).
  58. K. Burke, J. Werschnik, and E. K. U. Gross, Time-dependent density functional theory: Past, present, and future, J. Chem. Phys. 123, 062206 (2005).
  59. V. Laguta, Text and OriginLab files for figures with complete dataset [Data set], Zenodo (2026), https://doi.org/10.5281/zenodo.19475379.

Outline

Information

Phys. Rev. Materials 10, 045201– Published 17 April, 2026
  • Received 18 December 2025
  • Accepted 24 March 2026
Crossmark - Check for updates button
Creative Commons Logo

Published by the American Physical Society under the terms of the Creative Commons Attribution 4.0 International license. Further distribution of this work must maintain attribution to the author(s) and the published article's title, journal citation, and DOI.

Published by the American Physical Society

Sign In to Your Journals Account

Filter

Filter

Article Lookup

Enter a citation
