Domain wall pinning and domain wall resistivity in notched La0.7Sr0.3MnO3 nanostructures

Yao Junxiang1,*, Maurits E. K. Geenen1, Harm A. Bakker2, Leon Abelmann3, and Jan Aarts1,†

  • 1Huygens-Kamerlingh Onnes Laboratory, Leiden Institute of Physics, Leiden University. P.O. Box 9504, 2300 RA Leiden, The Netherlands
  • 2MESA+ Institute for Nanotechnology, University of Twente, P.O. Box 217, 7500 AE Enschede, The Netherlands
  • 3Department of microelectronics, Technical University Delft, Mekelweg 4, 2628 CD Delft, The Netherlands

  • *Contact author: yao@Physics.LeidenUniv.nl
  • †Contact author: aarts@Physics.LeidenUniv.nl
PDF

Phys. Rev. Materials 9, 084414 – Published 26 August, 2025

DOI: https://doi.org/10.1103/np4m-j4b7

Abstract

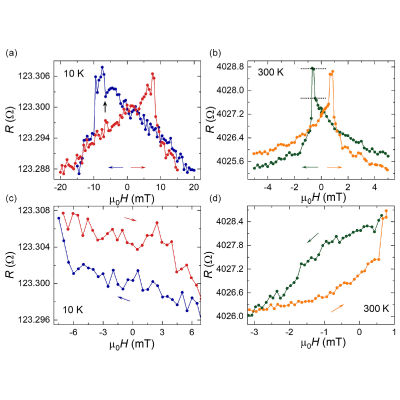

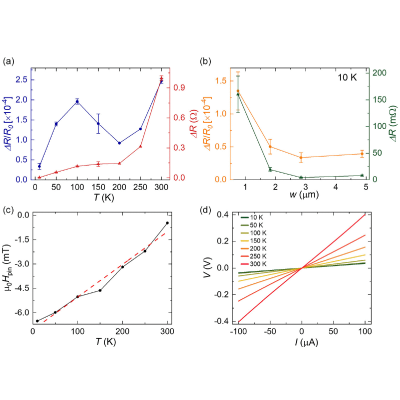

Creation and manipulation of magnetic domain walls (DWs) are a core subject of research in developing prototype devices for spintronic applications. DWs can be created artificially and moved by applying either a magnetic field or an electric current, as has been extensively investigated. Here, we study the DW pinning and depinning in half-metallic ferromagnetic La0.7Sr0.3MnO3 nanostructures with a notch that is about 90% of the width of the wire. By measuring the magnetoresistance of the notched wires while sweeping the magnetic field, we unambiguously observe DW pinning and depinning from 10 to 300 K. Analysis of the temperature dependence reveals that both ΔR (the DW resistance) and ΔR/R0 (R0 is the resistance at zero field) are proportional to the temperature. The DW resistivity is calculated to be of the order of 10−17Ωm2 at 10 K and 10−15Ωm2 at 300 K. The latter value agrees with the reported intrinsic DW resistivity in films. In addition, we find approximately constant ΔR and ΔR/R0 for widths from 5 down to 1.8µm and a pronounced increase in both quantities when the width goes down to 755 nm. With the extracted magnetocrystalline anisotropy parameters from the measurements of the remanent magnetization and the magnetic torque as function of angle of the magnetic field with respect to the substrate normal, we further perform micromagnetic simulations and obtain results consistent with the experimental data. Our work may promote designing relevant prototypes and may constitute a platform to explore the effect of spin torque transfer on DWs.

View figure in article

Physics Subject Headings (PhySH)

Article Text

Supplemental Material

References (38)

  1. Y. Zhang, J. Liu, Y. Dong, S. Wu, J. Zhang, J. Wang, J. Lu, A. Rückriegel, H. Wang, R. Duine et al., Strain-driven Dzyaloshinskii-Moriya interaction for room-temperature magnetic skyrmions, Phys. Rev. Lett. 127, 117204 (2021).
  2. R. Fermin, D. Van Dinter, M. Hubert, B. Woltjes, M. Silaev, J. Aarts, and K. Lahabi, Superconducting triplet rim currents in a spin-textured ferromagnetic disk, Nano Lett. 22, 2209 (2022).
  3. S. S. P. Parkin, M. Hayashi, and L. Thomas, Magnetic domain-wall racetrack memory, Science 320, 190 (2008).
  4. A. Fernández-Pacheco, R. Streubel, O. Fruchart, R. Hertel, P. Fischer, and R. P. Cowburn, Three-dimensional nanomagnetism, Nat. Commun. 8, 15756 (2017).
  5. J. Shibata, G. Tatara, and H. Kohno, A brief review of field-and current-driven domain-wall motion, J. Phys. D 44, 384004 (2011).
  6. M. Hayashi, L. Thomas, C. Rettner, R. Moriya, X. Jiang, and S. S. P. Parkin, Dependence of current and field driven depinning of domain walls on their structure and chirality in permalloy nanowires, Phys. Rev. Lett. 97, 207205 (2006).
  7. J.-S. Kim, M.-A. Mawass, A. Bisig, B. Krüger, R. M. Reeve, T. Schulz, F. Büttner, J. Yoon, C.-Y. You, M. Weigand et al., Synchronous precessional motion of multiple domain walls in a ferromagnetic nanowire by perpendicular field pulses, Nat. Commun. 5, 3429 (2014).
  8. S. Fukami, M. Yamanouchi, S. Ikeda, and H. Ohno, Depinning probability of a magnetic domain wall in nanowires by spin-polarized currents, Nat. Commun. 4, 2293 (2013).
  9. R. Moriya, L. Thomas, M. Hayashi, Y. B. Bazaliy, C. Rettner, and S. S. P. Parkin, Probing vortex-core dynamics using current-induced resonant excitation of a trapped domain wall, Nat. Phys. 4, 368 (2008).
  10. M. Hayashi, L. Thomas, R. Moriya, C. Rettner, and S. S. P. Parkin, Current-controlled magnetic domain-wall nanowire shift register, Science 320, 209 (2008).
  11. A. Yamaguchi, T. Ono, S. Nasu, K. Miyake, K. Mibu, and T. Shinjo, Real-space observation of current-driven domain wall motion in submicron magnetic wires, Phys. Rev. Lett. 92, 077205 (2004).
  12. G. Tatara, H. Kohno, and J. Shibata, Microscopic approach to current-driven domain wall dynamics, Phys. Rep. 468, 213 (2008).
  13. W. Chen, L. Qian, and G. Xiao, Resistance of domain-wall states in half-metallic CrO2, Phys. Rev. B 98, 174402 (2018).
  14. A. Biehler, M. Kläui, M. Fonin, C. König, G. Güntherodt, and U. Rüdiger, Domain structures and the influence of current on domains and domain walls in highly spin-polarized CrO2 wire elements, Phys. Rev. B 75, 184427 (2007).
  15. A. Vailionis, H. Boschker, W. Siemons, E. P. Houwman, D. H. A. Blank, G. Rijnders, and G. Koster, Misfit strain accommodation in epitaxial ABO3 perovskites: Lattice rotations and lattice modulations, Phys. Rev. B 83, 064101 (2011).
  16. A. Ruotolo, A. Oropallo, F. Miletto Granozio, G. P. Pepe, P. Perna, U. S. Di Uccio, and D. Pullini, Current-induced domain wall depinning and magnetoresistance in La0.7Sr0.3MnO3 planar spin valves, Appl. Phys. Lett. 91, 132502 (2007).
  17. J. Wang, L. S. Xie, C. S. Wang, H. Z. Zhang, L. Shu, J. Bai, Y. S. Chai, X. Zhao, J. C. Nie, C. B. Cao et al., Magnetic domain-wall motion twisted by nanoscale probe-induced spin transfer, Phys. Rev. B 90, 224407 (2014).
  18. J. Wang, S. Wu, J. Ma, L. Xie, C. Wang, I. A. Malik, Y. Zhang, K. Xia, C.-W. Nan, and J. Zhang, Nanoscale control of stripe-ordered magnetic domain walls by vertical spin transfer torque in La0.67Sr0.33MnO3 films, Appl. Phys. Lett. 112, 072408 (2018).
  19. T. Arnal, A. V. Khvalkovskii, M. Bibes, B. Mercey, P. Lecoeur, and A.-M. Haghiri-Gosnet, Electronic properties of domain walls in La2/3Sr1/3MnO3: Magnetotransport measurements on a nanopatterned device, Phys. Rev. B 75, 220409(R) (2007).
  20. C. Beekman, J. Zaanen, and J. Aarts, Nonlinear mesoscopic transport in a strongly cooperative electron system: The La0.67Sr0.33MnO3 microbridge, Phys. Rev. B 83, 235128 (2011).
  21. L. Marín, L. Morellón, P. A. Algarabel, L. A. Rodríguez, C. Magén, J. M. De Teresa, and M. R. Ibarra, Enhanced magnetotransport in nanopatterned manganite nanowires, Nano Lett. 14, 423 (2014).
  22. H. Boschker, M. Mathews, P. Brinks, E. P. Houwman, A. Vailionis, G. Koster, D. H. A. Blank, and G. Rijnders, Uniaxial contribution to the magnetic anisotropy of La0.67Sr0.33MnO3 thin films induced by orthorhombic crystal structure, J. Magn. Magn. Mater. 323, 2632 (2011).
  23. C. Yin, D. Krishnan, N. Gauquelin, J. Verbeeck, and J. Aarts, Controlling the interfacial conductance in LaAlO3/SrTiO3 in 90∘ off-axis sputter deposition, Phys. Rev. Mater. 3, 034002 (2019).
  24. Y. Junxiang, P. Kumar, M. Cabero-Piris, and J. Aarts, Nonlocal spin transport based on a half-metallic ferromagnet, Phys. Rev. Mater. 7, 104408 (2023).
  25. J. Crangle and G. M. Goodman, The magnetization of pure iron and nickel, Proc. R. Soc. A 321, 477 (1971).
  26. M. Abuwasib, H. Lee, A. Gruverman, C.-B. Eom, and U. Singisetti, Contact resistance to SrRuO3 and La0.67Sr0.33MnO3 epitaxial films, Appl. Phys. Lett. 107, 242905 (2015).
  27. See Supplemental Material at http://link.aps.org/supplemental/10.1103/np4m-j4b7 for additional details on the magnetization measurements, and for data on a device without a notch.
  28. A. Vansteenkiste, J. Leliaert, M. Dvornik, M. Helsen, F. Garcia-Sanchez, and B. Van Waeyenberge, The design and verification of MuMax3, AIP Adv. 4, 107133 (2014).
  29. J. Rigue, D. Chrischon, A. M. H. De Andrade, and M. Carara, A torque magnetometer for thin films applications, J. Magn. Magn. Mater. 324, 1561 (2012).
  30. B. Dodrill, J. Lindemuth, and J. Krause, Magnetic anisotropy: Measurements with a vector vibrating sample magnetometer, application note (Lake Shore Cryotronics, Westerville, Ohio). See also J. Burd, M. Huq and E. W. Lee, J. Magn. Magn. Mat. 5, 135 (1977).
  31. Q. Qin, S. He, W. Song, P. Yang, Q. Wu, Y. P. Feng, and J. Chen, Ultra-low magnetic damping of perovskite La0.7Sr0.3MnO3 thin films, Appl. Phys. Lett. 110, 112401 (2017).
  32. S. K. Chaluvadi, Influence of the epitaxial strain on magnetic anisotropy in LSMO thin films for spintronics applications, Ph.D. thesis, Normandie Université, 2017.
  33. S. R. Bakaul, W. Hu, T. Wu, and T. Kimura, Intrinsic domain-wall resistivity in half-metallic manganite thin films, Phys. Rev. B 86, 184404 (2012).
  34. Y. Wu, Y. Suzuki, U. Rüdiger, J. Yu, A. D. Kent, T. K. Nath, and C.-B. Eom, Magnetotransport and magnetic domain structure in compressively strained colossal magnetoresistance films, Appl. Phys. Lett. 75, 2295 (1999).
  35. N. D. Mathur, P. B. Littlewood, N. K. Todd, S. P. Isaac, B.-S. Teo, D.-J. Kang, E. J. Tarte, Z. H. Barber, J. E. Evetts, and M. G. Blamire, Resistance of a domain wall in La0.7Sr0.3MnO3, J. Appl. Phys. 86, 6287 (1999).
  36. M. Ziese, Extrinsic magnetotransport phenomena in ferromagnetic oxides, Rep. Prog. Phys. 65, 143 (2002).
  37. M. T. Bryan, S. Bance, J. Dean, T. Schrefl, and D. A. Allwood, Transverse and vortex domain wall structure in magnetic nanowires with uniaxial in-plane anisotropy, J. Phys.: Condens. Matter 24, 024205 (2012).
  38. S. K. Chaluvadi, F. Ajejas, P. Orgiani, S. Lebargy, A. Minj, S. Flament, J. Camarero, P. Perna, and L. Méchin, Epitaxial strain and thickness dependent structural, electrical and magnetic properties of La0.67Sr0.33MnO3 films, J. Phys. D 53, 375005 (2020).
