Zeeman spectroscopy of vacancy-charge-compensated ${Er}^{3 +}$ sites in ${CaWO}_{4}$ under vector magnetic fields

Fabian Becker , Sudip KC , Lorenz J. J. Sauerzopf , Tim Schneider , Luis Risinger , Christian Schmid , and Kai Müller

TUM School of Computation, Information and Technology, Technical University of Munich, 80333 Munich, Germany; Walter Schottky Institute, Technical University of Munich, 85748 Garching, Germany; and Munich Center for Quantum Science and Technology (MCQST), 80799 Munich, Germany

Phys. Rev. Materials 10, 016203 – Published 8 January, 2026

DOI: https://doi.org/10.1103/mkpd-9r5p

Abstract

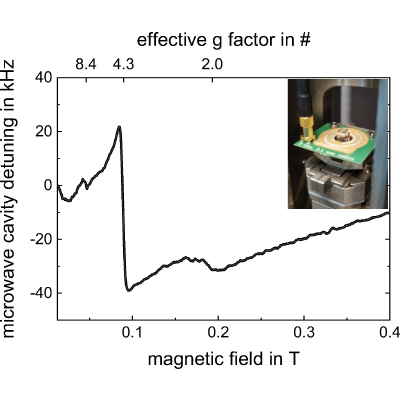

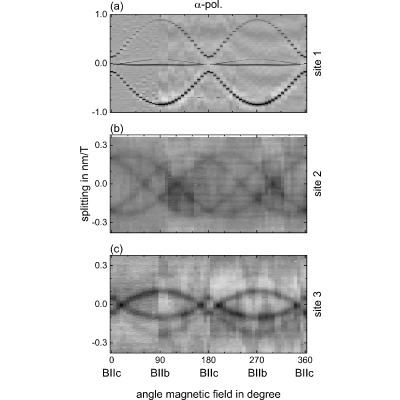

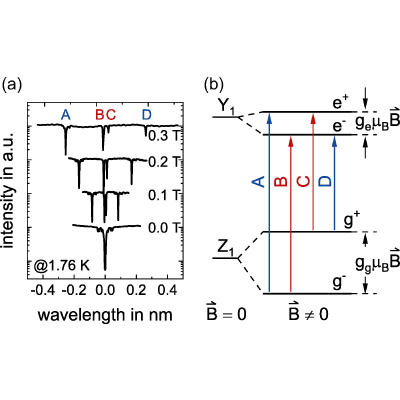

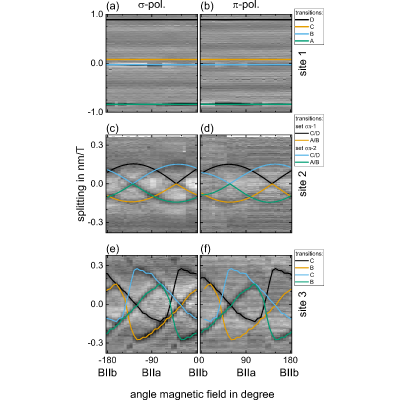

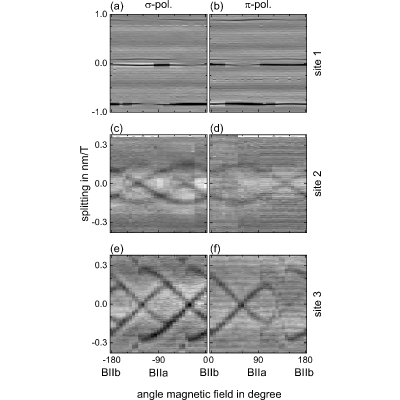

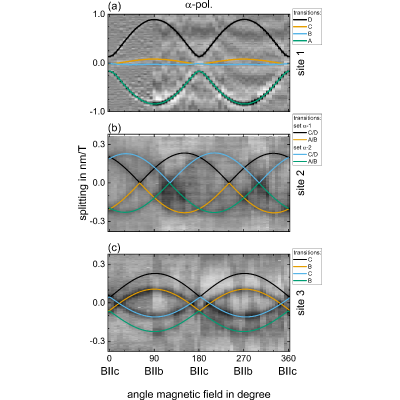

We present polarization-resolved optical absorption measurements on ${Er}^{3 +}$ ions in ${CaWO}_{4}$ under vector magnetic fields, focusing on charge-compensated sites arising from local ${Ca}^{2 +}$ vacancies. While the known axial ${Er}^{3 +}$ site displays a single symmetric Zeeman-split transition pattern consistent with $S_{4}$ symmetry, two additional sites exhibit more complex spectral behavior, including sets of transitions that interchange under $90^{\circ}$ crystal rotations-evidence of reduced, rhombiclike symmetry. From these polarization- and temperature-dependent spectra, we extract effective $g$ factors. Our findings are corroborated by electron paramagnetic resonance measurements and support a model of multiple inequivalent ${Ca}^{2 +}$ vacancies around ${Er}^{3 +}$ sites in the host lattice. This detailed characterization contributes to understanding defect-engineered rare-earth sites for quantum information applications.

Physics Subject Headings (PhySH)

Article Text

References (37)

M. Le Dantec, M. Rančić, S. Lin, E. Billaud, V. Ranjan, D. Flanigan, S. Bertaina, T. Chanelière, P. Goldner, A. Erb, R. B. Liu, D. Estève, D. Vion, E. Flurin, and P. Bertet, Twenty-three-millisecond electron spin coherence of erbium ions in a natural-abundance crystal, Sci. Adv. 7, eabj9786 (2021).
S. Ourari, Ł. Dusanowski, S. P. Horvath, M. T. Uysal, C. M. Phenicie, P. Stevenson, M. Raha, S. Chen, R. J. Cava, N. P. de Leon, and J. D. Thompson, Indistinguishable telecom band photons from a single Er ion in the solid state, Nature (London) 620, 977 (2023).
M. Rančić, M. Le Dantec, S. Lin, S. Bertaina, T. Chanelière, D. Serrano, P. Goldner, R. B. Liu, E. Flurin, D. Estève, D. Vion, and P. Bertet, Electron-spin spectral diffusion in an erbium doped crystal at millikelvin temperatures, Phys. Rev. B 106, 144412 (2022).
M. T. Uysal, Ł. Dusanowski, H. Xu, S. P. Horvath, S. Ourari, R. J. Cava, N. P. de Leon, and J. D. Thompson, Spin-photon entanglement of a single ${Er}^{3 +}$ ion in the telecom band, Phys. Rev. X 15, 011071 (2025).
Z. Wang, L. Balembois, M. Rančić, E. Billaud, M. Le Dantec, A. Ferrier, P. Goldner, S. Bertaina, T. Chanelière, D. Esteve, D. Vion, P. Bertet, and E. Flurin, Single-electron spin resonance detection by microwave photon counting, Nature (London) 619, 276 (2023).
E. Billaud, L. Balembois, J. Travesedo, M. Le Dantec, M. Rančić, E. Albertinale, R. Truong, S. Bertaina, T. Chanelière, P. Goldner, D. Estève, D. Vion, E. Flurin, and P. Bertet, Electron paramagnetic resonance spectroscopy of a scheelite crystal using microwave-photon counting, Phys. Rev. Res. 7, 013011 (2025).
A. Reiserer, Colloquium: Cavity-enhanced quantum network nodes, Rev. Mod. Phys. 94, 041003 (2022).
W. B. Mims, Electric field shift in paramagnetic resonance for four ions in a calcium tungstate lattice, Phys. Rev. 140, A531 (1965).
K. Nassau and G. M. Loiacono, Calcium tungstate—III, J. Phys. Chem. Solids 24, 1503 (1963).
K. Nassau, Calcium tungstate—IV, J. Phys. Chem. Solids 24, 1511 (1963).
F. Becker, C. L. Curtin, S. KC, T. Schneider, L. J. J. Sauerzopf, I. Elzeiny, and K. Müller, Spectroscopic investigations of multiple environments in Er: ${CaWO}_{4}$ through charge imbalance, Phys. Rev. Mater. 9, 076203 (2025).
A. A. Antipin, A. N. Katyshev, I. N. Kurkin, and L. Ya. Shekun, Paramagnetic resonance and spin-lattice relaxation of ${Er}^{3 +}$ and ${Tb}^{3 +}$ ions in the crystal lattice of ${CaWO}^{4}$ , Phys. Solid State 10, 595 (1968).
R. W. Kedzie and M. Kestigian, PMR determination of transition metal ion sites and multiplicity of rare-earth ion sites in ${CaWO}_{4}$ , Appl. Phys. Lett. 3, 86 (1963).
U. Ranon and V. Volterra, Paramagnetic resonance of ${Yb}^{3 +}$ in ${CaWO}_{4}$ , Phys. Rev. 134, A1483 (1964).
W. B. Mims and R. Gillen, Local electric fields and the paramagnetic resonance of charge-compensated sites in (Ca, Ce) ${WO}_{4}$ , J. Chem. Phys. 47, 3518 (1967).
J. Nemarich and W. Viehmann, Effect of charge compensation in calcium tungstate: Ytterbium, J. Phys. Chem. Solids 29, 57 (1968).
C. G. B. Garrett and F. R. Merritt, PMR spectra of ${Nd}^{3 +}$ in compensated and uncompensated ${CaWO}_{4}$ , Appl. Phys. Lett. 4, 31 (1964).
A. Tiranov, E. Green, S. Hermans, E. Liu, F. Chiossi, D. Serrano, P. Loiseau, A. M. Kumar, S. Bertaina, A. Faraon, and P. Goldner, Sub-second spin and lifetime-limited optical coherences in ${}^{171}{Yb}^{3 +}$ : ${CaWO}_{4}$ , arXiv:2504.01592.
R. W. Kedzie, D. H. Lyons, and M. Kestigian, Paramagnetic resonance of the ${Fe}^{3 +}$ ion in ${CaWO}_{4}$ (strong tetragonal crystal field), Phys. Rev. 138, A918 (1965).
R. M. Golding, M. Kestigian, and C. W. Tennant, EPR of high-spin ${Fe}^{3 +}$ in calcium tungstate, ${CaWO}_{4}$ , J. Phys. C 11, 5041 (1978).
R. F. C. Claridge, W. C. Tennant, and D. G. McGavin, X-band EPR of at 10k: Evidence for large magnitude high spin Zeeman interactions, J. Phys. Chem. Solids 58, 813 (1997).
Yongchen Sun, Thomas Böttger, C. W. Thiel, and R. L. Cone, Magnetic $g$ tensors for the ${}^{4}I_{15 / 2}$ and ${}^{4}I_{13 / 2}$ states of ${Er}^{3 +}$ : $Y_{2} {SiO}_{5}$ , Phys. Rev. B 77, 085124 (2008).
T. Böttger, T. L. Harris, G. D. Reinemer, C. W. Thiel, and R. L. Cone, Optical decoherence, spectroscopy, and magnetic $g$ tensors for the 1.5- $µ m^{4} I_{15 / 2} -^{4} I_{13 / 2}$ transitions of ${Er}^{3 +}$ dopants at the $C_{2}$ -symmetry site in $Y_{2} O_{3}$ , Phys. Rev. B 110, 045132 (2024).
T. Böttger, G. D. Reinemer, C. W. Thiel, and R. L. Cone, Optical spectroscopy, magnetic $g$ tensors, and decoherence studies of magnetic dipole transitions of ${Er}^{3 +}$ at the $C_{3 i}$ -symmetry lattice sites in $Y_{2} O_{3}$ at 1.5- $µ m$ , Phys. Rev. B 111, 045119 (2025).
A. Holzäpfel, S. Rinner, K. Sandholzer, A. Gritsch, T. Chanelière, and A. Reiserer, Characterization of the spin and crystal field Hamiltonian of erbium dopants in silicon, Adv. Quantum Technol. 8, 2400342 (2024).
N. Q. Vinh, H. Przybylińska, Z. F. Krasil'nik, and T. Gregorkiewicz, Microscopic structure of Er-related optically active centers in crystalline silicon, Phys. Rev. Lett. 90, 066401 (2003).
Materials Project, Data retrieved from the materials project for ${CaWo}_{4}$ (mp-19426) from database version v2023.11.1, https://next-gen.materialsproject.org/materials/mp-19426.
W. M. Haynes, CRC Handbook of Chemistry and Physics: A Ready-Reference Book of Chemical and Physical Data, 95th ed. (CRC Press, Boca Raton, FL, 2014).
T. Böttger, C. W. Thiel, R. L. Cone, and Y. Sun, Effects of magnetic field orientation on optical decoherence in ${Er}^{3 +}$ : $Y_{2} {SiO}_{5}$ , Phys. Rev. B 79, 115104 (2009).
T. Böttger, Y. Sun, C. W. Thiel, and R. L. Cone, Spectroscopy and dynamics of ${Er}^{3 +}$ : $Y_{2} {SiO}_{5}$ at 1.5- $µ m$ , Phys. Rev. B 74, 075107 (2006).
D. R. Mason and C. Kikuchi, Paramagnetic resonance of erbium in ${CaWO}_{4}$ , Phys. Lett. A 28, 260 (1968).
B. G. Enrique, Optical spectrum and magnetic properties of ${Er}^{3 +}$ in ${CaWO}_{4}$ , J. Chem. Phys. 55, 2538 (1971).
N. F. Chilton, Ab initio electronic structure calculations of lanthanide single-molecule magnets; a practical guide, Chem. Soc. Rev. 54, 11468 (2025).
Y. Limbu, Y. Shi, J. Sink, T. O. Puel, D. Paudyal, and M. E. Flatté, Ab initio calculations of erbium crystal field splittings in oxide hosts, arXiv:2501.03348.
J. Cajzl, P. Nekvindová, A. Macková, P. Malinský, D. Sedmidubský, M. Hušák, Z. Remeš, M. Varga, A. Kromka, R. Böttger, and J. Oswald, Erbium ion implantation into diamond: Measurement and modeling of the crystal structure, Phys. Chem. Chem. Phys. 19, 6233 (2017).
T. Xie, J. Rochman, J. G. Bartholomew, A. Ruskuc, J. M. Kindem, I. Craiciu, C. W. Thiel, R. L. Cone, and A. Faraon, Characterization of ${Er}^{3 +}$ : ${YVO}_{4}$ for microwave to optical transduction, Phys. Rev. B 104, 054111 (2021).
A. Erb and J.-C. Lanfranchi, Growth of high-purity scintillating ${CaWO}_{4}$ single crystals for the low-temperature direct dark matter search experiments CRESST-II and EURECA, CrystEngComm 15, 2301 (2013).
