Detachment-limited interlayer transport processes during SrTiO3 pulsed laser epitaxy

Jeffrey G. Ulbrandt, Xiaozhi Zhang*, and Randall L. Headrick†

  • Department of Physics and Materials Science Program, University of Vermont, Burlington, Vermont 05405, USA

  • *Present address: X-ray Science Division, Advanced Photon Source, Argonne National Laboratory, Lemont, IL 60439, USA.
  • †Contact author: rheadrick@uvm.edu
PDF

Phys. Rev. Materials 9, 103405 – Published 29 October, 2025

DOI: https://doi.org/10.1103/lbg7-5h8b

Abstract

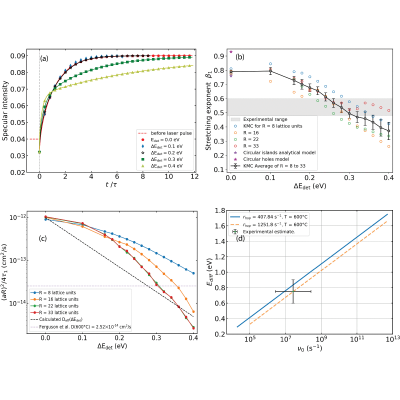

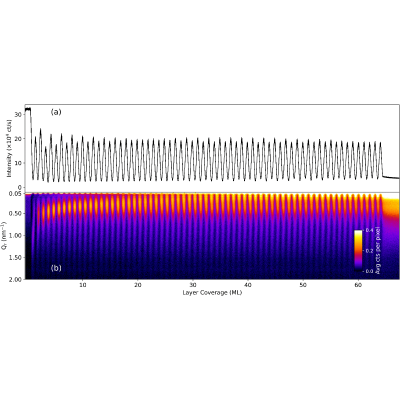

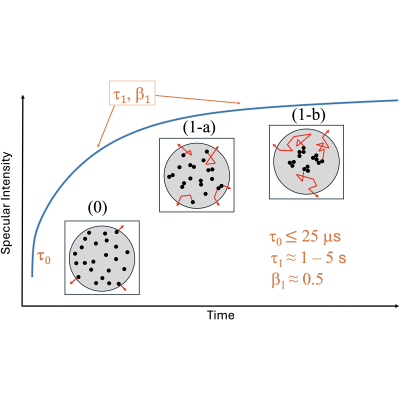

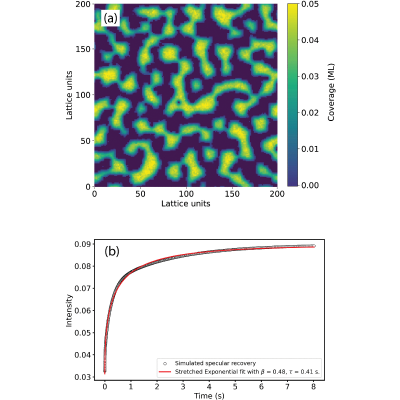

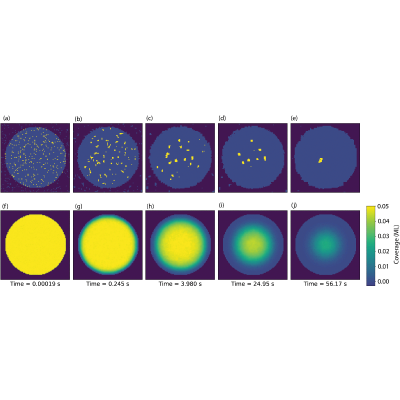

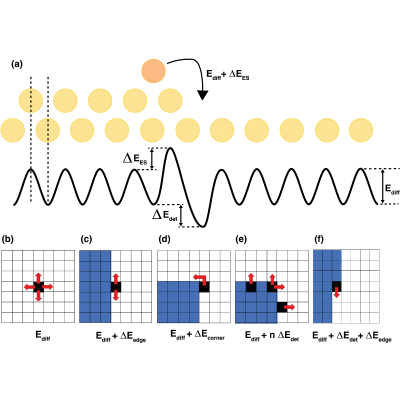

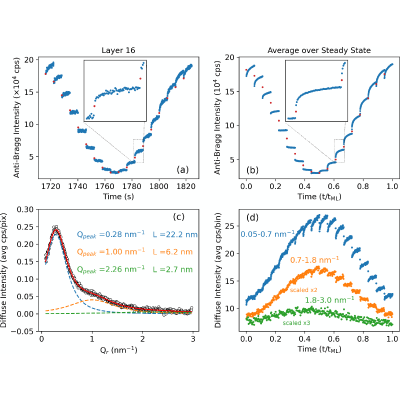

Pulsed laser epitaxial growth is characterized by high instantaneous deposition rates that lead to the nucleation of transient islands, both on surface terraces and on top of stable islands formed during previous deposition pulses. We report results from combined in situ x-ray reflectivity and kinetic Monte Carlo (kMC) simulations. Specular reflectivity monitors interlayer transport, while diffuse scattering reveals the evolution of in-plane length scales, both during the recovery time between individual laser pulses and over multiple deposited layers. The initial stage after each laser pulse is faster than the temporal resolution of the experiment, while subsequent recovery occurs over seconds. The results suggest that transient islands on top of stable two-dimensional islands form immediately after the deposition pulse and then ripen via detachment and diffusion, leading to the slower component. kMC simulations show that the detachment energy barrier plays a dominant role in determining the recovery time constant.

View figure in article

Physics Subject Headings (PhySH)

Article Text

Supplemental Material

References (40)

  1. H. M. Christen and G. Eres, Recent advances in pulsed-laser deposition of complex oxides, J. Phys.: Condens. Matter 20, 264005 (2008).
  2. A. Ohtomo and H. Hwang, A high-mobility electron gas at the LaAlO3/SrTiO3 heterointerface, Nature (London) 427, 423 (2004).
  3. H. Jang, D. Felker, C. Bark, Y. Wang, M. K. Niranjan, C. Nelson, Y. Zhang, D. Su, C. Folkman, and S. Baek, Metallic and insulating oxide interfaces controlled by electronic correlations, Science 331, 886 (2011).
  4. J. Z. Tischler, G. Eres, B. C. Larson, C. M. Rouleau, P. Zschack, and D. H. Lowndes, Nonequilibrium interlayer transport in pulsed laser deposition, Phys. Rev. Lett. 96, 226104 (2006).
  5. A. Fleet, D. Dale, A. R. Woll, Y. Suzuki, and J. D. Brock, Multiple time scales in diffraction measurements of diffusive surface relaxation, Phys. Rev. Lett. 96, 055508 (2006).
  6. E. Vasco and J. L. Sacedón, Role of cluster transient mobility in pulsed laser deposition-type growth kinetics, Phys. Rev. Lett. 98, 036104 (2007).
  7. V. M. Kaganer, W. Braun, B. Jenichen, and K. H. Ploog, Two stages of post-growth recovery in molecular beam epitaxy: A surface X-ray diffraction study, Surf. Sci. 560, 88 (2004).
  8. G. Eres, J. Z. Tischler, C. M. Rouleau, H. N. Lee, H. Christen, P. Zschack, and B. Larson, Dynamic scaling and island growth kinetics in pulsed laser deposition of SrTiO3, Phys. Rev. Lett. 117, 206102 (2016).
  9. B. Hinnemann, H. Hinrichsen, and D. E. Wolf, Epitaxial growth with pulsed deposition: Submonolayer scaling and Villain instability, Phys. Rev. E 67, 011602 (2003).
  10. N. C. Bartelt, W. Theis, and R. M. Tromp, Ostwald ripening of two-dimensional islands on Si(001), Phys. Rev. B 54, 11741 (1996).
  11. T. Sugimoto, Recrystallization, in Monodispersed Particles, 2nd ed., edited by Tadao Sugimoto (Elsevier, New York, 2019), Chap. 4, pp. 167–179.
  12. C. Wagner, Theorie der Alterung von Niederschlägen durch Umlösen (Ostwald-Reifung), Zeitschrift Für Elektrochemie, Berichte Der Bunsengesellschaft Für Physikalische Chemie 65, 581 (1961).
  13. J. G. Ulbrandt, X. Zhang, R. L. Headrick, R. Liu, M. Dawber, and K. Evans-Lutterodt, Fast nonthermal processes in pulsed laser deposition, Phys. Rev. B 101, 241406(R) (2020).
  14. S. Holm, Time domain characterization of the Cole-Cole dielectric model, J. Electr. Bioimped. 11, 101 (2020).
  15. M. Siegert and M. Plischke, Solid-on-solid models of molecular-beam epitaxy, Phys. Rev. E 50, 917 (1994).
  16. E. Vasco, C. Polop, and J. L. Sacedón, Preventing kinetic roughening in physical vapor-phase-deposited films, Phys. Rev. Lett. 100, 016102 (2008).
  17. W. Xu, F. Yi-Yan, Z. Xiang-Dong, L. Hui-Bin, and Y. Guo-Zhen, Growth model for pulsed-laser deposited perovskite oxide films, Chin. Phys. Lett. 25, 663 (2008).
  18. B. Hinnemann, H. Hinrichsen, and D. E. Wolf, Unusual scaling for pulsed laser deposition, Phys. Rev. Lett. 87, 135701 (2001).
  19. P.-M. Lam, S. J. Liu, and C. H. Woo, Monte Carlo simulation of pulsed laser deposition, Phys. Rev. B 66, 045408 (2002).
  20. L. Huang, Kinetic Monte Carlo simulations for the submonolayer growth of homoepitaxial SrTiO3 thin films, Micro Nano Lett. 13, 1497 (2018).
  21. V. Gabriel, P. Kocán, and V. Holý, Effective algorithm for simulations of layer-by-layer growth during pulsed-laser deposition, Phys. Rev. E 102, 063305 (2020).
  22. P. Šmilauer and D. D. Vvedensky, Coarsening and slope evolution during unstable epitaxial growth, Phys. Rev. B 52, 14263 (1995).
  23. J. D. Ferguson, G. Arikan, D. S. Dale, A. R. Woll, and J. D. Brock, Measurements of surface diffusivity and coarsening during pulsed laser deposition, Phys. Rev. Lett. 103, 256103 (2009).
  24. A. B. Bortz, M. H. Kalos, and J. L. Lebowitz, A new algorithm for Monte Carlo simulation of Ising spin systems, J. Comput. Phys. 17, 10 (1975).
  25. T. Schulze, Kinetic Monte Carlo simulations with minimal searching, Phys. Rev. E 65, 036704 (2002).
  26. See Supplemental Materials at http://link.aps.org/supplemental/10.1103/lbg7-5h8b for additional figures and notes.
  27. S. Lucas and P. Moskovkin, Simulation at high temperature of atomic deposition, islands coalescence, Ostwald and inverse Ostwald ripening with a general simple kinetic Monte Carlo code, Thin. Solid. Films 518, 5355 (2010).
  28. Kinetic Monte-Carlo code to simulate Pulsed Laser Deposition, v.3.4.1 (2024), https://github.com/jeffreyulbrandt/Kinetic-Monte-Carlo.
  29. S. K. Sinha, E. B. Sirota, S. Garoff, and H. B. Stanley, X-ray and neutron scattering from rough surfaces, Phys. Rev. B 38, 2297 (1988).
  30. J. Als-Nielsen, and D. McMorrow, Elements of Modern X-ray Physics, 2nd ed. (John Wiley, New York, 2011).
  31. J. Evans, P. Thiel, and M. C. Bartelt, Morphological evolution during epitaxial thin film growth: Formation of 2D islands and 3D mounds, Surf. Sci. Rep. 61, 1 (2006).
  32. A. F. Voter, in Radiation Effects in Solids, edited by K. E. Sickafus, E. A. Kotomin, and B. P. Uberuaga, NATO Science Series, Vol. 235 (Springer, Netherlands, 2007), pp. 1–23.
  33. C. H. Claassens, M. J. H. Hoffman, J. J. Terblans, and H. C. Swart, Kinetic Monte Carlo simulation of the growth of various nanostructures through atomic and cluster deposition: Application to gold nanostructure growth on graphite, J. Phys. Conf. Ser. 29, 185 (2006).
  34. O. Trushin, A. Karim, A. Kara, and T. S. Rahman, Self-learning kinetic Monte Carlo method: Application to Cu(111), Phys. Rev. B 72, 115401 (2005).
  35. R.-Q. Zhang, X.-H. Xu, S.-Y. Zhang, and G. A. Gehring, Monte Carlo simulation of growth of binary bcc structured layers, Phys. Rev. B 78, 075419 (2008).
  36. X. Tan, Y. C. Zhou, and X. J. Zheng, Dependence of morphology of pulsed-laser deposited coatings on temperature: A kinetic Monte Carlo simulation, Surf. Coat. Technol. 197, 288 (2005).
  37. Z. Zhu, X. J. Zheng, and W. Li, Multilayer growth of BaTiO3 thin films via pulsed laser deposition: An energy-dependent kinetic Monte Carlo simulation, Appl. Surf. Sci. 256, 5876 (2010).
  38. P. Petrov and W. Miller, A new kinetic Monte Carlo method for the thin film growth of perovskites, Surf. Rev. Lett. 16, 909 (2009).
  39. R. Gomer, Diffusion of adsorbates on metal surfaces, Rep. Prog. Phys. 53, 917 (1990).
  40. J. G. Ulbrandt, Real-time x-ray scattering data and kinetic Monte Carlo simulation data for homoepitaxy of strontium-titanate by pulsed-laser deposition [Data set] Zenodo (2025), https://doi.org/10.5281/zenodo.15855841.
