Vacancy-screw dislocation interactions in bcc Nb: A machine-learning potential investigation

Nikolay Zotov* and Blazej Grabowski

  • *Contact author: nikolay.zotov@f03.uni-stuttgart.de
PDF

Phys. Rev. Materials 10, 063603 – Published 11 June, 2026

DOI: https://doi.org/10.1103/bndj-x5kh

Abstract

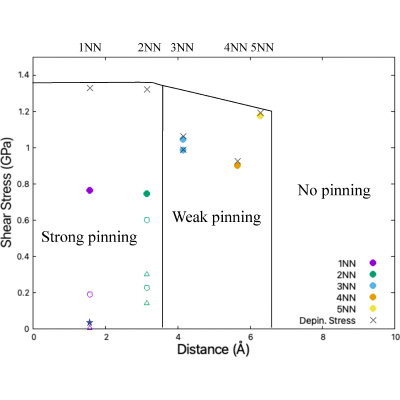

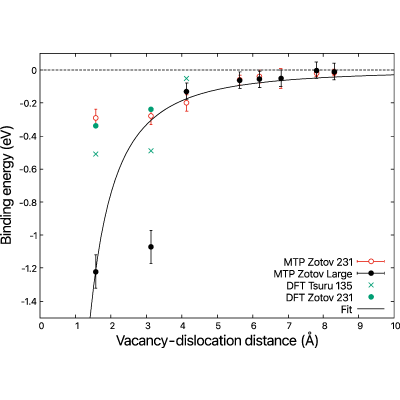

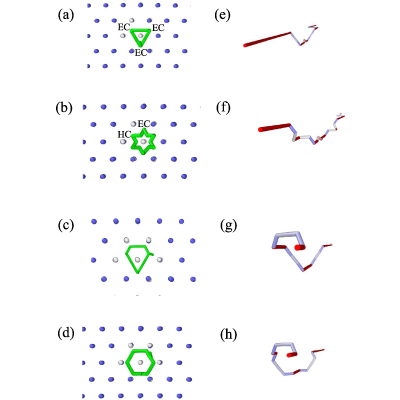

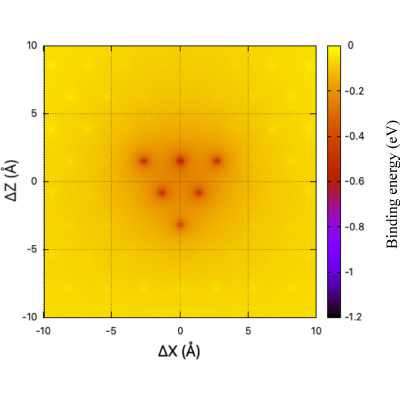

Vacancy-screw dislocation interactions in bcc Nb are studied with near density functional theory accuracy using a machine-learning potential, specifically a moment tensor potential (MTP), in large-scale atomistic simulations. The MTP predicts attractive vacancy-dislocation interactions with threefold symmetry in the (111) plane. These attractive interactions lead to a decrease in the Peierls stress by up to 28%, depending on the vacancy position relative to the dislocation. The interactions also lead to the formation of new complex topological defects (CTDs), when the vacancy is close to the dislocation core. A CTD can be geometrically characterized as a screw dislocation with multiple kinks and with a (partially) dissociated vacancy along the dislocation line. CTDs form under shear when the vacancy-dislocation distance is less than ∼6 Å, providing a new mechanism for pinning screw dislocations. The formation of CTDs confirms theoretical predictions made in the early 1990s based on differential geometry and underscores the importance of machine-learning potentials and large-scale simulations for accurately describing the properties of extended defects in metals.

View figure in article

Physics Subject Headings (PhySH)

Article Text

Supplemental Material

References (38)

  1. E. Mittemeijer, Fundamentals of Materials Science (Springer, Heidelberg, 2010).
  2. J. P. Hirth and J. Lothe, Theory of Dislocations (Wiley, New York, 1982).
  3. E. Kröner, The differential geometry of elementary point and line defects in Bravais crystals, Int. J. Theor. Phys. 29, 1219 (1990).
  4. D. A. Damasceno, R. K. N. D. Rajapakse, E. Mesquita, and R. Pavanello, Atomistic simulation of tensile strength properties of graphene with complex vacancy and topological defects, Acta Mech. 231, 3387 (2020).
  5. Z. M. Chen, M. Mrovec, and P. Gumbsch, Dislocation-vacancy interactions in tungsten, Modell. Simul. Mater. Sci. Eng. 19, 074002 (2011).
  6. L. M. Hale and C. A. Becker, Vacancy dissociation in body-centered cubic screw dislocation cores, Comp. Mater. Sci. 135, 1 (2017).
  7. K. Xu, L-L. Niu, S. Jin, X. Shu, H. Xie, L. Wang, and G-H. Lu, Atomistic simulations of screw dislocations in bcc tungsten: From core structures and static properties to interactions with vacancies, Nucl. Instrum. Methods Phys. Res. B 393, 174 (2017).
  8. B.-C. Xu, X.-C. Li, J. Wang, X. Zhao, Y.-W. Li, X.-D. Pan, H.-S. Zhou, and G.-N. Luo, Atomic study of the trapped and migration patterns of points defects around screw dislocation in tungsten, Nucl. Mater. Energy 34, 101400 (2023).
  9. E. Hayward, C. Deo, B. P. Uberuaga, and C. N. Tome, The interaction of a screw dislocation with point defects in bcc iron, Phil. Mag. 92, 2759 (2012).
  10. N. Zotov, K. Gubaev, J. Wörner, and B. Grabowski, Moment tensor potential for static and dynamic investigations of screw dislocations in bcc Nb, Modell. Simul. Mater. Sci. Eng. 32, 035032 (2024).
  11. C. R. Weinberger, G. J. Tucker, and S. M. Foiles, Peierls potential of screw dislocations in bcc transition metals: Predictions from density functional theory, Phys. Rev. B 87, 054114 (2013).
  12. D. Farkas and C. Jones, Interatomic potentials for ternary Nb–Ti–Al alloys, Model. Simul. Mater. Sci. Eng. 4, 23 (1996).
  13. Y. Zhang, R. Ashcraft, M. I. Mendelev, C. Z. Wang, and K. F. Kelton, Experimental and molecular dynamics study of structure of liquid and amorphous Ni62Nb38 alloy, J. Chem. Phys. 145, 204505 (2016).
  14. J-F. Croteau, E. P. Kulyadi, C. Kale, D. Siu, D. Kang, A. T. Perez Fontenla, E. Garcia-Tabares Valdivieso, T. R. Bieler, P. Eisenlohr, K. N. Solanki, D. Balint, P. A. Hooper, S. Atieh, N. Jacques, and E. Cantergiani, Effect of strain rate on tensile mechanical properties of high-purity niobium single crystals for SRF applications, Mater. Sci. Eng. A 797, 140258 (2020).
  15. O. N. Senkov, D. B. Miracle, K. J. Chaput, and J.-P. Couzinie, Development and exploration of refractory high entropy alloys—a review, J. Mater. Res. 33, 3092 (2018).
  16. S. Plimpton, Fast parallel algorithms for short-range molecular dynamics, J. Comp. Phys. 117, 1 (1995).
  17. P. Hirel, ATOMSK: A tool for manipulation and converting data files, Comp. Phys. Comm. 197, 212 (2015).
  18. R. Gröger, Ddplot Ver 4.0 (Institute of Physics of Materials, Brno, 2017).
  19. I. Novikov, K. Gubaev, E. V. Podryabkin, and A. Shapeev, The MLIP package: Moment tensor potentials with MPI and active learning, Mech. Learn. Sci. Technol. 2, 025002 (2020).
  20. C. S. Hartley and Y. Mishin, Representation of dislocation cores using Nye tensor distributions, Mater. Sci. Eng. A 400–401, 18 (2005).
  21. B. G. Mendes, Y. Mishin, C. S. Hartley, and K. J. Hemker, Use of the Nye tensor in analyzing HREM images of bcc screw dislocations, Phil. Mag. 86, 4607 (2006).
  22. G. Kresse and J. Furthmüller, Efficiency of ab-initio total energy calculations for metals and semiconductors using a plane-wave basis set, Comput. Mater. Sci. 6, 15 (1996).
  23. H. J. Monkhorst and J. D. Pack, Special points for Brillouin-zone integrations, Phys. Rev. B 13, 5188 (1976).
  24. M. Methfessel and A. T. Paxton, High-precision sampling for Brillouin-zone integration in metals, Phys. Rev. B 40, 3616 (1989).
  25. J. Li, C. Z. Wang, J. P. Chang, W. Cai, V. V. Bulatov, K. M. Ho, and S. Yip, Core energy and Peierls stress of a screw dislocation in bcc molybdenum: A periodic-cell tight-binding study, Phys. Rev. B 70, 104113 (2004).
  26. A. Stukowski, Visualization and analysis of atomistic data with OVITO-the open visualization tool, Modell. Simul. Mater. Sci. Eng. 18, 015012 (2010).
  27. See Supplemental Material at http://link.aps.org/supplemental/10.1103/bndj-x5kh for demonstrating that the binding energy and the depinning stress are converged for our computational setup; showing the binding energy map calculated with the MTP at large distances and the binding energy map calculated with the Farkas et al. EAM.
  28. T. Tsuru, I. Lobzenko, S. Ogata, and W.-Z. Han, First-principles analysis of the effects of oxygen, vacancies, and their complexes on the screw dislocation motion in body-centered cubic Nb, J. Mater. Res. Technol. 28, 1013 (2024).
  29. J. W. Steeds, Analytic form of stress fields, displacements and dilation for the 〈111〉 dislocation in anisotropic elasticity, Phys. Stat. Sol. 34, 601 (1969).
  30. R. Bullough and R. C. Newman, The kinetics of migration of point defects to dislocations, Rep. Prog. Phys. 33, 101 (1970).
  31. N. Zotov and B. Grabowski, Molecular dynamics simulations of screw dislocation mobility in bcc Nb, Modell. Simul. Mater. Sci. Eng. 29, 085007 (2021).
  32. R. M. Thomson and R. W. Balluffi, Kinetic theory of dislocation climb. I. General models for edge and screw dislocations, J. Appl. Phys. 33, 803 (1962).
  33. F. Sozio and A. Yavari, On Nye's lattice curvature tensor, Mech. Res. Comm. 113, 103696 (2021).
  34. J. Weertman, Helical dislocations, Phys. Rev. 107, 1259 (1957).
  35. J. C. Haley, F. Liu, E. Tarleton, A. C. F. Cocks, G. R. Odette, S. Lozano-Perez, and S. G. Roberts, Helical dislocations: Observations of vacancy defect bias of screw dislocations in neutron irradiated Fe-9Cr, Acta Mater. 181, 173 (2019).
  36. A. Seeger and U. Holzwarth, Slip planes and kink properties of screw dislocations in high-purity niobium, Phil. Mag. 86, 3861 (2006).
  37. J. Cizek, M. Janecek, T. Vlasak, B. Smola, O. Melikhova, R. K. Islamgaliev, and S. V. Dobatkin, The development of vacancies during severe plastic deformation, Mater. Trans. 60, 1533 (2019).
  38. K. Nalepka, Symmetry-based approach to parametrization of embedded-atom-method interatomic potentials, Comput. Mater. Sci. 56, 100 (2012).
