- Physical Review Journals
All JournalsPhysics Magazine

Physical Review Materials

Reuse & Permissions

It is not necessary to obtain permission to reuse this article or its components as it is available under the terms of the Creative Commons Attribution 4.0 International license. This license permits unrestricted use, distribution, and reproduction in any medium, provided attribution to the author(s) and the published article's title, journal citation, and DOI are maintained. Please note that some figures may have been included with permission from other third parties. It is your responsibility to obtain the proper permission from the rights holder directly for these figures.

Export citation

Export citation

Choose format for download:

Download Citation
  • Open Access

Pressure-stabilized dual-BCC polymorphism in a rhenium-based high-entropy alloy

Raimundas Sereika*, Andrew D. Pope, Hunter Kantelis, Caleb M. Knight, Kallol Chakrabarty, and Yogesh K. Vohra

  • *Contact author: rsereika@uab.edu
PDF

Phys. Rev. Materials 10, 043602 – Published 24 April, 2026

DOI: https://doi.org/10.1103/8smt-nygp

Abstract

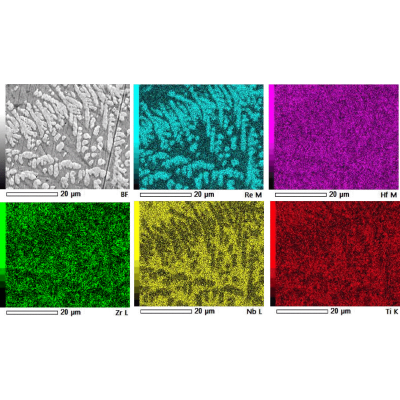

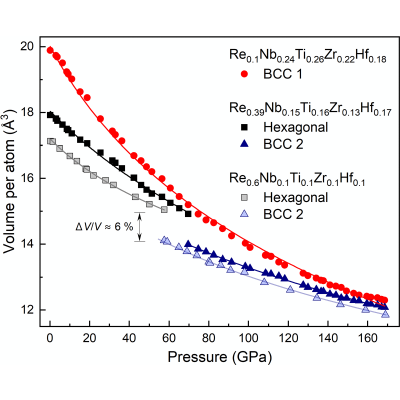

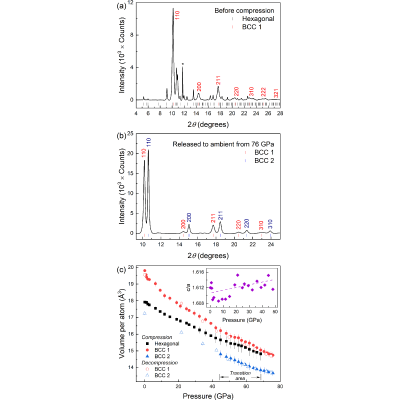

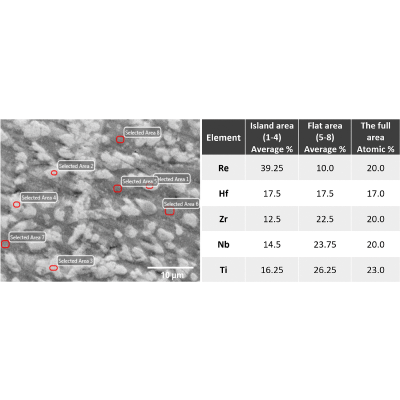

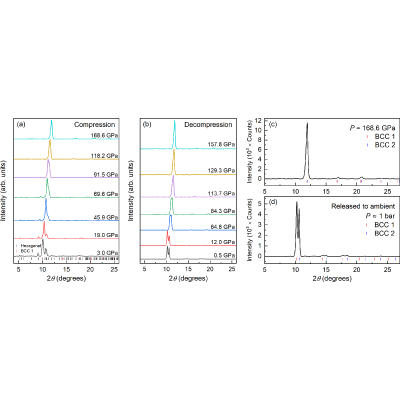

Accessing metastable structural states in high-entropy alloys (HEAs) offers a promising route to tailor material properties, yet the use of high pressure to engineer such states remains underexplored. Here, we report the pressure-driven synthesis of a unique metastable dual-BCC microstructure in a near-equimolar ReNbTiZrHf alloy. Starting from an ambient two-phase mixture of hexagonal (C14-derived) and body-centered cubic (BCC) phases, compression induces a selective, diffusionless transformation of the hexagonal constituent into a second, crystallographically distinct BCC polymorph, while the original BCC phase remains stable. Upon decompression, the pressure-induced BCC phase is kinetically trapped, yielding a dual-BCC state that is inaccessible via conventional thermal processing. The pressure-stabilized BCC polymorph is Re-enriched and inherits the exceptional stiffness of its hexagonal parent (bulk modulus ∼290 GPa), creating a composite microstructure with pronounced elastic and mechanical contrast relative to the softer original BCC matrix (∼180 GPa). These findings demonstrate that pressure can effectively navigate the flat free-energy landscapes of chemically complex alloys, establishing a robust pathway for polymorph engineering and metastable phase design in refractory HEAs.

View figure in article

Physics Subject Headings (PhySH)

Article Text

References (22)

  1. J.-W. Yeh, S.-K. Chen, S.-J. Lin, J.-Y. Gan, T.-S. Chin, T.-T. Shun, C.-H. Tsau, and S.-Y. Chang, Nanostructured high-entropy alloys with multiple principal elements: Novel alloy design concepts and outcomes, Adv. Eng. Mater. 6, 299 (2004).
  2. D. B. Miracle and O. N. Senkov, A critical review of high-entropy alloys and related concepts, Acta Mater. 122, 448 (2017).
  3. E. P. George, D. Raabe, and R. O. Ritchie, High-entropy alloys, Nat. Rev. Mater. 4, 515 (2019).
  4. Y. Zhang, T. T. Zuo, Z. Tang, M. C. Gao, K. A. Dahmen, P. K. Liaw, and Z. P. Lu, Microstructures and properties of high-entropy alloys, Prog. Mater Sci. 61, 1 (2014).
  5. R. Sereika, S. Iwan, P. A. Baker, W. Bi, and Y. K. Vohra, Dual-phase superconductivity in high-pressure high-temperature synthesized TaNbZrHfTi, AIP Advances 14, 065216 (2024).
  6. S. Anzellini, A. Dewaele, F. Occelli, P. Loubeyre, and M. Mezouar, Equation of state of rhenium and application for ultra-high-pressure calibration, J. Appl. Phys. 115, 043511 (2014).
  7. T. Sakai et al., High pressure generation using double-stage diamond anvil technique: Problems and equations of state of rhenium, High Pressure Res. 38, 107 (2018).
  8. G. L. Rech, J. E. Zorzi, and C. A. Perottoni, Equation of state of hexagonal-close-packed rhenium in the terapascal regime, Phys. Rev. B 100, 174107 (2019).
  9. K. Stolze, F. A. Cevallos, T. Kong, and R. J. Cava, High-entropy alloy superconductors on an α-Mn lattice, J. Mater. Chem. C 6, 10441 (2018).
  10. S. Marik, M. Varghese, K. P. Sajilesh, D. Singh, and R. P. Singh, Superconductivity in equimolar Nb-Re-Hf-Zr-Ti high-entropy alloy, J. Alloys Compd. 769, 1059 (2018).
  11. S. Marik, K. Motla, M. Varghese, K. P. Sajilesh, D. Singh, Y. Breard, P. Boullay, and R. P. Singh, Superconductivity in a new hexagonal high-entropy alloy, Phys. Rev. Mater. 3, 060602(R) (2019).
  12. L. Huang, S. Sun, J. Xue, X. Lin, X. Gao, Y. Li, J. Li, C. Ma, and W. Zhang, Enhanced irradiation-resistance in NbMoTaW refractory high-entropy alloy via rhenium addition, Heliyon 10, e40553 (2024).
  13. X. Zhou, Q. Zhu, X. Liang, Q. Jia, C. Zhang, S. Zhao, and H. Guo, Rhenium alloying strengthens a ductile refractory high-entropy alloy, Scr. Mater. 257, 116464 (2025).
  14. R. Sereika, C. M. Knight, K. Chakrabarty, A. D. Pope, D. Smith, and Y. K. Vohra, Pressure-induced irreversible volume collapse in a high-entropy alloy, Phys. Rev. Mater. 9, 073609 (2025).
  15. R. Sereika, A. D. Pope, C. M. Knight, K. Chakrabarty, and Y. K. Vohra, Pressure–temperature route from disordered BCC to a 2×2×2 B2 superstructure, Sci. Rep. 16, 3638 (2025).
  16. T. Sakai, H. Kadobayashi, Y. Nakamoto, H. Dekura, N. Ishimatsu, S. Kawaguchi-Imada, Y. Seto, O. Sekizawa, K. Nitta, and K. Shimizu, The equations of state of nine materials up to 0.43 TPa for extreme pressure science, Commun Mater 6, 68 (2025).
  17. C. Prescher and V. B. Prakapenka, DIOPTAS: A program for reduction of two-dimensional x-ray diffraction data and data exploration, High Pressure Res. 35, 223 (2015).
  18. V. Petříček, L. Palatinus, J. Plášil, and M. Dušek, Jana2020–a new version of the crystallographic computing system Jana, Z. Krist. - Cryst. Mater. 238, 271 (2023).
  19. J. Gonzalez-Platas, M. Alvaro, F. Nestola, and R. Angel, EosFit7-GUI: A new graphical user interface for equation of state calculations, analyses and teaching, J. Appl. Crystallogr. 49, 1377 (2016).
  20. C. L. Tracy, S. Park, D. R. Rittman, S. J. Zinkle, H. Bei, M. Lang, R. C. Ewing, and W. L. Mao, High-pressure synthesis of a hexagonal close-packed phase of the high-entropy alloy CrMnFeCoNi, Nat. Commun. 8, 15634 (2017).
  21. F. Zhang, H. Lou, B. Cheng, Z. Zeng, and Q. Zeng, High-pressure induced phase transitions in high-entropy alloys: A Review, Entropy 21, 239 (2019).
  22. D. Errandonea, B. Schwager, R. Ditz, C. Gessmann, R. Boehler, and M. Ross, Systematics of transition-metal melting, Phys. Rev. B 63, 132104 (2001).

Outline

Information

Phys. Rev. Materials 10, 043602– Published 24 April, 2026
  • Received 3 February 2026
  • Accepted 2 April 2026
Crossmark - Check for updates button
Creative Commons Logo

Published by the American Physical Society under the terms of the Creative Commons Attribution 4.0 International license. Further distribution of this work must maintain attribution to the author(s) and the published article's title, journal citation, and DOI.

Published by the American Physical Society

Sign In to Your Journals Account

Filter

Filter

Article Lookup

Enter a citation
