Controlling the magnetotransport properties of magnetic topological insulator Crx(BiySb1−y)2−xTe3 thin films via molecular beam epitaxy

Jan Karthein1,2,*, Jonas Buchhorn1,2, Kaycee Underwood1,2,†, Abdur Rehman Jalil1,3, Max Vaßen-Carl1,2, Peter Schüffelgen1,2, Detlev Grützmacher1,2, and Thomas Schäpers1,2,‡

  • *Contact author: j.karthein@fz-juelich.de.de
  • †Present address: Donostia International Physics Center (DIPC), 20018 Donostia-San Sebastián, Spain.
  • ‡Contact author: th.schaepers@fz-juelich.de
PDF

Phys. Rev. Materials 9, 124202 – Published 10 December, 2025

DOI: https://doi.org/10.1103/8m2h-83zm

Abstract

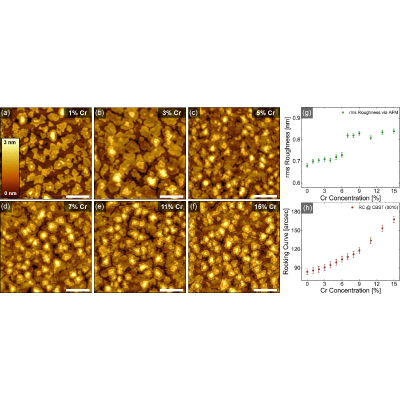

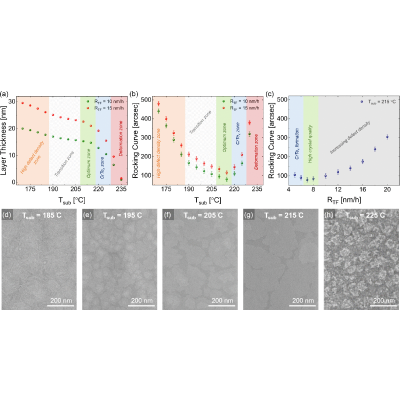

In this work we present a systematic in-depth study of how we can alter the magnetotransport properties of magnetic topological insulator thin films by tuning the parameters of the molecular-beam epitaxy. First, we show how a varying substrate temperature changes the surface morphology and, when chosen properly, leads to a high crystal quality. Next, the effect of the chromium concentration on the film roughness and crystal quality is investigated. Finally, both the substrate temperature and the chromium concentration are investigated with respect to their effect on the magnetotransport properties of the magnetic topological insulator thin films. It becomes apparent that the substrate temperature and the chromium concentration can be used to tune the Fermi level of the film which allows to make the material intrinsically charge neutral. A very low chromium concentration furthermore allows to tune the magnetic topological insulator into a regime where strong superconducting correlations can be expected when combining the material with a superconductor.

View figure in article

Physics Subject Headings (PhySH)

Article Text

Supplemental Material

References (34)

  1. C.-Z. Chen, Y.-M. Xie, J. Liu, P. A. Lee, and K. T. Law, Quasi-one-dimensional quantum anomalous Hall systems as new platforms for scalable topological quantum computation, Phys. Rev. B 97, 104504 (2018).
  2. X.-L. Qi, T. L. Hughes, and S.-C. Zhang, Chiral topological superconductor from the quantum Hall state, Phys. Rev. B 82, 184516 (2010).
  3. C.-Z. Chang, J. Zhang, M. Liu, Z. Zhang, X. Feng, K. Li, L.-L. Wang, X. Chen, X. Dai, Z. Fang et al., Thin films of magnetically doped topological insulator with carrier-independent long-range ferromagnetic order, Adv. Mater. 25, 1065 (2013).
  4. L. Zhang, D. Zhao, Y. Zang, Y. Yuan, G. Jiang, M. Liao, D. Zhang, K. He, X. Ma, and Q. Xue, Ferromagnetism in vanadium-doped Bi2Se3 topological insulator films, APL Mater. 5, 076106 (2017).
  5. R. Yu, W. Zhang, H.-J. Zhang, S.-C. Zhang, X. Dai, and Z. Fang, Quantized anomalous Hall effect in magnetic topological insulators, Science 329, 61 (2010).
  6. Y. Tokura, K. Yasuda, and A. Tsukazaki, Magnetic topological insulators, Nat. Rev. Phys. 1, 126 (2019).
  7. C.-Z. Chang, J. Zhang, X. Feng, J. Shen, Z. Zhang, M. Guo, K. Li, Y. Ou, P. Wei, L.-L. Wang et al., Experimental observation of the quantum anomalous Hall effect in a magnetic topological insulator, Science 340, 167 (2013).
  8. C.-Z. Chang, W. Zhao, D. Y. Kim, H. Zhang, B. A. Assaf, D. Heiman, S.-C. Zhang, C. Liu, M. H. Chan, and J. S. Moodera, High-precision realization of robust quantum anomalous Hall state in a hard ferromagnetic topological insulator, Nat. Mater. 14, 473 (2015).
  9. M. Mogi, R. Yoshimi, A. Tsukazaki, K. Yasuda, Y. Kozuka, K. Takahashi, M. Kawasaki, and Y. Tokura, Magnetic modulation doping in topological insulators toward higher-temperature quantum anomalous Hall effect, Appl. Phys. Lett. 107, 182401 (2015).
  10. A. Uday, G. Lippertz, K. Moors, H. F. Legg, R. Joris, A. Bliesener, L. M. Pereira, A. Taskin, and Y. Ando, Induced superconducting correlations in a quantum anomalous Hall insulator, Nat. Phys. 20, 1589 (2024).
  11. T. Jansen, E. Kochetkova, A. Isaeva, A. Brinkman, and C. Li, Josephson coupling across magnetic topological insulator MnBi2Te4, Commun. Mater. 5, 214 (2024).
  12. J. Legendre, E. Zsurka, D. Di Miceli, L. Serra, K. Moors, and T. L. Schmidt, Topological properties of finite-size heterostructures of magnetic topological insulators and superconductors, Phys. Rev. B 110, 075426 (2024).
  13. D. Burke, D. Heffels, K. Moors, P. Schüffelgen, D. Grützmacher, and M. R. Connolly, Robust Majorana bound states in magnetic topological insulator nanoribbons with fragile chiral edge channels, Phys. Rev. B 109, 045138 (2024).
  14. E. Zsurka, D. Di Miceli, J. Legendre, L. Serra, D. Grützmacher, T. L. Schmidt, and K. Moors, Optimizing proximitized magnetic topological insulator nanoribbons for Majorana bound states, Phys. Rev. B 112, 094504 (2025).
  15. See Supplemental Material at http://link.aps.org/supplemental/10.1103/8m2h-83zm for more details on the structural characterization and methods used for the electrical measurements, which includes Refs. [19, 20, 23, 24].
  16. A. R. Jalil, Engineering topological superlattices and their epitaxial integration in selectively grown hybrid nanostructures via MBE, Dissertation Thesis: Ph.D., RWTH Aachen University, Aachen, Germany, 2022.
  17. P. Schüffelgen, D. Rosenbach, C. Li, T. W. Schmitt, M. Schleenvoigt, A. R. Jalil, S. Schmitt, J. Kölzer, M. Wang, B. Bennemann et al., Selective area growth and stencil lithography for in situ fabricated quantum devices, Nat. Nanotechnol. 14, 825 (2019).
  18. A. R. Jalil, P. Schüffelgen, H. Valencia, M. Schleenvoigt, C. Ringkamp, G. Mussler, M. Luysberg, J. Mayer, and D. Grützmacher, Selective area epitaxy of quasi-1-dimensional topological nanostructures and networks, Nanomaterials 13, 354 (2023).
  19. S. K. Chong, P. Zhang, J. Li, Y. Zhou, J. Wang, H. Zhang, A. V. Davydov, C. Eckberg, P. Deng, L. Tai et al., Electrical manipulation of topological phases in a quantum anomalous Hall insulator, Adv. Mater. 35, 2207622 (2023).
  20. A. R. Jalil, X. Hou, P. Schüffelgen, J. H. Bae, E. Neumann, G. Mussler, L. Plucinski, and D. Grützmacher, Phase-Selective epitaxy of trigonal and orthorhombic bismuth thin films on Si (111), Nanomaterials 13, 2143 (2023).
  21. N. Abuawwad, M. d. S. Dias, H. Abusara, and S. Lounis, CrTe2 As a two-dimensional material for topological magnetism in complex heterobilayers, Phys. Rev. B 108, 094409 (2023).
  22. A. A. Katanin and E. M. Agapov, Magnetic properties of monolayer, multilayer, and bulk CrTe2, Phys. Rev. B 111, 035118 (2025).
  23. L. J. van der Pauw, A method of measuring the resistivity and hall coefficient on lamellae of arbitrary shape, Philips Tech. Rev. 20, 220 (1958).
  24. G. Qiu, H.-Y. Yang, S. K. Chong, Y. Cheng, L. Tai, and K. L. Wang, Manipulating topological phases in magnetic topological insulators, Nanomaterials 13, 2655 (2023).
  25. E. Zimmermann, M. Schleenvoigt, A. Rupp, G. Behner, J. Karthein, J. Teller, P. Schüffelgen, H. Lüth, D. Grützmacher, and T. Schäpers, Fourier transformation based analysis routine for intermixed longitudinal and transversal hysteretic data for the example of a magnetic topological insulator, J. Phys. Mater. 7, 015015 (2024).
  26. N. Ito, R. Masutomi, and T. Okamoto, Cancellation of electron and hole contributions to the Hall effect in ultrathin Bi films grown on GaAs (110), Phys. Rev. B 105, 205434 (2022).
  27. X. Kou, M. Lang, Y. Fan, Y. Jiang, T. Nie, J. Zhang, W. Jiang, Y. Wang, Y. Yao, L. He et al., Interplay between different magnetisms in Cr-doped topological insulators, ACS Nano 7, 9205 (2013).
  28. C. Weyrich, M. Drögeler, J. Kampmeier, M. Eschbach, G. Mussler, T. Merzenich, T. Stoica, I. E. Batov, J. Schubert, L. Plucinski, B. Beschoten, C. M. Schneider, C. Stampfer, D. Grützmacher, and T. Schäpers, Growth, characterization, and transport properties of ternary (Bi1−xSbx)2 Te3 topological insulator layers, J. Phys.: Condens. Matter 28, 495501 (2016).
  29. G. Lippertz, A. Bliesener, A. Uday, L. M. C. Pereira, A. A. Taskin, and Y. Ando, Current-induced breakdown of the quantum anomalous Hall effect, Phys. Rev. B 106, 045419 (2022).
  30. N. W. Ashcroft and N. Mermin, Solid State, Physics (Rinehart and Winston, New York,1976).
  31. H.-Z. Lu, J. Shi, and S.-Q. Shen, Competition between weak localization and antilocalization in topological surface states, Phys. Rev. Lett. 107, 076801 (2011).
  32. Y. Chen, J.-H. Chu, J. Analytis, Z. Liu, K. Igarashi, H.-H. Kuo, X. Qi, S.-K. Mo, R. Moore, D. Lu et al., Massive Dirac fermion on the surface of a magnetically doped topological insulator, Science 329, 659 (2010).
  33. Y. Ou, C. Liu, L. Zhang, Y. Feng, G. Jiang, D. Zhao, Y. Zang, Q. Zhang, L. Gu, Y. Wang et al., Heavily Cr-doped (Bi,Sb)2Te3 as a ferromagnetic insulator with electrically tunable conductivity, APL Mater. 4, 086101 (2016).
  34. J. Karthein, J. Buchhorn, K. Underwood, A. R. Jalil, P. Schüffelgen, D. Grützmacher, and T. Schäpers, Data for: Controlling the magnetotransport properties of magnetic topological insulator thin films from Crx(Biy Sb1−y)2−xTe3 via molecular beam epitaxy, JülichDATA (2025), https://data.fz-juelich.de/dataset.xhtml?persistentId=doi:10.26165/JUELICH-DATA/VTVHYF.
