Spin-pumping in Pt/Py heterostructures: The role of Al spacer layers

Verena Ney1, Kilian Lenz2, Fabrice Wilhelm3, René Hübner2, Fabian Ganss2, Robert Freynschlag1, Jürgen Lindner2, Andrei Rogalev3, and Andreas Ney1,*

  • *Contact author: andreas.ney@jku.at
PDF

Phys. Rev. Materials 10, 075202 – Published 17 August, 2026

DOI: https://doi.org/10.1103/48tc-z3pd

Abstract

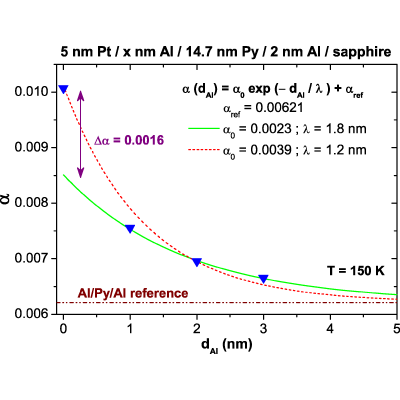

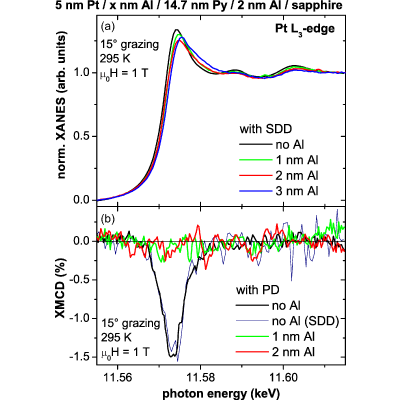

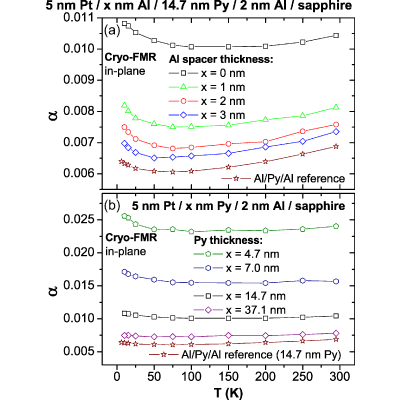

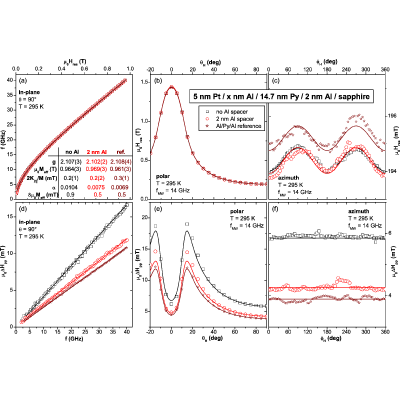

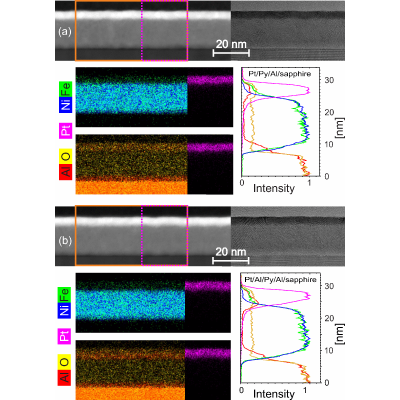

The magnetic damping of spin-pumping heterostructures consisting of Pt and Ni80Fe20 (Permalloy, Py) thin films is studied via temperature- and frequency-dependent ferromagnetic resonance (FMR). Additional magnetic and structural characterization is done by transmission electron microscopy (TEM), x-ray absorption spectroscopy, and x-ray magnetic circular dichroism (XMCD). The frequency-dependence of the FMR linewidth allows to extract the Gilbert damping parameter α as a function of temperature. Py in direct contact with Pt exhibits a strong enhancement of α(T), and the dependence on the thickness of the Py layer suggests this to be an interfacial effect. The enhanced α(T) is accompanied by an induced magnetic polarization of the Pt as evidenced by XMCD, while the other magnetic properties of Py as measured with FMR and static magnetometry remain virtually unchanged. The increase of α(T) can be efficiently suppressed by the insertion of an Al-spacer layer between Pt and Py as thin as 1 nm, which coincides with the loss of the magnetic polarization of Pt.

View figure in article

Physics Subject Headings (PhySH)

Article Text

References (17)

  1. B. Heinrich, Spin Relaxation in Magnetic Metallic Layers and Multilayers (Springer, New York, 2004), Vol. III.
  2. D. L. Mills and S. M. Rezende, Spin Dynamics in Confined Magnetic Structures (Springer, Berlin, 2003), Vol. II.
  3. T. L. Gilbert, A phenomenological theory of damping in ferromagnetic materials, IEEE Trans. Magn. 40, 3443 (2004).
  4. J. Lindner, K. Lenz, E. Kosubek, K. Baberschke, D. Spoddig, R. Meckenstock, J. Pelzl, Z. Frait, and D. L. Mills, Non-Gilbert-type damping of the magnetic relaxation in ultrathin ferromagnets: Importance of magnon-magnon scattering, Phys. Rev. B 68, 060102(R) (2003).
  5. L. Landau and E. Lifshitz, On the theory of the dispersion of magnetic permeability in ferromagnetic bodies, Phys. Z. Sowjet. 8, 153 (1935).
  6. Y. Tserkovnyak, A. Brataas, and G. E. W. Bauer, Enhanced Gilbert damping in thin ferromagnetic films, Phys. Rev. Lett. 88, 117601 (2002); Y. Tserkovnyak, A. Brataas, G. E. W. Bauer, and B. I. Halperin, Nonlocal magnetization dynamics in ferromagnetic heterostructures, Rev. Mod. Phys. 77, 1375 (2005).
  7. S. Mizukami, Y. Ando, and T. Miyazaki, The study of ferromagnetic resonance linewidth of NM/80NiFe/NM (NM = Cu, Ta, Pd and Pt) films, Jpn. J. Appl. Phys. 40, 580 (2001).
  8. M. Caminale, A. Ghosh, S. Auffret, U. Ebels, K. Ollefs, F. Wilhelm, A. Rogalev, and W. E. Bailey, Spin pumping damping and magnetic proximity effect in Pd and Pt spin-sink layers, Phys. Rev. B 94, 014414 (2016).
  9. K. Wu, J. Mao, Y. Zuo, J. Yun, B. Cui, X. Zhang, Y. Wang, H. Shi, and L. Xi, Magnetic damping constant of CoFeB/Pt thin films with varying the thicknesses of Pt and insertion layer of Al, IEEE Trans. Magn. 55, 1 (2019).
  10. V. Ney, K. Lenz, F. Ganss, R. Hübner, J. Lindner, and A. Ney, Influence of interface morphology on the magnetic damping of Al-sandwiched Permalloy thin films, Phys. Rev. Mater. 8, 114410 (2024).
  11. J.-C. Rojas-Sánchez, N. Reyren, P. Laczkowski, W. Savero, J.-P. Attané, C. Deranlot, M. Jamet, J.-M. George, L. Vila, and H. Jaffrès, Spin-pumping and inverse spin Hall effect in platinum: The essential role of spin-memory loss at metallic interfaces, Phys. Rev. Lett. 112, 106602 (2014).
  12. V. Ney, K. Lenz, F. Ganss, R. Hübner, J. Lindner, and A. Ney, Temperature dependence of bulk and interface contributions to the magnetic damping of Permalloy thin films, Phys. Rev. Mater. 10, 024409 (2026).
  13. All data taken at the ESRF during the experimental session HC-6076 will be available under doi: 10.15151/ESRF-ES-2049623240.
  14. A. Rogalev, F. Wilhelm, J. Goulon, and G. Goujon, in Magnetism and Synchrotron Radiation: Towards the Fourth Generation Light Sources, Springer Proceedings in Physics (Springer, Cham, 2013), Vol. 151, pp. 289–314.
  15. F. J. Jedema, M. S. Nijboer, A. T. Filip, and B. J. van Wees, Spin injection and spin accumulation in all-metal mesoscopic spin valves, Phys. Rev. B 67, 085319 (2003).
  16. Y. Zhao, Q. Song, S.-H. Yang, T. Su, W. Yuan, S. S. P. Parkin, J. Shi, and W. Han, Experimental investigation of temperature-dependent Gilbert damping in Permalloy thin films, Sci. Rep. 6, 22890 (2016).
  17. A. T. Costa and R. B. Muniz, Breakdown of the adiabatic approach for magnetization damping in metallic ferromagnets, Phys. Rev. B 92, 014419 (2015).
