Determining Energy Dispersion of Spin Excitations with Scanning Tunneling Spectroscopy

J. C. G. Henriques1,2, Chenxiao Zhao3, G. Catarina3, Pascal Ruffieux3, Roman Fasel3,4, and J. Fernández-Rossier1,*

  • *On permanent leave from Departamento de Física Aplicada, Universidad de Alicante, 03690 San Vicente del Raspeig, Spain.
PDF

Phys. Rev. Lett. 135, 096703 – Published 29 August, 2025

DOI: https://doi.org/10.1103/n8jn-p468

Abstract

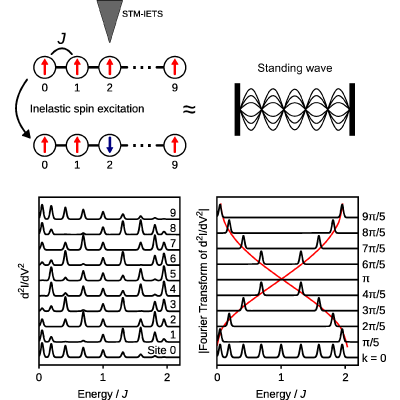

Conventional methods to measure the dispersion relations of collective spin excitations involve probing bulk samples with particles such as neutrons, photons, or electrons, which carry a well-defined momentum. Open-ended finite-size spin chains, on the contrary, do not have a well-defined momentum due to the lack of translation symmetry, and their spin excitations are measured with an eminently local probe, using inelastic electron tunneling spectroscopy (IETS) with a scanning tunneling microscope (STM). Here, we discuss under what conditions STM-IETS spectra can be Fourier-transformed to yield dispersion relations in these systems. We relate the success of this approach to the degree to which spin excitations form standing waves. We show that STM-IETS can reveal the energy dispersion of magnons in ferromagnets and triplons in valence bond crystals, but not that of spinons, the spin excitations in Heisenberg spin-1/2 chains. We compare our theoretical predictions with state-of-the-art measurements on nanographene chains that realize the relevant spin Hamiltonians.

View figure in article

Physics Subject Headings (PhySH)

Article Text

Supplemental Material

References (66)

  1. A. S. T. Pires, Theoretical Tools for Spin Models in Magnetic Systems (IOP Publishing, Temple Circus, 2021).
  2. J. Prokop, W. X. Tang, Y. Zhang, I. Tudosa, T. R. F. Peixoto, K. Zakeri, and J. Kirschner, Phys. Rev. Lett. 102, 177206 (2009).
  3. R. Hisatomi, A. Osada, Y. Tabuchi, T. Ishikawa, A. Noguchi, R. Yamazaki, K. Usami, and Y. Nakamura, Phys. Rev. B 93, 174427 (2016).
  4. Y. Tabuchi, S. Ishino, T. Ishikawa, R. Yamazaki, K. Usami, and Y. Nakamura, Phys. Rev. Lett. 113, 083603 (2014).
  5. Y. Tabuchi, S. Ishino, A. Noguchi, T. Ishikawa, R. Yamazaki, K. Usami, and Y. Nakamura, Science 349, 405 (2015).
  6. A. V. Chumak, V. I. Vasyuchka, A. A. Serga, and B. Hillebrands, Nat. Phys. 11, 453 (2015).
  7. S. S. Pershoguba, S. Banerjee, J. C. Lashley, J. Park, H. Ågren, G. Aeppli, and A. V. Balatsky, Phys. Rev. X 8, 011010 (2018).
  8. H. Kubota, A. Fukushima, K. Yakushiji, T. Nagahama, S. Yuasa, K. Ando, H. Maehara, Y. Nagamine, K. Tsunekawa, D. D. Djayaprawira, N. Watanabe, and Y. Suzuki, Nat. Phys. 4, 37 (2008).
  9. J. C. Sankey, Y.-T. Cui, J. Z. Sun, J. C. Slonczewski, R. A. Buhrman, and D. C. Ralph, Nat. Phys. 4, 67 (2008).
  10. A. Scheie, P. Laurell, B. Lake, S. E. Nagler, M. B. Stone, J.-S. Caux, and D. A. Tennant, Nat. Commun. 13, 5796 (2022).
  11. T. Kulka, M. Panfil, M. Berciu, and K. Wohlfeld, Phys. Rev. Lett. 134, 236504 (2025).
  12. J. Gauyacq and N. Lorente, J. Phys. Condens. Matter 26, 394005 (2014).
  13. M. Mourigal, M. Enderle, A. Klöpperpieper, J.-S. Caux, A. Stunault, and H. M. Rønnow, Nat. Phys. 9, 435 (2013).
  14. G. Müller, H. Thomas, H. Beck, and J. C. Bonner, Phys. Rev. B 24, 1429 (1981).
  15. J. P. Gauyacq and N. Lorente, Phys. Rev. B 83, 035418 (2011).
  16. J. des Cloizeaux and J. J. Pearson, Phys. Rev. 128, 2131 (1962).
  17. D. Hirobe, M. Sato, T. Kawamata, Y. Shiomi, K.-i. Uchida, R. Iguchi, Y. Koike, S. Maekawa, and E. Saitoh, Nat. Phys. 13, 30 (2017).
  18. L. Wu, S. Nikitin, Z. Wang, W. Zhu, C. D. Batista, A. Tsvelik, A. M. Samarakoon, D. A. Tennant, M. Brando, L. Vasylechko, M. Frontzek, A. T. Savici, G. Sala, G. Ehlers, A. D. Christianson, M. D. Lumsden, and A. Podlesnyak, Nat. Commun. 10, 698 (2019).
  19. K. Hwang and Y. B. Kim, Phys. Rev. B 93, 235130 (2016).
  20. S. Sachdev and R. N. Bhatt, Phys. Rev. B 41, 9323 (1990).
  21. B. Kumar, Phys. Rev. B 82, 054404 (2010).
  22. R. Kumar, D. Kumar, and B. Kumar, Phys. Rev. B 80, 214428 (2009).
  23. R. Kumar and B. Kumar, Phys. Rev. B 77, 144413 (2008).
  24. S. Gopalan, T. M. Rice, and M. Sigrist, Phys. Rev. B 49, 8901 (1994).
  25. A. Sattler and M. Daghofer, Phys. Rev. B 110, 024404 (2024).
  26. C. F. Hirjibehedin, C. P. Lutz, and A. J. Heinrich, Science 312, 1021 (2006).
  27. D.-J. Choi, N. Lorente, J. Wiebe, K. von Bergmann, A. F. Otte, and A. J. Heinrich, Rev. Mod. Phys. 91, 041001 (2019).
  28. A. Spinelli, B. Bryant, F. Delgado, J. Fernández-Rossier, and A. F. Otte, Nat. Mater. 13, 782 (2014).
  29. H. Wang, P. Fan, J. Chen, L. Jiang, H.-J. Gao, J. L. Lado, and K. Yang, Nat. Nanotechnol. 19, 1782 (2024).
  30. R. Toskovic, R. Van Den Berg, A. Spinelli, I. Eliens, B. Van Den Toorn, B. Bryant, J.-S. Caux, and A. Otte, Nat. Phys. 12, 656 (2016).
  31. S. Mishra, G. Catarina, F. Wu, R. Ortiz, D. Jacob, K. Eimre, J. Ma, C. A. Pignedoli, X. Feng, P. Ruffieux et al., Nature (London) 598, 287 (2021).
  32. C. Zhao, G. Catarina, J.-J. Zhang, J. C. Henriques, L. Yang, J. Ma, X. Feng, O. Gröning, P. Ruffieux, J. Fernández-Rossier, and R. Fasel, Nat. Nanotechnol. 19, 1789 (2024).
  33. K. Sun, N. Cao, O. J. Silveira, A. O. Fumega, F. Hanindita, S. Ito, J. L. Lado, P. Liljeroth, A. S. Foster, and S. Kawai, Sci. Adv. 11, eads1641 (2025).
  34. X. Fu, L. Huang, K. Liu, J. C. Henriques, Y. Gao, X. Han, H. Chen, Y. Wang, C.-A. Palma, Z. Cheng, X. Lin, S. Du, J. Ma, J. Fernández-Rossier, X. Feng, and H.-J. Gao, Nat. Synth. Gas 4, 684 (2025).
  35. C. Zhao, L. Yang, J. C. Henriques, M. Ferri-Cortés, G. Catarina, C. A. Pignedoli, J. Ma, X. Feng, P. Ruffieux, J. Fernández-Rossier, and R. Fasel, Nat. Mater. 24, 722 (2025).
  36. Z. Yuan, X.-Y. Zhang, Y. Jiang, X. Qian, Y. Wang, Y. Liu, L. Liu, X. Liu, D. Guan, Y. Li, H. Zheng, C. Liu, L. Jia, Jinfeng, M. Qin, Q. Liu, Pei-Nian, D.-Y. Li, and S. Wang, J. Am. Chem. Soc. 147, 5004 (2025).
  37. X. Su, Z. Ding, Y. Hong, N. Ke, K. Yan, C. Li, Y.-F. Jiang, and P. Yu, Nat. Synth. Gas 4, 694 (2025).
  38. J. Fransson and A. Balatsky, Phys. Rev. B 75, 195337 (2007).
  39. J. Fransson and A. Balatsky, Phys. Rev. B 85, 161401(R) (2012).
  40. S. W. Lovesey, Theory of Neutron Scattering from Condensed Matter, International Series of Monographs on Physics No. 72 (Clarendon Press, Oxford, 1984).
  41. J. Rossat-Mignod, L. Regnault, C. Vettier, P. Bourges, P. Burlet, J. Bossy, J. Henry, and G. Lapertot, Physica (Amsterdam) 185C, 86 (1991).
  42. G. B. Benedek and K. Fritsch, Phys. Rev. 149, 647 (1966).
  43. J. Dil, Rep. Prog. Phys. 45, 285 (1982).
  44. A. Damascelli, Z. Hussain, and Z.-X. Shen, Rev. Mod. Phys. 75, 473 (2003).
  45. J. A. Sobota, Y. He, and Z.-X. Shen, Rev. Mod. Phys. 93, 025006 (2021).
  46. L. Petersen, P. T. Sprunger, P. Hofmann, E. Lægsgaard, B. G. Briner, M. Doering, H.-P. Rust, A. M. Bradshaw, F. Besenbacher, and E. W. Plummer, Phys. Rev. B 57, R6858 (1998).
  47. J. I. Pascual, G. Bihlmayer, Y. M. Koroteev, H.-P. Rust, G. Ceballos, M. Hansmann, K. Horn, E. V. Chulkov, S. Blügel, P. M. Echenique, and P. Hofmann, Phys. Rev. Lett. 93, 196802 (2004).
  48. H. Söde, L. Talirz, O. Gröning, C. A. Pignedoli, R. Berger, X. Feng, K. Müllen, R. Fasel, and P. Ruffieux, Phys. Rev. B 91, 045429 (2015).
  49. A. J. Macdonald, Y.-S. Tremblay-Johnston, S. Grothe, S. Chi, P. Dosanjh, S. Johnston, and S. A. Burke, Nanotechnology 27, 414004 (2016).
  50. K. Schouteden, P. Lievens, and C. Van Haesendonck, Phys. Rev. B 79, 195409 (2009).
  51. R. Temirov, S. Soubatch, A. Luican, and F. Tautz, Nature (London) 444, 350 (2006).
  52. N. Nilius, T. Wallis, and W. Ho, Science 297, 1853 (2002).
  53. L. Schneider, P. Beck, T. Posske, D. Crawford, E. Mascot, S. Rachel, R. Wiesendanger, and J. Wiebe, Nat. Phys. 17, 943 (2021).
  54. M. Crommie, C. P. Lutz, and D. Eigler, Nature (London) 363, 524 (1993).
  55. J.-X. Zhu, A. V. Balatsky, T. Devereaux, Q. Si, J. Lee, K. McElroy, and J. C. Davis, Phys. Rev. B 73, 014511 (2006).
  56. J.-X. Zhu, K. McElroy, J. Lee, T. Devereaux, Q. Si, J. Davis, and A. V. Balatsky, Phys. Rev. Lett. 97, 177001 (2006).
  57. J. Lee, K. Fujita, K. McElroy, J. Slezak, M. Wang, Y. Aiura, H. Bando, M. Ishikado, T. Masui, J.-X. Zhu, A. V. Balatsky, H. Eisaki, S. Uchida, and J. C. Davis, Nature (London) 442, 546 (2006).
  58. J. A. Appelbaum, Phys. Rev. 154, 633 (1967).
  59. J. Fernández-Rossier, Phys. Rev. Lett. 102, 256802 (2009).
  60. M. Ternes, New J. Phys. 17, 063016 (2015).
  61. See Supplemental Material at http://link.aps.org/supplemental/10.1103/n8jn-p468 for additional details, figures, and derivations.
  62. A. Collins, C. J. Hamer, and Z. Weihong, Phys. Rev. B 74, 144414 (2006).
  63. N. Krane, E. Turco, A. Bernhardt, D. Jacob, G. Gandus, D. Passerone, M. Luisier, M. Juríček, R. Fasel, J. Fernández-Rossier et al., Nano Lett. 23, 9353 (2023).
  64. C. Kittel, Quantum Theory of Solids, 2nd ed. (Wiley, New York, 1991).
  65. N. Krane, E. Turco, A. Bernhardt, M. Juríček, R. Fasel, and P. Ruffieux, arXiv:2411.19670.
  66. Data reference TBD.
